2019-2023 Genesis G70 ABS Module: Fire Risk Recall, Programming, and Replacement Guide
This guide covers the critical fire risk recall, mandatory programming, and common failure symptoms for the 2019-2023 Genesis G70 ABS control module.
- A critical recall (NHTSA 21V-161000) exists for 2019-2021 models due to a fire risk from the ABS module short-circuiting. Park outside until the recall is performed.
- Any replacement ABS module, new or used, MUST be programmed to your vehicle's VIN and specific options to function.
- Compatibility is crucial. You must match the part number to your vehicle's drivetrain (RWD/AWD) and options like adaptive cruise control.
- Failure disables ABS, traction control, and stability control, compromising vehicle safety in emergency maneuvers.
Symptoms of a Failing Genesis G70 ABS Module
A problem with the ABS module will almost always trigger a warning light on your dashboard. Because the module is tied into multiple vehicle systems, you may see several lights at once.
- ABS Warning Light: The most common symptom is an illuminated ABS light on the instrument cluster.
- Traction Control/Stability Control Lights: Since the ABS module controls these systems, you will likely see the traction control (a car with squiggly lines) or ESC/ESP light turn on as well.
- Unresponsive or Spongy Brake Pedal: In some cases, a failing module can cause the brake pedal to feel different, either requiring more effort to press or feeling soft and unresponsive.
- Wheels Locking Up: The primary job of ABS is to prevent wheels from locking and skidding. If the module fails, the system may not activate, allowing wheels to lock up during hard braking, especially on slippery surfaces.
- Inaccurate Speedometer: The ABS module processes wheel speed data, which can sometimes affect the speedometer, causing it to show an incorrect speed or stop working altogether.
Common Diagnostic Trouble Codes (DTCs)
A technician with an OBD-II scanner can pull specific codes to diagnose the problem. While many codes can indicate an ABS issue, here are some common ones related to module and system failure:
| Code | Description |
|---|---|
| C1201 | General Anti-Lock Braking System (ABS) issue. |
| C0035 / C0040 / C0045 / C0050 | Indicates a problem with the circuit for the Left Front, Right Front, Left Rear, or Right Rear wheel speed sensor, respectively. |
| C0110 | Points to a malfunction in the ABS Pump Motor Circuit. |
| C0121 | Indicates a problem with the Valve Relay Circuit within the ABS module. |
| C0265 | Points to a fault in the Electronic Brake Control Module (EBCM) Relay Circuit. |
Warning: These codes indicate the area of the fault but do not pinpoint the exact failing part. A faulty wheel speed sensor can trigger a code that seems like a module failure. Proper diagnosis is required before replacing the module.
Known Issues, Recalls, and Technical Service Bulletins (TSBs)
NHTSA Recall 21V-161000 (Genesis Campaign 007G): Risk of Fire

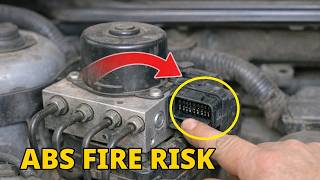

🎬 Watch: Understanding the G70 HECU fire risk and recall details.Hyundai issued a critical safety recall for certain 2019-2021 Genesis G70 vehicles because the ABS module could malfunction and cause an electrical short. This short circuit can lead to an engine compartment fire, which can happen while the vehicle is being driven or even while it is parked with the ignition off. The cause is believed to be internal seals that fail, allowing brake fluid to leak onto the constantly-powered internal circuit board.
The official remedy from Genesis is to have a dealer install a new ABS module fuse with a lower amperage rating. This doesn't fix the potential leak but is designed to blow the fuse and cut power before the module can overheat and cause a fire. Due to the fire risk, NHTSA and Genesis strongly advise owners to park their vehicles outside and away from structures until the recall repair has been performed.
Buying a Used 2019-2023 G70 ABS Module: What to Know
A used OEM ABS module can be a cost-effective alternative to a brand-new unit, but careful selection is essential. Given the electronic complexity, getting the right part is more than just a physical match.
Compatibility is Critical: Match Your Options
The single most important factor is matching the part to your vehicle's specific features. The ABS module is calibrated differently based on several key options:
- Drivetrain: Rear-Wheel Drive (RWD) and All-Wheel Drive (AWD) models use different ABS modules.
- Engine: The 2.0L Turbo and 3.3L Twin-Turbo engines may have different module requirements.
- Adaptive (Smart) Cruise Control: Vehicles equipped with adaptive cruise control require a specific module that can integrate with that system. The provided part number 58920-G9BE0 is explicitly for models with this feature.
Warning: One of the provided part numbers, 58920-G9BE0, is specified for vehicles with adaptive cruise control. Another warning in the initial data specified a module for 2.0L RWD models only. You must verify the part number from your original module to ensure compatibility.
Part Numbers: Your Key to a Perfect Match
Always match the OEM part number from your existing module to the replacement part. Do not rely on visual similarity alone. Known OEM part numbers for the 2019-2023 Genesis G70 include:
- 58920-G9230
- 58920-G9BE0 (Confirmed for models with Smart/Adaptive Cruise Control)
- 58920-G9MA0
Physical Inspection Checklist
When you receive your used module, inspect it carefully before installation:
- Check the Connectors: Look for any signs of corrosion, bent pins, or damage to the plastic housing.
- Inspect the Casing: Check for cracks, signs of being pried open, or heavy corrosion on the aluminum hydraulic block.
- Verify Part Number: Ensure the part number on the unit you received matches what you ordered and what is required for your vehicle.
Programming and Calibration: A Required Step
A replacement ABS module—whether new or used—must be programmed to your vehicle's Vehicle Identification Number (VIN). This is not an optional step. The module needs to be coded with your car's specific configuration (engine, drivetrain, options) to communicate correctly with the Engine Control Unit (ECU), transmission, and other systems.
Skipping this step will result in the ABS and traction control lights staying on, and the safety systems will not function. This programming can be performed by a Genesis dealership or a qualified independent repair shop that has the appropriate diagnostic tools and software, such as a high-end Autel scanner. Many dealerships may be hesitant to program a used part, so it's wise to confirm with an independent shop beforehand.
Replacement Cost Comparison
Prices can vary based on location and supplier. The following is an estimate of what you can expect to pay.
| Part/Service | Estimated Cost |
|---|---|
| New OEM Module | $1,400 - $2,200 |
| New Aftermarket Module | Not widely available |
| Used OEM Module | $150 - $400 |
| Shop Labor (Installation & Bleeding) | $200 - $400 |
| Programming | $100 - $250 |
Frequently Asked Questions (FAQ)
Can I drive my G70 with a bad ABS module?
Yes, but with significant risks. Your normal hydraulic brakes will still function, but the anti-lock (ABS), traction control, and stability control safety features will be disabled. This means your wheels can lock up during a hard stop, increasing the risk of skidding and losing control, especially on wet or loose surfaces. Due to the fire risk associated with the recall, it is strongly recommended to park outside and away from structures until the vehicle is repaired.
Does a used ABS module have to be programmed?
Yes, absolutely. Any replacement ABS module, new or used, must be programmed to your car's VIN and specific options. Without programming, the module will not work with your car's other computer systems, and your safety systems will remain offline.
What is the difference between the ABS module and the ABS pump?
The two parts are typically sold together as a single assembly. The ABS module is the electronic control unit (the 'brain'), while the ABS pump (or hydraulic control unit) is the mechanical part with valves and a motor that modulates brake fluid pressure. On the G70, they are bolted together into one component.
Can I replace the ABS module myself?
While the physical replacement is possible for an experienced DIY mechanic, the final steps make it difficult. The brake system must be properly bled using a scan tool to cycle the ABS pump solenoids to remove all air. Most importantly, the module requires programming with specialized equipment, so a trip to a dealer or qualified shop will be necessary regardless.
Helpful Videos
Technical Specifications
OEM Part Numbers: 58920-G9230 58920-G9BE0 58920-G9MA0 58920G9BE0 58920G9MA0
The module is an integrated electronic and hydraulic unit. It requires programming and VIN-matching upon installation. Specific versions exist for vehicles with and without adaptive (smart) cruise control.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
