Chrysler & Jeep 9-Speed Transmission Control Module (TCM): Symptoms, Programming & Replacement

Symptoms of a Failing Transmission Control Module

A failing TCM can make your vehicle feel unpredictable or unsafe to drive. Because it directly controls the transmission's mechanical operations, symptoms are almost always related to shifting and performance. Look for these common warning signs:

• Harsh or Erratic Shifting: The vehicle may slam into gear, hesitate, or shift at the wrong times.
• Getting Stuck in Gear: The transmission may refuse to shift out of a particular gear, sometimes referred to as "limp mode," to prevent further damage.
• Delayed Engagement: When shifting from Park to Drive or Reverse, there may be a long pause before the gear engages.
• Warning Lights: The most common indicator is an illuminated Check Engine Light or a transmission-specific warning light on the dashboard.
• Flashing Odometer: In many FCA (Fiat Chrysler Automobiles) vehicles, a flashing odometer is a tell-tale sign that a module, like the TCM, is not communicating correctly with the rest of the vehicle's network. This indicates a 'proxy configuration' issue.
• OBD-II Trouble Codes: A scan tool will likely reveal diagnostic trouble codes (DTCs) related to the transmission. Common codes include communication errors (U-codes like U0101 - Lost Communication with TCM) or specific solenoid or sensor circuit faults (P-codes).
🎬 Watch: Learn more about bad TCM symptoms and reset procedures.

Known Issues, Recalls, and Technical Service Bulletins (TSBs)

While there may not be a widespread recall specifically for the TCM on all these models, several related issues exist for the powertrain and its electronics.

• Jeep Cherokee (2014-2017) PTU Recall: NHTSA recall 20V-343 (FCA W47) was issued for an issue with the Power Transfer Unit (PTU) that could lead to a loss of power or the vehicle rolling away while in Park. The fix involves reprogramming the Drivetrain Control Module (DTCM) and Electric Park Brake, highlighting the importance of software in managing the drivetrain components.
• Software Updates: Dealers often release software updates to improve the performance of the 9-speed transmission. If you are experiencing minor shifting issues, it's worth checking with a dealer to see if a software flash is available before condemning the TCM itself.

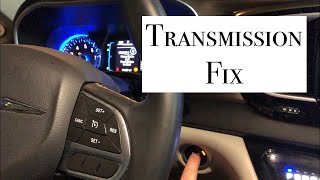

🎬 See this quick guide on improving shift quality without tools.

CRITICAL: Programming and Installation Requirements

Replacing the TCM in these vehicles is not a simple plug-and-play repair. The replacement module, especially a used one, must be professionally programmed to your specific vehicle. Failure to do so will result in the vehicle not starting, not shifting correctly, or having persistent error codes. There are three key steps:

1. VIN Programming: The vehicle's unique 17-digit Vehicle Identification Number (VIN) must be written to the replacement TCM. A used module will retain the VIN from its donor vehicle, which will conflict with your vehicle's other computers.
2. Proxy Alignment (or Proxi Configuration): This is a specific FCA procedure that allows all of the vehicle's computers (ECU, BCM, TCM, etc.) to recognize each other and communicate properly. If this step is skipped, you will almost certainly have a flashing odometer and communication error codes.
3. Valve Body Solenoid Learn: This procedure allows the new TCM to learn the specific electrical characteristics of the solenoids in your transmission's valve body, ensuring smooth and precise shifts.

This programming requires specialized tools like the dealer's wiTECH software or a high-end professional aftermarket scan tool. Because of these requirements, this is not a feasible DIY job for most home mechanics.

Who can program the TCM?

• FCA Dealerships: They have the guaranteed correct tools and access to the latest software.
• Qualified Independent Shops: Many independent mechanics who specialize in Chrysler/Jeep/Dodge vehicles have the necessary tools and subscriptions (like TechConnect) to perform programming.
• Automotive Locksmiths: Many modern automotive locksmiths have expanded into module programming and may be a more affordable option than the dealer.
• Mail-In Cloning Services: Some companies offer a service where you send them your original (faulty) TCM and the used replacement. They will clone the data from your old module to the new one, making it plug-and-play upon return.

Buying a Used Transmission Control Module: What to Look For

A used OEM TCM is a great way to save a significant amount of money, but you must buy smart. Here’s what to check:

• Match Part Numbers Exactly: There are many variations of this TCM. The part number on the used module MUST match your original part number. Do not rely on a visual match alone.
• Inspect for Damage: Check the connectors for any bent, broken, or corroded pins. Look at the case for any signs of physical damage or being pried open.
• Factor in Programming Costs: Remember that the price of the used part is not your final cost. Get a quote for programming from a local shop or dealer before you buy the part.
• Consider Pre-Programmed or Cloned Modules: Some sellers may offer to pre-program the module with your VIN for an additional fee, or you can use a cloning service. This can simplify the installation process.
• Why Used OEM is a Good Choice: For a complex electronic part like a TCM, a used original Mopar part is often more reliable than a new, cheap aftermarket alternative. The OEM module was designed specifically for your vehicle's software and hardware, ensuring perfect compatibility once programmed.

Vehicle-Specific Information & Replacement Location

The physical location of the TCM can vary slightly, but for vehicles using the ZF 9-speed (948TE) transmission, it is typically mounted directly to the outside of the transmission case.

Jeep Cherokee (2014-2021)

The TCM is located on the front of the transaxle. The most common procedure involves raising the vehicle, removing the driver's side front wheel, and accessing the module through the wheel well. Some bolts are removed from below, and some from above after removing the engine cover.

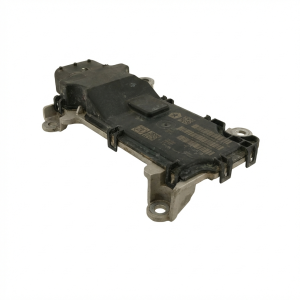

Chrysler Pacifica (2017-2019) & Chrysler 200 (2015-2017)

While less documented, these vehicles use the same family of transmissions. The TCM is very likely in a similar location, mounted externally on the transmission housing, requiring access from the driver's side wheel well.

Jeep Compass, Renegade, Fiat 500X & Ram ProMaster City

These models also feature the TCM mounted on the transmission case. The compact engine bays may require removing additional components like the air filter box for top-side access to the bolts and electrical connectors.
