2010-2017 Mazda 3, 5 & CX-7 Keyless Entry Module: Failure Symptoms and Programming Requirements

Symptoms of a Failing Keyless Entry Module

When the keyless entry module in your 2010-2013 Mazda 3, 2012-2017 Mazda 5, or 2012 Mazda CX-7 begins to fail, the symptoms are usually consistent and directly related to vehicle access and security. Unlike a failure of the main Body Control Module which can cause a wide array of bizarre electrical issues, a bad keyless entry module has a more focused set of symptoms.

• Key Fobs Stop Working: The most common symptom is a complete failure of all key fobs to lock or unlock the doors. This happens suddenly and affects all programmed remotes. If only one remote is not working, the problem is likely the remote's battery or the remote itself.
• Car Won't Enter Programming Mode: If you are trying to program a new key fob and the vehicle will not enter the programming sequence (which usually involves a series of key turns and door opening/closing), it can point to a faulty module.
• Flashing Security Light: The small car-shaped security light on the dashboard may flash rapidly or stay illuminated, indicating a problem with the immobilizer system, which this module controls.
• Intermittent No-Start Condition: In some cases, a failing module can prevent the car from recognizing the transponder chip in the key, leading to a no-start or intermittent starting issue. The engine will crank but will not fire up.
• OBD-II Communication Codes: A professional scan tool may reveal trouble codes, most commonly U0140, which indicates a loss of communication with the Body Control Module.
🎬 See how to fix a U0140 code and swap the module.

Is This the Same as the Body Control Module (BCM)?

No, and this is a critical distinction. The part numbers covered here (BBM4675DZ, BBM4675DZA) refer specifically to the Keyless Entry Module. The main Body Control Module (BCM) is a separate, more complex computer that manages a wider range of functions like interior lights, power windows, wipers, and more. While they work together, the keyless entry module's job is focused on security and remote functions. Replacing the wrong module will not solve your problem.

Programming: The Most Critical Step

You cannot install a new or used keyless entry module and expect it to work without programming. The programming process electronically syncs the module to your vehicle's main computer and your specific keys. This is an essential anti-theft measure.

Who Can Program This Module?

• Mazda Dealerships: A Mazda dealer has the required diagnostic tool, the Mazda Modular Diagnostic System (M-MDS) or Integrated Diagnostic System (IDS), to perform the programming. This is the most reliable, though often most expensive, option.
• Qualified Automotive Locksmiths: Many professional automotive locksmiths have advanced scan tools and software subscriptions that allow them to program these modules. They are often a more affordable and convenient option than a dealership.
• Independent Repair Shops: Some, but not all, independent shops may have the necessary high-end equipment (like certain Autel or Snap-on scanners) and expertise to perform the programming. You must confirm they have the specific capability for Mazda module programming before having them do the work.

For most owners, this is not a DIY-friendly task due to the high cost of the required tools and software subscriptions.

Replacement Procedure Overview

The physical replacement of the module is straightforward for a DIY mechanic. The primary challenge is accessing it. In the Mazda 3 and Mazda 5, it is typically located behind the glove box or in the driver-side footwell, 🎬 Watch: How to remove the module from under the glove box. attached to the fuse box or firewall.

1. Disconnect the negative battery terminal.
2. Remove the necessary interior trim panels to gain access. This may include the glove box assembly or the lower dashboard panel on the driver's side.

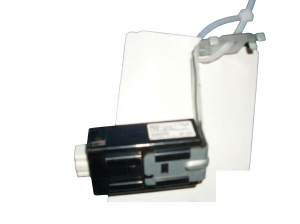

3. Locate the module. It is a small plastic box with one or more electrical connectors.
4. Carefully disconnect the wiring harnesses and unbolt the module from its bracket.
5. Install the replacement module, reconnect the harnesses and trim, and reconnect the battery.
6. The vehicle must then be taken to a dealer or locksmith for immediate programming.

Buying a Used Keyless Entry Module

A used OEM module is a cost-effective and reliable alternative to a new part. When purchasing a used module, follow these guidelines:

• Match the Part Number Exactly: The part number on the used module must be an exact match to your original one (e.g., BBM4675DZA). There are no substitutes.
• Inspect for Damage: Check the module's casing for any cracks or signs of water intrusion. Ensure the connector pins are straight and free of corrosion.
• Factor in Programming Costs: Remember that the price of the used part is not your final cost. Get a quote for programming from a local locksmith or dealer and add it to the price of the part to understand your total expense.
• Source from a Reputable Seller: Buy from a seller that offers a warranty and guarantees the part is in good working condition.

Cost Comparison

Known Issues, TSBs, and Recalls

As of early 2026, there are no widespread recalls or Technical Service Bulletins (TSBs) from Mazda specifically addressing the failure of this keyless entry module for the 2012 CX-7, 2010-2013 Mazda 3, or 2012-2017 Mazda 5. Failures appear to be isolated incidents related to the age of the electronics rather than a specific manufacturing defect.
