2007-2014 Edge & 2007-2015 MKX Door Panel Guide: Fixing Peeling, Rattles, and Fitment

Vehicle and Part Generation Guide

This guide specifically covers the interior door trim panels for the first-generation 2007-2014 Ford Edge and the mechanically similar 2007-2015 Lincoln MKX. These vehicles share a common platform, and their door panels are often interchangeable, provided the trim and options match.

Symptoms of a Failing Door Panel

Failure of a door panel is almost always related to physical wear and tear rather than a mechanical defect. The symptoms are usually easy to see, hear, or feel.

• Rattling or Buzzing Noises: This is the most common complaint. The plastic clips holding the panel to the door frame become brittle and break over time, allowing the panel to vibrate against the metal door. This is most noticeable on rough roads or when the audio system is playing with heavy bass.
• Peeling or Bubbling Armrest Material: The vinyl or leather material on the armrest and door inserts is notorious for separating from the panel. This is caused by the thin layer of foam underneath the material, which degrades into a dry, crumbly powder, causing the adhesive to fail.
• Loose Fit and Gaps: You may see the panel pulling away from the door, creating visible gaps along the edges. This is a clear sign that multiple mounting clips have broken or that retaining screws are missing.
• Malfunctioning Switches or Handles: While the switches and handles are separate parts, their mounting points are part of the door panel. If the plastic structure cracks, the window switch assembly may feel loose, or the interior door handle may have excessive play.
🎬 Watch: How to replace the interior door handle assembly.
• Scuffs, Scratches, and Cracks: Simple cosmetic damage from shoes, bags, or general use is a primary reason for replacement.

Known Issues, TSBs, and Recalls

While there are no direct recalls for the door panel itself, owners should be aware of a few related issues for these vehicles.

Common Peeling Armrest Inserts

The most widespread issue is the peeling of vinyl or leather on the armrests and upper door inserts. This is not a defect in the material itself, but a failure of the underlying foam padding which turns to dust. Many owners attempt to re-glue the material, but for a permanent fix, the old, deteriorated foam must be completely scraped off before new adhesive is applied.

NHTSA Investigation: Door Latch Failures (2011-2013 Ford Edge)

The NHTSA opened a significant investigation into the 2011-2013 Ford Edge for faulty door latches. Owners reported the "Door Ajar" warning light staying on even when the doors were closed, and in some cases, doors failing to latch securely. While this is a problem with the latch mechanism inside the door, not the panel, replacing the latch requires the full removal of the interior door panel. If you are experiencing these symptoms, the latch mechanism is the likely culprit.

Buying a Used Door Interior Trim Panel: What to Check

Buying a used OEM panel is the most cost-effective way to get a high-quality replacement. However, a careful inspection is essential to ensure you get a good part. Here is a checklist of what to inspect:

1. All Mounting Points Intact: This is the single most important check. Flip the panel over and meticulously inspect all the plastic tabs and mounting bosses. Look for any cracks or missing pieces where the perimeter clips attach and where screws are inserted. Even one broken main tab can cause rattles.
2. Armrest and Insert Condition: Check the armrest and any cloth, vinyl, or leather inserts for peeling, bubbling, or excessive wear. Press on the material to feel for the crumbly, failed foam underneath.
3. No Warping or Water Damage: Lay the panel on a flat surface to check for warping. Inspect the pressed fiberboard or composite backing for any water stains, swelling, or mold, which indicates the door's inner weather shield may have failed on the donor car.
4. Speaker Grille Match: Verify the speaker grille matches your car's audio system. Panels for the upgraded Sony audio system have a different grille (often with a Sony logo) than the standard system. They are not interchangeable.
5. Ambient Lighting Provision: Higher trim levels on both the Edge (Limited, Sport) and MKX came with an optional ambient lighting package, which includes a plastic light pipe in the door panel. If your car has this feature, the replacement panel MUST also have the channel for the light pipe.
6. Correct Color and Material: Ford and Lincoln offered several interior colors like Charcoal Black, Stone (tan/gray), and others. Ensure the color and material (cloth for Edge SE, leather/vinyl for higher trims) are an exact match.

Cost of Replacement

Replacing a door panel can be expensive if buying new, which makes a quality used part an excellent value.

Replacement Guide & Difficulty

Replacing the door panel on a 2007-2014 Ford Edge or 2007-2015 Lincoln MKX is a straightforward job suitable for a DIYer with basic tools. The process generally takes 30-60 minutes per door.

• Difficulty: 2/5
• Estimated Time: 1 hour
• Tools Required: Plastic trim removal tool set, Phillips screwdriver, small flathead screwdriver, and a socket set (typically 5.5mm, 7mm, or 10mm depending on year).

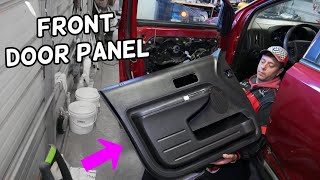

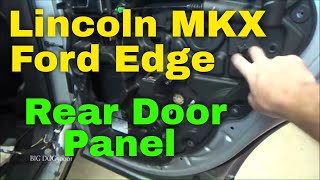

Basic Steps:

1. Disconnect the negative battery terminal.
2. Locate and remove all retaining screws. Common locations include: behind a small cover in the interior door handle recess, under a trim piece in the armrest/door pull cup, and along the bottom and side edges of the panel.
3. Pry out the window switch control panel and disconnect its electrical connectors.
4. Using a plastic trim removal tool, carefully pry around the perimeter of the door panel to release the plastic clips from the door frame.
5. Once all clips are free, lift the panel straight up to unhook it from the top of the door near the window.
6. Disconnect any remaining electrical connectors and the interior door handle cable.
7. Installation is the reverse of removal. Hang the panel on the top of the door first, then align and press the clips into place before reinstalling the screws.
