2018-2024 Jeep Wrangler & Gladiator Door Lock Switch: Why It Fails and How to Fix It

Symptoms of a Failing Door Lock Switch

When the door lock switch in your 2018-2024 Jeep Wrangler or 2020-2024 Jeep Gladiator begins to fail, the symptoms can range from a minor annoyance to a significant inconvenience. Because the switch is often not the root cause, it's important to pay attention to the specific symptoms.

1. One Door's Switch Stops Working

The most common symptom reported by owners is that the driver's side door lock switch stops working completely. You may notice that the passenger side switch and the key fob can still lock and unlock all the doors, but the driver's side button does nothing. This strongly points to an issue isolated to the driver's door, most often the wiring harness.

2. Intermittent Operation or Strange Behavior

You might experience the locks working only some of the time. In some cases, owners report strange behavior, like the doors locking or unlocking on their own when the door is opened or wiggled. This erratic behavior is a classic sign of a short or a broken wire in the door harness making intermittent contact.

3. Clicking or Buzzing Noises

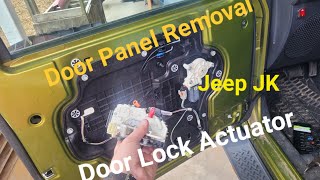

If you hear a clicking sound from the door when you press the switch but the lock doesn't move, it could mean the switch is sending the signal, but the door lock actuator (the motor that moves the lock) is failing. 🎬 Watch this walkthrough for door lock actuator and panel repair. However, forum users have also reported hearing a clicking sound coming from the switch area itself, which was traced back to a wiring issue.

Known Issues, TSBs, and Recalls

While the door lock switch wiring is a well-known problem on forums, there are no specific recalls or Technical Service Bulletins (TSBs) for the failure of the electrical power door lock switch or its wiring on the Jeep Wrangler (JL) or Gladiator (JT).

NHTSA Recall 18V-786: Right Rear Door Latch

It is important not to confuse the electrical switch issue with a separate, very limited recall. In November 2018, FCA issued recall UB6 (NHTSA Campaign #18V786000) for a small number of 2018 Jeep Wrangler 4-door models. The recall affected approximately 52 vehicles built between September 26, 2018, and September 28, 2018. The issue was that the right rear door latch may have been improperly positioned during manufacturing, which could prevent the door from latching securely and potentially allow it to open while driving. This was a mechanical latch issue, not a failure of the electrical lock switch.

TSB for Manual Locks

There is also a TSB for some 2023 models equipped with manual door locks where the key cylinder could fail, but this does not apply to vehicles with power locks.

Diagnosing the Problem

Before buying a new switch, perform these checks:

1. Check the Door Harness Connector: The large, round connector in the footwell connects the door's electronics to the body. Disconnect it and inspect for any pins that look bent, pushed in, or corroded. This is a common issue, especially if the doors have been taken off recently. 🎬 See how to properly remove and reconnect your Jeep doors. Straightening a bent pin can often fix the problem instantly.
2. Inspect the Wiring Harness: Open the door and peel back the fabric sheath covering the wires that run from the door to the body. Carefully inspect the wires for breaks, cracks, or chafing, especially where the harness bends most sharply. Owners have found wires completely severed inside this loom. Wiggling this harness while an assistant operates the switch can help identify an intermittent connection.
3. Swap the Switches: If you suspect the switch itself, you can try swapping the driver's side switch with the passenger's side. If the supposedly bad switch works on the passenger side, and the good switch does not work on the driver's side, you have confirmed the problem is in the vehicle's wiring, not the switch.

Buying a Used Door Lock Switch

A used OEM door lock switch is an excellent, cost-effective option, as the switch itself is a simple and durable component that rarely fails. The key is to ensure you're not buying a part to solve a problem you don't have.

• Verify the Problem First: Do not buy any switch, new or used, until you have performed the diagnostic steps above. The vast majority of failures are due to wiring or connector pins, not the switch itself.
• Physical Inspection: When buying a used switch, check for any physical damage. Ensure the rocker moves freely and has a positive click. Look at the connector pins on the switch to make sure they are straight and clean.
• Match the Part Number: Ensure the part number matches your original switch. The driver's side (left) switch is part number 6AC61DX9AD (supersedes 6AC61DX9AB, 6AC61DX9AC), and the passenger's side (right) is 6AC64DX9AD.
• Why Used OEM is a Good Choice: For a simple component like this, a recycled OEM part from a low-mileage vehicle offers the same quality and fit as a new dealer part at a fraction of the price. Aftermarket versions may not have the same tactile feel or durability as the original Mopar part.

Cost Breakdown

Pricing can vary, but this table gives a general idea of what to expect. Note that the most common repair (fixing a broken wire) may only cost time and a few cents for a butt connector if you DIY.

Replacement Overview

Replacing the switch or repairing the wiring requires removing the interior door panel. While not overly complex, it requires care to avoid breaking plastic clips.

• Difficulty: 2 out of 5 (for switch replacement); 3 out of 5 (for wiring repair)
• Estimated Time: 1 hour for switch replacement; 1-2 hours for wiring repair.
• Tools Needed: Plastic trim removal tools, Torx bits, Phillips head screwdriver, and potentially wire strippers/cutters and butt connectors for wiring repair.

A video showing the replacement of a related door component, the door lock actuator, demonstrates the process of removing the door panel on a 2018 Wrangler.
