2002-2008 Mini Cooper Door Mirror: Power-Fold vs. Manual-Fold Explained
This guide covers common failures, replacement costs, and the critical difference between standard and optional power-folding mirrors for the first-generation Mini Cooper.
- The biggest compatibility trap is the rare power-folding mirror option; verify if your car has it before buying a replacement.
- Replacement is extremely easy (3 external bolts, 1 plug) if the bolts aren't seized by corrosion.
- Check the pin count on the electrical connector: 3-pin is power adjust only, 5-pin adds heat.
- Used OEM mirrors are often a better choice than cheap new aftermarket parts due to superior fit and quality.
Symptoms of Door Mirror Failure
When a door mirror on a first-generation Mini Cooper begins to fail, the symptoms are usually straightforward. Identifying them correctly can help you decide whether you need a full replacement assembly or just a component.
- Power Adjustment Fails: The most common issue is a failure of the internal electric motor. You might find the mirror won't move in one or all directions (up/down, left/right). Sometimes, only one axis of movement fails. This requires replacing the entire mirror assembly.
- Heated Mirror Inoperative: If your Mini is equipped with heated mirrors, the heating element can burn out. You'll notice the mirror no longer clears frost or fog while the other mirror and rear defroster still work. This can be diagnosed by checking for power at the mirror's connector.
- Physical Damage: Impacts can crack the glass, the painted mirror cap, or the black plastic housing. While the mirror cap and glass can sometimes be replaced separately, damage to the main housing or folding joint typically requires a complete new assembly.
- Loose or Rattling Mirror: The mirror may feel loose on its pivot or the glass itself may vibrate excessively while driving. This can be due to worn internal components or broken clips on the mirror cap.
Warning: The three 5mm Allen bolts that secure the mirror to the door are highly susceptible to corrosion and seizing. Spray them liberally with penetrating oil and let them soak before attempting removal. You may need to tap an Allen socket into the bolt head with a hammer to get a secure grip and avoid stripping them.
Known Issues, TSBs, and Recalls
As of early 2026, there are no specific recalls or Technical Service Bulletins (TSBs) from MINI or the NHTSA for the door mirror assemblies on 2002-2008 Mini Cooper models. The common failures are related to normal wear and tear of electrical components and exposure to the elements.
Buying a Used 2002-2008 Mini Cooper Door Mirror
Buying a used OEM mirror is a popular and cost-effective option, but careful inspection is key to getting a good part. Here’s what to check:
1. CRITICAL: Verify Manual vs. Power-Folding
This is the most important compatibility check. The vast majority of first-generation Minis in North America have manual-folding mirrors. A power-folding option was available but is extremely rare. The two types use different wiring harnesses and are not interchangeable.
- How to check your car: Look at your interior mirror control switch. If you only have the joystick for adjustment, you have manual-folding mirrors. If you have an additional button next to the joystick showing a mirror icon with an arrow, you have the power-folding option.
- When buying used: Do NOT purchase a mirror from a vehicle with power-folding mirrors unless your car also has this feature. A standard mirror will not work on a power-fold car, and vice-versa.
2. Check the Electrical Connector Pins
Disconnect the mirror and count the pins inside the electrical plug. This tells you the mirror's features.
- 3-Pin Connector: Standard power-adjustable mirror (no heat).
- 5-Pin Connector: Power-adjustable with a heating element.
- 7-Pin Connector: Power-adjustable, heated, and power-folding. The plug shape is also different.
Pro Tip: You can install a 3-pin (non-heated) mirror on a car wired for a 5-pin (heated) mirror; you will simply lose the heating function. However, you cannot install a 5-pin mirror on a car wired for only 3 pins. Always try to match the pin count.

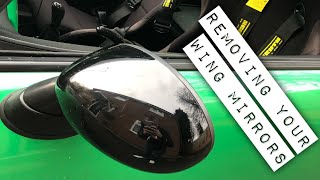

🎬 See this guide on swapping mirror units and checking pins3. Physical Inspection
- Glass: Check for cracks, deep scratches, or discoloration. Auto-dimming mirrors (if equipped) can fail and develop a bubble or distorted area.

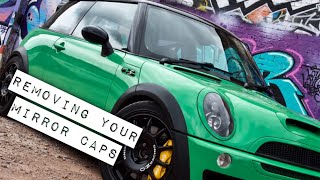

- Housing and Cap: Inspect the black plastic housing for cracks, especially around the mounting base. Check the painted cap for deep gouges or broken clips. 🎬 Watch: How to safely remove and swap mirror caps
- Folding Joint: Manually fold the mirror back and forth. It should be firm but move smoothly without excessive force or looseness.
- Mounting Bolts: While not part of the mirror itself, ask the seller if the mounting bolts were removed without issue. If they were difficult to remove, it's a good indicator of the corrosion you might face during your own installation.
Cost Comparison (2002-2008 Mini Cooper Door Mirror)
| Part Type | Estimated Price Range |
|---|---|
| New OEM | $150 - $250+ |
| New Aftermarket | $40 - $170 |
| Used OEM | $70 - $120 |
| Shop Labor | $80 - $150 |
Replacement Guide (Difficulty: 1/5)
Replacing the door mirror on a first-generation Mini is one of the easiest jobs you can do. No interior door panel removal is required. The entire process takes about 15-30 minutes, provided the bolts are not seized.
- Fold the Mirror: Fold the mirror housing forward (towards the front of the car) to expose one of the three mounting bolts. Fold it backward (towards the rear of the car) to expose the other two.
- Remove the Bolts: Using a 5mm Allen key or socket, carefully remove the three bolts from the underside of the mirror base. If they are corroded, use penetrating oil and a hammer to tap the socket on for a firm grip.
- Disconnect the Wiring: With the bolts removed, support the mirror and lift it slightly away from the door. You will see a single electrical connector. Pinch the tabs on the sides of the connector and pull it apart.

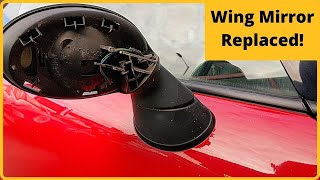

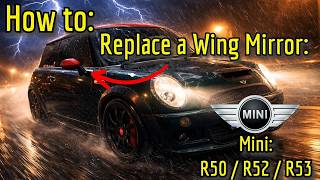

- Installation: Installation is the reverse of removal. Connect the new mirror's wiring harness, position the mirror on the door, and hand-tighten the three Allen bolts. Swivel the mirror to access and fully tighten all three bolts. Test the power adjustment and heat function. 🎬 Watch: A quick walkthrough for replacing 3 or 5-pin mirrors
Frequently Asked Questions (FAQ)
Can I just replace the mirror glass instead of the whole assembly?
Yes. If only your glass is cracked but the housing and motor are fine, you can purchase replacement mirror glass, which is much cheaper. The glass typically snaps onto the motor assembly plate inside the housing.
How do I know if I have heated mirrors?
The most reliable way is to check the connector for 5 pins, as 3-pin connectors are for non-heated mirrors. Most US-market cars came with heated mirrors, often as part of a Cold Weather Package.
Will a mirror from a convertible (R52) fit a hatchback (R50/R53)?
Yes, the door mirrors are the same across the R50 (Cooper), R53 (Cooper S), and R52 (Convertible) models for the 2002-2008 model years. Always verify the folding type (manual vs. power) and pin count.
Why is a used OEM mirror better than a new aftermarket one?
While cheaper, new aftermarket mirrors can have issues with fitment, connector quality, and the clarity or curvature of the glass. A used OEM mirror was made to MINI's original quality standards, ensuring a perfect fit and proper function, often making it a more reliable long-term choice than a low-cost aftermarket part.
Helpful Videos
Technical Specifications
OEM Part Numbers: 51167058063 51167058081 51167192469 51167192475 51167192470 51167192473
Mounting: 3x 5mm Allen bolts. Connector types: 3-pin (power adjust), 5-pin (power adjust with heat), 7-pin (power adjust, heat, power-fold).
