2006 Honda Odyssey ECM: Programming, Immobilizer, and Replacement Guide
A definitive guide to understanding the critical programming and immobilizer steps required when replacing the engine computer in your 2006 Honda Odyssey.
- The ECM must be programmed to the vehicle's immobilizer system after installation; the van will not start without this step.
- Always match the OEM part number exactly. The primary number is 37820-RGM-A75, which supersedes earlier versions.
- Programming can be done by a Honda dealer, a qualified independent shop, an automotive locksmith with the right tools, or through a mail-in cloning service.
- Symptoms of a bad ECM can mimic other failures, so a thorough diagnosis is crucial before replacing the part.
Symptoms of a Failing 2006 Honda Odyssey ECM
A failing ECM can cause a wide range of confusing and often intermittent issues. Because it controls so many different systems, the symptoms can easily be mistaken for other problems. Always perform a thorough diagnosis before condemning the ECM.

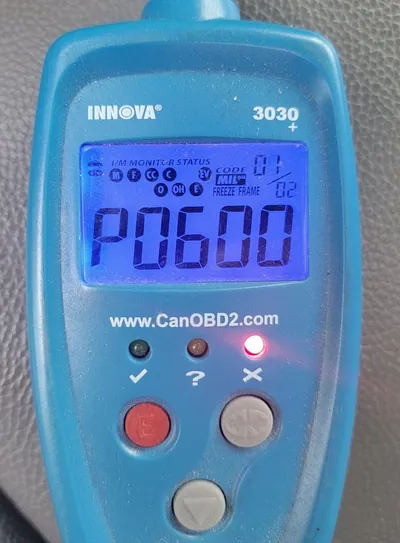

🎬 Watch: Common symptoms of a failing engine control module- Check Engine Light: An illuminated Check Engine Light is one of the most common signs. Specific codes pointing to an internal ECM failure include P0600 through P0605. However, the ECM might also incorrectly set codes for other sensors, leading to misdiagnosis.
- Engine Performance Issues: You may experience engine stuttering, misfires, hesitation, a sudden loss of power, or poor acceleration. This is often due to the ECM failing to correctly manage the air-fuel mixture or ignition timing.
- No-Start or Stalling: The vehicle may crank but refuse to start, or it may start and then stall unexpectedly. This can happen if the ECM fails to command the fuel pump or ignition system to operate.
- Poor Fuel Economy: A sudden and significant drop in gas mileage can be a sign that the ECM is no longer calculating the air-fuel ratio correctly.
- Automatic Transmission Problems: On automatic models, a bad ECM can cause harsh shifting, delayed shifting, or a failure to shift gears at all. The ECM communicates with the Transmission Control Module (TCM), and faulty data can disrupt shifting performance.
Known Issues, Recalls, and TSBs
As of early 2026, there are no specific recalls or widespread Technical Service Bulletins (TSBs) from Honda directly targeting the Engine Control Module for the 2006 Odyssey. Most recalls for this model year pertain to other issues like the fuel pump, brakes, or SRS airbag system. However, it's always wise to check for the latest recall information using your vehicle's VIN on the NHTSA website or by contacting a Honda dealer.
Important: The ECM is located in the engine bay, near the battery. While no specific issues are documented, ECMs in any vehicle can be susceptible to damage from water intrusion, excessive heat, or voltage spikes from jump-starting.
Programming and Immobilizer Requirements
This is the most critical aspect of replacing the ECM in a 2006 Honda Odyssey. You cannot simply swap the module and expect the van to start. The ECM is a key component of the vehicle's anti-theft immobilizer system.
The ECM, the immobilizer control unit, and the transponder chip inside your key must all be electronically synchronized. If you install a used or new ECM, the immobilizer system will prevent the engine from starting, and a green key-shaped light will typically flash on the dashboard.
Who Can Program the ECM?
- Honda Dealership: A dealership has the proprietary Honda Diagnostic System (HDS) software required to program the new ECM to your vehicle's VIN and sync it with your existing keys. This is the most reliable, albeit often most expensive, option.
- Qualified Independent Shops & Locksmiths: Many independent mechanics and automotive locksmiths have advanced aftermarket scan tools (like Autel IM508 or Thinkdiag) that can perform the ECM replacement function. They can register the new ECM and reprogram the keys. It is essential to confirm they have this specific capability for your Honda model before bringing them the vehicle. 🎬 Watch: How to program a Honda ECM using Autel
- Mail-In Services: Some companies offer a service where you mail in your original ECM and the replacement (used) ECM. They will clone the immobilizer data from your original unit to the replacement, making it a 'plug-and-play' solution that will work with your current keys without any further programming. This is an excellent option for DIYers but involves vehicle downtime while the units are in transit.
Pro Tip: Before purchasing a used ECM, call local locksmiths and repair shops to ask if they can program a Honda ECM and what their fee is. Securing a programmer before you buy the part can save you a significant headache and towing fees.
Buying a Used 2006 Odyssey ECM
Purchasing a used OEM ECM is a cost-effective way to get your Odyssey back on the road. Since these are complex electronic parts, here’s what to look for:
- Match the Part Number Exactly: The most important step is to match the OEM part number precisely. The primary part number for the 2006 Odyssey is 37820-RGM-A75. This number may supersede older versions like 37820-RGM-A71, 37820-RGM-A72, 37820-RGM-A73, and 37820-RGM-A74. Do not install an ECM with a different part number, even if it looks identical.
- Inspect for Physical Damage: Check the casing for any signs of being pried open, cracks, or corrosion. Pay close attention to the connector pins—they should be straight and clean, with no signs of water damage or corrosion.
- Reputable Seller: Buy from a seller who offers a warranty and a return policy. This protects you in case you receive a defective unit.
- Understand the Programming Requirement: Remember that even a perfectly functional used ECM will not work until it is programmed to your vehicle. Factor the cost of programming or cloning into your total repair budget.
Cost Comparison
Prices can vary significantly based on the source and condition of the part. Labor costs for diagnosis and programming also play a major role.
| Part or Service | Estimated Cost |
|---|---|
| New OEM ECM (Part Only) | $1,300 - $1,950 |
| Remanufactured ECM | $400 - $600 |
| Used OEM ECM | $75 - $250 |
| Shop Labor (Physical Swap) | $75 - $115 |
| Programming / Immobilizer Sync | $150 - $400 |
Frequently Asked Questions (FAQ)
Where is the ECM located on a 2006 Honda Odyssey?
The ECM is located in the engine compartment, on the driver's side, near the battery and behind the air filter housing. It is a silver metal box with several large electrical connectors.
🎬 See how to access and remove the ECM unitDo I have to take my van to the dealer to program a new ECM?
No, not necessarily. While a Honda dealer can always perform the programming, many well-equipped independent auto repair shops and automotive locksmiths have the tools to program the ECM and keys. Mail-in cloning services are also an option.
Can I drive my Odyssey with a bad ECM?
It is not recommended. Depending on the failure mode, the vehicle may not start at all, stall in traffic, or have unpredictable performance, creating a significant safety risk. If you suspect an ECM failure, it is best to have the vehicle towed for diagnosis and repair.
Will a used ECM from another 2006 Odyssey work in my van?
Yes, provided the part number is an exact match. However, it will require programming to sync with your vehicle's immobilizer system and keys before the engine will start.
Helpful Videos
Technical Specifications
OEM Part Numbers: 37820-RGM-A75 37820-RGM-A71 37820-RGM-A72 37820-RGM-A73 37820-RGM-A74
Manufacturer: Keihin
