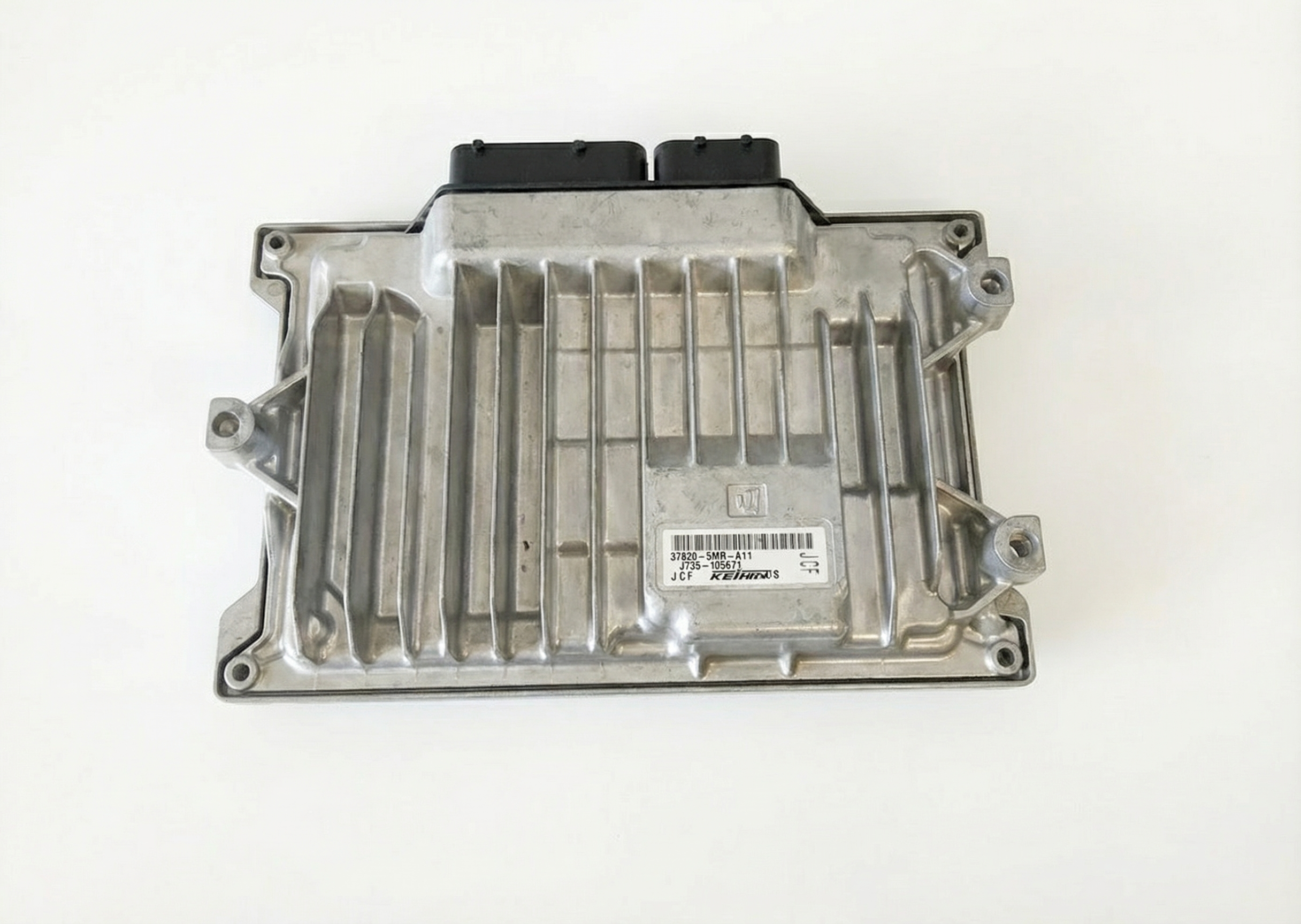

2019 Honda Odyssey ECM: Programming, Immobilizer, and Replacement Guide

Critical Warning: Programming is Mandatory

Replacing the ECM in your 2019 Odyssey is a task that requires special tools and software. The ECM is linked to the anti-theft (immobilizer) system, and a replacement unit must be introduced to the vehicle and have your existing keys registered to it. Attempting to start the car with an unprogrammed ECM will result in a no-start condition, often with a flashing green key or immobilizer symbol on the dashboard.

Symptoms of a Failing ECM

A failing ECM can cause a wide range of confusing and intermittent issues. Because it controls so many aspects of the engine, symptoms are often not straightforward.

• Check Engine Light: This is the most common symptom. Specific codes pointing to internal module failure are the strongest indicators.
• Engine Performance Issues: Poor acceleration, rough idling, stalling, misfires, or a sudden decrease in fuel economy can all be caused by a faulty ECM.
• No-Start Condition: The engine cranks but refuses to start. This can also be accompanied by a flashing immobilizer light on the instrument cluster.
• Transmission Shifting Problems: On Touring and Elite models, the ECM communicates with the 10-speed automatic transmission. Erratic shifting can sometimes be traced back to the ECM, although the Transmission Control Module (TCU) should also be investigated.
• "Engine Management System Problem" Warning: A message may appear on the multi-information display, although this can also be triggered by other modules like the Body Control Module (BCM).

Common Diagnostic Trouble Codes (DTCs)

While many codes can be triggered by a failing ECM, codes specifically pointing to the module itself are the most definitive. These include:

• P1607: ECM/PCM Internal Circuit Failure A
• P0600 - P060A: This range of codes generally relates to internal control module communication and processing errors. For example, P0606 indicates a PCM Processor Fault.
🎬 Watch: How to fix and understand the P0606 processor code.

Known Issues, Recalls, and Technical Service Bulletins (TSBs)

While there are no widespread recalls specifically for the 2019 Odyssey's ECM, there is a significant recall that owners and technicians should be aware of, as its symptoms can be confused with ECM failure.

Recall 19V299000 (Honda Z4J, Y4K): Transmission Shifts to Park

This major recall affects 2018-2019 Odyssey models. The issue stems from loose battery terminal connections or a degraded battery causing the Transmission Control Unit (TCU), not the ECM, to reboot while driving. When the TCU reboots, it can shift the transmission into Park, potentially damaging the parking mechanism and creating a rollaway risk. The fix involves dealers securing the battery terminals and updating the TCU software. This recall highlights the sensitivity of the Odyssey's electronic modules to unstable voltage.

Buying a Used 2019 Odyssey ECM: What You Must Know

Purchasing a used ECM is a cost-effective option, but it requires careful attention to detail to avoid buying a part that won't work.

1. Match the Part Number EXACTLY: Honda uses different ECMs for different trim levels and features. The part number on your original module must match the part number on the used module you are buying. The part numbers for the 2019 Odyssey Touring and Elite (with the 10-speed transmission) are 37820-5MR-A81, 37820-5MR-A82, 37820-5MR-A83, 37820-5MR-A84, and 37820-5MR-A85. Do not install an ECM from an LX or EX model, as it is designed for the 9-speed transmission and will not work.
2. Physical Inspection: When the part arrives, inspect it for any signs of physical damage, such as cracked connectors or corrosion from water intrusion. Ensure all pins in the connectors are straight and clean.
3. Budget for Programming: Remember that the cost of the used part is not the final cost. You MUST factor in the price of having it professionally programmed.

Programming and Immobilizer Requirements

As stated previously, programming is not optional. When a replacement ECM is installed, it is essentially a blank slate that does not recognize your vehicle or your keys.

The programming process involves two main steps:

1. VIN Programming: The vehicle's unique VIN must be written to the ECM.
2. Immobilizer Key Registration: The system must be initialized, and all of your existing keys must be registered to the new ECM so it recognizes them and allows the engine to start.

Who Can Program a Honda ECM?

• Honda Dealerships: This is the most straightforward option. They have the required equipment (Honda Diagnostic System or i-HDS) and direct access to Honda's network.
• Independent Repair Shops: Many independent shops and some mobile mechanics can perform this service. They must have a subscription to Honda's i-HDS software and a compatible J2534 Pass-Thru device. 🎬 Watch: How to flash reprogram a Honda using J2534 software. It is essential to confirm with the shop that they have the specific capability to program a new ECM for a 2019 Honda *before* bringing the vehicle to them.
• Locksmiths: Some advanced automotive locksmiths have the tools to program keys and immobilizer systems, but not all can perform a full ECM replacement initialization. Verify their capabilities beforehand.

Replacement Cost Comparison

The cost of replacing the ECM can vary significantly based on the part source and labor rates.

Frequently Asked Questions (FAQ)
