2008-2009 Toyota Prius Engine ECM: The Surprising Truth About Swapping and Programming

Symptoms of a Failing Engine Control Module

A failing ECM in a 2008-2009 Prius can be tricky to diagnose because its symptoms can mimic other problems. A weak or failing 12-volt battery is a frequent cause of multiple, seemingly random error codes and should always be tested first before suspecting an ECM issue.

• Check Engine Light: The most obvious sign. A constant or flashing check engine light will be present if the ECM detects a problem or has failed.
• Engine Performance Issues: You might experience poor fuel economy, rough idling, engine stalling, or a noticeable loss of power.
• No-Start Condition: A completely failed ECM can prevent the engine from starting at all, even if the hybrid system seems ready. The car may not crank, or it may crank but never fire up.
🎬 Watch: Diagnosing a 2008 Prius that won't start.
• Specific Component Failures: Sometimes, a single circuit inside the ECM fails. For example, you might get a persistent trouble code for an oxygen sensor heater (like P0036) even after replacing the sensor itself. This can indicate the driver circuit for that component within the ECM has burned out.
• Communication Errors: Your mechanic's scan tool may be unable to communicate with the engine ECM, or you may see communication-related fault codes like U0100 (Lost Communication With ECM).

Known Issues, TSBs, and Recalls

There are no active recalls from Toyota or NHTSA specifically for the Engine Control Module (part number 89661-47250) on the 2008-2009 Prius.

While several recalls and service campaigns exist for this generation of Prius, they typically involve other components. For instance, a recall for the electric water pump and a software update for the Intelligent Power Module (IPM) in the inverter were issued, but these do not directly involve replacing the engine ECM. Similarly, Technical Service Bulletin (TSB) T-TT-0086-11 notes that a rough idle or difficulty starting can happen after the ECM's power has been disconnected, which is useful to know during replacement but is not a sign of a faulty part.

Buying a Used Engine Control Module (ECM)

Purchasing a used OEM ECM is a smart way to save a significant amount of money. However, for the 2008-2009 Prius, there is one rule that is more important than any other: compatibility.

• Match the Part Number Exactly: You MUST match the OEM part number 89661-47250. Do not install an ECM with a different part number, even if it looks identical. Other modules were used on these vehicles, and using the wrong one will cause compatibility issues.
• Physical Inspection: When you receive the used module, inspect the case for any signs of being pried open. Check the connector pins to ensure none are bent, broken, or corroded. Water damage is a common killer of electronics, so look for any chalky residue or rust marks.
• Why Used OEM is a Good Choice: For a part like this, a used original Toyota part is often more reliable than a new, cheap aftermarket unit. The original parts were designed and tested for the vehicle, while aftermarket quality can be inconsistent. Given the high cost of a new OEM unit, a tested, used part offers the best value.

Programming and Installation

This is the most critical section for any buyer of a used ECM for a Gen 2 Prius. There is a lot of confusion about programming, but for this specific part, the news is good.

Does a Used Engine ECM Need to be Programmed?

No, in most cases it does not. On the 2008-2009 Toyota Prius, the immobilizer information (the data that recognizes your key) is stored in the Hybrid Vehicle Control ECU, not the Engine Control Module (ECM). As long as you replace your failed ECM with a used one that has the exact same part number (89661-47250), it should be a plug-and-play installation. The car will start and run without needing a trip to the dealer for reprogramming.

Replacement Procedure

The ECM is located behind the glove compartment on the passenger side of the dashboard.

1. Disconnect the 12V Battery: Before working on any electronic component, always disconnect the negative terminal of the 12-volt battery in the trunk.
2. Access the Module: Open and remove the glove box assembly. This usually involves releasing some clips and removing a few screws. You may need to remove additional trim panels to get clear access.

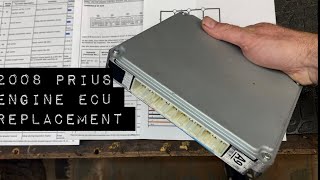

3. Unplug and Unbolt: Carefully release the locking tabs on the wiring harnesses and unplug them from the ECM. Then, remove the 10mm bolts or nuts holding 🎬 Watch: Step-by-step guide to removing the engine control computer. the ECM bracket in place.
4. Install the New Module: Installation is the reverse of removal. Bolt the new module in place, securely reconnect the wiring harnesses, and reassemble the glove box and trim.
5. Reconnect and Test: Reconnect the 12V battery. Turn the ignition on and check for any warning lights before starting the engine.

Cost to Replace a 2008-2009 Prius ECM

Frequently Asked Questions (FAQ)
