Ford Escape, Focus, MKC & Transit Connect Fuse Box Issues: Water Leaks & No-Start Problems (2012-2023)

Symptoms of a Failing Engine Fuse Box

When the main engine fuse box (BJB) begins to fail, it can cause some of the most confusing and frustrating electrical problems. Because it controls power to so many different systems, symptoms can seem random and unrelated. The most common sign is a sudden no-crank, no-start condition, but other issues can appear first.

1. Complete Loss of Electrical Power

One of the most obvious signs is a completely dead vehicle. You may get in your car and find there is no power to anything — no interior lights, no dashboard, and no response when you turn the key. This can happen even with a fully charged battery if the main fusible links inside the BJB have failed or if internal corrosion has broken the primary power connection.

2. Engine Cranks But Will Not Start

If the relay or fuse for the fuel pump or powertrain control module (PCM) fails, the engine will turn over but never start. You'll hear the starter trying, but the engine won't get the fuel or spark it needs to run. This is a common symptom of an overheated and melted fuel pump fuse terminal within the BJB.

3. Intermittent Electrical Problems

A failing BJB can cause flickering lights, a radio that cuts out, or power windows that stop working intermittently. This often points to loose internal connections, corrosion, or a failing relay that can't maintain a stable connection. For Lincoln MKC owners, this can sometimes be the cause of frustrating parasitic battery drain issues.

4. Multiple Unrelated System Failures

If you suddenly experience failures in several different systems at once (for example, the power steering, ABS, and radio all stop working), the BJB is a primary suspect. Since it's the central hub for power, a single failure inside the box can cut power to multiple components simultaneously.

5. Visible Damage or Burning Smell

A visual inspection can often confirm a bad fuse box. Look for melted plastic around any of the fuse slots, discoloration, or white/green crusty corrosion on the terminals. A distinct plastic burning smell under the hood is a serious red flag that a circuit inside the BJB is overheating.

Known Issues, TSBs, and Recalls

While there are no recalls specifically for this BJB on these exact models, Ford has issued Technical Service Bulletins (TSBs) for similar fuse boxes on other models that highlight common failure patterns directly relevant to this part.

Water Intrusion from Improperly Seated Cover

A known issue on other Ford models, such as the F-Series Super Duty, is water intrusion into the BJB. If the BJB's plastic cover is not fully seated and locked, or if the locking tabs are broken, water can drip into the box. This moisture causes severe corrosion on the internal circuits and terminals, leading to a wide range of electrical failures, including a dead battery, a no-start condition, or even the engine refusing to turn off. This is a critical inspection point for any used BJB.

Overheating Fuel Pump Fuse Terminal

Ford TSB 15-0137 was issued for 2009-2014 F-150 trucks where the 20-amp fuel pump fuse (Fuse 27) terminal inside the BJB would overheat and melt. This poor connection would cause the fuel pump to lose power, resulting in a crank-no-start or stalling condition. The official fix involves relocating the fuse to a different, more robust cavity in the box. While this TSB doesn't apply to the Escape, Focus, MKC, or Transit Connect, the failure mode—an undersized terminal melting under load—is a known weakness in some Ford BJB designs.

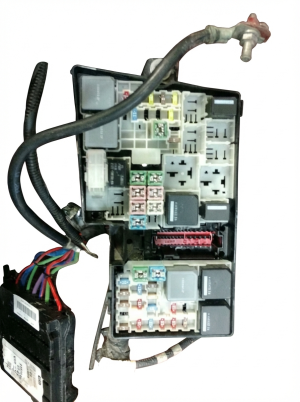

Buying a Used Fuse Box: What to Look For

A used OEM fuse box is often a reliable and cost-effective alternative to an expensive new unit, especially since quality aftermarket options are scarce. However, careful inspection is critical to avoid buying a part that is already failing.

• Check for Water Damage: Remove the top cover and look for any signs of moisture, white or green corrosion on the metal terminals, or water lines on the inside of the plastic housing. A BJB with any signs of water intrusion should be avoided.
• Inspect for Melted Terminals: Pay close attention to the sockets for high-draw components like the fuel pump, starter, and cooling fan relays. Look for any melted plastic, discoloration, or signs that a fuse fits loosely. This indicates overheating.
• Verify the Cover and Latches: Ensure the top cover is included and that all its locking tabs are intact. A missing or broken cover is the primary cause of water intrusion and future failure.
• Match Part Numbers: While these vehicles share a common platform, there can be minor differences in the internal wiring of the BJB based on engine and options. Always match the engineering number (e.g., CV6T-14A067-xx) printed on the side of your original fuse box to the used replacement.

Programming and Installation

Installation is a direct swap. No dealer visit or special tools are required for programming. The primary challenge, especially on the Ford Transit Connect, can be accessing the box. The procedure generally involves:

1. Disconnecting the vehicle's battery.
2. Removing the battery and sometimes the battery tray to gain access.
3. Unbolting the main power cable(s) from the BJB.
4. Unlocking and disconnecting the large multi-wire harness connectors.
5. Releasing the locking tabs that hold the BJB housing in place.

Installation is the reverse of removal. Ensure all harness connectors and the main cover are fully seated and locked to prevent future issues.

Associated OBD-II Trouble Codes

A failing BJB typically does not set codes that point directly to itself. Instead, it causes other modules to report errors. Common related codes include:

• P068A (ECM/PCM Power Relay De-Energized Performance - Too Early): This code is frequently caused by a faulty PCM power relay, which is located inside the BJB. It can also be triggered by a weak battery.
🎬 See this breakdown of P068A causes and potential fixes
• U0100 (Lost Communication With ECM/PCM): If the BJB fails to supply power to the engine's computer, this communication code will be stored.
• Various Fuel Pump Circuit Codes (e.g., P0230, P0627): If the fuel pump fuse or relay circuit is compromised due to overheating, codes related to the fuel pump driver module or primary circuit may be set.
