Audi A3, S3, RS3 & Q4 e-tron Headlight Guide (2017-2026): Decoding LED vs. Matrix Failures & Replacements

Critical Compatibility Warning: Not All Headlights Are The Same

Before purchasing a replacement headlight for your Audi, it is essential to understand that different vehicle platforms and trim levels use entirely different parts that are not interchangeable. The vehicles covered in this guide fall into three distinct groups:

• Audi A3/S3/RS3 (8V Platform, 2017-2020) & A3 Sportback e-tron (2017-2018): These models represent the facelift of the '8V' generation. Their headlights are specific to this platform and timeframe.
• Audi A3/S3/RS3 (8Y Platform, 2022-2026): This is the current generation. Headlights from this '8Y' platform will not fit the older 8V models, and vice-versa.
• Audi Q4 e-tron & Q4 e-tron Sportback (MEB Platform, 2022-2025): These electric SUVs are built on a completely different architecture (MEB platform) and do not share any headlight components with the A3 family.

Decoding Headlight Technologies: Standard LED vs. Matrix Design LED

Understanding the type of headlight your vehicle was equipped with from the factory is the most important step in finding the correct replacement.

• Standard LED Headlights (Audi Option Code 8IT): These are the base-level headlights on most models. They provide excellent illumination using LED technology for both low and high beams. They may include auto-leveling but lack the advanced beam-shaping capabilities of the Matrix system.
• Matrix Design LED Headlights: This is the premium, adaptive lighting option. These headlights use an array of many individual LEDs that can be turned on, off, or dimmed in real-time. A forward-facing camera detects other vehicles, and the system creates 'tunnels' of light, allowing you to drive with high beams active without glaring oncoming traffic. On the Q4 e-tron, Matrix headlights also offer four selectable daytime running light (DRL) signatures that can be changed via the MMI system.

You can typically identify Matrix headlights by their more complex internal projector and lens design, and often by a 'Matrix LED' script inside the housing.

Known Issues, TSBs, and Recalls

Audi Q4 e-tron (2022-2024): Headlight Software Recall

NHTSA Recall No. 24V361: A major recall affects 17,797 Q4 e-tron and Q4 e-tron Sportback vehicles from model years 2022-2024. These vehicles were mistakenly equipped with European-spec headlight control module software. This can cause the parking lights to not operate as intended when the turn signals are active, reducing visibility and increasing crash risk. The remedy is a software update performed by an Audi dealer, free of charge. Production vehicles were updated with the correct US-compliant software starting in April 2024.

Audi A3/S3/RS3 (8V, 2017-2020): Moisture Ingress and Adaptive Motor Failure

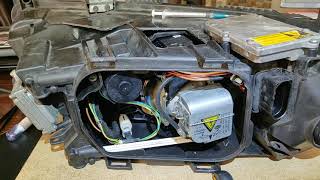

A common complaint on the 8V platform is moisture and condensation building up inside the headlight assembly. This is often due to a failed seal. The water ingress is not just a cosmetic issue; it can short out and destroy the expensive LED control modules (ballasts) mounted to the bottom of the headlight. Additionally, the servomotor that controls the adaptive cornering and leveling functions can fail, leading to an 'Adaptive Light Malfunction' error on the dashboard and disabling the system. This is often an internal failure of the motor assembly within the headlight.

Symptoms of a Failing Headlight Assembly

• Dim or Flickering Light Output: This can indicate a failing LED or a problem with the power control module.
• Headlight Not Working: Complete failure of low or high beams points to a burnt-out LED element, a failed control module, or a wiring issue.
• 'Adaptive Light Malfunction' Warning: This dashboard error indicates a problem with the auto-leveling sensors on the suspension, the steering angle sensor, or the servomotors inside the headlight assembly itself. The adaptive functions will be disabled.
• Condensation or Water Inside the Lens: A visible sign that the housing's seal has failed. This must be addressed immediately to prevent damage to internal electronics.
• Dynamic Turn Signal Fails: The 'sweeping' motion of the turn signal may stop, with the signal either flashing normally or not working at all.
• Discolored or Yellowing Lens: UV damage to the outer polycarbonate lens can reduce light output and is a sign of age and wear.

Buying a Used Headlight Assembly: A Smart but Cautious Choice

Given that a single new OEM headlight assembly can cost over $2,000, buying a quality used OEM part is an excellent way to save money. However, you must be a careful shopper. Cheap aftermarket units often have poor beam patterns, premature failures, and can cause electrical issues. A used original Audi part is almost always a better choice.

What to Inspect:

1. Verify the Part Number: The most crucial step. The part number is printed on a sticker on the top or back of the headlight housing. Match it exactly to your old part. Part numbers like 8V0... are for 2017-2020 A3 models, while 8Y0... are for 2022+ models.
2. Check All Mounting Tabs: The plastic mounting tabs are brittle and often break during accidents or careless removal. Ensure all tabs are intact. Broken tabs mean the headlight cannot be securely mounted and aimed correctly.
3. Inspect the Housing for Cracks: Carefully check the black plastic housing for any cracks, especially around the seams and mounting points. Even a small crack can let in moisture that will destroy the light.
4. Examine the Lens: Look for deep scratches, rock chips, and signs of internal hazing. Check for 'crazing' – a network of tiny cracks in the lens caused by UV damage or harsh chemicals.
5. Look for Signs of Moisture: Check for a 'water line' or mineral deposits inside the lens. This is a clear red flag that the unit has had a leak and may have hidden electronic damage.
🎬 See how to remove moisture and condensation from your headlight lens.
6. Confirm if Modules are Included: Many used headlights are sold as a bare housing. You may need to transfer the LED control modules/ballasts from your old light. Ask the seller if the modules are included and have been tested.

Headlight Replacement Overview

Replacing the headlight assembly on these Audi models is an involved process that is not recommended for beginners.

Calibration is Required!

After installing a replacement headlight, especially an adaptive one, the system must be calibrated. This is not an optional step. Without calibration, the headlights may aim incorrectly, and you will likely have a persistent 'Adaptive Light Malfunction' error on the dash. Calibration requires a specialized diagnostic tool like VCDS or ODIS to access the headlight control module and run the 'Basic Settings' or 'Adaptation' procedure. This tells the system the new headlight's home position and allows it to function correctly. This procedure typically must be done by a dealership or a qualified independent shop with the correct equipment.

Cost Comparison: New vs. Used Headlight Assemblies

Frequently Asked Questions (FAQ)
