2017-2026 Jeep Compass HVAC Control: Decoding Part Numbers and Programming
This in-depth guide explains the common failures, complex compatibility, and critical programming requirements for the second-generation Jeep Compass climate control unit.
- Compatibility is critical. You MUST buy a used unit with buttons that exactly match your original part's features (Dual-Zone, Park Assist, etc.).
- This part is NOT plug-and-play. A 'Proxy Alignment' procedure is required after installation to prevent a flashing odometer and ensure full functionality.
- For 2017 models, ensure your vehicle is the 'new' body style (MP generation) with horizontal rear door handles, as parts from the old style will not fit.
- Common failure symptoms include unresponsive buttons, incorrect temperature control, and air blowing from the wrong vents.
Symptoms of a Failing HVAC Control
When the HVAC control module in a 2017-2026 Jeep Compass begins to fail, it can cause a range of frustrating issues. Because it is the 'brain' of the climate system, its failure can mimic other problems, so it's important to recognize the specific signs.
- Unresponsive Buttons or Touchscreen: Buttons or on-screen controls for temperature, fan speed, or mode may stop working or only work intermittently.
- Incorrect Air Distribution: You might set the airflow to the dash vents, but it only comes out of the floor or defrost vents. This happens when the module fails to command the mode door actuators correctly.
- Inability to Control Temperature: The system may blow only hot air, only cold air, or fail to adjust regardless of your temperature setting. This can indicate the module isn't properly controlling the blend doors that mix hot and cold air.
- Fan Speed Issues: The blower fan may be stuck on one speed (often high or low) or may not turn on at all, even though the blower motor itself is functional.
- Flashing Odometer: While not a direct symptom of the HVAC unit's failure itself, a flashing odometer is a classic sign on Jeep/FCA vehicles that a new module (like a replacement HVAC control) has been installed but not properly synchronized with the vehicle's network.
- Diagnostic Trouble Code: A specific code, U0164 for 'Lost Communication With HVAC Control Module', definitively points to a problem with the module or its connection to the vehicle. 🎬 Watch: Diagnosing the U0164 lost communication trouble code.
Pro Tip: Before condemning the control unit, check the simple things first. A blown fuse can disable the entire system. Also, issues with a single function (like temperature blending on one side) are often caused by a failed blend door actuator, not the main control unit. A faulty blower motor resistor can also cause incorrect fan speeds. Diagnosing these related parts can save you from replacing the wrong component.
Known Issues, Recalls, and Technical Service Bulletins (TSBs)
While there are no widespread recalls for the HVAC control unit on this generation of Jeep Compass, a notable Technical Service Bulletin (TSB) has been issued.
- TSB 08-126-23: This TSB applies to a very specific range of 2023 Jeep Compass PHEV models built between April 5, 2023, and April 14, 2023. The symptom is that the climate controls stop working from the radio touchscreen, though the manual knobs may still function. The cause is a software issue, and the fix is to replace the entire HVAC module.
Other TSBs exist for the A/C system in general, such as for leaks or poor cooling performance, but they do not typically point to the control head as the cause.
Buyer's Guide: Choosing the Right Used HVAC Control for Your Compass
Buying a used HVAC control for this vehicle is complex. The part must be an exact match for your vehicle's factory-installed options. Installing the wrong unit will result in features not working or a complete failure to operate. This is THE most important section to read before you buy.
Warning for 2017 Models: The second-generation Jeep Compass (body code MP) was introduced in 2017. However, the older first-generation (MK) was also sold as a 2017 model. The parts are completely different. The new body style has sleek, horizontal headlights and horizontal rear door handles integrated into the door panel. The old style has rounder headlights and vertical rear door handles in the C-pillar. This guide only applies to the new (MP) body style.
The #1 Mistake: Matching Vehicle Options

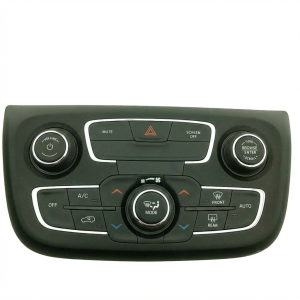

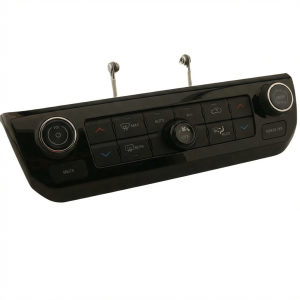

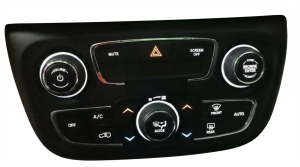

The HVAC control unit is tied directly to the features your Compass was built with. You cannot 'upgrade' from a manual to an automatic system simply by swapping the control panel. Before purchasing, you must verify that the donor vehicle had the exact same options as your own. Look at the buttons on your original part and match them perfectly.
Key Features to Match:
- Climate Control Type: Single-Zone (Manual) vs. Dual-Zone (Automatic). The button layout is completely different.
- Park Assist: Does your vehicle have the button for the parking sensor system?
- Lane Departure Warning: Is there a button for the lane-keeping system?
- Heated Seats / Steering Wheel: Are there physical buttons for these features on the panel?
Physical Inspection Checklist
When inspecting a used part, look for:
- Button & Screen Condition: Check for heavy wear, scratches, or delamination on the buttons and display screen.

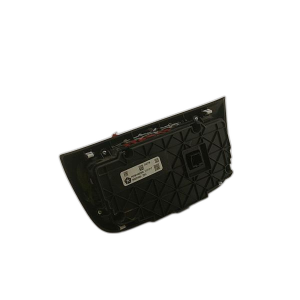

- Connector Pins: Look at the back of the unit. Ensure the connector ports are clean and that none of the pins are bent, broken, or corroded.
- No Signs of Liquid Damage: Look for any sticky residue or discoloration, which could indicate a spilled drink caused the original failure.
Understanding Part Numbers
There are many OEM part numbers for this control unit, and they often supersede each other. The numbers provided in your vehicle's build data are a starting point, but the most reliable method is to visually match the button configuration of your original part. A part number like 5VA27DX9AG may be for a dual-zone unit, while a cheaper part like 68243664AE is likely for a manual A/C system.
Replacement Overview & Programming
Installation
Physically swapping the HVAC control unit is relatively straightforward. The process generally involves carefully prying off the surrounding dash trim, removing a few screws that hold the unit in place, disconnecting the electrical connectors from the back, and then reversing the process to install the new one.
🎬 See this walkthrough for replacing the HVAC control module.- Difficulty: 2/5 (Physical Swap)
- Estimated Time: 0.5 - 1.0 Hours
The Critical Step: Proxy Alignment
Warning: This part is NOT plug-and-play. After installation, the vehicle will likely have a flashing odometer and may have features that do not work. This is because the new module is not synchronized with the vehicle's computer network.
To fix this, a 'Proxy Alignment' procedure must be performed. This is a process that uses a diagnostic scan tool to make the Body Control Module (BCM) recognize the new HVAC unit and integrate it into the vehicle's network. This procedure requires a compatible, high-level scan tool like the dealership's wiTECH tool or certain advanced aftermarket tools. A standard OBD-II code reader cannot perform a proxy alignment. You will likely need to visit a dealer or a well-equipped independent repair shop to have this procedure done after you install the part.
Cost Comparison: New vs. Used
The cost of these modules varies dramatically based on the feature set.
| Part Type | Estimated Cost |
|---|---|
| New OEM | $120 - $550, depending on features. |
| New Aftermarket | Not commonly available. |
| Used OEM | $55 - $150. |
| Remanufactured | Not commonly available. |
| Shop Labor (Installation) | $100 - $175. |
| Shop Labor (Proxy Alignment) | $75 - $150. |
Frequently Asked Questions (FAQ)
Why is my odometer flashing after replacing the HVAC control?
A flashing odometer is the tell-tale sign on a Jeep/FCA vehicle that a module has been replaced and a Proxy Alignment is required. The main computer (BCM) has detected a mismatch in the network configuration and is indicating an error. The vehicle is drivable, 🎬 Watch: Why your Jeep odometer is flashing after a repair. but the alignment must be performed to stop the flashing and ensure all systems communicate correctly.
Can I upgrade my manual A/C to automatic climate control by swapping the panel?
No. The automatic climate control system uses additional sensors (like sun load and cabin temperature sensors) and different wiring that a manual system does not have. Simply swapping the control panel will not work and is not a feasible upgrade.
What is a 'Proxy Alignment' and can I do it myself?
A Proxy Alignment is a diagnostic procedure that copies the vehicle's configuration from the Body Control Module (BCM) to all other electronic modules, ensuring they are all synchronized. You cannot perform this with a basic code reader. It requires a professional-grade scan tool like AlfaOBD or the dealer's wiTECH system, which has this capability. For most DIY mechanics, this step will require a visit to a shop.
Do I need to disconnect the battery before starting?
Yes. Any time you are working on electronic components in a vehicle, it is a best practice to disconnect the negative terminal of the 12-volt battery to prevent accidental short circuits and protect the sensitive electronic modules.
Helpful Videos
Technical Specifications
OEM Part Numbers: 5VA27DX9AB 5VA27DX9AE 5VA27DX9AF 5VA27DX9AG 5VA43DX9AB 5VA43DX9AC 5VA58DX9AB 5VA58DX9AC 5VA58DX9AD 5VA58DX9AE 5VA58DX9AF 68518281AB 68518281AC 68518284AB 68518284AC 68243664AE
Varies by vehicle options. Communicates on the vehicle's CAN bus network.
