2017-2023 Panamera & Cayenne Ignition Switch: Decoding the 'Ignition Lock Faulty' Warning
This guide explains the common causes of ignition switch failure, including the critical TSB #2408, and details the mandatory dealer programming required for replacement.
- A replacement ignition switch (new or used) MUST be programmed by a Porsche dealer with a PIWIS tool due to Component Protection. The car will not start without this step.
- The common "Ignition lock faulty" warning (code B143C29) is often caused by not turning the switch firmly enough, as noted in Porsche TSB #2408, not by a part failure.
- This part is an assembly that includes the driver's side lower knee trim panel, making a new OEM replacement very expensive (over $1400).
- Labor costs for physical installation are estimated between $110-$430, but you must also budget for mandatory dealer programming costs.
Symptoms of a Failing Ignition Switch
A problem with the ignition switch in your Porsche Cayenne or Panamera can be confusing, as symptoms can range from a simple warning message to a car that won't start at all.
- "Ignition lock faulty" Warning: This is the most common and specific indicator. A white or red warning message will appear on the instrument cluster. This message indicates the Body Control Module (BCM) has detected an issue with the switch's signals.
- Engine Does Not Crank or Start: You may get in the car, turn the switch, and nothing happens. The dashboard might light up, but the engine won't turn over. This can be intermittent at first before becoming a persistent problem.
- Intermittent Electrical Issues: Since the ignition switch powers various systems, a failing unit can cause flickering dashboard lights or a sudden loss of power to the radio and other accessories.
- Vehicle Won't Shut Off: In rare cases, the switch may fail to register the 'off' position, preventing the vehicle from shutting down properly.
Known Issues, Recalls, and Technical Service Bulletins (TSBs)
While a true hardware failure is possible, many ignition-related warnings on these vehicles are due to other causes.
TSB #2408: The "Ignition Lock Error" You Need to Know About
For the 2019-2023 Cayenne and 2017-2023 Panamera, Porsche issued Advanced Technical Information (ATI) bulletin #2408 to address the fault code B143C29 – Ignition starter switch – signal implausible. This is the code that triggers the "Ignition lock faulty" message.
The bulletin explains that the ignition switch uses a redundant four-signal system. Often, this fault code is set simply because the driver does not turn the switch fully and decisively to the 'start' position. The engine will still start due to the redundant design, but the BCM logs the incomplete signal. If this happens repeatedly, the warning message appears. Before replacing any parts, ensure you are turning the switch firmly through its full range of motion.
Pro Tip: If you see the "Ignition lock faulty" message, have a technician check for fault code B143C29. If it's present, the cause is likely user operation, not a failed part. Advising the driver to turn the switch more firmly may be the only "fix" needed.
Water Intrusion on Older Models

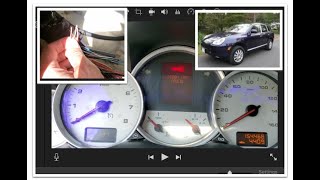

While not specific to the 2017+ models, it's a well-documented issue on previous generation Cayennes that water leaks from clogged sunroof drains or AC condensers can saturate the wiring harness in the driver's side footwell. This causes corrosion and leads to a host of electrical problems, including the "ignition lock faulty" warning. If you're diagnosing this issue, a check for dampness under the carpet 🎬 Watch: Diagnosing the ignition lock faulty message on a Cayenne is a worthwhile step.
Recalls
As of early 2026, there are no specific NHTSA recalls for the ignition switch on these models. There have been recalls for other components, such as a rearview camera software glitch.
Buying a Used Ignition Switch Assembly
Buying a used ignition switch can save you a significant amount of money on the part cost, but there are critical factors to understand before you buy.
The #1 Rule: Dealer Programming is MANDATORY
This is the most important fact to know. Modern Porsche vehicles use a system called "Component Protection." This system electronically links major components, like the ignition switch, to the vehicle's unique VIN. You cannot simply swap in a new or used ignition switch and expect it to work.
Warning: A replacement ignition switch—whether brand new or used—MUST be programmed and adapted to your vehicle by a Porsche dealership or a highly specialized independent shop with a licensed Porsche PIWIS (Porsche Integrated Workshop Information System) diagnostic tool. The vehicle's immobilizer system will not recognize the new switch until this online coding is performed. A general mechanic or locksmith cannot do this.
What to Inspect on a Used Part
- Match Part Numbers: Verify the part number on the used unit matches the one you are replacing. The switch itself may have a number like 971.905.865.C, while the complete trim assembly will have a number like 971.858.903.AB. Note that the final letters on the trim part number may vary based on the color of the leather/trim.
- Inspect the Trim Panel: Since this is a complete assembly, carefully inspect the lower dash trim for scratches, scuffs, or broken mounting tabs. The cost of the trim is a major part of the new price, so ensure the used one is in good cosmetic condition.
- Check the Connector: Look at the electrical connector on the back of the switch. Ensure the pins are straight and there is no sign of corrosion or damage.
Cost to Replace
The cost can vary significantly based on whether you buy new or used, and the labor rates in your area. The mandatory programming is a fixed cost you cannot avoid.
| Part or Service | Estimated Cost |
|---|---|
| New OEM Assembly (Switch + Trim Panel) | $1,400 - $1,650 |
| New OEM Switch Only | $165 - $215 |
| Used OEM Assembly | $250 - $500 |
| Shop Labor (Physical Installation) | $110 - $430 |
| Dealer Labor (Programming/Coding) | $150 - $300 (Typically 1-2 hours) |
Frequently Asked Questions (FAQ)
Does a used ignition switch need to be programmed?
Yes, absolutely. Due to Porsche's Component Protection and immobilizer systems, any replacement ignition switch (new or used) must be coded to your vehicle's VIN by a Porsche dealer using their proprietary PIWIS tool. The car will not start until this is done.
Can I replace just the switch without the whole dash trim panel?
While the switch is available as a separate part from the dealer, the assembly is often sold as a single unit in the used market. Physically, it may be possible to separate the switch from the trim, but it's designed to be replaced as an assembly. If you buy the complete used assembly, you get both pieces.
What does the "Ignition lock faulty" message really mean?
It means the vehicle's computer has detected an implausible signal from the ignition switch. According to Porsche TSB #2408, this is very often caused by not turning the switch firmly to the start position, rather than an actual part failure. Always investigate this possibility before spending money on a replacement.
Can a locksmith program this part?
No. Standard locksmiths or general auto repair shops do not have the licensed software required to program Porsche's Component Protection system. This job requires a visit to an authorized Porsche dealer or a specialist with the official PIWIS tool and an active subscription 🎬 See how a PIWIS tool programs new Porsche control modules to Porsche's network.
Helpful Videos
Technical Specifications
OEM Part Numbers: 971858903 971858903AB 971905865 971905865B 971905865C
For vehicles with Porsche Entry & Drive (keyless ignition). Integrated with lower driver-side knee trim panel. Requires programming via PIWIS diagnostic tool.
