C0010 on 2018-2022 Chevrolet Colorado: ABS Light Causes and Fixes

What's Unique About the 2018-2022 Chevrolet COLORADO

The story of code C0010 on this generation of Colorado is less about a common part failure and more about a software sensitivity. GM has documented extensively in TSB #PIT5696H that the Electronic Brake Control Module (EBCM) can misinterpret the wheel speed data during low-speed maneuvers, like a quick three-point turn, and flag a fault that doesn't actually exist. This makes the first diagnostic step—understanding how the code was set—more important than immediately replacing parts. The TSB explicitly states, "DO NOT re-flash the EBCM software. This will not correct the issue." and "No parts are required for this repair."

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• ABS warning light is on
• Traction Control (TCS) or StabiliTrak warning light is on
• "Service StabiliTrak" or "Service Brake Assist" message on the driver information center
• Possible notification from the OnStar system

Most Likely Causes

1. Driver-Induced False Code 🔴 High Probability As documented in GM TSB #PIT5696H and 20-NA-118, the EBCM software is sensitive to shifting between drive and reverse while the vehicle is still in motion, a common action during 3-point turns. The diagnostic logic falsely trips when it sees wheel movement while the shifter is moved to the opposite direction.
   How to confirm: Scan the EBCM. If C0010.5A is the only code present, this is the most likely cause. The code often appears after a specific maneuver like a K-turn or backing out of a parking spot quickly.
   Typical fix: Clear the Diagnostic Trouble Code (DTC). Advise the driver to always bring the vehicle to a complete stop before shifting gears. No parts are required. GM has a specific labor operation (2486098) for dealers to clear the code and test drive under warranty.
   Est. part cost: $0
2. Damaged Wheel Speed Sensor Wiring 🟡 Medium Probability → Shop ABS Wheel Speed Sensor The wiring harness runs down the suspension to the wheel hub and is exposed to road debris, ice, and potential snagging. Chafing against sharp edges on brackets or the frame is a known issue. Rodent damage has also been reported as a cause for severed wires in the engine bay or along the harness path.
   How to confirm: Visually inspect the entire length of the left front wheel speed sensor harness from the back of the hub to its connection point. Look for cuts, chafing near brackets, melted sections near exhaust components, or signs of being chewed.
   Typical fix: Repair the damaged section of the wire. If the connector is damaged, it may need to be replaced with a new pigtail. In cases of chafing, re-routing the wire or adding protective loom is recommended.
   Est. part cost: $5-$25
3. Faulty Left Front Wheel Speed Sensor 🟡 Medium Probability → Shop ABS Wheel Speed Sensor
   How to confirm: Using a scan tool that can read live ABS data, monitor the speed of the left front wheel while driving or spinning the wheel by hand. If the reading is erratic, zero, or doesn't match the other wheels, the sensor is likely bad.

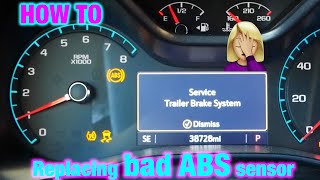

   Typical fix: Replace the left front wheel speed sensor. It is typically held in by a single bolt on the wheel hub assembly. 🎬 See this step-by-step guide to replacing the wheel speed sensor. The OEM part number for the left (driver side) front sensor is GM 84512265.
   Est. part cost: $20-$50

Rare But Worth Checking

• Damaged or Debris on Wheel Bearing Tone Ring: The sensor reads a toothed ring (reluctor or tone ring) on the wheel hub. If this ring is cracked, rusted, or has metallic debris stuck to it, it can cause an erratic signal. In one documented case, a piece of the magnet from the wheel bearing came loose and interfered with the sensor reading. The tone ring is integrated into the wheel hub assembly.
• Poor Ground Connection: Some owners have traced intermittent electrical issues, including Stabilitrak faults, to poor or corroded main ground connections under the hood. The primary ground splice packs (SP-105 on the driver's side near the battery and SP-106 on the passenger side) are known weak points. The EBCM relies on these grounds. Cleaning the connection points and ensuring they are tight can resolve unexplained electrical faults.
🎬 Learn more about common causes for the GM Stabilitrak light.
• Failing Electronic Brake Control Module (EBCM): → Shop ABS Control Module This is rare. The control module itself can fail, but all other possibilities should be exhausted before condemning the EBCM, as it is an expensive part.

Diagnosis Steps

1. Connect an OBD-II scanner capable of reading ABS/chassis codes to the vehicle.
2. Check for stored codes in the Electronic Brake Control Module (EBCM). Note if C0010.5A is the only code present.
3. If C0010.5A is the only code, clear it. Test drive the vehicle, making several turns and ensuring you come to a complete stop before shifting between Drive and Reverse. If the code does not return, the issue was driver-induced as per TSB #PIT5696H.
4. If the code returns, raise the vehicle safely and visually inspect the left front wheel speed sensor wiring harness. Pay close attention to areas where it runs near suspension components, brackets, or the frame for signs of chafing, stretching, or corrosion.
5. Remove the wheel and inspect the wheel speed sensor for physical damage and ensure it is securely mounted to the hub.
6. Using your scan tool's live data function, monitor the output from all four wheel speed sensors while spinning the left front wheel by hand or on a test drive. Compare its reading to the right front wheel. A signal that is erratic, drops out, or is absent points to a sensor or wiring issue.
7. If the signal is absent or erratic, and the wiring is confirmed to be good, replace the wheel speed sensor (GM Part #84512265 for left front).
8. If the sensor and wiring are good, inspect the ground points for the EBCM (Splice Pack SP-105 and SP-106) for corrosion or looseness.
9. If all else fails, the issue may be with the tone ring on the wheel hub assembly or, in rare cases, the EBCM itself.

Parts You'll Likely Need

• Front Wheel Speed Sensor (Left/Driver Side) (OEM #84512265) — If the code is not a false positive, the sensor itself is the most common hardware failure point.
  Trusted brands: ACDelco (GM Original Equipment), Standard Motor Products, Delphi, Holstein
  OEM price range: $30-$50
  Aftermarket price range: $20-$40

Technical Service Bulletins (TSBs) & Recalls

• PIT5696H: Diagnostic Aid : ABS/TCS MIL On Code C0010 Symptom 5A Stored. This TSB, updated multiple times through 2024, is the primary source explaining the false, driver-induced nature of this code on the 2018-2022 Colorado and its platform mates.
• 20-NA-118: Possible OnStar Notification, Malfunction Indicator Lamp (MIL) Illuminated, ABS/TCS Lamp On - DTC C0010.5A Set. This TSB provides more technical detail on the exact conditions that cause the false code and explicitly states not to replace parts or re-flash the module.

Platform-Specific Known Issues

• A primary issue for this vehicle is the false setting of code C0010.5A, as documented in GM TSB #PIT5696H. The bulletin explicitly states the code can be induced by the driver during maneuvers like a 3-point turn if the vehicle is not brought to a complete stop before shifting. The recommended fix in this scenario is to clear the code and educate the driver.
• A supplemental TSB, 20-NA-118, gives more precise parameters for the false code: coasting above 10 KPH (~6 MPH), shifting to the opposite gear for over a second without using the accelerator.

Mechanic-Grade Diagnostic Values

• Active Wheel Speed Sensor Power Feed — expected: Brief pulse of battery voltage (~12V) at the sensor connector harness side upon key-on.. Failure: No voltage pulse indicates a problem with the wiring or the EBCM, not the sensor.
• Active Wheel Speed Sensor Signal — expected: An alternating current square wave signal when the wheel is spinning.. Failure: An absent, flat, or erratic waveform on an oscilloscope while spinning the wheel (with power and ground confirmed good) indicates a failed sensor or tone ring issue.
• Wheel Speed Sensor Resistance (Comparative) — expected: No specific Ohm value is published, but the resistance of the left front sensor should be nearly identical (within ~1%) to the resistance of the right front sensor.. Failure: A reading of OL (open) or a resistance value that is significantly different from the known-good sensor on the other side of the vehicle indicates a failed sensor.

Hidden / Shadow Codes Worth Checking

• C0010 06: Left Front Wheel Speed Sensor Circuit Low Voltage/Open. This indicates an open circuit or a short to ground in the sensor's power or signal wire. (see via A professional scan tool capable of reading GM-specific chassis codes and symptom bytes, such as a GM GDS2.)
• C0010 0F: Left Front Wheel Speed Sensor Circuit Signal Erratic. This indicates the EBCM is receiving a signal, but it is unstable, noisy, or dropping out intermittently. (see via A professional scan tool capable of reading GM-specific chassis codes and symptom bytes.)
• C0010 18: Left Front Wheel Speed Sensor Circuit Low Signal Amplitude. This suggests a weak signal from the sensor, which could be caused by an excessive air gap or internal sensor fault. (see via A professional scan tool capable of reading GM-specific chassis codes and symptom bytes.)

Scan Tool Commands That Help

• GDS2 (or equivalent professional scanner): Live Data > EBCM > Wheel Speed Sensors — This is the primary diagnostic step after reading codes. It allows for simultaneous monitoring of all four wheel speed sensors during a test drive or while spinning the wheels by hand to identify any sensor that is not reporting, reporting an erratic speed, or not matching the others.
• GDS2 (or equivalent professional scanner): Automated Bleed Procedure — This is not a diagnostic command for C0010, but it is a mandatory service function that must be performed after replacing the EBCM/ABS pump and valve assembly to properly bleed air from the hydraulic unit.

Wiring & Ground Locations

• SP-105 / G105 — In the engine compartment on the driver's side, near the battery. The ground splice pack is typically bolted to the fender.. This is a primary ground point for the Electronic Brake Control Module (EBCM). These GM splice packs are unsealed and a known source of corrosion, which can cause a poor ground and lead to various electrical faults, including Stabilitrak warnings.
• SP-106 / G106 — In the engine compartment on the passenger side, typically behind the engine airbox assembly.. This is the second primary ground point for the EBCM. A fault at either G105 or G106 can interrupt proper module function and set codes.
• Left Front WSS Connector — At the wheel hub, connecting the sensor to the main body harness. The harness is routed along the suspension components.. This 2-pin connector and its associated wiring are exposed to the elements and physical stress. Damage or corrosion at the connector or in the pigtail is a common cause of a true hardware fault for code C0010.

Real Owner Repair Stories

• YouTube user 'Cfarmer' (2018 Chevrolet Silverado (similar GM electrical architecture)) — Intermittent 'Service Stabilitrak' light that would disable cruise control.
  ❌ Tried (didn't work) Driving himself nuts trying to figure it out.
  ✅ What actually fixed it The problem was caused by a cheap, aftermarket Bluetooth OBD-II adapter that was left plugged into the diagnostic port. Removing the adapter permanently resolved the issue. The owner confirmed this by plugging it into another 2018 GM truck, which immediately triggered the same warning light.
• Reddit user 'Dangerous-Sundae5644' (2015 Buick Verano (GM Platform)) — 'Service Stabilitrak' message, traction control light, and check engine light.
  ❌ Tried (didn't work) Panicking
  ✅ What actually fixed it The user found that many fuses in the underhood fuse box were loose. Pushing all the fuses back in securely resolved all the warning lights.

OEM Part Supersession History

• 84105768, 84178731, 84301875, 84375754 → 84512265 — Standard part evolution for improved reliability, durability, or manufacturing efficiency.
