P0030 on 2002-2006 Toyota Camry 2.4L: Heater Circuit Causes and Fixes

What's Unique About the 2002-2006 Toyota Camry

The 2002-2006 Camry (XV30 generation) with the 2.4L 2AZ-FE engine is generally a very reliable vehicle, and this code is no exception in its straightforward nature. The issue is almost always a simple failure of the original Denso Air/Fuel Ratio sensor due to age and many heat cycles. While this engine platform is known for other unrelated issues like oil consumption on 2007-2009 models and stripped cylinder head bolt threads on early 2002-2006 models, those problems do not cause the P0030 code. The fix is typically as simple as replacing the sensor itself, which is easily accessible on the front exhaust manifold.

Symptoms You May Notice

• Check Engine Light is on.
• Decreased fuel economy.
• Vehicle may fail an emissions test.
• Rough idle or slight hesitation on a cold start before the engine warms up.

Most Likely Causes

1. Failed Upstream Air/Fuel Ratio Sensor (Bank 1, Sensor 1) 🔴 High Probability → Shop Oxygen Sensor The internal heater element simply burns out or fails from many years and thousands of heat cycles. It is a common failure item on most vehicles as they age, and the 2AZ-FE is no exception.
   How to confirm: After checking the fuse, test the resistance of the heater circuit within the sensor using a multimeter. Disconnect the sensor and measure between the two same-colored wires (usually black) on the sensor's connector. A healthy heater should have a low resistance, typically between 2-30 Ohms depending on the exact sensor, while a failed one will show an open circuit (infinite resistance or 'OL'). A more specific range for many Toyota sensors is 2-5 Ohms.

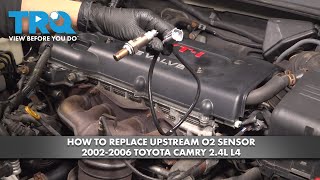

   Typical fix: Replace the Bank 1, Sensor 1 Air/Fuel Ratio sensor. This sensor is located in the exhaust manifold, visible at the front of the engine bay, making it relatively easy to access. 🎬 Watch: Step-by-step guide to replacing the upstream sensor.
   Est. part cost: $60-$220
2. Blown A/F Heater Fuse ⚪ Low Probability
   How to confirm: Check the fuse box in the engine compartment. The fuse is often labeled 'A/F HEATER' or may be part of the 'EFI' circuit. Visually inspect the fuse to see if it is blown. On some Toyota models, this is a 30A fuse.
   Typical fix: Replace the blown fuse. If the new fuse blows immediately, it indicates a short circuit in the wiring or within the sensor's heater element itself that needs to be traced.
   Est. part cost: $1-$5
3. Damaged Wiring or Connector ⚪ Low Probability The wiring harness is close to the hot exhaust manifold and can become brittle, melted, or damaged over time. The connector pins can also corrode.
   How to confirm: Visually inspect the wiring harness and connector leading to the upstream A/F sensor. Look for any signs of melting, corrosion, chafing, or broken wires. A poor connection can cause the same symptoms as a failed sensor.
   Typical fix: Repair the damaged section of wiring or replace the connector pigtail. In some cases, owners have cut off the old connector and spliced in a new one to resolve the issue.
   Est. part cost: $10-$30

Rare But Worth Checking

• Faulty Engine Control Module (ECM): → Shop Engine Control Module (ECM) This is extremely rare. Before condemning the ECM, all other possibilities (sensor, fuse, wiring) must be exhaustively ruled out. One owner on a Reddit forum replaced the sensor, checked wiring, and even tried a second ECU before finding a resolution, highlighting the frustration of rare faults. A faulty ECM driver for the heater circuit can cause the code. The ECM uses a pulse-width-modulated (PWM) signal to control the heater, and the internal driver (often a MOSFET) can fail.

Diagnosis Steps

1. Read the code with an OBD-II scanner to confirm P0030 is the primary code.
2. Locate the fuse box in the engine compartment and check the 'A/F HEATER' or 'EFI' fuse. Replace if blown.
3. If the fuse is good, perform a visual inspection of the Bank 1 Sensor 1 (upstream) Air/Fuel sensor's wiring and connector. Look for any obvious damage, melting, or corrosion.
4. Disconnect the sensor and test the heater circuit. Using a multimeter set to Ohms, measure the resistance between the two same-colored wires on the sensor side of the connector. A reading of infinite resistance (OL) confirms a failed heater element. A good sensor will have a low resistance, often specified as 2-5 Ohms.
5. If the sensor's heater circuit has resistance within spec, check for 12V power at the harness connector (on the two same-colored wires) with the key in the 'ON' position. Lack of voltage points to a wiring or fuse issue.
6. If power is present at the harness and the sensor's heater circuit shows an open, the sensor has failed and needs to be replaced.
7. After replacement, clear the code with the scanner and perform a test drive to ensure the Check Engine Light does not return.

Parts You'll Likely Need

• Upstream Air/Fuel Ratio Sensor (Bank 1, Sensor 1) (OEM #89467-06030 (supersedes 89467-33080)) — This is the component that contains the heater element that fails, directly causing the P0030 code.
  Trusted brands: Denso (OEM Manufacturer), NGK, Bosch
  OEM price range: $180-$220
  Aftermarket price range: $60-$90

Platform-Specific Known Issues

• Seized Sensor: Due to constant exposure to high-temperature exhaust gases, the A/F sensor can become seized in the exhaust manifold. It is highly recommended to spray penetrating oil on the sensor threads and let it soak, preferably while the engine is slightly warm (not hot). Using a specialized 22mm (or 7/8") offset O2 sensor socket is crucial for getting proper leverage and avoiding damage to the sensor or wiring.
• Part Number Confusion: The OEM Toyota part number 89467-06030 supersedes the older number 89467-33080. They are interchangeable for this application. The direct cross-reference for the OEM-quality Denso part is 234-9041.

Mechanic-Grade Diagnostic Values

• A/F Sensor Heater Resistance — expected: 1.8 to 3.4 Ω at 68°F (20°C). Failure: Resistance is outside the specified range, or shows as an open circuit (OL).
• Voltage at A/F Sensor Harness Connector (Heater Power Pin) — expected: 9 to 14 V (Battery Voltage) with ignition switch ON.. Failure: Voltage is below 9V or absent, indicating a problem with the EFI MAIN relay, A/F HTR fuse, or wiring.
• ECM Heater Control Signal (HA1A Pin) — expected: Pulse-width modulated (PWM) signal when active. Static voltage check is not a complete test.. Failure: No signal or a constant ground/voltage when the heater should be active.
• Heater Circuit Current Draw — expected: Between 0.8 A and 10 A.. Failure: Current is less than 0.8 A (indicating an open or high resistance) or more than 10 A (indicating a short circuit). This is what the ECM monitors to set P0031/P0032, which are related to P0030.

Scan Tool Commands That Help

• Toyota Techstream: Active Test -> "Control the A/F Sensor Heater (Bank 1 Sensor 1)" — This function allows a technician to manually command the A/F sensor heater ON and OFF. It is used to verify that the EFI MAIN relay, fuse, wiring, and the ECM's driver circuit are all functioning correctly. If the heater can be activated with Techstream, but the code returns during normal operation, it points towards an intermittent connection or a sensor that fails only when hot.
• Toyota Techstream: Data List -> "A/F Heater Duty (B1S1)" and "A/F Heater Current (B1S1)" — Monitoring these live data PIDs shows the duty cycle percentage the ECM is commanding to the heater and the resulting current draw. This is the most direct way to see what the ECM is doing and how the circuit is responding. A 0% duty cycle when the engine is cold indicates a command issue, while a high duty cycle with low current suggests high resistance in the circuit or a failing sensor.

Wiring & Ground Locations

• A/F Sensor Connector (B7) — On the engine wiring harness, connecting directly to the upstream A/F sensor on the exhaust manifold.. This is the primary point for testing. Pin 1 (+B) is power from the EFI MAIN relay, and Pin 2 (HA1A) is the PWM control wire from the ECM. Testing for voltage at Pin 1 and checking continuity/resistance to the ECM from Pin 2 is a core diagnostic step.
• ECM Connector B32 (for 2005-2006 models) — Behind the right side of the dashboard / glove box area.. The heater control wire (HA1A) for the A/F sensor terminates at pin 47 of this connector. If there is no signal at the sensor connector, checking for the PWM signal directly at this ECM pin can determine if the fault is in the ECM or the wiring harness between the ECM and the sensor.
• EFI MAIN Relay — Located in the engine room relay block (fuse box) on the driver's side of the engine compartment.. This relay supplies battery voltage (+B) to the A/F sensor's heater circuit. A failure of this relay will cut power to the heater and set code P0030. The circuit is also protected by the EFI MAIN fuse within the same relay block.

Real Owner Repair Stories

• ToyotaNation Forum User (2003 Toyota Camry 2.4L (2AZ-FE)) — Check Engine Light with code P0031 (Heater Circuit Low - closely related to P0030).
  ❌ Tried (didn't work) Replaced the upstream A/F sensor with a new Denso part.
  ✅ What actually fixed it The user found a broken wire in the harness near the connector. The wire was internally broken with no visible damage to the insulation. After repairing the broken wire, the code was cleared and did not return.

Model Year Variations Within This Range

• 2002-2004 vs 2005-2006: While the function is identical, there can be minor differences in ECM pin assignments and connector designations between the pre-facelift (2002-2004) and post-facelift (2005-2006) XV30 Camry models. Always verify the specific wiring diagram for the exact year when tracing wires back to the ECM. For example, the heater control wire (HA1A) is at pin B32-47 on some diagrams.

Diagnostic Flowchart

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0031 — HO2S Heater Control Circuit Low (Bank 1 Sensor 1). This is a direct companion code to P0030, indicating a low voltage or short in the exact same A/F sensor heater circuit.
• P2A00 — O2 Sensor Circuit Range/Performance (Bank 1 Sensor 1). Often appears intermittently alongside heater circuit codes if the wrong emissions-type sensor (e.g., California vs. 50-state) is installed on the 2AZ-FE.
• P0032 — HO2S Heater Control Circuit High (Bank 1 Sensor 1). The high-voltage counterpart to P0030/P0031, pointing to a short circuit in the same upstream sensor wiring or heater element.
• P0171 — System Too Lean (Bank 1). A failed upstream Air/Fuel Ratio sensor (the root cause of P0030) can provide inaccurate oxygen readings to the ECU, triggering false lean conditions and decreased fuel economy.
• P0172 — System Too Rich (Bank 1). Similar to P0171, if the Bank 1 Sensor 1 fails completely or its heater prevents it from reaching operating temperature, it can skew fuel trims and trigger a rich code.
