P0205 on 2021 Cadillac Escalade: Cylinder 5 Injector Circuit Fixes

What's Unique About the 2021-2021 Cadillac ESCALADE NA

For this specific generation of Cadillac Escalade and its platform mates (Tahoe, Yukon, Silverado, Sierra), General Motors has issued multiple Technical Service Bulletins addressing injector circuit codes. TSB #21-NA-149 is particularly relevant, explaining that an engine harness clip may have been omitted during assembly, allowing the harness to rub against three specific points: the sharp edge of the ECM/TCM bracket, the driver's side upper control arm, and the shock tower bolt. This chafing can cause an open or short in the injector wiring. TSB #22-NA-087 also acknowledges a concern with the fuel injector itself, making these the two primary, well-documented suspects.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light is on
• Rough or vibrating idle
• Engine misfires, sometimes felt as a shake or stumble
• Hesitation or lack of power during acceleration
• Reduced fuel economy
• Vehicle may enter a reduced power "limp mode"
• Audible popping sound from the engine bay
• Smell of raw fuel from the exhaust

Most Likely Causes

1. Damaged Fuel Injector Wiring Harness or Connector 🔴 High Probability → Shop Engine Wiring Harness TSB #21-NA-149 explicitly details how the engine wiring harness can rub against the ECM/TCM bracket, driver-side upper control arm, or shock tower, causing an open or short circuit. This is considered the most likely cause before suspecting the injector itself. TSB #22-NA-087 also mentions inspecting for poor terminal tension at the main harness connector (X160) and the injector connector.
   How to confirm: Perform a thorough visual inspection of the wiring harness leading to the cylinder 5 injector. Per the TSB, access is best achieved by removing the driver's side front wheel and wheelhouse liner. Check for chafing, breaks, or corrosion at the specific points mentioned in TSB #21-NA-149. A "wiggle test" (gently moving the harness with the engine running) may cause the misfire to change, confirming a wiring issue. 🎬 Watch: Diagnosing and repairing the P0205 injector control circuit.
   Typical fix: Repair the damaged section of the wire using butt connectors and heat-shrink tubing, then wrap the area with high-temperature, anti-abrasion tape. Secure the harness away from sharp edges with zip ties. If damage is at the connector, replace the injector connector pigtail.
   Est. part cost: $15-$60
2. Faulty Cylinder 5 Fuel Injector 🔴 High Probability → Shop Fuel Injector TSB #22-NA-087 also lists the fuel injector itself as a potential cause. The high-pressure environment of GDI systems can lead to internal electrical failures in the injector's solenoid coil. While less common than the wiring issue, it is a frequent point of failure.
   How to confirm: Swap the cylinder 5 injector with an injector from another cylinder (e.g., cylinder 7 on the same bank). Clear the codes and drive. If the code changes to P0207, the injector is faulty. You can also measure the injector's resistance with a multimeter; for the L87 GDI system, it should be between 1.5 and 2.2 ohms. An infinite reading means an open circuit, and near-zero means a short.

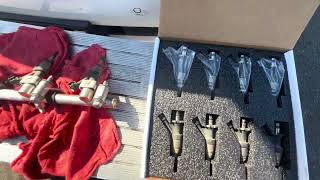

   Typical fix: Replace the faulty fuel injector. It is often recommended to replace them in a full bank or a complete set on higher mileage vehicles to ensure balanced flow. 🎬 Watch: DIY guide for replacing fuel injectors on a 6.2L engine.
   Est. part cost: $80-$150

Rare But Worth Checking

• Powertrain Control Module (PCM) Failure: → Shop Engine Control Module (ECM) This is the least likely cause. A faulty injector driver circuit within the PCM can mimic a wiring or injector problem. This should only be considered after all other possibilities have been exhaustively ruled out by a professional.

Diagnosis Steps

1. Verify the code with an OBD-II scanner and check for any other codes, especially P0305 or other P020x codes.
2. Disconnect the negative battery terminal. Lift the vehicle and remove the driver's side front wheel and wheelhouse liner for best access.
3. Perform a detailed visual inspection of the engine wiring harness for the cylinder 5 fuel injector. Pay close attention to the three primary chafe points identified in TSB #21-NA-149: the ECM/TCM bracket, the area above the upper control arm, and the shock tower bolt.
4. If no visible damage is found, disconnect the injector and use a lab scope to test the circuit, as noid lights and multimeters will not work correctly on GDI injector circuits. The scope should show the PCM commanding the injector on.
5. If the scope test passes, turn off the vehicle and use a multimeter to check the resistance of the fuel injector itself. It should be between 1.5 and 2.2 Ω for this engine. An infinite reading means an open circuit, and near-zero means a short.
6. If resistance is good, consider swapping the cylinder 5 injector with another one on the same bank (e.g., from cylinder 7). Clear the codes, run the engine, and see if the P020x code follows the injector to the new cylinder (e.g., P0207). If it does, the injector is bad.
7. If the code stays as P0205 after the swap, the problem is in the wiring. Perform a continuity test on the two wires between the PCM connector and the injector connector to find any breaks or shorts.
8. If all wiring and the injector check out, the final step is to suspect a faulty PCM, which should be diagnosed by a professional.

Parts You'll Likely Need

• Gasoline Direct Fuel Injector (OEM #12710481) — This is one of the two most common causes of code P0205, as cited by manufacturer TSBs. The injector may have an internal electrical failure.
  Trusted brands: ACDelco, GM Genuine Parts, Standard Motor Products
  OEM price range: $83-$150
  Aftermarket price range: $40-$95
• Fuel Injector Connector Pigtail (OEM #13580230) — If the wiring harness is damaged at the connector, or if terminal tension is poor, replacing the pigtail is the standard repair. This is a high-probability fix according to TSBs related to chafed wiring.
  Trusted brands: ACDelco, Dorman
  OEM price range: $30-$50
  Aftermarket price range: $15-$30

Related Codes That Often Appear With This One

• P0305 — This code for 'Cylinder 5 Misfire Detected' is a direct and immediate consequence of the P0205 fault. If the injector circuit isn't working, the cylinder isn't getting fuel, which causes a misfire.
• P0300 — A 'Random/Multiple Cylinder Misfire' code can appear if a wiring harness issue is intermittent or affects a shared power/ground for multiple injectors.
• P0201, P0202, P0203, P0204, P0206 — If multiple injector circuit codes are present, it strongly points to a systemic wiring harness issue where a single chafe point has damaged several wires at once.

Technical Service Bulletins (TSBs) & Recalls

• Bulletin #22-NA-087: Malfunction Indicator Lamp (MIL) Illuminated with DTC P0201, P0202, P0203, P0204, P0205, P0206 and/or P0216 Set.
• Bulletin #21-NA-149: Engine Wire Harness Chafing / IPC Gauges Sweep / IPC Warning Message / SES/Check Engine/MIL / No Start / No Crank / Runs Rough / Stalls / Reduced Engine Power / Various DTCs.

Platform-Specific Known Issues

• TSB #22-NA-087: Directly addresses customer concerns of the Malfunction Indicator Lamp (MIL) being illuminated with DTC P0205 (among others) and points to the fuel injector and/or wiring harness as the cause.
• TSB #21-NA-149: Provides extensive detail on the primary cause for this code family. It notes that an uncontrolled branch of the engine harness can rub on the ECM/TCM bracket, driver's side upper control arm, or shock tower, causing wire damage. The bulletin provides specific instructions for repairing the wires and securing the harness with sleeves and zip ties to prevent recurrence.
• L87 Engine Reliability: It's worth noting that the 6.2L L87 engine in 2021-2024 models is subject to a separate major recall (N252494001) for potential connecting rod and crankshaft failure, which can cause catastrophic engine damage. While unrelated to the P0205 electrical fault, it's a significant issue for this powertrain.

Mechanic-Grade Diagnostic Values

• Injector Pulse Width at Idle — expected: 3.4 ms. Failure: Significant deviation from this value on one cylinder can indicate a fueling or control problem.
• High-Pressure Fuel System Pressure — expected: 2900-5076 PSI (20-35 MPa) at idle, increasing with engine load.. Failure: Pressure that is unstable or fails to reach the target commanded by the ECM can indicate a high-pressure pump or sensor issue, though this would typically set other codes.
• Low-Pressure Fuel System Pressure — expected: 45-62 PSI (310-430 kPa). Failure: Low pressure from the in-tank pump will starve the high-pressure pump, leading to a variety of performance issues and codes.

Scan Tool Commands That Help

• GDS2 (GM Dealer/Professional Scan Tool): Automated Injector Balance Test — This function systematically disables each injector and measures the corresponding drop in fuel rail pressure (or RPM drop) to identify an injector that is not flowing correctly. GM specifies that any injector whose pressure drop varies by more than 20% from the average of the others should be replaced. This is a definitive way to confirm a clogged or non-firing injector after the electrical circuit has been verified.
• GDS2 (GM Dealer/Professional Scan Tool): Injector Kill / Disable — While the engine is running, a technician can manually disable one injector at a time. If disabling cylinder 5 causes no change in engine RPM or smoothness, it confirms that cylinder 5 was not contributing in the first place, pointing to a problem with that injector or its circuit.

Wiring & Ground Locations

• G103 — Located at the left rear of the engine compartment on the cowl, above the brake booster.. This is a major ground point for the Body Control Module (BCM), Instrument Panel Cluster (IPC), and Data Link Connector (DLC). While not a direct engine ground, a fault here can cause bizarre communication issues and is a critical check for any complex electrical problem.
• G101 / G106 — G101 is on the left side of the engine block. G106 is on the front center of the frame cross rail, under the crank pulley. These grounds are often jumpered together.. These are primary grounds for the Engine Control Module (ECM) and Transmission Control Module (TCM). A loose or corroded connection here can cause a wide range of engine-related codes, including injector circuit faults.
• ECM Connector X3, Pin 52 — On the main Engine Control Module (ECM).. Based on wiring diagrams for similar L83/L87 engines, Pin 52 on the X3 connector is the High Voltage Control for the Cylinder 5 Direct Fuel Injector. Probing this pin (and the corresponding low voltage control pin) is the definitive way to test the ECM's output to the injector.

OEM Part Supersession History

• 12710481 → 12742701 — Standard part evolution, likely for improved reliability, manufacturing process, or material changes.
  Heads up: The new part number (12742701) is the correct service replacement for the original (12710481). The original part number also replaced older numbers 12698484 and 12687650.
• 13580230 → N/A — This part number for the connector pigtail (also known as PT2618) appears to be current and has not been superseded.
