P0284 on 2017-2018 Chevy Silverado 2500: Cylinder 8 Balance Fault Causes & Fixes

What's Unique About the 2017-2018 Chevrolet SILVERADO 2500

On the L5P Duramax engine in the 2017-2018 Silverado 2500, a P0284 code isn't always a straightforward bad injector. GM has issued Technical Service Bulletins (TSBs) indicating that this code, often along with others, can be caused by an anomaly in the Engine Control Module (ECM) software. This means that in some cases, the fix is a software update from a GM dealer, not a mechanical part replacement. Furthermore, forum discussions with technicians and owners reveal that the injector wiring connectors are a very common point of failure on these engines, sometimes more so than the injector itself. Engine vibration can cause wear between the injector terminal and the connector, leading to a poor connection. One owner on a forum reported replacing 7 connectors on his 2018 model, with some failing multiple times.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light is on
• Rough or shaking idle
• Noticeable loss of power and acceleration, especially under load
• Engine vibration, especially under load
• Increased black, white, or gray smoke from the exhaust
• Poor fuel economy
• Truck may enter reduced power mode
• Raw diesel fuel smell

Most Likely Causes

1. Faulty Cylinder 8 Fuel Injector 🔴 High Probability → Shop Fuel Injector High-pressure common rail injectors operate under extreme stress (up to 30,000 PSI) and can fail internally or become clogged over time. Wear can cause them to leak or deliver an incorrect amount of fuel.
   How to confirm: Use a scan tool to monitor injector balance rates at operating temperature. Cylinder 8 will show a significantly different value. GM's spec is typically +/- 4 mm³/stroke in Park and +/- 6 mm³/stroke in Drive. A definitive test is to swap the injector with another cylinder (e.g., cylinder 6) and see if the fault code follows the injector (e.g., changing to P0278 for cylinder 6).
   Typical fix: Replace the cylinder 8 fuel injector. This requires programming the new injector's flow rate code into the ECM. GM also recommends replacing the associated one-time-use high-pressure fuel lines and return line seals.
   Est. part cost: $280-$450
2. Bad Injector Wiring Connector 🟡 Medium Probability This is a widely reported issue on L5P engines. Engine vibration causes fretting and wear between the connector terminals and the injector pins, leading to high resistance or an intermittent connection. Oil contamination can also degrade the connector over time. Cylinders 4 and 7 are also commonly affected.
   How to confirm: Visually inspect the connector for damage, corrosion, loose pins, or black powder indicating fretting wear. Wiggle the connector with the engine running to see if it affects the idle. A technician can perform a terminal drag test using a special tool (J-35616-35) to check for a secure connection.
   Typical fix: Replace the injector wiring pigtail/connector. This is often attempted before replacing the entire injector due to lower cost and high failure rate. Some owners recommend soldering the new pigtail instead of using crimp connectors for better durability.
   Est. part cost: $20-$50
3. Engine Control Module (ECM) Software Anomaly ⚪ Low Probability → Shop Engine Control Module (ECM) TSB 17-NA-171 explicitly states this code can be caused by an anomaly in the ECM and TCM software on 2017 models. This points to a software glitch rather than a hardware failure.
   How to confirm: A GM dealer must check the vehicle's software calibration version against the latest available version in the Service Programming System (SPS).
   Typical fix: Reprogram the ECM and TCM with the latest software calibrations. It is critical that both modules are updated.
   Est. part cost: $0 (if under warranty or covered by a campaign), otherwise dealer labor cost applies (approx. 1-2 hours).

Rare But Worth Checking

• Low Engine Compression: A mechanical issue like a worn piston ring, valve problem, or a failing head gasket can cause a contribution fault. A high positive balance rate can indicate the ECM is adding fuel to compensate for a weak cylinder. A relative compression test using a PicoScope can help diagnose this without a full teardown.
• Contaminated Fuel: Water or debris in the fuel can damage the sensitive internals of a high-pressure fuel injector, causing it to fail. While this usually affects multiple cylinders, it can sometimes manifest in a single injector first.

Diagnosis Steps

1. Connect an OBD-II scanner and check for P0284 and any other stored codes.
2. Using a capable scan tool, view the live data for injector balance rates with the engine fully warmed up and idling in Park. Look for the reading for cylinder 8 to be significantly higher or lower than the others. The acceptable range is generally +/- 4 mm³/stroke.
3. Perform a cylinder power balance test if the scan tool supports it. This will confirm cylinder 8 is underperforming.
4. Visually inspect the wiring harness and connector going to the cylinder 8 fuel injector. Cylinder 8 is the rearmost cylinder on the passenger side. Access is typically gained through the passenger side wheel well. 🎬 Watch: Step-by-step walkthrough of an L5P injector replacement. Look for any signs of damage, melting, corrosion, or black dust from fretting.
5. With the engine running, carefully wiggle the connector for the cylinder 8 injector to see if it causes any change in the engine's idle or if the misfire corrects itself.
6. If the wiring connector is suspected, replace the pigtail first as it is a common failure point and much cheaper than an injector.
7. If the wiring looks good and the pigtail replacement doesn't solve the issue, diagnose the injector itself. The most reliable method is to swap the cylinder 8 injector with another (e.g., cylinder 6). Clear the codes and run the engine. If the code changes to P0278 (Cylinder 6 Contribution/Balance), the injector is faulty.
8. If the P0284 code returns after the swap, the problem lies in the wiring harness or the ECM's driver circuit for that cylinder.
9. Check with a GM dealer for any open recalls or applicable TSBs, specifically mentioning TSB 17-NA-171, which may require an ECM reflash for 2017 models.

Parts You'll Likely Need

• Fuel Injector (OEM #12698483, 12678992, 12698552) — This is the most common mechanical part to fail, causing a cylinder contribution fault.
  Trusted brands: ACDelco, Bosch, Denso
  OEM price range: $350-$450
  Aftermarket price range: $280-$370
• Fuel Injector Connector (OEM #PT2782 (replaces 13585316)) — The wiring connector is a known weak point on L5P engines and can cause the same symptoms as a failed injector for a fraction of the cost.
  Trusted brands: ACDelco, Fleece Performance
  OEM price range: $30-$50
  Aftermarket price range: $15-$30
• High-Pressure Fuel Lines — GM considers the high-pressure fuel lines to be one-time-use parts and recommends replacement anytime they are loosened or removed, such as during an injector replacement.
  Trusted brands: ACDelco
  OEM price range: $50-$100 per line
  Aftermarket price range: $40-$80 per line

Related Codes That Often Appear With This One

• P0263, P0266, P0269, P0272, P0275, P0278, P0281 — These are the contribution/balance fault codes for cylinders 1 through 7. Seeing multiple codes may point to a widespread issue like fuel contamination, an ECM problem, or a wiring harness issue.
• P0308 — This is the code for 'Cylinder 8 Misfire Detected'. It often appears with P0284 as the underlying cause of the misfire is the contribution/balance issue.
• P0208 — This code for 'Cylinder 8 Injector Circuit/Open' points more directly to an electrical problem, such as the failed injector connector pigtail that is common on these trucks.

Technical Service Bulletins (TSBs) & Recalls

• PIP5468F: Lists P0284 among many other codes and advises following standard diagnostics.
• 17-NA-171: Cites an ECM/TCM software anomaly on 2017 models as a potential cause, requiring reprogramming.
• 23-NA-027: Details diagnosis and replacement of injector electrical connectors due to fretting wear from engine vibration.

Platform-Specific Known Issues

• TSB 17-NA-171 notes that P0284, along with a host of other codes, may be caused by an ECM/TCM software anomaly on 2017 models and can be resolved by reprogramming both modules.
• TSB PIP5468F lists P0284 as part of a large group of codes that may appear. It advises technicians to follow standard diagnostics first, implying a complex interaction between systems.
• TSB 23-NA-027 (April 2023) specifically addresses injector connector failures on L5P engines, noting that engine vibration can cause wear (fretting) between the terminal and the injector, leading to various misfire and injector circuit codes. It advises inspecting for black powder and applying dielectric grease to new connectors.

Mechanic-Grade Diagnostic Values

• Fuel Injector Internal Resistance — expected: ~0.8 Ohms. Failure: A reading of 3.8 Ohms or higher, or an open circuit, often indicates a high-resistance failure in the wiring or connector, not the injector itself.
• Injector Connector Voltage — expected: Battery Voltage. Failure: No voltage or low voltage at the power wire for the cylinder 8 injector indicates a wiring issue upstream of the connector.

Scan Tool Commands That Help

• GDS2 (GM Scan Tool): Injector Flow Rate Programming — This is a required step after replacing any fuel injector. Each new injector has a unique trim code that must be programmed into the ECM for proper fuel delivery. The path is typically: ECM -> Module Diagnostics -> Control Functions -> Configuration Reset -> Injector Flow Rate Programming.
• Aftermarket Scan Tools (e.g., Snap-on Solus Ultra): Injector Rate Programming / Module Setup — Used after injector replacement. For many aftermarket tools, it is critical to add "F7" at the beginning of the trim code for it to be accepted by the ECM.
• GDS2 / High-End Scan Tools: Cylinder Power Balance Test — Used during initial diagnosis to confirm that cylinder #8 is underperforming compared to the others. This helps verify the fault before disassembling parts.

Wiring & Ground Locations

• Engine Block Ground (Passenger Side) — On the passenger side of the engine block, visible from the wheel well. A wire runs from the main harness to a bolt on the block.. Poor engine grounds can cause a variety of intermittent electrical issues and fault codes. While not specific to P0284, ensuring all engine grounds are clean and tight is a crucial step in diagnosing any electrical fault on these trucks.
• ECM Connector X2 — The rearmost connector on the Engine Control Module (ECM).. All injector circuits run directly from the ECM to the injectors with no other connectors in between. Technicians can back-probe this connector to test the entire injector circuit for resistance or perform a load test.

Real Owner Repair Stories

• YouTube video by user C Farmer (2018 L5P Duramax with over 500,000 miles) — Check engine light, reduced engine power, and a dead misfire. Scan tool showed P0205 and P0305 (Cylinder 5 Misfire/Circuit fault).
  ❌ Tried (didn't work) On a previous occasion with a similar issue on cylinder 7, the owner replaced the injector first, but the problem returned almost immediately.
  ✅ What actually fixed it The issue was consistently the injector wiring pigtail, not the injector itself. For the cylinder 5 fault, he replaced only the pigtail connector, which resolved the codes and symptoms. He notes that in his experience, it's always the pigtail that fails.

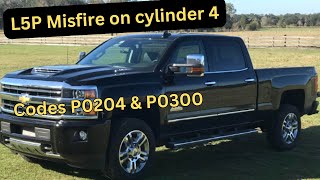

• YouTube video by Blue Collar Garage (2018 GMC Sierra Denali HD L5P Duramax) — Rough running, check engine light, traction control light, 'Service Emissions System' message, speed limited to 55 mph. Codes P0204 and P0300.
  ❌ Tried (didn't work) The video directly addresses the pigtail as the primary suspect, bypassing other diagnostics.
  ✅ What actually fixed it Replaced the cylinder #4 injector pigtail connector. This immediately cleared the misfire and all associated warning lights and messages after a test drive.

OEM Part Supersession History

• 13585316 → PT2782 — Standard part supersession for the injector connector pigtail.

Model Year Variations Within This Range

• 2017-Present: The L5P Duramax engine uses solenoid-type fuel injectors, which is a change from the piezo-actuated injectors used in the previous generation (2011-2016 LML) Duramax. This means diagnostic procedures and component specifications are different between these engine generations.
