P0443 on 2005-2021 Nissan Frontier: EVAP Purge Valve Circuit Fault Causes and Fixes

What's Unique About the 2005-2021 Nissan Frontier

The Nissan Frontier's second generation (D40) had an exceptionally long production run, from 2005 to 2021 in the US market. This means many of these trucks on the road have aging wiring and components, making electrical faults like P0443 more common. While the purge valve itself is a frequent failure point across many vehicles, on the Frontier, it's a well-documented and highly probable cause. The part is generally easy to access in the engine bay on the 4.0L V6 (VQ40DE) and 2.5L I4 (QR25DE), typically mounted directly on the intake manifold, making it a common sub-30-minute DIY repair.

Generation note: The 2005-2021 range primarily covers the second-generation (D40) Frontier. However, a significant powertrain update occurred in 2020 with the introduction of the 3.8L V6 (VQ38DD), which replaced the long-running 4.0L V6 (VQ40DE) and 2.5L I4 (QR25DE). While the underlying chassis remained the same, the engine and some related components, including the purge valve, have different part numbers and slightly different locations depending on the engine. The issue is common across all engine types within this year range.

Symptoms You May Notice

• Check Engine Light is on
• Slightly rough idle
• Minor decrease in fuel economy
• Possible difficulty starting after refueling
• Fuel odor near the vehicle

Most Likely Causes

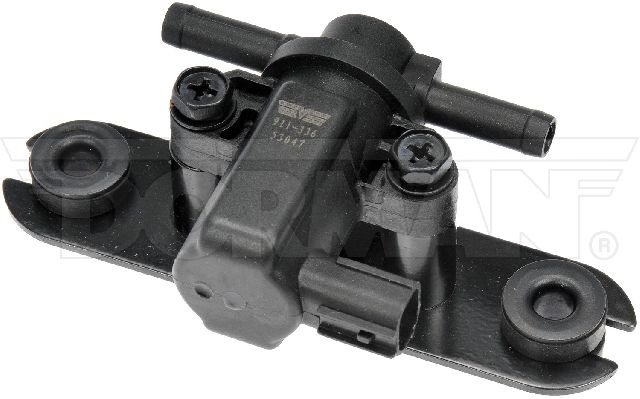

1. Faulty EVAP Canister Purge Solenoid Valve 🔴 High Probability → Shop Vapor Canister The solenoid coil inside the valve is the most common failure point. Over many heating and cooling cycles, the coil winding can break (creating an open circuit) or short out, which the ECM detects immediately. This is the most frequent cause of a P0443 code on the Frontier. 🎬 Watch: A quick guide to diagnosing and fixing the P0443 code.
   How to confirm: With the engine off, unplug the valve and measure the resistance across its two pins with a multimeter. A healthy valve should have a resistance between 30 and 38 ohms. An infinite reading (OL) indicates an open circuit, and a reading near zero indicates a short. You can also use a scan tool with bidirectional controls to command the valve to open and close; you should hear an audible click.
   Typical fix: Replace the EVAP canister purge solenoid valve.
   Est. part cost: $20-$90
2. Damaged Wiring or Electrical Connector 🟡 Medium Probability The wiring harness in the engine bay is exposed to heat and vibration, which can cause wires to fray, break, or corrode over time, especially on older trucks. The connector pins can also become corroded or loose, leading to an intermittent connection.
   How to confirm: Visually inspect the wiring harness leading to the purge valve for any signs of damage, chafing, or melting. Check the connector for corrosion or loose pins. With the ignition on (engine off), use a multimeter to check for battery voltage on the power wire (typically Yellow) and for continuity on the ground/control wire (typically Tan) back to the ECM.
   Typical fix: Repair the damaged section of wire or clean/replace the connector.
   Est. part cost: $5-$25
3. Blown Fuse ⚪ Low Probability
   How to confirm: Locate the fuse for the emissions or EVAP system in the fuse box (check both the engine bay IPDM and interior fuse panels). Visually inspect the fuse or test it with a multimeter to see if it's blown.
   Typical fix: Replace the blown fuse. If the fuse blows again immediately, it indicates a short circuit in the system that must be found and repaired.
   Est. part cost: $1-$5

Rare But Worth Checking

• Faulty Engine Control Module (ECM): → Shop Engine Control Module (ECM) This is very rare. The internal driver circuit in the ECM that controls the purge valve can fail. Before condemning the ECM, all other possibilities, including the valve, wiring, and fuses, must be exhaustively tested and ruled out. In some cases, an ECM reprogram per TSB NTB12-071c may be required.

Diagnosis Steps

1. Read the code with an OBD-II scanner to confirm P0443 is present.
2. Locate the EVAP canister purge solenoid valve. On the Frontier 4.0L and 2.5L, it's mounted on top of the engine's intake manifold, with two hoses and an electrical connector.
3. Visually inspect the electrical connector and wiring harness for any obvious damage, corrosion, or loose connections.
4. Check the fuse for the EVAP system. If it's blown, replace it and see if the code returns.
5. With the ignition on and engine off, disconnect the electrical connector. Use a multimeter to verify that the power wire (often Yellow) has battery voltage.
6. Test the valve's internal coil. Set your multimeter to measure resistance (Ohms) and touch the probes to the two pins on the valve itself. A healthy valve will show resistance between 30-38 ohms. An infinite reading (OL) means the coil is open, and a reading of zero means it's shorted. This is the most definitive test.
7. If you have a power probe or jumper wires, you can apply 12V directly to the valve's pins. A good valve will make an audible 'click' when power is applied and removed.
8. If the wiring and valve resistance check out, the final step is to check the control (ground) wire (often Tan) from the connector back to the ECM for continuity. This ensures the wire isn't broken somewhere in the harness.

Parts You'll Likely Need

• EVAP Canister Purge Solenoid Valve (OEM #For 4.0L V6 (VQ40DE) & 2.5L I4 (QR25DE) 2005-2019: 14930-EA010 or 14955-8J10A (often superseded by 14955-8J10B). For 3.8L V6 (VQ38DD) 2020-2021: 14935-JF00B / 14935-JF01C. Always verify with VIN.) — This is the most frequent cause of a P0443 code due to internal electrical failure of the solenoid.
  Trusted brands: Nissan (Genuine), Dorman, Standard Motor Products (SMP), Hitachi, Gates
  OEM price range: $150-$175
  Aftermarket price range: $20-$90

Related Codes That Often Appear With This One

• P0444 — This code indicates an 'EVAP Purge Control Valve Circuit Open'. It often appears with or instead of P0443 and points to the same set of problems: a broken wire or a failed-open solenoid coil.
• P0445 — This code indicates an 'EVAP Purge Control Valve Circuit Shorted'. It points to a short circuit in the wiring or within the valve's solenoid coil.

Technical Service Bulletins (TSBs) & Recalls

• NTB12-071c: This TSB applies to multiple Nissan vehicles, including the Frontier, for codes P0443, P0444, and P0445. It addresses a situation where the ECM logic is too sensitive and may require an ECM reprogram to correct the issue, even if the valve and wiring are good. This should be considered after verifying the hardware is not at fault.
• NTB15-079e: While this TSB is for code P0448 (EVAP canister vent control valve close), it provides extensive detail on the EVAP system components for the 2005-2019 Frontier, which can be useful for general system understanding.

Platform-Specific Known Issues

• Extremely Common DIY Fix: Numerous owners on forums like ClubFrontier.org report P0443 as one of the easiest codes to fix. A typical repair story involves reading the code, ordering the part for ~$50, and replacing it in the driveway in under 20 minutes using only a 10mm socket and pliers. One user noted, 'I got the code, tested the old valve and got an open loop on my multimeter, put the new one on in 10 minutes, cleared the code, and it never came back.'
• Location on VQ40DE (4.0L V6): On the popular 4.0L V6 engine, the purge solenoid is located on the driver's side of the upper intake manifold, just behind the throttle body. It is held on by one or two 10mm bolts and is easily accessible after removing the plastic engine cover.

Mechanic-Grade Diagnostic Values

• EVAP Purge Valve Solenoid Coil Resistance — expected: 30 to 38 Ohms at approx. 68°F (20°C). Failure: Near zero Ohms (short) or infinite/OL (open circuit).
• Voltage at Purge Valve Connector (Power Wire) — expected: Battery Voltage (approx. 12V) with ignition ON, engine OFF.. Failure: No voltage indicates a blown fuse or an open in the power supply wire from the IPDM E/R (Intelligent Power Distribution Module Engine Room).
• Voltage at Purge Valve Connector (Control Wire, back-probed) — expected: At idle, voltage should be near battery voltage. When the ECM commands purge (above idle, engine warm), the ECM grounds the circuit, and voltage will drop, often fluctuating as the ECM duty-cycles the valve.. Failure: Voltage does not drop when purge is commanded (e.g., holding 2500 RPM for 30+ seconds), indicating a broken control wire or a faulty ECM driver. Voltage is always near 0V, indicating a short to ground in the harness.
• ECM Pin Voltage (Control Wire) — expected: 9 to 14 V at the ECM connector pin for the purge valve (Pin 16 on some VQ40DE models) with ignition ON.. Failure: No voltage or incorrect voltage points towards an issue with the ECM itself, assuming the wiring harness has continuity.

Scan Tool Commands That Help

• Nissan CONSULT (or advanced aftermarket scanners): Active Test: 'Purge Volume Control Valve' or 'EVAP VSV' — This command allows the technician to manually open and close the purge valve while the engine is running. It's used to confirm if the valve clicks audibly, if the ECM driver is functioning, and to observe the effect on engine idle and short-term fuel trims. A functioning valve will cause a momentary stumble or change in RPM when opened.

Wiring & Ground Locations

• Purge Valve Connector (Power) — On the purge valve solenoid itself, in the engine bay on the intake manifold.. The power wire, typically Yellow, must have battery voltage for the solenoid to operate. Power is supplied from a fuse via the IPDM E/R.
• Purge Valve Connector (Control) — On the purge valve solenoid itself, in the engine bay on the intake manifold.. The control wire, typically Tan, is the ground-side switched wire controlled by the ECM. A break or short in this wire between the valve and the ECM will cause a P0443.
• ECM Pin 16 (VQ40DE) — On the main Engine Control Module connector, often located behind the glove box or on the passenger side firewall.. This is the specific pin that controls the purge valve solenoid on many VQ40DE-equipped Frontiers. Checking for continuity from this pin to the valve's connector (Tan wire) is a definitive test for the control wire integrity.
• IPDM E/R (Intelligent Power Distribution Module Engine Room) — Black box located in the engine bay, typically near the battery.. The IPDM contains the fuse and relay that supply power to the EVAP purge solenoid. Failures within the IPDM's internal circuit board, though less common than a simple fuse, can cause a loss of power to the valve and trigger a P0443.

Real Owner Repair Stories

• Nissan Club Forum User (2014 Nissan Rogue (similar EVAP system logic)) — P0443 code present.
  ❌ Tried (didn't work) Replaced the purge solenoid valve with a new one.
  ✅ What actually fixed it The ECM driver for the solenoid was blown. The user confirmed the old and new solenoids had correct resistance. They tested the control wire (Tan) and found it was not being grounded by the ECM when purge should have been active. Replacing the ECM resolved the issue.
• Toyota Wigo owner (similar principle) (Toyota Wigo) — P0443 code, Check Engine Light.
  ❌ Tried (didn't work) Initially considered replacing the purge valve.
  ✅ What actually fixed it Found a cut wire in the harness behind the ECU. The wire had rubbed against the PVC harness over time, breaking the ground connection for the purge solenoid. Repairing the broken wire fixed the P0443 code without replacing any parts.

OEM Part Supersession History

• 14955-8J100 → 14955-8J10A, which was then superseded by 14955-8J10B — Minor internal revisions for durability and performance.
  Heads up: These parts are generally interchangeable for the specified applications (primarily VQ35DE and VQ40DE engines). However, always confirm fitment with VIN as connector styles can vary on fringe applications.
• 14930-EA010 → This part number appears to be specific to the 2.5L QR25DE engine and has remained consistent. — N/A
  Heads up: This part is not interchangeable with the V6 part numbers (14955-8J10x).

Model Year Variations Within This Range

• 2020-2021: The introduction of the 3.8L V6 (VQ38DD) engine brought a different purge valve (PN 14935-JF00B / 14935-JF01C). While the function is identical, the part itself and its precise location on the intake manifold differ from the previous 4.0L and 2.5L engines. Diagnostic principles remain the same.

Diagnostic Flowchart

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: Given the low cost of new aftermarket purge valves ($20-$50), purchasing a used one from a junkyard is generally not recommended. The labor to access and replace the part, while minimal, is not worth risking an early failure of a used component with unknown history.

Donor-vehicle mileage cap: roughly under 50000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• Check for cracks in the plastic housing.
• Ensure the electrical connector pins are clean, straight, and free of corrosion.
• Verify the vacuum ports are clear of debris and not broken.

Aftermarket brands forum-validated for this vehicle:

• Hitachi (often the OEM supplier)
• Standard Motor Products (SMP)
• Dorman

Brands owners have reported issues with on this vehicle:

• Unbranded, no-name parts from online marketplaces should be avoided as their internal coil quality and sealing capability can be inconsistent.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0444 — EVAP Purge Control Valve Circuit Open. This code is a direct companion to P0443 and is mentioned in TSB NTB12-071c. It specifically points to an open circuit (like a broken wire or failed coil) in the same component.
• P0445 — EVAP Purge Control Valve Circuit Shorted. Also mentioned in TSB NTB12-071c, this code indicates a short circuit in the purge valve or its wiring, which is another possible failure mode for the same system.
• P0441 — EVAP System Incorrect Purge Flow. An owner report shows this code can be caused by a bad purge solenoid. While P0443 is an electrical circuit fault, P0441 is a performance fault, but they often share the same root cause component.
• P0456 — EVAP System Leak Detected (Very Small Leak). An owner reported this code appeared along with P0443 after a repair. A faulty purge valve circuit can prevent the system from sealing correctly to perform a leak test, causing leak codes to appear.
• P0448 — EVAP Canister Vent Control Valve Circuit Shorted. While this code refers to a different valve in the EVAP system (the vent valve), TSB NTB15-079e, which details this code, is cited as a useful reference for understanding the entire EVAP system on the Frontier.
