P0461 on 2016-2020 Nissan Pathfinder: Fuel Level Sensor Causes and Fixes

What's Unique About the 2016-2020 Nissan PATHFINDER

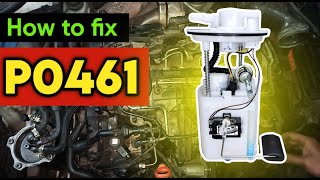

For the 2016-2020 Pathfinder (and its platform mate, the Infiniti QX60), Nissan has explicitly stated in Technical Service Bulletin NTB22-026 that the fuel level sensor is the primary issue for this code and that it can be replaced separately from the more expensive fuel pump assembly. This is a significant advantage, as it makes the repair much more affordable. The bulletin warns dealers that warranty claims for replacing the entire fuel pump assembly for this specific issue will be charged back, reinforcing that the sensor is the intended standalone fix. 🎬 Watch: How to fix P0461 without replacing the whole pump. The Pathfinder's saddle-style fuel tank has two fuel level sensors (main and sub-sender); P0461 typically points to a failure in the main sensor located on the primary fuel pump module.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light is on
• Fuel gauge behaves erratically (e.g., jumps from full to empty, or flickers).
• Fuel gauge is stuck on full, empty, or at a specific level.
• Distance to Empty (DTE) display is inaccurate, shows dashes, or does not update.
• Low fuel light may illuminate or flash incorrectly.

Most Likely Causes

1. Faulty Fuel Level Sensor (Sending Unit) 🔴 High Probability → Shop Fuel Tank Sending Unit Nissan issued TSB NTB22-026 that directly identifies the fuel level sensor as the component to replace for this code, noting it can be serviced separately from the fuel pump assembly. The variable resistor contacts on the sensor card wear out or become contaminated over time, causing the signal to become erratic.
   How to confirm: Access the top of the fuel tank, typically under the rear passenger-side seat. Use a multimeter to test the resistance of the sensor. As you manually move the float arm, the resistance should change smoothly without any dead spots or sudden jumps. An open circuit, short, or erratic readings confirm a bad sensor. 🎬 See this walkthrough on testing and replacing the level sensor.
   Typical fix: Replace the fuel level sensor. Per TSB NTB22-026, the entire fuel pump assembly should not be replaced unless it has failed separately. The sensor unclips from the side of the fuel pump module.
   Est. part cost: $155-$230
2. Wiring or Connector Issue ⚪ Low Probability
   How to confirm: Visually inspect the wiring harness and connector at the top of the fuel pump assembly for any signs of damage, corrosion, or loose connections. The connector is located under the access panel in the floor pan. 🎬 Watch: How to access and remove the fuel pump assembly. Check for continuity and proper voltage at the harness connector using a multimeter and a vehicle-specific wiring diagram.
   Typical fix: Repair or replace the damaged section of the wiring harness or the connector itself. Clean any corrosion from the connector pins.
   Est. part cost: $20-$100

Rare But Worth Checking

• Faulty Instrument Cluster: While rare, a problem within the instrument cluster itself can cause incorrect fuel gauge readings. This is usually diagnosed by using a scan tool to command the gauge to sweep; if it fails to respond correctly while the sensor signal is known to be good, the cluster may be the issue. Some older Pathfinders were known to have resistor issues in the cluster, but this is less common on the R52 generation.
• Powertrain Control Module (PCM) Issue: → Shop Engine Control Module (ECM) In very rare cases, the PCM may have a software glitch or internal failure causing it to misinterpret the fuel level sensor's signal. This would typically be the last item to check after confirming the sensor and wiring are functioning perfectly. Diagnosis would require a dealer-level scan tool to check for PCM software updates or internal faults.

Diagnosis Steps

1. Scan the vehicle's computer system to confirm P0461 is the active code and check for any other related codes (P0460, P0462, P0463).
2. Use a scan tool to observe the live data from the fuel level sensor. Look for erratic voltage or percentage readings that don't correspond to the known fuel level. The voltage should change smoothly as fuel is consumed.
3. Relieve fuel system pressure by removing the fuel pump fuse and running the engine until it stalls. Disconnect the negative battery terminal.
4. Gain access to the fuel pump assembly by removing the rear seat cushion (passenger side) and opening the metal access panel on the floor.
5. Inspect the electrical connector and wiring going to the fuel pump assembly for any visible damage, corrosion, or loose pins.
6. Disconnect the sensor and use a multimeter set to Ohms to measure its resistance. Manually move the float arm up and down. The resistance should change smoothly and consistently. Any sudden jumps, infinite readings (open), or zero readings (short) indicate a failed sensor.
7. If the sensor tests good, check for proper voltage and ground at the harness connector to rule out a wiring issue between the tank and the PCM.
8. If the sensor and wiring are confirmed to be good, the issue may lie with the instrument cluster or PCM, which requires more advanced diagnostics, likely at a dealership.

Parts You'll Likely Need

• Fuel Level Sensor (OEM #25060-3KA1A) — This is the component that fails most often, causing erratic signals as identified by Nissan's own service bulletin NTB22-026.
  Trusted brands: Nissan (OEM), Dorman, Spectra Premium
  OEM price range: $170-$232
  Aftermarket price range: $80-$120
• Fuel Pump Module Tank Seal / O-Ring (OEM #17342-3JA0A) — This seal is a one-time use part and must be replaced whenever the fuel pump module is removed from the tank to prevent fuel leaks and vapor smells. It is often sold separately.
  Trusted brands: Nissan (OEM)
  OEM price range: $15-$25
  Aftermarket price range: $10-$20

Related Codes That Often Appear With This One

• P0460 — This code for 'Fuel Level Sensor Circuit' is often stored alongside P0461 as they both relate to the performance of the same sensor.
• P0462 — This code indicates 'Fuel Level Sensor Circuit Low Input' and can be triggered by the same failing sensor that causes P0461.
• P0463 — This code indicates 'Fuel Level Sensor Circuit High Input' and points to the same component failure. It's common to see it with P0461.

Technical Service Bulletins (TSBs) & Recalls

• NTB22-026: Published April 5, 2022. This is the primary document for this issue. It instructs technicians that if a fuel level sensor is diagnosed as faulty with codes P0460, P0461, P0462, or P0463, only the sensor should be replaced, not the entire fuel pump module. It warns that warranty claims for the full assembly will be charged back.

Platform-Specific Known Issues

• Nissan has issued Technical Service Bulletin NTB22-026 which applies to 2016-2020 Pathfinders (among other models) for inaccurate fuel gauges with DTCs P0460, P0461, P0462, or P0463. The bulletin explicitly states to replace only the fuel level sensor, not the entire fuel pump assembly.
• The R52 Pathfinder utilizes a saddle-style fuel tank, which requires two sending units to measure the fuel level on both sides of the tank's hump. P0461 refers to Sensor 'A', which is the main unit attached to the fuel pump module on the passenger side. A separate code would be set for the sub-level sensor on the driver's side.

Mechanic-Grade Diagnostic Values

• Fuel Level Sensor Resistance — expected: A smooth, linear change. While exact Pathfinder specs are not published, typical Nissan values are approximately 4-6 Ω at Full and 73-85 Ω at Empty.. Failure: An infinite resistance reading (OL) indicates an open circuit. A reading near 0 Ω indicates a short. Any sudden jumps or dropouts while moving the float arm indicate a worn resistor card.
• Fuel Level Sensor Signal Voltage — expected: A variable voltage that changes smoothly with the fuel level, typically between 0.5V (Empty) and 4.5V (Full).. Failure: A voltage that is stuck, jumps erratically, or does not match the expected value based on the known fuel level in the tank.

Wiring & Ground Locations

• Fuel Pump / Sending Unit Connector — Atop the fuel pump module, accessible under a panel below the rear passenger-side seat.. This 6-pin rectangular connector is the primary interface for the fuel pump and level sensor. Corrosion or loose pins at this connector can mimic a failed sensor, causing the P0461 code. The harness wires are typically 18-gauge.
• Fuel Pump Ground — The fuel pump assembly is typically grounded through its wiring harness back to a chassis ground point. While a specific ground point for the R52 Pathfinder's fuel system isn't commonly cited as a failure point, general chassis grounds are located on the firewall and near the transmission.. A poor ground connection for the fuel pump control unit or the sensor circuit can cause erratic voltage readings and trigger range/performance codes like P0461.

OEM Part Supersession History

• 25060-3KA1A → No supersession found. This part number remains current. — N/A
  Heads up: This part number fits 2014-2020 Nissan Pathfinders with both 2.5L and 3.5L engines.

Model Year Variations Within This Range

• 2017-2020: The Nissan Pathfinder received a significant refresh for the 2017 model year, which included a revised 3.5L V6 engine with more power, updated exterior styling, and new technology features. However, the core fuel delivery system and the part number for the fuel level sensor (25060-3KA1A) remained the same from 2014 through 2020, meaning the cause and fix for P0461 are consistent across the entire 2016-2020 range specified.
