P0463 on 2008-2014 Mercedes-Benz C-Class: Fuel Level Sensor Circuit High Input

What's Unique About the 2008-2014 Mercedes-Benz C-Class

For the 2008-2014 C-Class (W204 generation), the fuel level sensor is a common failure point. The W204 utilizes a saddle-style fuel tank with two separate units: a fuel pump with an integrated level sensor on one side, and a sending unit with a second level sensor on the other. The PCM averages the readings from both to determine the fuel level. Accessing these units requires removing the rear seat cushion, which is relatively straightforward. However, the cost of the OEM replacement parts can be surprisingly high for this vehicle class. It's also critical to note that Mercedes used different types of sending units (film vs. magnetic), and replacing one with a different type may require coding the Rear SAM or instrument cluster.

Symptoms You May Notice

• Inaccurate fuel gauge (stuck on full, empty, or fluctuating wildly)
• Check Engine Light is on
• Low fuel warning light may be on constantly
• Fuel gauge reads full regardless of the actual fuel level

Most Likely Causes

1. Faulty Fuel Level Sending Unit 🔴 High Probability → Shop Fuel Tank Sending Unit The variable resistor within the sending unit can wear out or become contaminated over time, leading to an open circuit or incorrect voltage signals. The W204 has two such sensors, one in the main fuel pump assembly and one in the secondary sending unit, doubling the potential points of failure.
   How to confirm: Test the sensor's resistance with a multimeter while manually moving the float arm. The resistance should change smoothly without any dead spots or 'OL' (Open Loop) readings. A reading outside the manufacturer's specified range confirms failure.

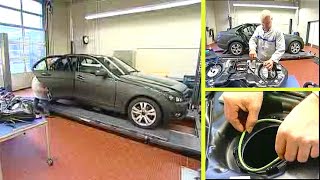

   Typical fix: Replace the faulty fuel level sending unit. On the W204 C-Class, this could be the right-side fuel pump/sender assembly or the left-side sender/filter assembly. It is often recommended to replace both units at the same time to ensure accurate readings. 🎬 Watch: Step-by-step W204 fuel level sensor replacement guide
   Est. part cost: $842-$872 for the OEM assembly.
2. Wiring or Connector Issues 🟡 Medium Probability The wiring harness and connectors leading to the fuel tank are located under the rear seat and can be susceptible to damage, moisture intrusion, or corrosion over time, leading to a high-resistance or open circuit.
   How to confirm: Visually inspect the wiring harness and connector at the top of the fuel tank for any signs of damage, corrosion, or loose pins. Perform a voltage and continuity test on the circuit. With the ignition on, the signal wire should read 0 volts; a 5V or 12V reading indicates a short to power.
   Typical fix: Repair or replace the damaged section of the wiring harness or clean/replace the corroded connector.
   Est. part cost: $10-$100 for wiring repair supplies.
3. Poor Ground Connection ⚪ Low Probability Ground straps for the fuel tank can corrode or become loose, creating high resistance in the circuit which the PCM interprets as a high voltage signal. This is more common in regions that use road salt.
   How to confirm: Locate the ground strap for the fuel tank and inspect it for corrosion or looseness. Test the ground circuit for excessive resistance using a multimeter; a reading above 1 Ohm is a strong indicator of a bad ground.
   Typical fix: Clean the grounding point and re-secure the strap, or replace the ground strap if it's heavily corroded.
   Est. part cost: $15-$40

Rare But Worth Checking

• Faulty Rear Signal Acquisition Module (SAM): On Mercedes-Benz vehicles, the Rear SAM is often responsible for processing the signal from the fuel level sender. While rare, a fault within this module can cause the P0463 code. A user on YouTube reported fixing their W204's fuel gauge issue by replacing the rear SAM after having already replaced the fuel pump assembly.

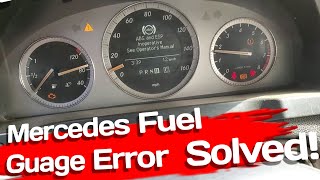

🎬 See how to fix a Mercedes fuel gauge that isn't working
• Instrument Cluster Failure: → Shop Instrument Cluster In very rare cases, the instrument cluster itself can malfunction and fail to correctly interpret the signal from the fuel level sensor, even if the sensor and wiring are good.

Diagnosis Steps

1. Use an OBD-II scanner to confirm the P0463 code is present and check for any other related codes.
2. Gain access to the top of the fuel tank by removing the rear seat cushion and the access panels.
3. Disconnect the battery before proceeding.
4. Visually inspect the wiring and connectors going to both the left and right side fuel tank access points for any obvious signs of damage, corrosion, or loose connections.
5. Using a multimeter and a wiring diagram, check for proper voltage and ground at the fuel level sensor connectors. Check the ground circuit resistance; it should be less than 1 Ohm.
6. If wiring appears correct, test the resistance of both fuel level sensors. The reading should change smoothly as the float arm is moved. An open circuit (infinite resistance) or a reading that is out of specification indicates a faulty sensor.
7. If both sensors and the wiring test good, the issue may lie with the Rear SAM or the instrument cluster, which requires more advanced diagnostics, potentially with a Mercedes-specific scan tool.

Parts You'll Likely Need

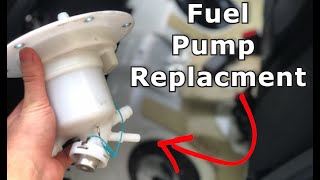

• Fuel Pump and Sending Unit Assembly (OEM #A2184700994 (Right side, example part number, verify with VIN)) — This is the most common cause of the P0463 code. The fuel level sensor (sending unit) is integrated with the fuel pump module in the W204 C-Class. 🎬 Watch: DIY Mercedes W204 fuel pump replacement walkthrough The left-side sending unit also contains a sensor and may need replacement.
  Trusted brands: Bosch, VDO, Genuine Mercedes-Benz
  OEM price range: $300-$872
  Aftermarket price range: $250-$500
• Fuel Level Sensor (OEM #A2045400917 (Example part number, verify with VIN)) — In some cases, the sensor itself can be replaced without replacing the entire pump or sender assembly, offering a more cost-effective repair.
  Trusted brands: Genuine Mercedes-Benz
  OEM price range: $60-$120
  Aftermarket price range: $30-$80
• Fuel Tank Seal / O-Ring (OEM #025-997-18-45 (Example part number, verify with VIN)) — The large rubber seal for the fuel pump/sender access port should always be replaced whenever the unit is removed to prevent fuel leaks and fumes.
  Trusted brands: Genuine Mercedes-Benz
  OEM price range: $25-$40
  Aftermarket price range: $10-$20

Mechanic-Grade Diagnostic Values

• Fuel Level Sensor Signal Voltage — expected: 0.5V (empty) to 4.5V (full) on a 5V reference system.. Failure: A reading consistently above 4.8V. The P0463 code is set when the PCM sees an impossibly high voltage.

Hidden / Shadow Codes Worth Checking

• P046164 / IC_204 - P046164: The left fuel level sensor has a malfunction. There is an implausible signal. This is more specific than P0463, pointing directly to the left-side sensor. (see via Mercedes-specific diagnostic tools like XENTRY/DAS, often seen during module coding or retrofitting.)
• P206664 / IC_204 - P206664: The right fuel level sensor has a malfunction. There is an implausible signal. This is more specific than P0463, pointing directly to the right-side sensor (which is typically part of the fuel pump assembly). (see via Mercedes-specific diagnostic tools like XENTRY/DAS, often seen during module coding or retrofitting.)

Scan Tool Commands That Help

• XENTRY/DAS: Rear SAM (SAMR) and Central Gateway (CGW) Software Update/Coding — This may be required when replacing modules like the Rear SAM or instrument cluster. An owner retrofitting a facelift cluster into a pre-facelift car noted that incorrect coding or outdated software in related modules can cause fuel gauge errors, indicating a software dependency.

Wiring & Ground Locations

• N10/2 — The Rear SAM (Signal Acquisition Module) is located in the trunk area.. A wiring diagram confirms that the Left fuel level sensor (B4/1) and Right fuel level sensor (B4/2) send their signals directly to this module for processing. A fault in the N10/2 module itself can cause P0463.
• W76 — A Mercedes document refers to 'W76 Fuel pump ground point' for the Model 204 chassis, though the exact location under the vehicle is not specified in the available snippet.. A poor or corroded ground connection is a potential cause for the high resistance/voltage reading that triggers P0463.

Real Owner Repair Stories

• YouTube video from 'Car Fanatic' (Mercedes-Benz W204 C-Class) — Inaccurate fuel gauge readings.
  ❌ Tried (didn't work) Replacing the fuel pump and sending unit assembly.
  ✅ What actually fixed it The problem was ultimately resolved by replacing the Rear SAM (Signal Acquisition Module) located in the trunk.
• YouTube video from 'Dr. Porter Fix' (Mercedes-Benz W204 C300) — Fuel gauge not working.
  ❌ Tried (didn't work) Previous mechanic had replaced parts without success.
  ✅ What actually fixed it The owner performed a 'hard reset'. With the engine running, he disconnected the battery terminals and let the car run for 10-15 minutes. After shutting down, reconnecting the battery, and letting it sit, the gauge function was restored. This is an unconventional procedure and should be performed with caution.

When the Usual Fixes Don't Work

• In at least one documented case, the common fix of replacing the fuel pump and sender assembly did not resolve the P0463 code and inaccurate gauge. The actual cause was a faulty Rear SAM module, which processes the signals from the senders. This highlights the importance of diagnosing the entire circuit, including the processing module, before replacing expensive in-tank components.

Model Year Variations Within This Range

• 2008-2011 vs 2012-2014: The W204 received a major facelift in 2012, which included a completely redesigned dashboard and instrument cluster. The electronics that process the fuel level signal are different between the pre-facelift and post-facelift models. Swapping a newer cluster into an older car without proper coding and potential software updates to other modules like the Rear SAM will cause the fuel gauge to fail and set codes.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• M272 V6 Balance Shaft Gear Wear 🔴 High — Common on early models (pre-2009). The gear was made from a softer metal that wears prematurely, typically causing issues between 80,000-150,000 miles. (Ref: Internal service campaigns were issued, but no official public recall. Repair is very labor-intensive and expensive.)
• M271 4-Cylinder Timing Chain Stretch 🔴 High — Affects CGI engines (C180, C200, C250). A rattling noise on cold starts is a key symptom, often appearing after 120,000 km. If ignored, it can lead to catastrophic engine failure.
• Rear Subframe Corrosion 🔴 High — A critical issue where the rear subframe can rust from the inside out, potentially leading to structural failure. Mercedes-Benz has reportedly extended the warranty for this issue to 20 years with unlimited miles in some cases. (Ref: Warranty Extension (not a formal recall))
• 7G-TRONIC Transmission Conductor Plate/Valve Body Failure 🟠 Medium — Issues like rough shifting or delayed engagement can occur, often related to failures in the transmission's electronic conductor plate or valve body.
• Electronic Ignition Switch (EIS) Failure 🟠 Medium — The ignition lock can fail, preventing the key from being recognized and the car from starting. This can be an expensive repair requiring specialized programming.
• M272 Intake Manifold Actuator Arm Failure 🟡 Low — The plastic actuator arms on the variable intake manifold are known to break, typically after 80,000 miles, causing a loss of power and check engine lights. Repair kits are available.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For purely mechanical components like the locking ring or access cover, a used part is acceptable. However, for the electronic fuel pump and sender assemblies, used parts are generally not recommended.

Donor-vehicle mileage cap: roughly under 75000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• Verify the part number and VIN compatibility of the donor vehicle. Mercedes used many VIN-specific parts, and installing the wrong one can result in a no-start condition.
• Inspect the electrical connector pins for any signs of corrosion, melting, or damage.
• Ensure the float arm moves freely and is not bent or damaged.

OEM-only on this vehicle (don't cheap out):

• Fuel Pump and Sending Unit Assembly: Due to the high risk of incompatibility with VIN-specific parts and the critical safety nature of fuel system components, using a new Genuine Mercedes-Benz, VDO, or Bosch unit is strongly advised.

Aftermarket brands forum-validated for this vehicle:

• VDO (often the OEM supplier)
• Bosch (often the OEM supplier)

Brands owners have reported issues with on this vehicle:

• Unbranded, low-cost assemblies from online marketplaces are a significant risk due to potential quality control issues and incompatibility, which can lead to premature failure or incorrect fuel readings.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0012 — Related to M272 engine timing issues such as balance shaft gear wear, which is a known high-severity issue for early W204 models.
• P0015 — Often associated with M272 camshaft position and balance shaft wear, frequently appearing alongside other engine management codes in this generation.
• P2004 — Commonly triggered by the failure of the plastic intake manifold actuator arms on the M272 engine.
• P2006 — Indicates the intake manifold runner is stuck closed, a frequent result of the broken actuator arms mentioned in the W204 known issues.
• U0101 — Lost communication with TCM; can occur during failures of the 7G-TRONIC transmission conductor plate or valve body.
