P0524 on 2017-2024 Chrysler Pacifica 3.6L: Engine Oil Pressure Too Low Causes and Fixes

What's Unique About the 2017-2024 Chrysler Pacifica

The 3.6L Pentastar V6 has a well-documented, high-probability failure point that directly causes the P0524 code: the factory-installed plastic oil filter housing and cooler assembly. This assembly, located in the 'V' of the engine under the intake manifolds, is prone to cracking from heat cycles. This not only causes a significant oil leak but also directly affects the oil pressure sensor, which is mounted on the housing itself. The leak can saturate the sensor and its wiring, or the sensor can fail on its own, sending false low-pressure signals. The engine valley can hold a significant amount of oil before it becomes visible, often dripping down the transmission bell housing.

Symptoms You May Notice

• Check Engine Light illuminated
• Oil pressure warning light illuminated on the dashboard
• Engine running rough or with unusual noises (ticking, whining, knocking)
• Reduced engine power or hesitation, vehicle may enter 'limp mode'
• Engine may stall or automatically shut down
• Remote start feature may be disabled
• Smell of burning oil from leaks hitting hot engine components
• Oil spots under the vehicle, often appearing to come from the rear of the engine near the transmission

Most Likely Causes

1. Cracked or Leaking Oil Filter Housing / Cooler Assembly 🔴 High Probability → Shop Engine Oil Filter Adapter The OEM part is made of plastic and sits in the high-heat engine valley, causing it to become brittle, warp, and crack over time. Overtightening the oil filter cap during an oil change is also a common cause of cracking.
   How to confirm: Visually inspect the engine valley (the 'V' between the cylinder heads) for pooled oil. A flashlight looking down past the intake manifold runners may reveal the leak. Oil may also drip down the transmission bell housing, mimicking a rear main seal leak.
   Typical fix: Replace the entire oil filter housing and cooler assembly. It is highly recommended to use an upgraded, all-aluminum aftermarket assembly (e.g., Dorman 926-959) instead of another OEM plastic unit. 🎬 See how to install the upgraded aluminum housing This job also requires replacing the upper and lower intake manifold gaskets.
   Est. part cost: $100-$300
2. Faulty Engine Oil Pressure Sensor 🔴 High Probability The sensor has a high failure rate on this engine and is often damaged by oil leaking from the filter housing above it. A TSB was issued for a related code (P0520) on earlier Pentastar engines due to sensor issues. A failed sensor may send erratic signals, such as reading an impossibly high PSI (e.g., 99) with the engine off.
   How to confirm: After verifying actual oil pressure with a mechanical gauge is good, the sensor is the culprit. A failed sensor may also read a maxed-out value (e.g., 99 PSI) with the key on but the engine off.
   Typical fix: Replace the oil pressure sensor. Because accessing the sensor requires removing the intake manifolds, it is almost always replaced as part of the oil filter housing assembly job to avoid duplicate labor costs.
   Est. part cost: $25-$60
3. Low Engine Oil Level 🟡 Medium Probability This is typically a symptom of the leaking oil filter housing, not a standalone cause. The engine is losing oil faster than the owner realizes, and the leak may not be visible on the ground.
   How to confirm: Check the engine oil dipstick. If it is low, top it off and immediately inspect for the source of the leak.
   Typical fix: Top off oil to the correct level and repair the source of the leak, which is likely the oil filter housing.
   Est. part cost: $15-$30 (for oil)
4. Incorrect or Failed Oil Filter ⚪ Low Probability → Shop Engine Oil Filter Adapter
   How to confirm: This issue often appears immediately after an oil change. Verify the part number of the installed filter. Low-quality aftermarket filters can collapse or have incorrect bypass valve specs, which can also trigger code P06DD.
   Typical fix: Perform an oil change using a high-quality OEM (Mopar P/N 68191349AC) or equivalent filter and the correct 5W-20 synthetic oil.
   Est. part cost: $40-$80

Rare But Worth Checking

• Failing Oil Pump: → Shop Engine Oil Pump While possible, this is far less common than the oil filter housing or sensor issues. The 3.6L Pentastar uses a dual-stage oil pump, and failure can sometimes manifest as being stuck in the low-pressure stage (related to code P06DD). This should only be considered after a mechanical gauge confirms low oil pressure and all external leaks have been ruled out.
• Wiring Harness Damage: The wiring to the oil pressure sensor can become damaged or contaminated with oil from the common housing leak, causing a short or open circuit. This would typically trigger a P0520 or P0522 code as well.

Diagnosis Steps

1. IMMEDIATELY check the engine oil level using the dipstick. If low, top it off but do not drive.
2. Scan the vehicle for any other stored trouble codes to see if P0524 appears with related codes like P0520 or P06DD.
3. Carefully inspect the engine valley, underneath the intake manifold runners, for signs of pooled oil. This is the primary sign of a cracked oil filter housing.
4. Inspect the area where the engine and transmission meet (bell housing) for oil drips. This is a common symptom of the oil from the valley leak running down the back of the engine.
5. If possible, have a professional mechanic verify the actual engine oil pressure using a mechanical gauge. This is the definitive step. At normal operating temperature, pressure should be greater than 5-8 PSI at idle and rise to 25-110 PSI around 3,000 RPM.
6. If mechanical pressure is good, the oil pressure sensor and/or its wiring is faulty.
7. If mechanical pressure is low, the cause is a significant leak (likely the housing), a clogged oil pickup tube, or a failing oil pump.

Parts You'll Likely Need

• Engine Oil Filter Housing and Cooler Assembly (OEM #68105583AG, 68596317AB, 68596318AB (latest revisions)) — This is the most common failure point on the 3.6L Pentastar engine that leads to code P0524. The original plastic design is prone to cracking.

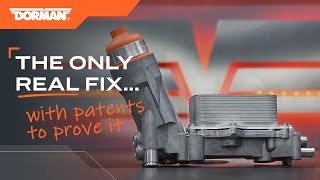

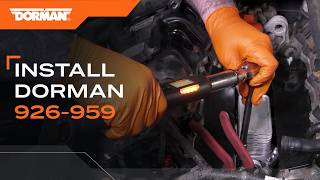

  Trusted brands: Mopar (OEM Plastic), Dorman OE FIX (Aluminum upgrade, P/N 926-959) 🎬 Watch a detailed overview of this aluminum upgrade
  OEM price range: $150-$250
  Aftermarket price range: $100-$200
• Engine Oil Pressure Sensor (OEM #68252670AA) — This sensor has a high failure rate and is replaced during the oil filter housing job due to its inaccessible location.
  Trusted brands: Mopar (OEM), Standard Motor Products, Delphi
  OEM price range: $40-$60
  Aftermarket price range: $25-$45
• Upper and Lower Intake Manifold Gaskets (OEM #Fel-Pro P/N: MS 97204) — These must be replaced anytime the intake manifold is removed to access the oil filter housing. Aftermarket sets like Fel-Pro are a common choice.
  Trusted brands: Mopar (OEM), Fel-Pro, Mahle
  OEM price range: $30-$50
  Aftermarket price range: $20-$40

Related Codes That Often Appear With This One

• P0520 — Indicates a general fault in the oil pressure sensor's electrical circuit. A failing sensor can trigger both codes simultaneously.
• P06DD — Indicates the dual-stage oil pump is stuck in low-pressure mode. This can be caused by an incorrect or collapsed aftermarket oil filter, which can also lead to the low-pressure condition of P0524.

Technical Service Bulletins (TSBs) & Recalls

• NHTSA TSB SB-10058301-5939: Details the diagnosis of oil leaks in the engine valley, noting that a small amount of oil can be normal after a filter change, but pooling oil indicates a housing failure.
• NHTSA TSB (Number not specified, related to P06DD): Advises technicians to properly diagnose leaks using dye before replacing the entire Oil Filter Assembly (OFA), as leaks from the cap (due to bad aftermarket filters) or valve covers are common and do not require OFA replacement.

Platform-Specific Known Issues

• The plastic oil filter housing assembly is a notorious weak point on the 3.6L Pentastar engine across multiple Chrysler, Dodge, and Jeep platforms, not just the Pacifica. The failure is so common it has been the subject of class-action lawsuits.

Mechanic-Grade Diagnostic Values

• Mechanical Oil Pressure (Engine Warm) — expected: Minimum 5-8 PSI at curb idle; 25-110 PSI at 3,000 RPM.. Failure: Pressure below these minimums confirms a mechanical fault like a leak, bad pump, or clogged pickup tube.
• Oil Pressure Sensor Signal Voltage (Key On, Engine Off) — expected: Approximately 0.5 Volts.. Failure: A reading near 4.5V or 5.0V suggests an internally shorted sensor or an open in the signal circuit.
• 5V Reference Voltage at Sensor Connector (Key On, Engine Off) — expected: 4.8V to 5.1V.. Failure: No voltage or significantly low voltage points to a wiring issue or a fault in the PCM's 5V supply circuit.
• Sensor Ground and Supply Circuit Resistance — expected: Below 5.0 Ohms.. Failure: Resistance higher than 5.0 Ohms indicates excessive resistance in the circuit that needs to be located and repaired.
• Circuit Integrity Test (Key On, Engine Off) — expected: With sensor disconnected, scan tool should show ~5.0V. Jumpering the signal pin to the ground pin at the connector should result in 0.0V.. Failure: If the voltage does not change as expected during these steps, it indicates a wiring problem between the connector and the PCM, not a sensor failure.

Scan Tool Commands That Help

• wiTECH (or equivalent professional scanner): Oil Pump Solenoid Actuation — When diagnosing a related P06DD code, this bidirectional command actuates the dual-stage oil pump's solenoid to verify its electrical function. The technician can observe if the pressure changes as commanded, helping to isolate a faulty pump from other issues.
• wiTECH (or equivalent professional scanner): VVT System Test — After confirming oil level and filter are correct, this test commands the VVT solenoids. It helps differentiate between an electrical solenoid failure (no 'click') and a hydraulic/mechanical issue (solenoid clicks but engine sound/data doesn't change), which could be caused by the low pressure from P0524.

Wiring & Ground Locations

• Engine Oil Pressure Sensor Connector — On the oil filter/cooler housing assembly, located in the 'V' of the engine between the cylinder heads, underneath the upper and lower intake manifolds.. This 3-wire connector is in a high-heat area and is prone to oil contamination from a leaking housing. It contains the Engine Oil Pressure Signal circuit (often designated G6) and the Sensor Ground circuit (K900), which must be tested for continuity and shorts if a new sensor doesn't resolve the code.
• Engine Block Ground Straps — There are multiple ground straps on the engine. One key ground runs from the engine mount to the chassis, and others connect from the manifold to the body.. A corroded or broken main engine ground can cause a wide range of bizarre electrical issues and incorrect sensor readings. While not a primary cause for P0524 alone, verifying grounds is a crucial step if multiple electrical faults are present or if sensor readings are erratic after replacement.

Real Owner Repair Stories

• JeepGarage Forum User (2014 Jeep Grand Cherokee 3.6L) — P0524 code and low oil pressure reading on the gauge.
  ❌ Tried (didn't work) A shop replaced the original leaking oil filter housing with a new OEM Mopar plastic unit.
  ✅ What actually fixed it The user personally replaced the new Mopar plastic housing with an aftermarket Dorman aluminum housing (part number 926-959). The problem was resolved immediately, suggesting the brand-new OEM part was defective or had a subtle flaw.

OEM Part Supersession History

• 68105583AA, AB, AC, AD, AE, AF → 68105583AG, which was then superseded by 68596317AB and 68596318AB. — Continuous revisions by Mopar to address the cracking and leaking issues inherent in the plastic design.
  Heads up: There was a major design change in 2014. Parts for 2011-2013 models are physically different from 2014+ parts and are not interchangeable. The Dorman 926-959 aluminum kit is designed for the 2014+ models.

Model Year Variations Within This Range

• 2017+: The 2017 Pacifica uses the upgraded 3.6L Pentastar engine (PUG), which was introduced for the 2016 model year. This version features two-stage variable valve lift (VVL), a cooled EGR system, and a higher compression ratio (11.3:1). While the fundamental cause of P0524 (the oil filter housing) remains the same, these changes add complexity to the VVT and oil pressure systems.
• 2017+ (Hybrid Models): The Pacifica Hybrid uses a modified version of the 3.6L Pentastar V6 that operates on the Atkinson cycle for greater efficiency, resulting in lower horsepower and torque ratings for the gas engine itself (248 hp vs 287 hp). The overall diagnosis for P0524 remains similar as it shares the core engine architecture, including the problematic oil filter housing.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Harsh Shifting / Lurching from 9-Speed Automatic Transmission 🟠 Medium — Very common, especially on 2017-2020 models. Can sometimes be improved with software updates or a transmission control module reset procedure. (Ref: Multiple TSBs exist for software updates. Recall 23V-010 was issued for hybrid models for a different issue causing engine shutdown.)
• Engine Start-Stop (ESS) System Failure 🟠 Medium — Extremely common. The 'Start/Stop Unavailable' message is almost always caused by a failed auxiliary battery located next to the main battery. (Ref: While no specific recall exists, this is a widely known service issue. Some owners report needing to replace the small auxiliary battery every 1-2 years.)
• Uconnect Infotainment System Glitches / Screen Delamination 🟡 Low — Common reports of the touchscreen freezing, becoming unresponsive, or the screen bubbling and delaminating around the edges. (Ref: Various software update TSBs have been released to address performance issues.)
• Engine Stalling and Power Loss 🔴 High — Reported across multiple model years, sometimes related to transmission issues or, in hybrid models, a wiring harness short that prompted a recall and investigation. (Ref: NHTSA Recall 23V-010 for Pacifica Hybrids due to an internal transmission wiring short causing unexpected engine shutdown.)

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For this specific repair, obtaining a used part is strongly discouraged. The primary failure component, the oil filter housing, is a known high-failure item due to its plastic construction and heat exposure. A used plastic part from a junkyard is likely to have the same brittleness and be close to failure itself.

What to inspect on the donor part:

• Not applicable. Do not use a salvaged plastic oil filter housing for this repair.

OEM-only on this vehicle (don't cheap out):

• Engine Oil Pressure Sensor: While aftermarket sensors exist, the OEM Mopar sensor is strongly recommended to avoid compatibility issues and premature failure, which is a common complaint with budget sensors for this specific application.

Aftermarket brands forum-validated for this vehicle:

• Dorman OE FIX (Aluminum Oil Filter Housing): The Dorman 926-959 (for 2014+ models) is widely cited in forums and by mechanics as a permanent upgrade over the failure-prone OEM plastic part.
• Fel-Pro (Intake Gaskets): A trusted and commonly used brand for the required upper and lower intake manifold gaskets.

Brands owners have reported issues with on this vehicle:

• Unknown/Unbranded Oil Filters: Using a cheap, low-quality oil filter is a known cause of oil pressure issues and related codes like P06DD and P1524 on the Pentastar engine.
• Off-brand plastic oil filter housing assemblies: Stick with the OEM Mopar part or, preferably, upgrade to a known-good aluminum version like Dorman's.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0520 — Engine Oil Pressure Sensor Circuit code; often appears alongside P0524 when the sensor is damaged by oil leaking from the filter housing.
• P06DD — Engine Oil Pressure Control Circuit Performance/Stuck Low; can be triggered by the same oil filter housing failures or incorrect/collapsed aftermarket oil filters.
• P0522 — Engine Oil Pressure Sensor Low Voltage; related to the high failure rate of the pressure sensor on the 3.6L Pentastar engine.

Frequently Asked Questions
