P0750 on 2002-2007 Jeep Liberty: Shift Solenoid 'A' Circuit Causes and Fixes

What's Unique About the 2002-2007 Jeep Liberty

The 2002-2007 Jeep Liberty (KJ) uses two different automatic transmissions, and the fix for P0750 requires a different part for each. 2002 models are equipped with the 45RFE transmission (identified by a 15-bolt pan), while 2003-2007 models use the 42RLE transmission (13-bolt pan). While the code's meaning is the same for both, the solenoid packs are not interchangeable. The 42RLE, in particular, is known for being one of Chrysler's less reliable transmissions of the era, with solenoid pack failures being a very common cause for this code.

Symptoms You May Notice

• Check Engine Light is on
• Vehicle is stuck in a single gear (limp mode)
• Transmission will not shift properly
• Harsh or delayed shifting
• Inability to shift into lower or higher gears
• Reduced fuel economy

Most Likely Causes

1. Failed Transmission Solenoid Pack 🔴 High Probability → Shop Transmission Assembly The solenoid packs, particularly on the 42RLE transmission, are a very common failure point due to electrical faults developing within the sealed unit. The internal coils can short or go open-circuit.
   How to confirm: After checking fluid and external wiring, test the solenoid circuit's resistance. For the 45RFE (2002), a healthy solenoid should read ~1.5-2.0 ohms; a reading over 3.0 ohms indicates failure. For the 42RLE (2003-07), the reading should be between 1.0 and 3.0 ohms, with a target of ~1.7 ohms. This test can be done at the transmission connector or even at the TCM connector to test the entire circuit at once. Often, replacement is the most practical diagnosis.

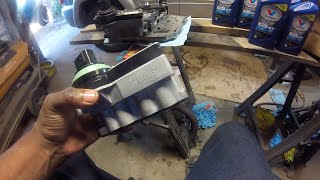

   Typical fix: Replace the entire solenoid pack, which is attached to the valve body inside the transmission. 🎬 Watch: Step-by-step walkthrough of the 42RLE shift solenoid replacement. This also requires replacing the transmission filter and fluid.
   Est. part cost: $150-$300
2. Low or Dirty Transmission Fluid 🟡 Medium Probability → Shop Transmission Assembly
   How to confirm: Check the transmission fluid level and condition using the dipstick. The fluid should be at the correct level, pink/red in color, and not smell burnt. Dark, burnt, or metallic fluid indicates a more serious internal problem.
   Typical fix: Perform a transmission fluid and filter change. Use only Mopar ATF+4 specification fluid as required by Chrysler TSB 21-014-07.
   Est. part cost: $50-$100
3. Damaged Wiring or Connectors ⚪ Low Probability Some 2004-2005 models are known to have issues with the wiring harness chafing between the PCM/TCM and the transmission, causing shorts or open circuits. Moisture can also enter the main 10-pin connector, causing corrosion.
   How to confirm: Visually inspect the wiring harness leading to the transmission for any signs of chafing, melting, or corrosion, paying close attention to the main connector at the transmission case. A multimeter can be used to check for continuity and shorts to ground between the PCM/TCM and the transmission connector.
   Typical fix: Repair the damaged section of wiring or replace the faulty connector. A specific repair pigtail (OEM part 05102405AA) is available for the 42RLE harness connector if it is corroded.
   Est. part cost: $20-$70

Rare But Worth Checking

• Faulty Powertrain Control Module (PCM): → Shop Engine Control Module (ECM) This is very uncommon. The PCM should only be considered after all other possibilities, including the solenoid pack and wiring, have been definitively ruled out.

Diagnosis Steps

1. Check the transmission fluid level and condition. Ensure it is full and clean. If low, top it off with ATF+4 fluid and see if the problem persists.
2. Scan for other transmission-related codes. Note any other codes, but P0700 is expected.
3. Inspect the transmission wiring harness and connectors for any visible damage, corrosion, or loose connections, especially on 2004-05 models known for chafing.
4. Using a multimeter and a wiring diagram, test the resistance of the L/R solenoid circuit. This can be done at the transmission's main electrical connector or at the PCM/TCM connector.
5. For 45RFE (2002): The L/R solenoid circuit resistance should be ~1.5-2.0 ohms. A reading significantly higher (e.g., >3.3 ohms) or open indicates a bad solenoid.
6. For 42RLE (2003-07): The L/R solenoid circuit resistance should be between 1.0 and 3.0 ohms, with a specific target of 1.7 ohms. An out-of-spec reading points to a failed solenoid pack.
7. If the external wiring and circuit tests are inconclusive, the next step is to drop the transmission pan.
8. Inspect the fluid in the pan for excessive metal shavings or clutch material, which would indicate a more severe mechanical failure.
9. Remove the valve body to access and replace the solenoid pack.
10. Install the new solenoid pack, a new transmission filter, a new pan gasket, and refill with fresh ATF+4 fluid.
11. Some sources recommend performing a 'quick learn' procedure with a capable scan tool after replacement to reset transmission shift adapts, though it is not always required. The transmission will relearn on its own over several drive cycles.

Parts You'll Likely Need

• Transmission Solenoid Pack (42RLE) (OEM #04800171AA) — This is the most common failure part for P0750 on 2003-2007 models with the 42RLE transmission.
  Trusted brands: Mopar, Rostra, ATP
  OEM price range: $200-$250
  Aftermarket price range: $100-$180
• Transmission Solenoid Block (45RFE) (OEM #52119435AF) — This is the updated OEM replacement part for the 2002 model with the 45RFE transmission. It has a white connector and replaces older versions with black or grey connectors. The updated part also requires a new selector plate (TRS Cam Plate).
  Trusted brands: Mopar
  OEM price range: $250-$350
  Aftermarket price range: $150-$220
• Solenoid Harness Repair Pigtail (42RLE) (OEM #05102405AA) — Needed if the main transmission harness connector is damaged by corrosion or moisture, a known issue on some models.
  Trusted brands: Mopar
  OEM price range: $40-$60
  Aftermarket price range: $20-$40
• Transmission Filter and Pan Gasket Kit — Must be replaced any time the transmission pan is removed for service.
  Trusted brands: Mopar, ATP, Wix
  OEM price range: $30-$50
  Aftermarket price range: $15-$30
• Mopar ATF+4 Transmission Fluid — This is the required fluid type for both the 42RLE and 45RFE transmissions per TSB 21-014-07. Using other fluid types can cause damage.
  Trusted brands: Mopar, Valvoline, Castrol
  OEM price range: $10-$15 per quart
  Aftermarket price range: $7-$12 per quart

Related Codes That Often Appear With This One

• P0700 — P0700 is a generic code that simply means the Transmission Control Module (TCM), which is part of the PCM in this vehicle, has stored a fault. It is an informational code that will almost always appear alongside a specific transmission code like P0750.
• P0755, P0760, P0765 — These are codes for the other shift solenoids ('B', 'C', 'D'). It is not uncommon for multiple solenoid circuits to fail around the same time, or for a wiring issue to affect multiple circuits, triggering several of these codes at once.

Technical Service Bulletins (TSBs) & Recalls

• TSB 21-014-07: Supersedes older bulletins and confirms that ATF+4® (Type MS9602) is the correct and required fluid for these transmissions.
• Chrysler Service Document (re: 42RLE): Notes that moisture in the 10-pin solenoid harness connector and wire chafing on 2004-05 models are known causes for multiple solenoid circuit faults, including P0750.
• TSB 21-009-09: A PCM flash for the 42RLE transmission to address issues like poor reverse hill climbing or codes P1713/P1776. While not directly for P0750, it shows that software updates exist for this transmission.

Platform-Specific Known Issues

• Wiring Harness Chafing: On 2004-2005 models in particular, the wiring harness between the main computer and the transmission can rub against chassis components, leading to shorts or open circuits that can trigger a P0750 code. A service document notes this as a potential cause for multiple solenoid faults.

Mechanic-Grade Diagnostic Values

• 42RLE L/R Solenoid Resistance — expected: 1.7 ohms (acceptable range 1.0-3.0 ohms). Failure: Open circuit (infinite resistance) or a reading outside the specified range.
• 45RFE L/R Solenoid Resistance — expected: 1.5 - 2.0 ohms. Failure: A reading significantly higher, such as 3.3 ohms or more, indicates a failing solenoid coil.
• 42RLE L/R Solenoid Circuit Test (at connector) — expected: 1.7 ohms between pins 3 (12v input) and 7 (L/R Control).. Failure: Out of spec reading, indicating a fault in the solenoid pack or wiring.
• 45RFE L/R Solenoid Circuit Test (at TCM) — expected: 1.5 - 1.6 ohms between pin 17 (Trans Relay Out) and pin 20 (L/R Solenoid Control).. Failure: A reading of 3.3 ohms or higher points to a bad solenoid pack.
• Valve Body to Solenoid Block Bolt Torque (45RFE/545RFE) — expected: 50 in-lbs. Failure: N/A
• Transmission Pan Bolt Torque (45RFE/545RFE) — expected: 105 in-lbs. Failure: N/A

Scan Tool Commands That Help

• DRB III or equivalent Chrysler scan tool: Actuate L/R Solenoid — This is a bidirectional test used to command the Low/Reverse solenoid on and off while monitoring the circuit. It helps determine if the fault is with the solenoid, wiring, or the control module itself without having to drop the pan.
• DRB III or equivalent Chrysler scan tool: Quick Learn Procedure — After replacing the solenoid pack or valve body, this procedure forces the TCM to relearn the volume indexes for the clutches, which helps ensure smooth shifting immediately. While not strictly required as the system will self-learn over time, it prevents customer complaints of harsh shifting after a repair.

Wiring & Ground Locations

• 42RLE Solenoid Connector (10-pin) — On the driver's side of the transmission case.. This is the main electrical interface to the solenoid pack. Pin 7 is the control circuit for the L/R solenoid, and Pin 3 is the 12-volt power feed from the relay. Moisture intrusion and corrosion here are known causes of P0750.
• 45RFE TCM Connector (60-way, on '04 models) — Under the hood, location can vary slightly by year. On 2004 models, it's a separate module with a 60-pin connector.. Testing at this connector allows you to check the entire circuit, including the wiring harness. For P0750, you would test between Pin 17 (Trans Relay Out) and Pin 20 (L/R Solenoid Control).
• Transmission Control Relay — Located in the Power Distribution Center (PDC) or Totally Integrated Power Module (TIPM) under the hood.. This relay supplies the main 12V power to the solenoid pack. A faulty relay could cut power to all solenoids, but an intermittent failure could theoretically cause erratic codes. Diagnostic procedures involve checking voltage from this relay's output circuit.

Real Owner Repair Stories

• Reddit user LightTech91 (2003 Dodge Dakota 4.7L (Uses 45RFE, similar architecture)) — P0700 and P0750 codes, transmission in limp mode.
  ❌ Tried (didn't work) Initial inspection of harness.
  ✅ What actually fixed it A loose/broken wire for the Low/Reverse solenoid was found near the transmission harness connector. The owner took it to a mechanic who soldered a repair wire to the harness, which fixed both codes.
• Reddit user on r/DodgeDakota (Dodge Dakota with 545RFE transmission) — P0750 code, vehicle stuck in limp mode.
  ❌ Tried (didn't work) The issue returned a few months after replacing the solenoid pack, filters, and fluid.
  ✅ What actually fixed it The user suspected an intermittent wiring or connection issue because the problem was not constant. The final fix was not posted, but the diagnosis shifted from a failed part to a wiring fault after the new part did not provide a permanent solution.
• YouTube channel Codemans auto (Jeep Wrangler JK (with 42RLE)) — P0750 code that returned immediately after being cleared, even without driving the vehicle.
  ❌ Tried (didn't work) Clearing the code.
  ✅ What actually fixed it The immediate return of the code pointed to a hard electrical fault. The final fix was replacing the entire solenoid block inside the transmission.
• NHTSA ODI #11268694 (Jeep Grand Cherokee with similar powertrain) — An owner reported that before the vehicle stopped shifting, the check engine light came on with codes P0700, P0562, and P0750.
  ❌ Tried (didn't work) Changing the battery, throttle body, and transmission fluid and filters did not resolve the problem.

OEM Part Supersession History

• 52119435AA (and others with black/grey connectors) → 52119435AF (white connector) — Updated design to improve reliability.
  Heads up: When replacing an early-style (pre-2004) 45RFE solenoid block with the updated white-connector version (52119435AF), you MUST also replace the selector plate, also known as the TRS Cam Plate (Mopar part D72448 or equivalent). The old plate is not compatible with the new solenoid block.

Model Year Variations Within This Range

• 2002: Uses the 45RFE transmission with a 15-bolt pan and a specific solenoid block (PN 52119435AF is the updated replacement).
• 2003-2007: Uses the 42RLE transmission with a 13-bolt pan and a different, non-interchangeable solenoid pack (PN 04800171AA).
• 2004-2005: These specific model years are noted in service documents as being more prone to wiring harness chafing issues between the TCM/PCM and the transmission.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Power Window Regulator Failure 🔴 High — Extremely common. The plastic clips holding the window glass to the regulator cable become brittle and break, causing the window to suddenly drop into the door, often with a loud 'pop'. Can happen at any mileage.
• Front Lower Ball Joint Separation 🔴 High — Common enough to trigger multiple safety recalls (e.g., F23, NHTSA 06V-288). The non-greasable factory ball joints can lose lubrication, corrode, and separate from the steering knuckle, resulting in a loss of steering control. (Ref: Recall F23 / NHTSA 06V-288)
• 3.7L Engine Dropped Valve Seats 🔴 High — A well-known, serious issue with the 3.7L PowerTech engine. Overheating can cause the valve seat inserts in the aluminum cylinder heads to loosen and fall out, holding the valve open. This results in a loss of compression, a severe misfire, and potential catastrophic engine damage.
• Rear Lower Control Arm Corrosion Failure 🔴 High — Affects 2004-2007 models, especially those in salt-belt states. The rear lower control arms can rust excessively to the point of fracturing, which can cause a loss of vehicle control. (Ref: Recall U38 / NHTSA 18V-278)
• Exhaust Manifold Bolt Failure 🟠 Medium — The studs and bolts that secure the exhaust manifolds to the cylinder heads can stretch or break from repeated heat cycles. This causes an exhaust leak, most noticeable as a 'ticking' sound when the engine is cold that may quiet down as it warms up.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A used wiring harness or a used, tested PCM/TCM can be a cost-effective choice if those parts are confirmed to be the fault. However, given the high failure rate and the intense labor involved, purchasing a used transmission solenoid pack is generally not recommended.

Donor-vehicle mileage cap: roughly under 80000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• For a wiring harness, check for any signs of previous repairs, brittle insulation, or corrosion on the connector pins.
• For a PCM/TCM, ensure the part number matches exactly and there is no visible water damage or corrosion on the case or connectors.
• Avoid any parts from a vehicle that shows signs of being in a flood or fire.

OEM-only on this vehicle (don't cheap out):

• Transmission Solenoid Pack: Due to the significant labor required to replace it, using a cheap, unproven aftermarket solenoid pack is a major risk. An OEM Mopar or a well-regarded aftermarket brand like Rostra is strongly advised.
• ATF+4 Fluid: The use of the correct Mopar ATF+4 specification fluid is non-negotiable. Using a generic or incorrect fluid type can lead to shifting problems and long-term damage.

Aftermarket brands forum-validated for this vehicle:

• Rostra (for transmission solenoids)
• Valvoline, Castrol (for licensed ATF+4 fluid)

Brands owners have reported issues with on this vehicle:

• Unnamed, low-cost solenoid packs from online marketplaces. Forum discussions often contain stories of these parts failing within months, forcing the owner to repeat the difficult repair.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0700 — Transmission Control System (TCS) Malfunction. This is a general fault code that indicates the Transmission Control Module (TCM) has stored a specific code, like P0750. It is almost always present alongside any other transmission code.
• P0755 — Shift Solenoid 'B' Circuit Malfunction. This code, along with P0760 (Solenoid 'C'), often appears with P0750 because the entire solenoid assembly is housed in a single pack. An electrical failure within the pack can affect multiple solenoid circuits.
• P0760 — Shift Solenoid 'C' Circuit Malfunction. Like P0755, this code can be triggered by the same common failure of the solenoid pack that causes P0750.
• P1776 — Solenoid Switch Valve Latched in LR Position. While not a direct circuit fault, TSB 21-009-09 addresses this code for the 42RLE transmission, indicating it's a known related issue within the same transmission control system.
