P0751 on 1994-2002 Chevrolet Camaro: 1-2 Shift Solenoid 'A' Failure Causes and Fixes

What's Unique About the 1994-2002 Chevrolet Camaro

The fourth-generation Camaro exclusively used the 4L60E automatic transmission, which makes diagnosing P0751 relatively straightforward. Unlike later GM models that integrate solenoids into a complex and expensive control module (TEHCM), the 4L60E uses simple, individual, and easily accessible solenoids. This makes the repair much cheaper and more DIY-friendly. The 1-2 ('A') and 2-3 ('B') shift solenoids are identical and a common failure point due to age and heat cycles.

Symptoms You May Notice

• Check Engine Light is on.
• Transmission is stuck in a single gear (usually 2nd or 3rd).
• No 1st or 4th gear available.
• Harsh, delayed, or failed shifts, particularly between 1st and 2nd gear.
• At Wide Open Throttle (WOT), the engine may hit the rev limiter instead of shifting from 1st to 2nd.
• Sluggish acceleration from a stop.
• Reduced fuel economy.
• Transmission may seem to slip or hesitate.

Most Likely Causes

1. Failed 1-2 Shift Solenoid 'A' 🔴 High Probability → Shop Transmission Valve Body The solenoids in the 4L60E are a common failure item due to age, heat cycles, and contamination from normal wear and tear in the transmission fluid. Manufacturer service bulletin TSB Bulletin #PI1344C notes that this code can set when a customer experiences reduced acceleration at low speed or transmission slipping from a launch.
   How to confirm: A mechanic can use a scan tool to command the solenoid on and off while monitoring transmission data. The solenoid's resistance can also be tested with a multimeter after removing the transmission pan; it should be between 20-30 ohms. 🎬 Watch: How to test solenoid resistance on the car A reading that is open or has very high resistance indicates a failed solenoid.
   Typical fix: Drop the transmission pan, remove the old solenoid, and install a new one. It is highly recommended to replace the transmission filter and pan gasket at the same time. 🎬 See this step-by-step 4L60E solenoid replacement walkthrough
   Est. part cost: $20-$50
2. Low or Dirty Transmission Fluid 🟡 Medium Probability → Shop Transmission Assembly Older vehicles are more susceptible to fluid leaks and degradation, which can cause hydraulic pressure issues and clog solenoid passages. Contaminated fluid can cause the solenoid's internal valve to stick.
   How to confirm: Check the transmission fluid level with the dipstick (engine running, in Park). Inspect the fluid's color and smell; it should be bright red and not have a burnt odor. Dark, burnt, or tarry fluid indicates a problem.
   Typical fix: Top off the fluid if low. If the fluid is dark, burnt, or contains debris, perform a transmission fluid and filter change.
   Est. part cost: $50-$100 for fluid and filter kit
3. Wiring or Connector Issues ⚪ Low Probability The internal transmission wiring harness is submerged in hot fluid, which can make insulation brittle over time. The external connector can also be damaged or suffer from corrosion.
   How to confirm: Visually inspect the wiring harness inside the transmission pan for any signs of damage, chafing, or broken wires. Check the external connector for corrosion or loose pins. Use a multimeter to check for battery voltage (approx. 12.6V) at the solenoid power supply pin (Pin E) on the transmission connector with the key on.
   Typical fix: Repair the damaged section of the harness or replace the internal transmission wiring harness.
   Est. part cost: $30-$70 for a new harness

Rare But Worth Checking

• Faulty Ignition Switch: A known TSB for the 4L60E transmission (GM TSB #01-07-30-002E) indicates that a failing ignition switch can cause a voltage drop to the transmission, which can trigger solenoid codes and mimic solenoid failure. This should be checked before condemning the transmission or its internal components.
• Faulty Powertrain Control Module (PCM): While rare, the driver circuit within the PCM that controls the solenoid can fail. This is typically diagnosed only after all other possibilities (solenoid, wiring, fluid) have been ruled out.
• Worn Valve Body Separator Plate: → Shop Transmission Valve Body The steel check balls in the valve body can wear down the aluminum separator plate over time, especially at the 1-2 shift accumulator check ball location. This wear creates a leak in the hydraulic circuit, which can prevent the 1-2 shift and set a P0751 code, even with a perfectly good solenoid. The fix is to replace the separator plate, often with a more durable aftermarket version, and sometimes to replace the steel check balls with Torlon balls to prevent future wear.
• Sticking Solenoid Valve: According to TSB Bulletin #PI1344B, technicians may find DTC P0751 set due to a solenoid valve sticking in the lower valve body, which can result in reduced acceleration at low speeds.

Diagnosis Steps

1. Check the transmission fluid level and condition. Top off or change the fluid and filter if necessary.
2. Use a scan tool to check for other transmission-related codes.
3. Clear the codes and test drive the vehicle to see if P0751 returns. Note if the code sets immediately with the key on (electrical issue) or only after driving (mechanical/hydraulic issue).
4. If the code returns, check for battery voltage at Pin E of the transmission's main connector to rule out external wiring or ignition switch issues per TSB 01-07-30-002E.
5. If external power is good, drain the fluid and remove the transmission pan.
6. Visually inspect the 1-2 shift solenoid ('A') and its wiring for any obvious damage. The 'A' solenoid is the one closest to the manual valve/front of the vehicle.
7. Test the solenoid's resistance with a multimeter. It should be within 20-30 ohms. If it's out of spec, replace it.
8. If resistance is good, you can apply a 12V source to the solenoid to listen for an audible 'click', confirming mechanical operation.

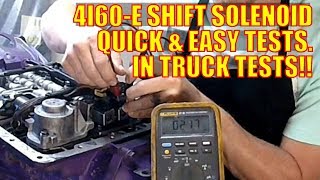

🎬 Watch: Quick bench test for Solenoid A and B
9. While the pan is off, inspect the valve body separator plate for excessive wear or damage at the check ball seats, a known cause of P0751.
10. While the pan is off, it is best practice to also replace the 2-3 shift solenoid ('B') as they are the same age and a common failure point.
11. Install a new transmission filter and pan gasket.
12. Refill with the correct type and amount of transmission fluid (DEXRON-III/VI).

Parts You'll Likely Need

• 1-2 / 2-3 Shift Solenoid Valve (OEM #24230298) — This is the direct cause of the P0751 code. The 1-2 ('A') and 2-3 ('B') solenoids are the same part number in the 4L60E transmission.
  Trusted brands: ACDelco (Genuine GM)
  OEM price range: $20-$50
  Aftermarket price range: $15-$35
• Automatic Transmission Filter Kit (with Gasket) (OEM #24208576) — This must be replaced whenever the transmission pan is removed to service the solenoids.
  Trusted brands: ACDelco
  OEM price range: $20-$40
  Aftermarket price range: $10-$25
• DEXRON-VI Automatic Transmission Fluid — A pan drop and filter change requires approximately 5 quarts of fluid.
  Trusted brands: ACDelco, Valvoline, Castrol
  OEM price range: $8-$12 per quart
  Aftermarket price range: $7-$10 per quart

Related Codes That Often Appear With This One

• P0753 — This code indicates an electrical fault (open or short) in the Shift Solenoid 'A' circuit, whereas P0751 indicates a performance/mechanical problem (stuck). They can appear together if the solenoid is failing both electrically and mechanically.
• P0700 — This is a generic Transmission Control System Malfunction code. It simply indicates that the Transmission Control Module (TCM), which is integrated into the PCM on this vehicle, has stored a fault code. It will almost always be present alongside a more specific code like P0751.

Technical Service Bulletins (TSBs) & Recalls

• TSB #01-07-30-002E: Addresses MIL on, transmission stuck in second or third gear, and/or inoperative instrument cluster due to voltage loss in the transmission solenoid power supply circuit, often caused by a faulty ignition switch.
• TSB Bulletin #PI1344C: Provides diagnostic tips for P0751 when customers report reduced acceleration at low speed or transmission slipping from a launch.
• TSB Bulletin #PI1344B: Notes that P0751 may be caused by a solenoid valve sticking in the lower valve body, resulting in slipping or reduced acceleration.

Platform-Specific Known Issues

• A known issue documented in Technical Service Bulletin (TSB) #01-07-30-002E suggests that a faulty ignition switch can cause low voltage to the transmission, triggering various solenoid codes including P0751.
• Some owners on forums report that P0751 can be triggered more frequently after installing a high-stall torque converter or an aftermarket transmission cooler, potentially due to changes in hydraulic pressures or temperatures, though this is not a guaranteed cause.

Mechanic-Grade Diagnostic Values

• 1-2 Shift Solenoid ('A') Resistance — expected: 20-40 Ohms at 68°F (20°C). Some technicians prefer a tighter range of 20-25 Ohms as a sign of a healthy solenoid.. Failure: An open circuit (infinite resistance) or a reading significantly outside the 20-40 Ohm range indicates a failed solenoid.
• Voltage at Transmission Connector Pin E (Pink Wire) — expected: Battery voltage (approx. 12.6V) with Key On, Engine Off.. Failure: Low or no voltage at Pin E points to a problem upstream of the transmission, such as a faulty ignition switch (as noted in TSB 01-07-30-002E), a blown fuse, or a wiring issue, not an internal transmission fault.

Scan Tool Commands That Help

• GM Tech2 / GDS2 or equivalent professional scan tool: Output Control > Solenoid Test or Transmission Output State Control — This bidirectional command allows a technician to manually command the 1-2 shift solenoid 'A' on and off while the vehicle is stationary (Key On, Engine Off). An audible 'click' from inside the transmission pan should be heard each time the solenoid is commanded. The absence of a click strongly suggests a failed solenoid or a wiring issue inside the pan, helping to confirm the diagnosis before dropping the pan.

Wiring & Ground Locations

• Transmission Main Connector (20-pin) — On the passenger side of the transmission case, vertically oriented.. This is the primary test point for external electrical diagnosis. Pin E (Pink wire) is the 12V+ power feed for both shift solenoids. Pin A (Light Green wire) is the ground-side control wire from the PCM for the 1-2 shift solenoid 'A'. Testing for power at Pin E and continuity on Pin A back to the PCM can rule out external wiring issues.
• Engine-to-Chassis Ground Strap — Typically located at the rear of the passenger side cylinder head, connecting to the firewall.. A poor or missing engine ground can cause a variety of electrical issues, including erratic transmission behavior. The PCM and transmission solenoids rely on a solid ground path. Voltage spikes from solenoid operation can back-feed through other circuits if not properly grounded, potentially causing damage or incorrect operation.

OEM Part Supersession History

• 10478131 → 24230298 — Standard part consolidation and potential minor updates by the manufacturer.
  Heads up: The current part number, 24230298, is the correct service replacement for all 1994-2002 Camaros with the 4L60E. Earlier part numbers like 10478131, 24047681, and 24236521 have all been superseded by 24230298.

Model Year Variations Within This Range

• 1994: The 1994 model year 4L60E is a non-PWM (Pulse-Width Modulated) lock-up design. It is directly interchangeable only with 1993 truck transmissions.
• 1995: The 1995 model is a standalone year. It was the first year for the PWM TCC (Torque Converter Clutch) solenoid, which uses a different valve body, pump, and computer control strategy. A 1995 transmission is not directly compatible with any other year.
• 1996-2002: Beginning in 1996, the 4L60E received a bolt-on bellhousing (phased in, standard on all by 1998) and a revised 3-2 downshift solenoid. Transmissions from 1996 onwards are generally more interchangeable with each other, especially those from 1998-2002 that were paired with LS1 engines, which used a 300mm torque converter and input shaft. While the 1-2 shift solenoid part number remains the same, swapping entire transmissions between these year groups can cause compatibility issues.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Opti-Spark Distributor Failure (LT1 V8) 🔴 High — Very common failure item. Its location under the water pump makes it highly susceptible to failure from coolant leaks.
• Cracked Interior Door Panels 🟡 Low — Extremely common for the plastic door panels to crack near the top, by the window.
• Bubbling Dashboard Pad ('Dash Blistering') 🟡 Low — Widespread cosmetic issue where the top dashboard material delaminates and forms bubbles due to heat and age.
• Failing Window Motors 🟠 Medium — Power window motors are a known weak point and tend to fail or become very slow over time.
• Leaking T-Tops 🟠 Medium — Common for the weather seals on T-Top models to degrade and allow water leaks into the cabin.
• Leaking Rear Intake Manifold Seal (LT1 V8) 🟠 Medium — The gasket at the rear of the intake manifold is prone to leaking oil onto the back of the engine and transmission bellhousing.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For this specific repair, buying a used shift solenoid is not recommended. The part is inexpensive new, a common failure item, and the labor to access it (dropping the pan) is significant enough that you want the reliability of a new part. A used internal wiring harness could be a cost-effective option if the original is damaged, as it is a passive component less prone to wear.

Donor-vehicle mileage cap: roughly under 75000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• For a wiring harness, ensure the plastic is not brittle and the connector pins are clean and straight.
• Check the fluid color from the donor transmission if possible; dark or burnt fluid suggests a hard life and potential issues with all internal components.

OEM-only on this vehicle (don't cheap out):

• Shift Solenoid: While some aftermarket brands may work, the cost savings are minimal compared to the OEM ACDelco part, which is known for reliability. Given the labor involved, using the OEM part is a smart investment.

Aftermarket brands forum-validated for this vehicle:

• TransGo (for separator plates and shift kits)
• Sonnax (for valve body components and other internal hard parts)

Brands owners have reported issues with on this vehicle:

• Generic, unbranded, or 'white box' solenoids from online marketplaces are a gamble and often have high failure rates.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0756 — Related shift solenoid code for the 2-3 Shift Solenoid ('B'); often replaced alongside P0751 as they share the same failure modes due to age and heat cycles in the 4L60E.
• P0753 — Electrical circuit code for the 1-2 shift solenoid; may appear if there is a total break in the internal transmission wiring harness or a disconnected external connector.
• P0758 — Electrical circuit code for the 2-3 shift solenoid; related to the same internal wiring harness that can become brittle and fail in the 4L60E.

Frequently Asked Questions
