P1548 on 1998-2006 Audi TT 1.8T: Boost Pressure Control Valve (N75) Fault Causes and Fixes

What's Unique About the 1998-2006 Audi TT

The 1.8T engine used in the first-generation (Mk1) Audi TT is well-known for its reliance on the N75 valve for precise turbocharger boost control. Due to age, heat, and vibration in the engine bay, both the N75 valve's internal solenoid and its external wiring connector are common failure points. Unlike performance codes that indicate a boost leak, P1548 specifically points to an electrical failure, making diagnosis on this platform very direct.

Symptoms You May Notice

• Significant loss of engine power, making the car feel sluggish as if the turbo is not working.
• Vehicle enters 'limp mode,' with drastically reduced power to protect the engine.
• Erratic or inconsistent power delivery during acceleration.
• Check Engine Light (CEL) or Electronic Power Control (EPC) light is illuminated.

Most Likely Causes

1. Failed N75 Boost Pressure Control Valve 🔴 High Probability → Shop Turbocharger The internal coil of the solenoid valve can fail over time due to heat and age, creating an open circuit. It's a very common failure item on the 1.8T engine.
   How to confirm: Using a multimeter, measure the resistance across the two pins 🎬 Watch: How to test the N75 solenoid with a multimeter on the N75 valve itself. A healthy valve should read between 25-35 ohms when cold. An infinite reading confirms an open circuit and a failed valve. Note that a valve can sometimes test good but still fail intermittently when hot or under load; heating the valve with hot water may reveal a resistance spike to 40+ ohms, indicating a thermal failure.

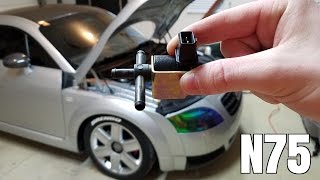

   Typical fix: Replace the N75 valve. It is located on top of the engine near the intake pipe and is held by a simple bracket, making it an easy replacement. 🎬 Watch: Step-by-step N75 valve installation on an Audi TT
   Est. part cost: $40-$180
2. Broken Wiring or Damaged Connector 🟡 Medium Probability Engine vibration and heat can cause the wires leading to the N75 valve to become brittle and break, often right at the back of the electrical connector 🎬 See how to find and fix a broken N75 wiring circuit where the wire flexes.
   How to confirm: Visually inspect the wiring harness going to the N75 valve. Gently pull on the wires at the connector to see if they are broken internally. With the ignition on and engine running, use a multimeter to check for voltage at the connector pins; pin 1 should have battery voltage (11-14V) and pin 2 should show a 3-5V signal from the ECU. Lack of voltage points to a wiring issue. A capable scan tool (like VCDS) can also run an output test on the N75; if you don't hear the valve clicking, it points to a wiring or valve failure.
   Typical fix: Repair the broken wire(s) or replace the connector pigtail (Part No. 1J0973722A).
   Est. part cost: $10-$30

Rare But Worth Checking

• Faulty Engine Control Module (ECM): This is extremely rare. The ECM's driver for the N75 valve circuit can fail, but this should only be considered after the N75 valve and its wiring have been thoroughly tested and confirmed to be good.

Diagnosis Steps

1. Scan the vehicle for fault codes to confirm P1548 / 17956 is present.
2. Locate the N75 valve on top of the engine, connected to the main intake pipe.
3. Carefully inspect the electrical connector and wiring harness for any visible signs of damage, corrosion, or broken wires. Pay close attention to the area where the wires enter the back of the connector.
4. Disconnect the electrical connector. Use a multimeter to test the resistance of the N75 valve itself across its two pins. The reading should be between 25-35 ohms. If it's out of spec (especially showing infinite resistance), the valve is bad.
5. If the valve's resistance is good, test the harness side. Turn the ignition to the 'On' position with the engine running. Check for voltage at the connector's pins. Pin 1 should have battery voltage (~11-14V). Pin 2 is a signal wire from the ECU and should read 3-5V. If voltage is missing, trace the wiring back to find the break.
6. Use a capable scan tool (like VCDS) to run an 'Output Test' for the N75 valve. You should hear a distinct clicking sound from the valve as the ECU cycles it. No sound indicates a problem with the wiring or the valve itself.
7. If wiring is good and the valve tests good but symptoms persist, consider replacing the N75 valve anyway, as they are known to fail intermittently under heat and load.

Parts You'll Likely Need

• Boost Pressure Control Valve (N75 Valve) (OEM #06A906283E (Note: Revisions exist, such as 058906283F, which may offer different performance characteristics)) — This is the primary component responsible for the P1548 fault code. Its internal electronics are the most common point of failure.
  Trusted brands: Pierburg (OEM), URO Parts, Dorman
  OEM price range: $100-$180
  Aftermarket price range: $40-$80
• N75 Connector Pigtail (OEM #1J0973722A) — If the wires are broken flush with the connector, or the connector itself is damaged, replacing the pigtail is the most reliable repair.
  Trusted brands: Genuine VW/Audi, VDO, Aftermarket kits
  OEM price range: $20-$35
  Aftermarket price range: $10-$20
• Worm Gear Hose Clamps — The original factory clamps on the N75 valve's vacuum hoses are often single-use and must be cut off. You will need new clamps to secure the hoses to the new valve.
  OEM price range: $5-$10
  Aftermarket price range: $5-$10

Related Codes That Often Appear With This One

• P1297 — This code for 'Pressure Drop between Turbo and Throttle Valve' can sometimes appear if the boost control issue caused by the faulty N75 leads to erratic pressure readings in the charge pipe system.
• P0243 — This is a generic OBD-II code for 'Turbocharger/Supercharger Wastegate Solenoid 'A' Malfunction'. It is the generic equivalent of the manufacturer-specific P1548 and points to the same N75 valve circuit fault.

Platform-Specific Known Issues

• The wiring to the N75 connector can become brittle and break flush with the connector, requiring a delicate repair or a new connector pigtail.
• A user on Audi-Sport.net reported chasing a P1548 code after replacing the N75 valve, only to find the wire had broken internally about 1cm away from the connector, which is a common point of failure due to engine vibration.

Mechanic-Grade Diagnostic Values

• N75 Valve Coil Resistance (Cold) — expected: 25-35 Ohms. Failure: Infinite resistance (open circuit) or a value outside the specified range.
• N75 Valve Coil Resistance (Hot) — expected: Should remain close to the 25-35 Ohm range.. Failure: Resistance climbing significantly when hot (e.g., to 40+ Ohms), indicating a thermal failure.
• N75 Connector Voltage (Engine Running) — expected: Pin 1: 11-14 Volts (Battery Reference). Pin 2: 3-5 Volts (ECU Signal).. Failure: Missing voltage on Pin 1 indicates a power supply issue. Missing or erratic voltage on Pin 2 indicates a wiring or ECU issue.
• N75 Duty Cycle (VCDS Live Data) — expected: Should cycle rapidly under load. A higher percentage (e.g., >90%) requests more boost. May sit at a high percentage at idle.. Failure: A value stuck at 0% or 100% regardless of engine load, or a value that does not respond during an output test.

Scan Tool Commands That Help

• VCDS (VAG-COM): Engine -> Output Tests -> Charge Pressure Control Solenoid Valve (N75) — This command directly cycles the N75 valve, allowing you to listen for an audible 'click'. A lack of clicking immediately confirms a failure in either the valve's solenoid or the wiring providing power to it, helping to quickly isolate the problem.

Wiring & Ground Locations

• N75 Connector Pin 1 — The two-pin electrical connector on the N75 valve itself.. This pin provides the 12V power supply to the valve. A break in this wire will cause a P1548 open circuit fault. Wire color is often a common power wire shared with other solenoids.
• N75 Connector Pin 2 — The two-pin electrical connector on the N75 valve.. This is the ground-side signal wire controlled by the ECU via Pulse Width Modulation (PWM). A break in this wire is a common cause of P1548. Wire colors reported include Green/Yellow or Blue/Green.
• Ground Connection 12 — In the engine compartment, on the left side frame rail.. This is a primary engine bay ground point. While the N75 is controlled by the ECU, the ECU itself relies on solid chassis grounds. A poor ground here can cause a variety of difficult-to-diagnose electrical issues.
• Ground Connection 131 — A ground connection located within the engine compartment wiring harness itself.. This is another critical ground point for the engine electronics. Verifying its integrity is a good step when troubleshooting any electrical fault code in the engine bay.

Real Owner Repair Stories

• YouTube - Rowdy B5 (Audi 1.8T (B5 A4, but same engine and common issue)) — Very low boost (4-5 PSI) and fault code P1548 / 17956 'N75 Open Circuit'.
  ❌ Tried (didn't work) Swapping in a known-good N75 valve did not resolve the code.
  ✅ What actually fixed it Upon inspecting the N75 connector, the two wires fell out of the back. They had broken internally right at the connector due to vibration and age. The final fix was to buy a connector repair kit, de-pin the old connector, and crimp/solder new terminal pins onto the harness wires before reassembling the connector.
• AudiWorld Forums user (Audi TT 1.8T) — Car would lose boost and feel sluggish only after it had fully warmed up.
  ❌ Tried (didn't work) Testing the N75 valve's resistance when the engine was cold showed a perfectly normal reading within the 25-35 ohm spec.
  ✅ What actually fixed it The user removed the valve and tested the resistance again after running it under hot tap water. The resistance reading climbed to 40 ohms, which is out of specification. This confirmed the valve was failing due to heat soak. Replacing the N75 valve permanently solved the problem.

OEM Part Supersession History

• 058906283C / 058906283F → 06A906283E — Standard part evolution and consolidation by VW/Audi.
  Heads up: While older revisions may physically fit, 06A906283E is the correct, most current OEM replacement for the 1.8T engine in this vehicle. Different revisions can have slightly different resistance specs and may affect boost characteristics, especially on a tuned vehicle.

Model Year Variations Within This Range

• Circa 1998-2000 (Non-Drive-By-Wire): When using VCDS to diagnose the N75 valve, the duty cycle is found in Measuring Block 114, not 115.
• Circa 2001-2006 (Drive-By-Wire): When using VCDS to diagnose the N75 valve, the duty cycle, requested boost, and actual boost are typically found in Measuring Block 115.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Instrument Cluster Failure 🔴 High — Extremely common. The central LCD screen pixels die, and/or the fuel and temperature gauges give incorrect readings or fail completely. Can happen at any mileage over ~60k. (Ref: No official recall, but numerous companies specialize in repairing these Jaeger/VDO clusters.)
• Timing Belt & Water Pump Service 🔴 High — This is a critical maintenance item. The original 105k mile interval was revised down to 75,000 miles or 7 years. Failure of the belt, tensioner, or water pump on this interference engine will cause catastrophic engine damage. (Ref: No active recall, but a class-action lawsuit occurred for early models due to premature failures, which resulted in a temporary warranty extension that has since expired.)
• Brittle Vacuum & PCV Hoses 🟠 Medium — Very common with age and engine heat. The plastic and rubber hoses for the vacuum and Positive Crankcase Ventilation (PCV) systems become brittle, crack, and cause vacuum leaks, leading to poor idling and other running issues.
• Failing Coolant Temperature Sensor (CTS) 🟡 Low — The original black-topped sensor is prone to failure, causing incorrect temperature gauge readings and potential running issues. It was superseded by a more reliable green-topped sensor.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: Almost never. The N75 is a relatively inexpensive electronic solenoid known for failing due to age and heat cycles. A used part from a donor vehicle has an unknown history and is likely to have a short remaining lifespan, making it a poor value choice.

What to inspect on the donor part:

• If absolutely necessary, test resistance with a multimeter both cold and after being heated. The reading must stay within the 25-35 ohm range in both states.
• Visually inspect the plastic housing for cracks or damage.
• Ensure the electrical connector pins are clean and not corroded.

OEM-only on this vehicle (don't cheap out):

• N75 Boost Pressure Control Valve

Aftermarket brands forum-validated for this vehicle:

• Pierburg (OEM supplier)
• URO Parts
• Dorman

Brands owners have reported issues with on this vehicle:

• Unbranded, low-cost parts from online marketplaces like eBay are frequently reported to have high failure rates or incorrect performance characteristics.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• 17956 — This is the VAG-specific (Volkswagen/Audi Group) equivalent fault code for the generic OBD-II code P1548. They both indicate the same issue.
• P0171 — Often appears on the 1.8T engine due to brittle vacuum and PCV hoses, a common issue mentioned in the context. The resulting vacuum leaks cause a 'System Too Lean' condition.
• P0300 — Random Misfire. This can be a companion code caused by the same cracked vacuum and PCV hoses that are a frequent problem on this engine, leading to an unstable air-fuel mixture.
• P0301 — Cylinder 1 Misfire. Like P0300, this can be triggered by vacuum leaks from the commonly failing hoses on the 1.8T engine.
• P0117 — Engine Coolant Temperature Sensor Circuit Low. The context identifies the original black-topped Coolant Temperature Sensor (CTS) as a common failure item on this vehicle, which would trigger this code.
• P0118 — Engine Coolant Temperature Sensor Circuit High. This is another code directly caused by the failing CTS, a known issue for the 1998-2006 Audi TT.

Frequently Asked Questions
