P2015 on 2006-2010 Volvo S40 D5: Intake Swirl Flap Causes and Fixes

What's Unique About the 2006-2010 Volvo S40

On the Volvo D5 engine (Euro 4 variants), the P2015 code is notoriously linked to a specific design weakness. The swirl flaps are controlled by a small electric motor, which connects to the flaps via a short plastic linkage arm (Volvo part #31216460). This arm becomes brittle from engine heat and vibration, frequently breaking or popping off its ball joints. This causes the flaps to lose control and triggers the P2015 code. Additionally, like many EGR-equipped diesel engines, the intake manifold is prone to heavy carbon buildup, which can cause the flaps to bind or get stuck, putting extra strain on this already fragile linkage and sometimes causing the arm to repeatedly pop off even after replacement.

Symptoms You May Notice

• Check Engine Light is on
• Reduced engine power or the vehicle entering 'limp mode'
• Rough or unstable idle
• Hesitation during acceleration
• Decreased fuel economy
• Visible oil leak or grime around the swirl flap actuator arm on the intake manifold
• A ticking or clicking noise from the swirl flap arm area as the motor attempts to move the broken linkage

Most Likely Causes

1. Broken or Disconnected Swirl Flap Actuator Arm 🔴 High Probability The linkage arm is made of plastic and is positioned in a high-heat engine bay area. Over time, the plastic becomes brittle and fails. The ball-and-socket joints also wear out from road grit and the motor's calibration cycle, allowing the arm to pop off. This is the most common point of failure for this system.
   How to confirm: Visually inspect the front of the intake manifold. You will see a small black plastic arm (approx. 3 inches long) connecting a silver-colored motor to a lever on the manifold. Check if this arm is cracked, broken, or has popped off its mounting points. Often, it will be hanging loose or missing entirely.
   Typical fix: Replace the swirl flap actuator arm. The OEM part number is 31216460 for engines from serial number 436030 onwards. An earlier part number is 8692676 for engines up to serial 436029. Many aftermarket companies sell reinforced metal or higher-quality plastic replacement arms which are a popular upgrade. This is a simple and inexpensive repair.
   Est. part cost: $15-$40
2. Carbon Buildup Jamming Swirl Flaps 🟡 Medium Probability Diesel engines, particularly those with EGR (Exhaust Gas Recirculation) systems, are susceptible to significant carbon and soot buildup in the intake manifold. This sticky residue can physically prevent the swirl flaps from moving freely.
   How to confirm: If a new actuator arm doesn't solve the issue or if the arm keeps popping off, the flaps are likely stuck. With the engine off, disconnect the actuator arm and try to move the swirl flap lever by hand. It should move smoothly with little resistance. If it's stiff or completely stuck, carbon buildup is the cause.
   Typical fix: The intake manifold must be removed and thoroughly cleaned to remove all carbon deposits. This is a labor-intensive job that involves disconnecting fuel lines and injectors. Some owners opt to install a 'swirl flap delete kit' at this time, which removes the flaps entirely, preventing future issues. Note that this may cause the vehicle to fail emissions testing (like the UK's MOT) in some regions.
   Est. part cost: $20-$100 for gaskets and cleaning supplies, or $50-$150 for a delete kit.
3. Failed Swirl Flap Actuator Motor ⚪ Low Probability
   How to confirm: If the linkage is intact and the flaps move freely by hand, the motor itself may have failed. The position sensor is integrated into this motor, so an internal sensor fault will also condemn the unit. A diagnostic scan tool that can actuate components, like Volvo's VIDA software, can be used to command the motor to move. If it doesn't respond, it needs to be replaced.
   Typical fix: Replace the swirl flap actuator motor (OEM Part #30756099 or similar).
   Est. part cost: $100-$250

Rare But Worth Checking

• Wiring Harness Damage: The wiring to the actuator motor or its integrated position sensor can become damaged from heat, vibration, or chafing. Check the connector and wiring for any visible signs of damage before replacing the motor.

Diagnosis Steps

1. Scan the vehicle for trouble codes to confirm P2015 is the primary code present.
2. Open the hood and locate the intake manifold at the front of the engine.
3. Visually inspect the swirl flap actuator arm. It is a small plastic link between the electronic actuator motor (a silver-colored box) and the swirl flap lever on the manifold. Check if it is broken, cracked, or disconnected.
4. If the arm is broken, replace it with the correct part number for your engine's serial number. This is the most common fix.
5. If the arm is intact, disconnect it from the swirl flap lever (it usually just pops off).
6. Attempt to move the swirl flap lever on the manifold by hand. It should pivot smoothly through its range of motion. If it is stiff, binding, or stuck, the intake manifold is clogged with carbon and needs to be removed for cleaning.
7. If the arm is intact and the flaps move freely, the issue may be the actuator motor itself or the wiring. Use a capable diagnostic scan tool like Volvo's VIDA to command the actuator to perform a sweep test or an adaptation. If it fails to move or reports an incorrect position, the motor/sensor assembly needs replacement.
8. Before replacing the motor, inspect the wiring harness and connector for any signs of damage, corrosion, or loose pins. Check for reference voltage at the connector.

Parts You'll Likely Need

• Intake Manifold Swirl Flap Actuator Arm/Linkage (OEM #31216460 (For engine serial # 436030 and up)) — This is the most frequent failure point. The original plastic part becomes brittle and breaks, causing a loss of control over the swirl flaps.
  Trusted brands: Volvo (OEM), Aftermarket solutions from brands like X8R, iPD, or unbranded metal versions on eBay/Amazon
  OEM price range: $30-$50
  Aftermarket price range: $15-$40

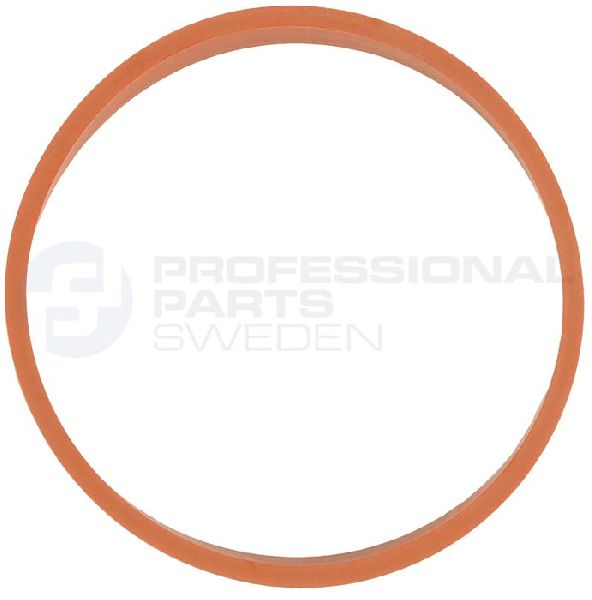

• Intake Manifold Gasket (OEM #30713459) — Required if the intake manifold must be removed for cleaning or replacement of the swirl flaps.
  Trusted brands: Volvo (OEM), Elring, Victor Reinz
  OEM price range: $30-$50
  Aftermarket price range: $15-$30
• Swirl Flap Actuator Motor (OEM #30756099) — Replaced when the internal motor or position sensor fails, but only after confirming the linkage is good and the flaps are not seized.
  Trusted brands: Volvo (OEM), Bosch (often the OEM supplier)
  OEM price range: $150-$250
  Aftermarket price range: $80-$150

Platform-Specific Known Issues

• The swirl flap actuator arm is a well-documented weak point on the D5244T engine family, especially the Euro 4 versions.
• Heavy carbon buildup in the intake is a common characteristic of these engines, directly leading to the P2015 fault by jamming the flaps.
• The D5 engine is a very tight fit in the P1 platform engine bay (S40/V50/C30/C70), making jobs like intake manifold removal more difficult than on larger models like the V70 or XC90.

Mechanic-Grade Diagnostic Values

• Swirl Flap Actuator Motor Connector Voltage — expected: Approximately 4.8V between pins 2 and 3 (of a 5-pin connector).. Failure: 0V between the outer pins suggests a power or ground issue to the motor.

Scan Tool Commands That Help

• Volvo VIDA: Swirl flap adaptation / calibration — After replacing the swirl flap assembly or the actuator motor, this function should be run to teach the ECU the new end-stop positions of the flaps. Some users report needing to run this to clear the P2015 code.
• Volvo VIDA: Swirl flap actuator test / activation — This is a bidirectional test to command the actuator motor to move through its range. It is used to confirm if the motor is functional when the linkage is known to be good and the flaps are not seized. Failure to move indicates a bad motor or wiring issue.

Wiring & Ground Locations

• Engine Harness Ground — On Volvo 5-cylinder engines, there are several key ground points on the engine itself, including bolts on the timing cover that ground the coil packs and a main engine ground strap that often connects to the passenger side strut tower.. A poor engine ground can cause a variety of sensor and actuator errors. While not a primary cause for P2015, verifying the main engine grounds are clean and tight is a crucial step if direct electrical testing of the actuator shows anomalies.
• Cab Ground Stud — On the P1 platform, a main cab ground stud is located on the driver-side exterior firewall/bulkhead, providing a ground path for many interior and dash components.. This is less likely to be related to the P2015 code, but it is a critical ground point for the vehicle's overall electrical system, including the Central Electronic Module (CEM) which communicates with the Engine Control Module (ECM).

Real Owner Repair Stories

• Volvo Owners Club Forum user 'Curly59' (2010 XC90 D5 185hp (Euro 4 engine, similar system)) — Persistent error code related to swirl flap actuator, even after replacing the arm and the swirl flaps themselves. The error seemed to trigger during the motor's self-calibration cycle which occurs every few startups.
  ❌ Tried (didn't work) Replacing the swirl flap arm, Replacing the entire swirl flap assembly, Fabricating a 'bump stop' to limit actuator motor travel during calibration
  ✅ What actually fixed it The issue was ultimately traced to a clogged fuel filter and a blocked #5 fuel injector. After replacing the filter and cleaning the injector, the swirl flap related codes disappeared and did not return.
• Volvo Owners Club Forum user (S60 D5 (Euro 4)) — Swirl flap arm was broken/disconnected.
  ❌ Tried (didn't work) Initially replacing the arm with a Volvo repair kit.
  ✅ What actually fixed it The arm broke again because the motor tests itself every few engine starts by pulling back hard. The final, durable fix was to drill through the ball joint and secure the arm with a bent panel pin, which never came off again. This indicates the underlying issue of stiff flaps was still present, but the mechanical connection was reinforced to overcome it.

OEM Part Supersession History

• 8692676 → 31216460 — Updated design for the swirl flap actuator linkage arm.
  Heads up: While they may look similar, using the wrong arm for your engine serial number range could result in incorrect geometry and continued faults.

Model Year Variations Within This Range

• Pre-2005/2006 (Euro 3): Earlier Euro 3 designated D5 engines (like the 163bhp variants) do not have swirl flaps at all, so the P2015 code is not applicable to them. The issue is specific to the Euro 4 (185bhp and others) and some later Euro 6 VEA engines.
• 2006-2010 (Euro 4): The swirl flap actuator arm part number changed based on the engine serial number within this period. The location of the engine serial number is typically on a sticker on the timing belt cover or stamped on the engine block itself, near the transmission bell housing.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Dual Mass Flywheel (DMF) Failure 🔴 High — Common between 60,000 and 100,000 miles, especially on manual transmission cars. Symptoms include shuddering, vibration at idle, and clunking noises.
• Clogged EGR Valve and Cooler 🟠 Medium → Shop Exhaust Gas Recirculation (EGR) Valve — Common issue due to soot accumulation, leading to reduced power and rough idling.
• Diesel Particulate Filter (DPF) Clogging 🟠 Medium — Frequent short trips prevent proper DPF regeneration, leading to blockages, warning lights, and limp mode.
• Cracked Plastic Coolant Expansion Tank 🟡 Low — The plastic tank can develop spider-vein cracks over time, leading to coolant loss. A common failure item on P1 platform Volvos.
• Sunroof Drain Hoses Clogging/Detaching 🟠 Medium — A design flaw where drains block easily, causing water to leak into the cabin, typically into the footwells and A-pillars.
• Auxiliary Belt / Tensioner Failure 🔴 High — A known issue on some D5 engines where the auxiliary belt or its tensioner fails, and the belt can get tangled in the timing belt, causing catastrophic engine damage. (Ref: Volvo has acknowledged this issue for certain engine years.)

Used vs. New Parts: Buying Guide for This Vehicle

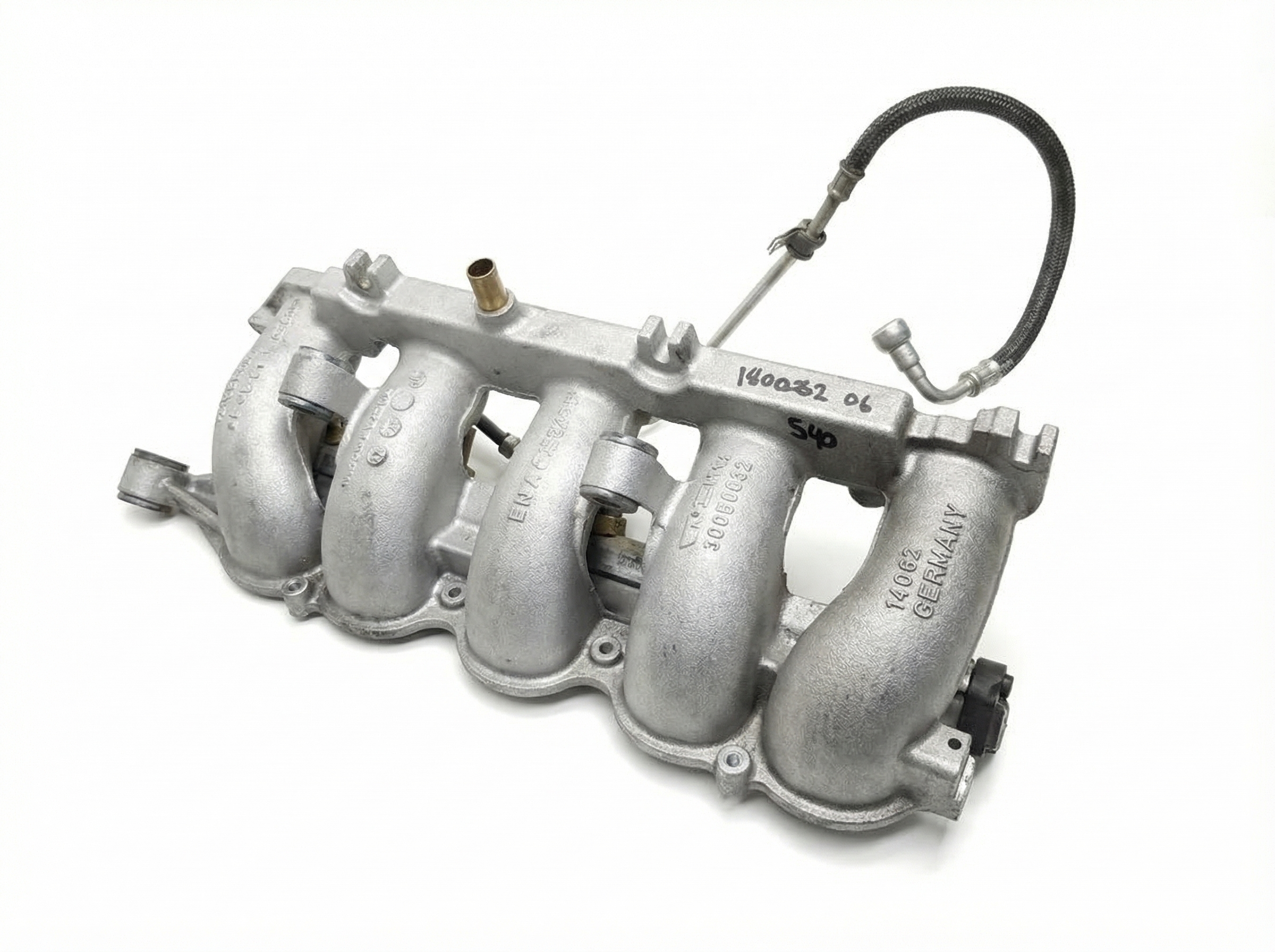

When a used part is the smart pick: A complete, used intake manifold assembly can be a cost-effective option IF it comes from a low-mileage vehicle or has been professionally cleaned (hot tanked or ultrasonically cleaned) to remove all internal carbon buildup. This can save significant labor over cleaning your own heavily coked-up manifold.

Donor-vehicle mileage cap: roughly under 75000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• Ask for photos of the inside of the intake ports; they should be free of thick, tar-like carbon.
• Manually actuate the swirl flap lever on the used manifold; it must move smoothly with no binding or sticking.
• Ensure the plastic housing has no cracks, especially around mounting points.
• Verify the part number and engine code compatibility.

OEM-only on this vehicle (don't cheap out):

• While not strictly OEM-only, the small plastic actuator arm is so inexpensive new that buying a used one is pointless. A used plastic arm will have the same age-related brittleness as the one that failed.

Aftermarket brands forum-validated for this vehicle:

• X8R Solutions: Widely known for their metal replacement linkage arms and swirl flap delete kits.
• iPD: A well-regarded source for Volvo performance and replacement parts, often offering upgraded components.
• Elring / Victor Reinz: Reputable brands for intake manifold gaskets if you are doing the cleaning job yourself.

Brands owners have reported issues with on this vehicle:

• Unbranded, exceptionally cheap actuator motors from online marketplaces should be treated with caution. The position sensor inside is a critical electronic component, and poor quality control can lead to repeat failures.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0401 — Often related to the carbon and soot buildup from the EGR system that jams the swirl flaps, leading to the P2015 fault.
• P242F — DPF clogging is a common D5 engine issue; restricted exhaust flow and heavy soot production can correlate with the intake carbon buildup that causes P2015.
• P0087 — While not directly a swirl flap code, fuel system issues are related because the fuel lines and injectors must be removed to access the intake manifold for a P2015 carbon cleaning fix.
