P2015 on 2006-2010 Volvo V50 D5: Swirl Flap Causes and Fixes

What's Unique About the 2006-2010 Volvo V50

The D5 engine's swirl flap system is a known weak point, primarily due to two factors: carbon buildup and a fragile plastic actuator arm. Over time, soot from the EGR (Exhaust Gas Recirculation) system clogs the intake manifold, causing the flaps to bind or seize. The small plastic arm (PN 31216460) that connects the actuator motor to the flaps is not robust enough to overcome this resistance and often breaks or pops off its ball joints, leading directly to the P2015 code. This is a very common issue reported by owners across many forums.

Symptoms You May Notice

• Check Engine Light is on
• "Engine System Service Required" message on the dash
• Reduced engine power and sluggish acceleration
• Vehicle entering 'Limp Home Mode'
• Rough or unstable idle
• Decreased fuel economy
• Noticeable hesitation, especially at lower RPMs
• Slight oil leak from the swirl flap shaft area if the internal seals are worn

Most Likely Causes

1. Broken or Disconnected Swirl Flap Actuator Arm (Link) 🔴 High Probability The link arm is a small plastic component that becomes brittle with heat and age. It is the weakest link in the system and often fails when the flaps become stiff from carbon buildup. This is the most frequent cause of P2015.
   How to confirm: Visually inspect the top of the engine. The actuator motor and arm are visible. Check if the plastic arm is snapped or if it has popped off the ball joint on the motor or the swirl flap rail. It's a very common and well-documented failure.
   Typical fix: Replace the plastic link arm (Volvo PN 31216460). Many owners upgrade to a more robust metal aftermarket version to prevent repeat failures.
   Est. part cost: $15-$40
2. Seized or Sticking Swirl Flaps due to Carbon Buildup 🔴 High Probability The D5 engine, like many EGR-equipped diesels, is prone to heavy carbon deposits in the intake manifold, which physically jam the swirl flap mechanism.
   How to confirm: With the actuator arm disconnected, try to move the swirl flap rail by hand. It should move smoothly with minimal resistance. If it is stiff, stuck, or gritty, the flaps are binding. This is a definitive check.
   Typical fix: The intake manifold (which is integrated into the valve cover) must be removed for cleaning. This is a labor-intensive job requiring removal of the fuel injectors and fuel lines. Some owners opt to install a 'swirl flap delete kit' which permanently removes the flaps and seals the holes.
   Est. part cost: $50-$100 for gaskets and seals, or $70-$120 for a delete kit.
3. Faulty Swirl Flap Actuator Motor ⚪ Low Probability The motor (PN 30756099) can fail, but it's less common than the mechanical link or flaps seizing. It may burn out from the strain of trying to move stuck flaps.
   How to confirm: With the ignition on, use a diagnostic tool like Volvo's VIDA to command the actuator to move. Observe if the motor attempts to rotate. If it doesn't move and the wiring is confirmed to be good, the motor is likely faulty.
   Typical fix: Replace the swirl flap actuator motor.
   Est. part cost: $150-$250

Rare But Worth Checking

• Wiring Harness Damage: The wiring to the actuator motor's position sensor can become damaged from engine heat and vibration, leading to a signal fault. This should be checked if a new motor and arm do not resolve the code.

Diagnosis Steps

1. Scan the vehicle for fault codes to confirm P2015 is present. Note any other codes.
2. Open the hood and remove the plastic engine cover.
3. Locate the swirl flap actuator motor on top of the engine, near the oil filler cap. It's a small black box with an arm coming out of it.
4. Visually inspect the plastic link arm (Volvo PN 31216460) that connects the motor to the swirl flap rail. Check if it is broken or disconnected from its ball sockets.
5. If the arm is intact, carefully pop it off one of the ball sockets. Attempt to move the swirl flap rail by hand. It should move freely through its range of motion. If it is very stiff or completely stuck, the intake manifold is full of carbon and needs cleaning or a delete kit.
6. If the arm is broken, replace it. Before fitting the new arm, ensure the flaps move freely as per the step above. If they are stiff, the new arm will fail prematurely.
7. If the arm is good and the flaps move freely, the issue may be the actuator motor itself or its wiring. Check the 5-pin connector for corrosion or damage.
8. If a Volvo-specific scan tool (like VIDA) is available, command the actuator to perform a sweep test to verify its operation electronically. This can confirm if the motor is responding to commands.

Parts You'll Likely Need

• Swirl Flap Actuator Link Arm (OEM #31216460) — This is the most common failure point. It's a small plastic part that breaks easily.
  Trusted brands: Volvo (Genuine), Aftermarket metal/upgraded plastic versions are widely available
  OEM price range: $20-$30
  Aftermarket price range: $15-$25
• Swirl Flap Actuator Motor (OEM #30756099) — This part is replaced if it has burned out, which can happen when trying to move seized flaps. Also known by PN 30756100.
  Trusted brands: Volvo (Genuine), Bosch
  OEM price range: $200-$250
  Aftermarket price range: $150-$200
• Intake Manifold Gasket / Valve Cover Gasket (OEM #30713459) — This must be replaced if the intake manifold/valve cover is removed to clean or delete the swirl flaps.
  Trusted brands: Volvo (Genuine), Elring, Victor Reinz
  OEM price range: $40-$60
  Aftermarket price range: $25-$40
• Swirl Flap Delete Kit — A popular permanent fix that involves removing the flaps entirely to prevent future issues. This is an aftermarket solution.
  Trusted brands: X8R, various eBay/Amazon sellers
  OEM price range: N/A
  Aftermarket price range: $70-$120
• Injector Copper Seals (OEM #30777650) — Required when removing the fuel injectors to access the intake manifold for cleaning or flap deletion.
  Trusted brands: Volvo (Genuine), Bosch
  OEM price range: $20-$30
  Aftermarket price range: $10-$20

Platform-Specific Known Issues

• The intake manifold on the D5 engine is integrated with the valve cover, making removal for cleaning a more complex job that requires removing the fuel injectors and high-pressure fuel lines. Care must be taken not to drop carbon debris into the intake ports.
• Due to the high frequency of this failure, many aftermarket companies offer strengthened metal replacement arms or full 'delete kits' to permanently solve the problem.
• The D5 engine is a very tight fit in the P1 platform (V50/S40/C30) engine bay, making access to components on the side of the engine, such as belts and tensioners, more difficult than in larger Volvos like the V70 or XC90.

Mechanic-Grade Diagnostic Values

• Voltage at swirl flap actuator motor connector — expected: Approximately 4.8V between two of the pins with ignition on.. Failure: 0V between the outer pins may indicate a wiring or ECM issue.

Scan Tool Commands That Help

• Volvo VIDA: Swirl Actuator Control Test / Adaptation — Use this function to command the actuator motor to sweep through its range of motion. This electronically confirms if the motor is functional, separate from the mechanical linkage. It can also be used to run an adaptation/calibration sequence after replacing components.
• Volvo VIDA: Graphing Swirl Movement vs. RPM — This allows you to monitor the live position of the swirl flaps as reported by the sensor while revving the engine, helping to diagnose intermittent sticking or incorrect response under load.

Wiring & Ground Locations

• Engine Control Module (ECM) — Located at the left front of the engine compartment on a 2007 V50.. The ECM sends the command signal to the swirl flap actuator and receives the position feedback. All wiring for the actuator originates from or terminates at the ECM.
• Swirl Flap Actuator Connector — A 5-pin connector plugging directly into the actuator motor on top of the engine.. This is the primary point for electrical testing (voltage, ground, signal) of the actuator motor and its circuit.

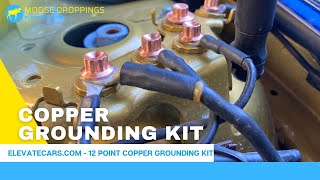

• Main Engine Ground Strap — While specific V50 locations are not detailed, a primary engine-to-chassis ground is critical. On similar Volvo platforms, this connects the engine block or gearbox to the subframe or chassis rail. Key grounding points are also found on the strut towers.. A poor engine ground can cause a variety of erratic electronic faults, including incorrect sensor readings and actuator malfunctions. While not a primary cause for P2015, it should be checked if multiple, seemingly unrelated electrical faults are present.

Real Owner Repair Stories

• Volvo Owners Club Forum user 'Curly59' (2010 Volvo XC90 D5 185bhp (same engine family and system)) — Persistent error code related to swirl flaps, even after replacing the arm and the flaps themselves. The error seemed to occur during the motor's self-calibration cycle.
  ❌ Tried (didn't work) Replacing the swirl flap link arm., Replacing the swirl flaps themselves., Creating a custom 'bump stop' to limit actuator travel during calibration., Running a swirl flap adaptation using VIDA software.
  ✅ What actually fixed it The issue was ultimately traced to a blocked fuel filter and a dirty #5 fuel injector. After replacing the filter and cleaning the injector, the swirl flap related codes were resolved.

OEM Part Supersession History

• 30756099 → 30756100 — Standard part revision or change in manufacturer.
  Heads up: The parts are interchangeable and functionally identical. Both part numbers refer to the same 5-pin swirl flap actuator motor for this engine series.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Auxiliary Belt / Tensioner Failure 🔴 High — Common issue, especially on higher mileage vehicles. The auxiliary belt can snap and get tangled in the timing belt, causing catastrophic engine damage. (Ref: No formal recall found, but it is a widely discussed failure among owners and mechanics.)
• Central Electronic Module (CEM) Failure 🔴 High — A well-documented problem on the P1 platform. Water ingress into the passenger footwell from clogged sunroof drains or a leaking windshield seal corrodes the CEM, causing a wide range of bizarre electrical faults.
• Diesel Particulate Filter (DPF) Clogging 🟠 Medium — Common for cars used primarily for short trips, which prevents the DPF from reaching temperature to perform a regeneration cycle. Leads to 'Soot Filter Full' warnings and limp mode.
• Front Suspension Wear 🟠 Medium — The heavy D5 engine puts extra strain on front suspension components like lower control arms, bushings, and strut mounts, leading to knocking or clunking noises over bumps.
• Alternator Freewheel Pulley Seizure 🟠 Medium — The clutch pulley on the alternator can seize, which stops it from absorbing vibrations. This puts immense strain on the auxiliary belt and tensioner, often leading to their premature failure.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A used swirl flap actuator motor (PN 30756099 / 30756100) can be a cost-effective option if the failure is confirmed to be the motor itself and not seized flaps. A complete used intake manifold/valve cover assembly can also be considered if the flaps are seized and you want to avoid the labor of cleaning, but it carries risk.

Donor-vehicle mileage cap: roughly under 80000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• For a used actuator motor, ensure the connector pins are clean and straight.
• For a used intake manifold, look down the intake ports with a light. Avoid any with heavy, thick carbon buildup.
• Manually move the swirl flap link on the used manifold. It should move smoothly with no binding or gritty feeling.
• Check the plastic link arm ball joint on the manifold side for excessive wear. It should be a distinct ball shape, not worn down.

OEM-only on this vehicle (don't cheap out):

• Intake Manifold Gasket (Valve Cover Gasket)
• Injector Copper Seals

Aftermarket brands forum-validated for this vehicle:

• X8R (For swirl flap delete kits)
• Aftermarket metal link arms (widely available and generally considered an upgrade over the OEM plastic part)

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.
