P2800 on 2012-2021 Volkswagen Passat: Transmission Range Sensor Causes and Fixes

What's Unique About the 2012-2021 Volkswagen Passat

The diagnostic path for this code on a Passat depends entirely on which automatic transmission the car has. Some NMS Passats use a conventional 6-speed automatic (Aisin 09G) with a simple, external range sensor that can be replaced with moderate difficulty. However, many are equipped with a 6-speed Direct-Shift Gearbox (DSG), specifically the DQ250 (VW code 02E). On these DSG models, the range sensor function is integrated into the complex and expensive Mechatronics unit. A P2800 code on a DSG-equipped Passat is therefore often an early sign of Mechatronics failure, a well-documented issue with these transmissions.

Generation note: The 2012-2021 year range covers the North American (NMS) Passat platform. This includes the initial generation (2012-2019) and the major facelift for 2020-2021. The diagnostic approach for P2800 does not significantly differ by model year but is critically dependent on whether the vehicle has a conventional automatic (Aisin 09G) or a DSG transmission (DQ250).

Symptoms You May Notice

• Check Engine Light or EPC (Electronic Power Control) light is on
• Flashing 'PRNDS' gear indicator on the dashboard
• Vehicle will not crank or start, or only starts in Neutral
• Transmission enters 'limp mode,' often stuck in a single gear (like 3rd)
• Harsh, erratic, or delayed gear shifting, especially when warm
• Inability to select Reverse or Drive
• Reverse lights do not work correctly
• Sudden loss of power or feeling like the car is in Neutral while at a stop

Most Likely Causes

1. Mechatronics Unit Failure (DSG Models) 🔴 High Probability The DQ250 DSG Mechatronics unit is a known failure point. The internal circuit board, sensors, or solenoids can malfunction due to heat and vibration over time, causing a variety of fault codes, including P2800.
   How to confirm: A professional diagnosis with a VW-specific scan tool (like VCDS) is required to read transmission-specific data blocks and fault codes. A history of other transmission faults (like solenoid codes) or an inability to communicate with the TCM often confirms Mechatronics failure.
   Typical fix: The Mechatronics unit must be removed. It can be replaced with a new or remanufactured unit, or sent to a specialist for repair. The new unit requires programming (adaptation) to the vehicle.
   Est. part cost: $800-$2000+
2. Faulty External Transmission Range Sensor (Non-DSG Models) 🔴 High Probability → Shop Transmission Assembly The sensor is an electronic component mounted on the outside of the Aisin 09G transmission, making it susceptible to failure from heat, vibration, and moisture over time.

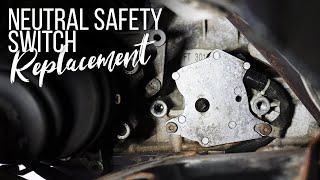

   How to confirm: Test the sensor's voltage output with a multimeter as the gear lever is moved. The voltage should change in distinct steps for each gear. 🎬 Watch: How to replace a range sensor without special tools. An erratic or non-existent signal confirms failure. Also, check for proper adjustment; misalignment can also cause this code.
   Typical fix: Replace the transmission range sensor. On the Passat, this often requires supporting the transmission and removing a mount for access. 🎬 See this walkthrough for replacing the external range sensor. The new sensor must be correctly aligned during installation.
   Est. part cost: $50-$150
3. Damaged Wiring or Corroded Connector 🟡 Medium Probability The wiring harness to the transmission is located under the vehicle and exposed to road debris, moisture, and heat, which can lead to corrosion, shorts, or open circuits.
   How to confirm: Visually inspect the wiring harness and main connector leading to the range sensor (on 09G models) or the round Mechatronics connector (on DSG models) for any signs of green corrosion, frayed wires, or bent pins. Perform a continuity test on the signal wire.
   Typical fix: Repair the damaged section of wiring or replace the connector pigtail. Clean corroded terminals with an electrical contact cleaner and apply dielectric grease.
   Est. part cost: $10-$50

Rare But Worth Checking

• Failed Gear Selector Module: A microswitch within the shifter assembly in the cabin can fail, sending incorrect signals about the lever's position. VW has issued repair kits for this on some models, which involve adding a new switch to the assembly. While less common for P2800, it's worth investigating if the transmission-mounted components check out.
• Failing Transmission Control Module (TCM) or Powertrain Control Module (PCM): → Shop Engine Control Module (ECM) In rare cases, the fault is not with the sensor or wiring, but with the computer module itself. The module's internal circuitry may fail, preventing it from correctly interpreting the sensor's signal. This should only be considered after all other possibilities are exhausted.

Diagnosis Steps

1. Identify the Transmission: First, confirm if the vehicle has a conventional automatic (Aisin 09G) or a DSG transmission (DQ250). This is the most critical step and dictates the entire diagnostic path.
2. Scan for Codes: Use an OBD-II scanner to confirm P2800 is present and check for any other related transmission codes. Note any codes for other circuits (like P0706) or solenoids.
3. For DSG Models: The diagnosis almost immediately points to the Mechatronics unit or its wiring. A visual inspection of the main round transmission connector is warranted. However, further diagnosis requires a VW-specific scan tool and professional knowledge to check live data and communication status. Proceed to a qualified shop.
4. For Non-DSG Models: Start with a visual inspection. Locate the external transmission range sensor on the side of the transmission case. Check its connector and wiring for corrosion, damage, or looseness.
5. Test the Sensor Circuit: Backprobe the sensor's connector with a multimeter. With the ignition on, check for a stable reference voltage (typically 5V or 12V) and a good ground.
6. Check Sensor Output: Monitor the signal wire's voltage while a helper slowly moves the gear selector through P, R, N, D. You should see distinct, stable voltage steps for each position. If the voltage is erratic, missing, or doesn't change, the sensor is likely bad.
7. Check Shifter Linkage: Ensure the cable from the shifter to the transmission is not loose or misadjusted, as this could prevent the sensor from aligning correctly with the selected gear.
8. Replace the Faulty Component: Based on the tests, replace the external range sensor or repair the wiring as needed. Ensure the new sensor is properly aligned.

Parts You'll Likely Need

• Mechatronics Unit (OEM #02E325025AD, 02E927770AL (example part numbers, verify by VIN)) — This is the most common point of failure for DSG-equipped Passats that show a P2800 code. It is the electro-hydraulic control center for the transmission. 🎬 Watch: A detailed look at the DSG DQ250 Mechatronics kit.
  Trusted brands: Genuine VW/Audi, INA, Remanufactured units from various suppliers
  OEM price range: $1500-$2500
  Aftermarket price range: $800-$1500 (Remanufactured)
• Transmission Range Sensor (Neutral Safety Switch) (OEM #09G919823 (for Aisin 09G, verify by VIN)) — For non-DSG models, this external sensor is the most likely cause of P2800.
  Trusted brands: Genuine VW/Audi, Beck/Arnley, Vemo
  OEM price range: $120-$200
  Aftermarket price range: $40-$90

Related Codes That Often Appear With This One

• P0706 — P0706 indicates a 'Transmission Range Sensor 'A' Circuit Range/Performance' issue. Seeing it with P2800 ('B' Circuit) strongly suggests a core problem with the sensor unit or its adjustment, as the computer is seeing a mismatch between the redundant circuits.
• P0751, P0756, etc. — These codes relate to specific shift solenoids. If they appear alongside P2800 on a DSG model, it is a very strong indication of an internal failure within the Mechatronics unit, which houses both the range sensors and the shift solenoids.

Platform-Specific Known Issues

• Widespread DSG Mechatronics failures are a known issue for Volkswagen vehicles in this year range. Symptoms often start intermittently, such as a flashing PRNDS light or harsh shifts when the transmission is warm, before progressing to more severe drivability problems.

Mechanic-Grade Diagnostic Values

• DSG Transmission Fluid Temperature for Adaptation — expected: 30°C - 100°C. Failure: The adaptation or basic settings procedure will not start if the fluid is too cold or too hot.
• Aisin 09G External Range Sensor (F125) Output — expected: Distinct and stable voltage or resistance reading for each gear position (P, R, N, D, etc.).. Failure: No change in reading, erratic values, or an open/short circuit when moving the selector lever confirms a faulty sensor.

Hidden / Shadow Codes Worth Checking

• 19248: This is the VAG-specific fault code number that corresponds to the generic OBD-II code P2800. (see via VW/Audi specific scan tools like VCDS or ODIS.)
• B116229: Selector Lever Park Position Lock Switch Range/Performance. This code points to a failure of the microswitch in the cabin's gear selector assembly and often causes a 'Shift to P' warning on the dash. It is a common related fault. (see via VW/Audi specific scan tools like VCDS or ODIS.)

Scan Tool Commands That Help

• VCDS or ODIS: 02-Auto Trans -> Basic Settings — This is mandatory after replacing the DQ250 Mechatronics unit. It runs through procedures like 'Engaged Calibration', 'Synch Point Measurement', and 'Clutch Adaptation' to teach the new unit the specific tolerances of the gearbox.
• ODIS: Reset transmission control module adaptation values — Used to clear old learned values before performing a new adaptation test drive. This is a critical first step in the calibration process after a Mechatronics replacement.
• ODIS-E (Engineering): Flash Firmware — Required when installing a used Mechatronics unit from a donor vehicle with a different engine or software version. The correct firmware for the recipient vehicle's VIN must be flashed onto the module to ensure compatibility and prevent communication errors.

Wiring & Ground Locations

• 652 — On the transmission case, connecting via a heavy strap to the chassis frame rail in the engine compartment.. This is the main ground point for the engine and transmission. A poor connection here can cause erratic behavior and fault codes from the Transmission Control Module (TCM) due to unstable voltage reference.
• Main Mechatronics Connector (DSG) — A large, round, bayonet-style connector on the front of the DQ250 transmission.. This is the single point of connection for all sensors and solenoids within the Mechatronics unit. Any corrosion or pin damage here will directly cause communication faults and codes like P2800.
• T10m Connector — A 10-pin connector, often located in a protective housing in the plenum chamber (near the firewall), related to the shifter assembly.. This connector transmits signals from the gear selector lever (shifter) to the rest of the vehicle's network, including inputs that are cross-referenced by the TCM. A fault here could contribute to gear position plausibility errors.

Real Owner Repair Stories

• CarTechnoloGY forum user 'evinehh' (2015 VW Passat 2.0 TDI (CVCA engine)) — No Signal/Communication from transmission after installing a used Mechatronics unit.
  ❌ Tried (didn't work) Installing a used Mechatronics (HW P/N 02E927770AL) from a 2012 Passat with a 3.6L engine.
  ✅ What actually fixed it The hardware was compatible, but the software was for the wrong engine. The user had to acquire ODIS-E (Engineering software) and the correct firmware file for their TDI engine. Flashing the correct software to the used Mechatronics unit resolved the communication error and fixed the vehicle.
• AliExpress Blog Post / User Experience (2010 VW Golf GTD (DQ250 Transmission)) — Jerking shifts, 'Transmission Fault' warning, limp mode.
  ❌ Tried (didn't work) Valve body cleaning and adaptation reset (worked for 3 weeks)., Installing a remanufactured Mechatronics unit (failed after 6 months).
  ✅ What actually fixed it After two failed attempts with remanufactured units, the owner installed a genuine OEM Mechatronics unit (P/N 02E927770AD), which provided a long-term, reliable fix.

OEM Part Supersession History

• 02E927770AL → 02E325025AL Zxx (example) — Revisions to address reliability issues and component changes.
  Heads up: Later part numbers (e.g., 02E927770AQ and newer) are often VIN-protected and have the vehicle immobilizer integrated. Swapping these units requires online programming with ODIS to adapt the immobilizer and component protection, a task VCDS cannot perform. Simply installing a used unit will result in a no-start condition.

Model Year Variations Within This Range

• 2012-2021 (All DSG): The software on the Mechatronics unit is specific to the engine (TDI vs. TSI) and model year. A used unit from a different engine type will not work without being flashed with the correct firmware using specialist tools like ODIS-E.
• Approx. 2012-2015 vs 2016+: Later model year DQ250 Mechatronics units are more likely to have integrated immobilizer functions, making swaps from donor cars much more complex and requiring dealer-level tools for programming.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Timing Chain Tensioner Failure (TSI Engines) 🔴 High — Common on earlier EA888 Gen1/Gen2 engines (approx. 2012-2015). Failure can occur without warning, often between 60k-100k miles, leading to catastrophic engine damage. (Ref: VW TSB 15-12-01 (2028302) addresses checking the tensioner. A class-action lawsuit also covered this issue.)
• Clogged Heater Core 🟠 Medium — Very common across the NMS Passat platform, especially on TDI models. Symptoms include no heat on the passenger side vents. Often occurs after 60,000 miles. (Ref: VW issued a TSB and a warranty extension (up to 120k miles for some vehicles) for this issue due to coolant contamination.)
• Failing Steering Wheel Clock Spring 🟠 Medium — Common on 2012-2014 models. Leads to an airbag warning light and loss of steering wheel controls (horn, radio buttons). (Ref: VW issued a safety recall (NHTSA #15V483000, Transport Canada #2015344) to address this, though some owners report repeated failures even after the recall repair.)
• Engine Misfires (TSI Engines) 🟡 Low — Frequently reported problem often caused by failing ignition coils or spark plugs. Can occur at various mileages.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For the Aisin 09G, a used external range sensor is a low-risk, cost-effective option. For the DSG DQ250, a used Mechatronics unit is a high-risk but common choice due to the extreme cost of new parts. It should only be attempted by advanced DIYers or shops with access to ODIS-E for flashing the correct firmware.

Donor-vehicle mileage cap: roughly under 80000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• For a Mechatronics unit, ask for the donor vehicle's service history; proof of regular DSG fluid changes (every 40,000 miles) is a strong positive indicator.
• Visually inspect the main round electrical connector for any signs of corrosion, moisture, or bent/damaged pins.
• Verify the part number on the used unit matches the original hardware part number.
• Avoid parts that show signs of being stored outdoors or having heavy external corrosion.

OEM-only on this vehicle (don't cheap out):

• DSG Mechatronics Unit: While professional repair services exist, cheap remanufactured or used units from unknown online sellers are very high risk and often lead to repeat failures. A new Genuine VW unit or a rebuild from a highly reputable specialist with a warranty is the recommended path for reliability.

Aftermarket brands forum-validated for this vehicle:

• For Aisin 09G Range Sensor: Vemo, Beck/Arnley.
• For DQ250 Mechatronics Repair: Specialist rebuilders like ECU Testing and ControlUnits are known options in the market.

Brands owners have reported issues with on this vehicle:

• Unbranded, low-cost Mechatronics units from marketplaces like AliExpress or eBay. While some may work, the failure rate is high due to inconsistent repair quality and incorrect software.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• P0706 — Transmission Range Sensor Circuit Range/Performance — often appears alongside P2800 when the external sensor or Mechatronics unit cannot determine the correct gear position.
• P2711 — Unexpected Mechanical Gear Disengagement — frequently associated with DSG Mechatronics failures and the 'flashing PRNDS' symptom described in the context.
• U0101 — Lost Communication with TCM — may occur if the Mechatronics internal circuit board fails completely or if there is significant corrosion in the main wiring connector.
