U0002 on 2019-2022 Volkswagen Golf: High Speed CAN Bus Performance Causes and Fixes

What's Unique About the 2019-2022 Volkswagen Golf

The 2019-2022 Golf spans two generations, the Mk7.5 and the all-new Mk8, which have different electronic architectures. For the 2022 Mk8 models (GTI/R), a widely reported cause of network faults and warning light storms is a faulty steering wheel assembly, which contains critical control modules. This is a known issue acknowledged by VW, with some vehicles requiring multiple steering wheel replacements. On the earlier Mk7.5, issues are more likely to stem from the central CAN Gateway module, wiring damage, or a weak battery causing network instability, similar to previous Golf generations.

Generation note: Yes, this range covers two generations. 2019-2021 models are the Golf Mk7.5. The 2022 model year introduced the Golf Mk8 (in North America, primarily the GTI and R models). The Mk8 has a different interior and a more complex, integrated electronic architecture. A known issue for the Mk8 involves the steering wheel control modules causing network errors, which is less common on the Mk7.5. VW has issued internal service recalls (e.g., 48Q5) for this problem.

Symptoms You May Notice

• Multiple warning lights on the dashboard simultaneously (Check Engine, EPC, ABS, Airbag, Traction Control).
• Sudden loss of electric power steering assist, making the wheel very heavy.
• Instrument cluster gauges dropping to zero or behaving erratically.
• Engine stalling or failing to start.
• Error messages for 'Travel Assist', 'Front Assist', or 'SOS' systems (especially on Mk8 models).
• Automatic transmission may go into limp mode or shift erratically.
• Infotainment screen may freeze or go black when other errors appear.

Most Likely Causes

1. Weak or Failing Battery 🔴 High Probability → Shop Vehicle Battery Modern VWs are packed with electronics that are highly sensitive to voltage. A battery that provides low voltage during startup or while running can cause modules to malfunction and disrupt network communication.
   How to confirm: Test the battery voltage with a multimeter. A healthy battery should read above 12.4V with the engine off and maintain above ~10V while cranking. Check the alternator output, which should be between 13.5V and 14.5V with the engine running.
   Typical fix: Replace the battery. If the alternator is faulty, it will also need replacement. The new battery must be coded to the vehicle using a compatible scan tool (VCDS, OBDeleven) to ensure the battery management system works correctly.
   Est. part cost: $200-$400
2. Faulty Steering Wheel Module/Assembly (Mk8) 🔴 High Probability A widely documented issue on 2022+ Mk8 Golf GTI/R models. The capacitive touch controls and integrated electronics within the steering wheel can fail, disrupting the CAN bus and causing widespread faults. Owners on forums report needing multiple replacements.
   How to confirm: This is difficult to confirm without a dealer-level diagnostic tool. If the vehicle is a 2022+ model and exhibits multiple intermittent 'Travel Assist unavailable' or 'SOS error' warnings along with U0002, this is a very likely cause. VW has issued internal service recalls (e.g., 48Q5) for this. 🎬 Watch: How the Travel Assist and SOS issue is fixed
   Typical fix: Replacement of the entire steering wheel assembly. This is often covered under warranty. Some owners report long waits for the part.
   Est. part cost: $800-$1500
3. CAN Gateway Module Failure 🟡 Medium Probability The CAN Gateway is the central router for all data traffic, located above the glovebox. It's a common point of failure. On Mk7/7.5 models, water ingress from a clogged sunroof drain or leaking 🎬 Watch: How to clean your Mk7 sunroof drains windshield/speaker seal could damage the module. Simple electronic failure can also occur.
   How to confirm: A scan tool will show a loss of communication with multiple modules. The gateway itself may be unresponsive. A technician can perform a 'ring break' diagnosis to isolate the gateway. Physical inspection may reveal corrosion from water damage. The part number is often from the 5Q0907530 series (e.g., 5Q0907530AJ).
   Typical fix: Replace the CAN Gateway module and code the new one to the vehicle's specific configuration using VW-specific diagnostic software (ODIS). Used modules are available but require component protection to be deactivated by a dealer or specialist.
   Est. part cost: $150-$400 for the part, plus coding costs.
4. Damaged Wiring or Connectors 🟡 Medium Probability The CAN bus wiring (typically a twisted pair of orange/brown and orange/black wires) runs throughout the vehicle. Common chafe points are in door jambs, under seats, or near the engine and firewall. Rodent damage is also a possibility.
   How to confirm: Visually inspect harnesses for damage. A technician will use a multimeter to check for the correct resistance (approx. 60 Ohms) across the CAN High and CAN Low pins at the OBD-II port. If the reading is incorrect (120 Ohms or 0 Ohms), it points to a break or short in the wiring.
   Typical fix: Repair the damaged section of the wiring harness. This is labor-intensive.
   Est. part cost: $5-$50 for wiring, but labor can be significant.

Rare But Worth Checking

• Faulty ABS Module: → Shop ABS Control Module The ABS module is a primary node on the high-speed CAN bus. An internal failure can cause it to flood the network with bad data, bringing down communication for all other modules. If U0002 is accompanied by codes like U0121 (Lost Communication with ABS), the ABS module is a prime suspect.
• Aftermarket Electronics: Improperly installed aftermarket parts (remote starters, alarms, stereos, or even cheap OBD-II dongles) that tap into the CAN bus can disrupt the network and cause a U0002 code. A TSB for older models noted that accessories plugged into the 12V socket could cause electrical feedback and trigger this code.

Diagnosis Steps

1. Check Battery Health: → Shop Vehicle Battery Before any other steps, verify the battery is fully charged and the charging system is working correctly. Low voltage is a common cause of network errors.
2. Perform a Full System Scan: Use a VW-compatible diagnostic tool (like VCDS or OBDeleven) to scan all modules. Save the full scan log. Note which modules are reporting 'No Communication' and which ones have stored the U0002 fault.
3. Check for TSBs and Recalls: Check with a VW dealer or online for any Technical Service Bulletins or service campaigns related to network issues. For 2022+ models, specifically ask about steering wheel campaigns like 48Q5.
4. Check CAN Bus Resistance: With the battery disconnected, measure the resistance between Pin 6 (CAN High) and Pin 14 (CAN Low) on the OBD-II port. 🎬 Watch: How to test CAN bus resistance with a multimeter A healthy network should read approximately 60 Ω. A reading of 120 Ω suggests an open circuit or a missing termination resistor (often in a module). A reading near 0 Ω indicates a short circuit between the two CAN wires.
5. Visual Inspection: Inspect visible wiring harnesses for signs of damage, chafing, or corrosion, especially around the battery, under the driver's dash near the CAN Gateway (above glovebox), and at the firewall.
6. Isolate Modules (Advanced): If resistance is incorrect, begin unplugging modules from the high-speed CAN bus one by one (starting with common culprits like ABS or, on Mk8, the steering wheel) and re-measure resistance. When the resistance returns to a normal value, the last module unplugged (or its connector/wiring) is likely the source of the fault.
7. Oscilloscope Analysis (Professional): A technician can use an oscilloscope to view the CAN bus signal waveform in real-time to identify noise, incorrect voltages, or data corruption that a multimeter cannot see.

Parts You'll Likely Need

• CAN Gateway Module — This is the central hub for network communication and a common failure point, especially due to water ingress on Mk7/7.5 models.
• Steering Wheel Assembly — A known high-failure item on Mk8 models, causing widespread network faults.
• Battery — Low system voltage is a primary trigger for network communication codes.

Related Codes That Often Appear With This One

• U0100 — Lost Communication with ECM/PCM. This often appears with U0002 because the network instability prevents other modules from reliably hearing the engine computer.
• U0121 — Lost Communication With ABS Control Module. This is a strong indicator that the ABS module itself might be the source of the network problem, or its wiring is compromised.
• U0146 — Lost Communication With Gateway. This points directly to a problem with the CAN Gateway module or its connections.
• B200049 — Control module faulty. This is a common companion code seen on Mk8 models when the steering wheel module fails and triggers U0002. It can also indicate an internal electronic failure in other modules like the instrument cluster or telematics unit.

Technical Service Bulletins (TSBs) & Recalls

• 91-22-01 (2067083): Addresses Car-Net module software updates for various 2021-2022 VW models, which can be related to overall network stability.
• Internal Service Recall 48Q5: Mentioned in forums as a campaign to replace the steering wheel on certain Golf Mk8 vehicles to resolve communication errors.
• 91-24-01 (2072698): Pertains to MIB2 infotainment system malfunctions on Mk7.5 models, which can sometimes be related to network issues.
• Service Action 91DC / 91CZ: A service campaign to update the MIB3 infotainment software on early Mk8 models to improve stability and prevent system crashes.

Platform-Specific Known Issues

• Mk8 Steering Wheel Module Failure: The most prominent cause for U0002 on 2022 models. The internal electronics of the steering wheel fail, causing a flood of communication errors for driver assistance systems. Owners on Reddit and other forums report this is a well-known dealer issue, often requiring a full steering wheel replacement, sometimes more than once.
• Mk7.5 CAN Gateway Water Damage: On the 2019-2021 models, the CAN Gateway (located above the glovebox) is susceptible to water damage from clogged panoramic sunroof drains or leaking windshield seals, a known issue on the Mk7 platform. This can cause corrosion and lead to total network failure.

Mechanic-Grade Diagnostic Values

• CAN Bus Resistance (at OBD-II Port) — expected: ~60 Ω (with battery disconnected). Failure: A reading of ~120 Ω indicates an open circuit or a module/terminating resistor is offline. A reading near 0 Ω indicates a short between the CAN High and CAN Low wires.
• CAN High Voltage (DC, Key On, Engine Off) — expected: ~2.5 V (Recessive/Idle State) to ~3.5 V (Dominant State). Failure: Significant deviation from these voltages indicates a bus problem, such as a short to power or ground.
• CAN Low Voltage (DC, Key On, Engine Off) — expected: ~2.5 V (Recessive/Idle State) to ~1.5 V (Dominant State). Failure: Significant deviation from these voltages indicates a bus problem, such as a short to power or ground.
• Alternator Output Voltage (Engine Running) — expected: 13.5 V to 14.5 V. Failure: Voltage below or above this range can cause module instability and network errors.

Hidden / Shadow Codes Worth Checking

• B200049: Internal Electronic Failure / Control Module Faulty. This is a manufacturer-specific code that frequently appears with U0002, especially on the Mk8 platform. It indicates a specific module has identified an internal hardware or software fault. On Mk8s, it often points to the steering wheel module. On other models, it can be triggered by the instrument cluster or the telematics/SOS module. (see via VW-specific scan tools like VCDS or ODIS.)

Scan Tool Commands That Help

• VCDS or ODIS: Gateway Installation List — When replacing the CAN Gateway (J533). The new module must be coded with the correct installation list to know which other modules are present in the vehicle. An incorrect list will cause 'Control Module Incorrectly Coded' faults.
• VCDS or ODIS: Optical Bus Diagnostics (Ring Break Diagnosis) — For vehicles with a MOST (fiber optic) bus for infotainment. While not directly the CAN bus, a fault on the MOST ring can sometimes cause cascading communication errors. This function polls each module in the fiber optic loop to see where the signal is broken.
• ODIS: Component Protection Removal — After installing a used module that is part of the 'Component Protection Constellation' (like the CAN Gateway, infotainment unit, etc.). This is an online function that requires a connection to VW's servers (FAZIT) to authorize the used part for the vehicle's VIN. Without this, the module will have limited functionality.
• VCDS: Measuring Blocks / Advanced Measuring Blocks — To view live data from the CAN Gateway (and other modules) to check status. For the Gateway (Address 19), you can view the status of communication with other modules on different CAN buses (e.g., Drivetrain, Convenience).

Wiring & Ground Locations

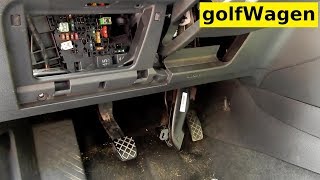

• J533 (CAN Gateway) — On a LHD Mk7/7.5 Golf, the CAN Gateway is located high up in the driver's footwell, above the pedals, near the steering column. It is a tight space to access.. This is the central hub for all CAN bus communication. A failure here, either internal or due to water damage/corrosion, will bring down the entire network and is a primary suspect for U0002.
• T94 Connector — This is the large 94-pin main connector for the Engine Control Unit (ECU).. The High-Speed (Drivetrain) CAN bus wires pass through this connector. For a VW MED17.1.6 ECU, CAN-High is on Pin 68 and CAN-Low is on Pin 67. A corroded or loose pin in this connector can sever communication with the engine module, triggering U0002.
• OBD-II Port Pins — The diagnostic port under the driver's side dashboard.. Pin 6 is CAN High and Pin 14 is CAN Low. These are the primary test points for measuring the overall health of the high-speed CAN bus (resistance and voltage) without accessing individual modules.

Real Owner Repair Stories

• BRISKODA forum user (2011 Skoda Octavia (similar PQ platform architecture to early Golfs)) — Sudden dashboard light storm (ABS, steering, brake failure), engine would start and instantly cut out due to immobilizer.
  ❌ Tried (didn't work) Initial diagnosis was difficult as the OBD scanner could not communicate with any modules.
  ✅ What actually fixed it The user found the CAN Gateway module was full of water. After drying out the original gateway, the car started and ran again, though some secondary issues with central locking and an airbag light remained, likely due to residual damage or coding issues from the failure.
• Reddit r/AskAMechanic user (2020 VW Tiguan (similar MQB platform to Golf Mk8)) — Warning for 'Emergency Call Function' and 'Control Module Faulty' with code B200049 stored. The code would not clear.
  ❌ Tried (didn't work) Clearing the code with OBDeleven.
  ✅ What actually fixed it While the user did not post the final fix, a linked video for the same issue on a Golf Mk8 showed the fix was following a VW TPI (Technical Problem Information) to replace a small backup antenna/cover on the telematics control unit (OCU). The new part had improved contact pins. This suggests the fault was a poor connection at the module itself, causing it to report an internal failure.

OEM Part Supersession History

• 5Q0 907 530 (with various letter suffixes like L, R, AJ, etc.) → 3Q0 907 530 (with various letter suffixes like AC, AG, AR, etc.) — Manufacturer revision and supplier changes. The 3Q0 series is generally considered a functional equivalent and replacement for the 5Q0 series for most MQB platform vehicles like the Golf Mk7.
  Heads up: While often plug-and-play, the replacement gateway MUST be coded with the vehicle's specific installation list using VCDS or ODIS. A used gateway will also trigger Component Protection, which requires online dealer tools to remove.

Model Year Variations Within This Range

• 2022 (Mk8): The introduction of the new electronic architecture in the Mk8 made the steering wheel assembly a common point of failure for network codes like U0002. This was not a common issue on the 2019-2021 Mk7.5 models. VW has issued service campaign 48Q5 specifically for this steering wheel issue on Mk8s.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Water Pump/Thermostat Housing Failure (EA888 Gen3) 🔴 High — Common on Mk7/7.5 models, often occurring between 60,000 and 100,000 miles. Less common but still possible on early Mk8s. (Ref: A class-action lawsuit settlement provides extended warranty coverage for this part on certain model years.)
• Infotainment System Glitches (MIB3 on Mk8) 🟠 Medium — Extremely common on 2020-2022 models. Symptoms include freezing, random reboots, and non-responsive touch controls. Multiple software updates (e.g., v1811+) have been released to improve stability. (Ref: Service Action 91DC / 91CZ was issued to update infotainment software.)
• Sunroof Frame Cracking / Water Leaks (Mk7/7.5) 🔴 High — The plastic frame of the panoramic sunroof can crack, leading to significant water ingress into the cabin and headliner. Also, clogged sunroof drains, speaker seals, and rear badge drains are common leak points.
• DSG Mechatronic Unit Failure (DQ200 7-speed dry clutch) 🟠 Medium — Affects lower-power Mk7/7.5 models (not GTI/R). Symptoms include harsh shifting or loss of gears. The wet-clutch DSG in performance models is more robust.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A used CAN Gateway module (J533) can be a cost-effective option for Mk7/7.5 models, as they are plentiful and the hardware is generally reliable if not damaged by water. The key is having access to a specialist with ODIS to remove Component Protection.

Donor-vehicle mileage cap: roughly under 100000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• Inspect the connector pins for any signs of green/white corrosion, which indicates water damage.
• Ensure the plastic housing is not cracked or shows signs of being pried open.
• Obtain the VIN of the donor car if possible to verify its original equipment list, which can help with coding.

OEM-only on this vehicle (don't cheap out):

• Steering Wheel Assembly (Mk8): Due to the high failure rate and subsequent revisions, using a used part is risky. A new OEM part, ideally installed under warranty or service campaign (48Q5), is the only recommended path to ensure you get the latest, most reliable version.

Aftermarket brands forum-validated for this vehicle:

• For this specific fault, there are no reputable aftermarket manufacturers of core components like CAN Gateways or steering wheel modules. Stick to OEM parts, either new or used from a reputable salvage yard.

Brands owners have reported issues with on this vehicle:

• Avoid unbranded CAN Gateway modules from marketplaces like AliExpress or eBay unless the seller has a long, verifiable history of selling genuine used VW parts. Counterfeit or poorly cloned modules can cause unpredictable issues.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• U0121 — Lost Communication With Anti-Lock Brake System (ABS) Control Module; often occurs alongside U0002 when the CAN bus is disrupted or the ABS module is used for isolation testing.
• U0100 — Lost Communication with ECM/PCM; frequently triggered by low battery voltage or a faulty CAN Gateway affecting the high-speed network.
• U0155 — Lost Communication With Instrument Panel Cluster (IPC) Control Module; related to symptoms where gauges drop to zero or behave erratically.
• U1123 — Databus Error Value Received; commonly found in VW group vehicles when a module like the steering wheel or CAN Gateway sends corrupted data across the network.
