U1001 on 2006-2010 Infiniti M45: CAN Communication Failure Causes and Fixes

What's Unique About the 2006-2010 Infiniti M45

While a network communication code sounds complex, on Infiniti and Nissan vehicles of this era, the problem is very often rooted in basic electrical integrity rather than a failed computer. These vehicles are known to be sensitive to voltage drops and poor grounds. TSB ITB10029A confirms that low battery voltage can set CAN DTCs and that power/ground integrity should be confirmed before suspecting a module. Before suspecting an expensive module failure, the investigation should always start with the battery, its terminals, and especially the main chassis ground straps, which are notoriously prone to corrosion.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Multiple warning lights on the dashboard, such as Check Engine, VDC, SLIP, and ABS.
• Engine cranks but will not start, or stalls intermittently.
• Transmission is stuck in one gear (limp mode).
• Instrument cluster gauges (speedometer, tachometer) behaving erratically or dropping to zero.
🎬 Watch: Understanding bad ground symptoms and how to diagnose them.
• Gear selection indicator on the dash may go blank.
• Dimming or flickering dashboard lights and interior lights.

Most Likely Causes

1. Corroded or Loose Ground Connections 🔴 High Probability The main battery-to-chassis ground strap and engine-to-chassis grounds are exposed to the elements and are a known failure point due to corrosion, especially in regions that use road salt. This is the number one cause for U1001 on this platform.
   How to confirm: Visually inspect the negative battery cable (OEM Part #24080-EH100 for VK45DE) and other braided ground straps connected to the engine and chassis. Look for green or white crusty buildup, fraying, or looseness, especially where the negative cable bolts to the chassis near the battery. Perform a voltage drop test with a multimeter from the negative battery post to a clean chassis point and to the engine block; a reading above 0.2 volts indicates a poor connection.
   Typical fix: Remove, thoroughly clean the contact points on the cable ends and the chassis/engine with a wire brush until shiny, and re-secure the ground connections. 🎬 See this guide on how to properly clean ground connections. If the cable is frayed or heavily corroded, replace it. Many owners on forums like NICOclub have resolved U1000/U1001 codes with this procedure alone.
   Est. part cost: $20-$70

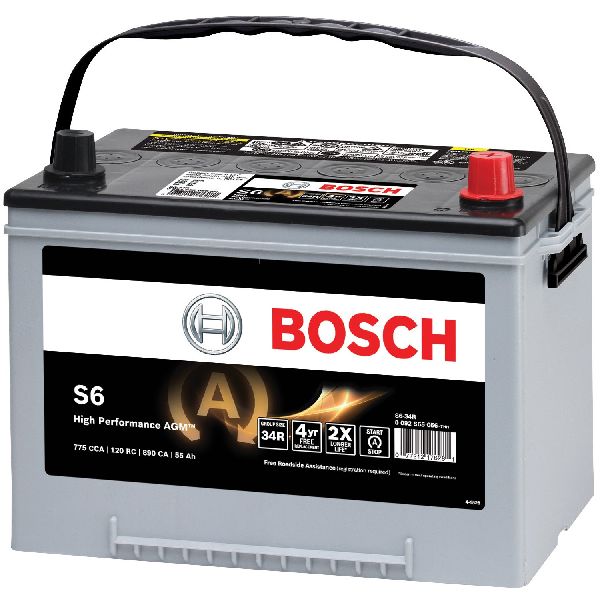

2. Weak or Failing Battery 🟡 Medium Probability → Shop Vehicle Battery Low system voltage can cause unpredictable behavior and communication glitches between control modules on the CAN network. Infiniti TSB ITB10029A specifically notes that low battery voltage can be a cause for CAN codes.
   How to confirm: Test the battery with a multimeter or a dedicated battery tester. A healthy, resting battery should be at approximately 12.6 volts. A slow or stuttering engine crank is also a key symptom. A faulty ground strap may cause a reading under 11.5 volts. A professional load test is the most definitive way to confirm battery health.
   Typical fix: Replace the vehicle's 12V battery.
   Est. part cost: $150-$250
3. Damaged CAN Bus Wiring or Connectors ⚪ Low Probability
   How to confirm: Visually inspect wiring harnesses for signs of rodent damage, chafing, or corrosion, particularly around the ECM, IPDM, and under the vehicle. Check for moisture or corrosion in the main module connectors. An owner on InfinitiScene.com suggested spraying contact points with electronic cleaner as a potential fix.
   Typical fix: Repair the damaged section of the wiring harness. Clean corroded connectors with electronic contact cleaner and ensure a secure fit.
   Est. part cost: $10-$100
4. Faulty Intelligent Power Distribution Module (IPDM) ⚪ Low Probability → Shop Fuse Box The IPDM supplies power to many modules, including the ECM, and can contain a CAN terminating resistor. An internal failure can disrupt power or the network itself.
   How to confirm: This is difficult to confirm without advanced diagnostics. A technician would check for proper power output from the IPDM and may swap it with a known-good unit as a test. TSB ITB10029A notes the IPDM can be a terminating module. Using a CONSULT scanner, a technician can run self-diagnostics on the IPDM.
   Typical fix: Replace the IPDM.
   Est. part cost: $200-$500

Rare But Worth Checking

• Failed Control Module (ECM, BCM, TCM): While this is what many fear, it is one of the least common causes. A module should only be replaced after all wiring, ground, and power issues have been definitively ruled out by a professional, as advised by Infiniti TSB ITB10029A.

Diagnosis Steps

1. Perform a full system scan with an advanced OBD-II scanner to see which modules are reporting 'no communication'. This helps narrow down the scope of the problem.
2. Check the battery. Ensure it is fully charged (~12.6V resting) and that the terminals are clean and tight. Perform a load test to confirm its health.
3. Perform a thorough visual inspection of the main battery ground cable (negative terminal to chassis, OEM P/N 24080-EH100 for VK45DE) and any other visible ground straps from the engine to the frame. Look for corrosion, looseness, or damage.
4. Conduct a voltage drop test on the ground circuit. With the engine running, measure the voltage between the negative battery post and a clean spot on the engine block, and then between the negative post and the chassis. A reading above 0.2V indicates a bad ground that needs cleaning or replacement.
5. Inspect fuses related to the ECM, TCM, and IPDM. Check for any blown fuses, particularly those labeled 'Electronic Parts' or 'IGN'.
6. If the problem persists, check the CAN bus resistance. With the battery disconnected, measure the resistance between Pin 6 (CAN_H) and Pin 14 (CAN_L) at the OBD-II port. A healthy network should read approximately 60 ohms. A reading of 120 ohms suggests an open circuit or a problem with one of the two terminating resistors (often in the ECM and IPDM/BCM). A reading significantly lower than 60 ohms may indicate a shorted wire or faulty module.
7. If you are not comfortable with electrical diagnostics, seek professional help at this stage to avoid causing further damage or misdiagnosing the issue.

Parts You'll Likely Need

• Battery Ground Cable (OEM #24080-EH100) — This is the most frequent failure point due to corrosion, leading to poor grounding for the entire vehicle electrical system. Replacing this cable is a common, high-success-rate repair.
  Trusted brands: Infiniti OE
  OEM price range: $40-$70
  Aftermarket price range: $20-$40
• Engine Control Module (ECM) — In rare cases, the ECM itself fails internally, causing it to stop communicating on the CAN network. This should be the last resort after all other possibilities are exhausted, 🎬 Watch: Step-by-step walkthrough for removing the M45 ECM. per TSB ITB10029A.
  Trusted brands: Infiniti OE, Hitachi
  OEM price range: $800-$1200
  Aftermarket price range: $300-$600 (Remanufactured)

Related Codes That Often Appear With This One

• U1000 — U1000 is a general CAN Communication Circuit Malfunction code. U1001 often appears with it, specifying that the ECM is one of the modules with a communication issue.

Technical Service Bulletins (TSBs) & Recalls

• ITB10029A: States that communication codes like U1001 should always be diagnosed first. It advises checking for low battery voltage and confirming power, ground, and CAN resistance (approx. 60 ohms at a module, 120 ohms at a terminating module) before replacing any control unit.

Platform-Specific Known Issues

• The Y50 platform is particularly susceptible to electrical issues stemming from corroded grounds in the engine bay. The manufacturer-issued Technical Service Bulletin ITB10029A advises technicians to always diagnose communication codes like U1001 first before addressing other codes. It explicitly states to confirm power, ground, and CAN resistance at a suspect module before replacing it.

Mechanic-Grade Diagnostic Values

• Alternator AC Ripple Voltage — expected: < 100mV (0.1V). Failure: Excessive AC ripple voltage, sometimes several volts, indicates failing alternator diodes which can disrupt module communication. Requires an oscilloscope or a multimeter with a ripple function to test.
• ECM Power Supply Voltage (at MAF sensor) — expected: Within 0.5V of battery voltage. Failure: A significantly lower voltage, such as 5-6 volts, points to a failing ECM relay, which is often located inside the IPDM.
• Resting Battery Voltage — expected: ~12.6V. Failure: A reading below 12.4V indicates a discharged battery. A reading under 11.5V can be a direct symptom of a bad ground connection preventing the battery from maintaining a charge.

Hidden / Shadow Codes Worth Checking

• Hidden Diagnostic Mode (Infotainment Screen): A service menu that allows monitoring of the AV system and the integrity of communication lines. It can display self-diagnosis results and a log of communication errors between modules connected to the display. (see via Start the engine, turn the audio system off. Press and hold the 'SETTING' button while rotating the volume knob ~30 clicks. This enters the first level of diagnostics; repeating the process enters a more detailed mode.)

Scan Tool Commands That Help

• CONSULT-II / CONSULT-III: IPDM E/R Active Test — To manually command the IPDM to activate specific outputs (e.g., lights, wipers, relays). This helps verify if the IPDM itself can function, isolating the problem to either the IPDM, the wiring, or the component being tested.
• CONSULT-III: CAN DIAG SUPPORT MNTR — To monitor the transmit/receive status of CAN communication for each control unit. This can help identify which specific module is not communicating correctly on the network.
• CONSULT-III plus: Work Support / Configuration — After replacing a BCM or ECM, the new module must be configured to the vehicle's specifications. This function writes the vehicle's specific setup (options, VIN) to the new module. Failure to do so can cause network errors.
• CONSULT-III plus: Idle Air Volume Learn (IAVL) — This is a required procedure after replacing or reprogramming the ECM. If not performed, the vehicle may have an unstable idle, which can sometimes be accompanied by other electrical gremlins as the system is not properly calibrated.

Wiring & Ground Locations

• ECM (Engine Control Module) — Behind the right kick panel and glove box area. It is typically held in by two 10mm bolts.. The ECM is a primary terminating module for the CAN bus. U1001 specifically points to a communication loss involving the ECM. Checking its connectors (e.g., F108) for corrosion or poor pin fitment is critical.
• IPDM E/R (Intelligent Power Distribution Module Engine Room) — Located in the right rear of the engine compartment.. The IPDM E/R is the other main terminating module for the CAN bus and controls the ECM power relay. A fault here can cut power to the ECM or disrupt the entire network. Its main connector is often labeled E102.
• Ground Point F44 (4.5L) — Located on the left front of the engine.. This is a key engine ground point. Corrosion or looseness here can create a poor ground path for engine-mounted sensors and the engine block itself, leading to voltage discrepancies that cause CAN errors.
• Ground Point E43 — Located in the left side of the engine compartment.. This is a major chassis ground point in the engine bay. A poor connection here can affect multiple systems, including control modules that rely on a clean chassis ground reference.

Real Owner Repair Stories

• YouTube user 'David Perez' (2006 Infiniti M45) — Crank but no start condition. The OBD-II scanner was unable to communicate with the vehicle at all.
  ❌ Tried (didn't work) Initial diagnosis was difficult due to the inability to pull any codes.
  ✅ What actually fixed it The Engine Control Module (ECM) was faulty. After replacing the ECM, the scanner was able to communicate with the car again and the vehicle started. This confirmed the old ECM had failed internally.
• InfinitiScene.com user (Infiniti FX (platform-mate)) — While driving hard, the gear indicator went blank, transmission got stuck in one gear, and the Service Engine Soon light came on, logging U1000 and U1001.
  ❌ Tried (didn't work) Restarting the car temporarily cleared the symptoms but the code remained.
  ✅ What actually fixed it The final fix was not posted by the original user, but other experienced users in the thread strongly advised the root cause was likely moisture/corrosion in the ECM connector or a loose engine-to-chassis ground, and recommended cleaning the connectors with electronic contact cleaner as the fix.

OEM Part Supersession History

• 24136-CF000 → 24136-CF03A — Part revision for an engine harness bracket.
  Heads up: While not a direct cause, this shows that wiring harness components were updated mid-cycle, indicating potential differences between early (2006-2007) and late (2008-2010) models.

Model Year Variations Within This Range

• 2008-2010: The 2008 model year refresh introduced new electronic systems, including an optional Lane Departure Prevention (LDP) system, an upgraded hard-drive-based navigation system, and an AWD control unit for the new M45x model. These additions increase the number of modules on the CAN bus, creating more potential points of failure compared to 2006-2007 models.
