A Guide to Engine Timing Sets for the 1956-1972 Chrysler 300
Keep your classic Chrysler 300's big-block V8 running strong with the right timing components.
- The original nylon-toothed cam gear is a known failure point; any aftermarket all-metal set is a durability upgrade.
- For stock engines, a standard replacement set from Melling or Cloyes is a reliable and cost-effective choice.
- For modified or high-performance engines, a double-roller set from Edelbrock or Melling Select Performance is recommended for strength.
- A rattling noise from the front of the engine is a serious warning sign that the timing chain is loose and needs immediate attention.
Understanding the Timing Set in Your Classic 300
The V8 engines in the 1956-1972 Chrysler 300, typically from the B/RB big-block family (like the 383, 413, and 440), rely on a timing chain to keep everything in mechanical harmony. The original factory sets often used a camshaft sprocket with nylon-coated teeth to reduce noise. Over decades of heat and oil exposure, this nylon becomes brittle, cracks, and can break away, leading to a loose chain and incorrect timing. Modern aftermarket replacements are an upgrade, using durable all-metal sprockets.
Symptoms of a Failing Timing Set
A worn timing set will give you clear warning signs. The most common is a rattling or scraping noise from the front of the engine, especially at idle. This is the sound of the stretched chain slapping against the inside of the timing cover. You may also notice a significant loss of power, poor acceleration, and difficulty tuning the engine. This happens because a stretched chain retards the camshaft timing, making the engine less efficient. In severe cases, you might find plastic or metal shavings in your engine oil during an oil change.
Choosing the Right Aftermarket Timing Set
Selecting a new timing set depends on your engine's setup and your performance goals. Aftermarket parts are a significant upgrade over the original nylon-toothed design.
Standard Replacement (Good for Stock Engines)
For a stock or daily-driven Chrysler 300, a quality standard replacement set is an excellent choice. These are reliable, durable, and affordable.
- Melling & Cloyes (Standard): Both brands are well-respected for providing reliable, OE-quality replacement parts. They offer all-metal sets that are far more durable than the original nylon-toothed gear. These are the go-to choice for a standard engine rebuild.
Performance Upgrade (For Modified & High-Performance Engines)
If you have a modified engine or are looking for maximum durability and performance, a heavy-duty or double-roller set is the best option.

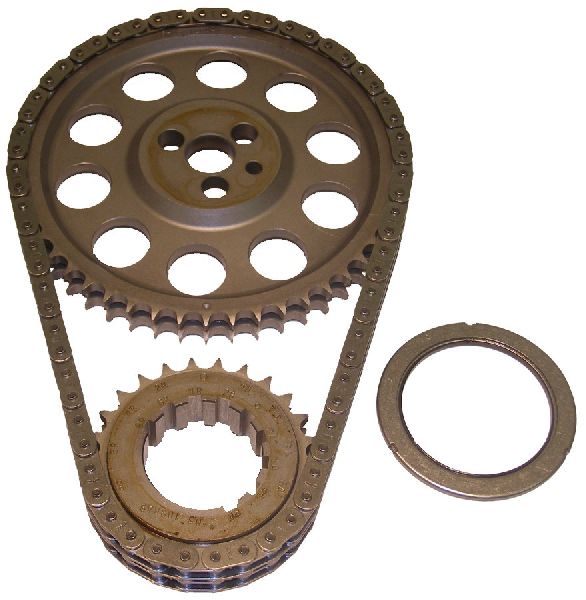

- Edelbrock & Melling Select Performance: These brands offer high-performance timing sets, often featuring a 'double roller' chain. This design is stronger and more resistant to stretching than a standard chain. Performance sets like the Edelbrock Performer-Link may also include multiple keyways on the crank sprocket, allowing a mechanic to advance or retard cam timing for performance tuning. While they can be used on a stock engine, they are considered essential for high-horsepower builds.
Aftermarket Brand Tiers
| Tier | Brands | Best For |
|---|---|---|
| Performance | Edelbrock, Melling Select Performance | Modified engines, performance builds, maximum durability. Often feature double-roller chains. |
| Standard OE-Quality | Cloyes, Melling | Stock engine rebuilds, daily drivers. A direct upgrade over the original factory part. |
Common Ordering Mistake: 1-Bolt vs. 3-Bolt Cam
Throughout this era, Chrysler used both single-bolt and three-bolt camshaft sprockets. Before ordering, you must verify which type your specific engine has. If you are unsure, it is best to remove the timing cover to visually inspect the camshaft sprocket before placing an order.
Frequently Asked Questions
What's the difference between a single roller and a double roller chain?
A double roller chain is physically wider and stronger than a single roller chain, offering greater resistance to stretching under the high loads of a performance engine. For a stock engine, a quality single roller is perfectly adequate. For modified engines with higher-lift cams and stiffer valve springs, a double roller is recommended for its durability.
Should I replace my timing set when I replace the water pump?
Yes. Replacing the timing set requires removing the radiator, water pump, and harmonic balancer to access the timing cover. Since most of the labor is already done, it is highly recommended to replace the timing set at the same time, especially if its age is unknown.
Are there any recalls for the timing set on my Chrysler 300?
No, there are no active recalls or technical service bulletins (TSBs) from Chrysler or the NHTSA for the engine timing set on 1956-1972 vehicles. This is normal for vehicles of this age.
Can I reuse my old sprockets and just replace the chain?
No. The chain and sprockets wear together as a set. Installing a new chain on worn sprockets will cause the new chain to wear out very quickly and can lead to improper timing. Always replace the chain and both sprockets as a complete kit.
Technical Specifications
Key variations include standard 'silent' or link-plate chains, single roller chains, and heavy-duty double roller chains. Sprockets can be cast iron or billet steel. The camshaft sprocket attachment can be either a single-bolt or three-bolt design, which must be matched to the engine's specific camshaft.
