A Practical Guide to the 1967-1978 Mercury Capri Speedometer Cable
If your speedometer needle is bouncing, sticking, or just plain dead, this guide is for you.
- A bouncing needle is the number one sign of a failing speedometer cable, usually due to dried-up internal lubricant.
- Aftermarket cables from brands like ATP and Pioneer are affordable, direct-fit solutions; lubricate them before installing for best results.
- For a vehicle this old, there are no OEM parts available, no recalls, and no TSBs; failure is due to normal wear and tear.
- Replacement is a straightforward DIY job, with the main challenge being access behind the dashboard.
Is Your Speedometer Acting Up? Common Symptoms in a 1967-1978 Capri
After decades of service, the original speedometer cable in your Capri is likely worn out. The grease inside the cable housing dries up, causing the inner cable to bind and release. This leads to very distinct and annoying problems. Here’s what to look for:
- Bouncing or Wavering Needle: This is the most common sign of a failing cable. As you drive, especially at a steady speed, the needle will jump around erratically instead of holding still. This happens because the inner cable is sticking and slipping inside the housing due to old, gummy lubricant or a kink in the cable.
- No Speed Reading: If the speedometer needle doesn't move at all, the inner cable has likely snapped completely. You can verify this by unscrewing the cable from the transmission and checking if the inner core is broken or can be pulled out.
- Squealing or Grinding Noises: A dry, unlubricated cable can make a squealing or whirring sound from behind the dashboard as it struggles to rotate. This noise may come and go with changes in speed.
A Note on Your Vehicle
The Mercury Capri sold in North America from 1967-1978 was a captive import, based on the European Ford Capri. When searching for parts or information, using "Ford Capri Mk1" or "Ford Capri Mk2" can sometimes yield more results, especially from European suppliers. Always double-check fitment for your specific year and engine.
Choosing the Right Aftermarket Speedometer Cable
Finding a new speedometer cable from Ford for a car this age is nearly impossible. The market today consists of aftermarket replacements that fall into two main categories.

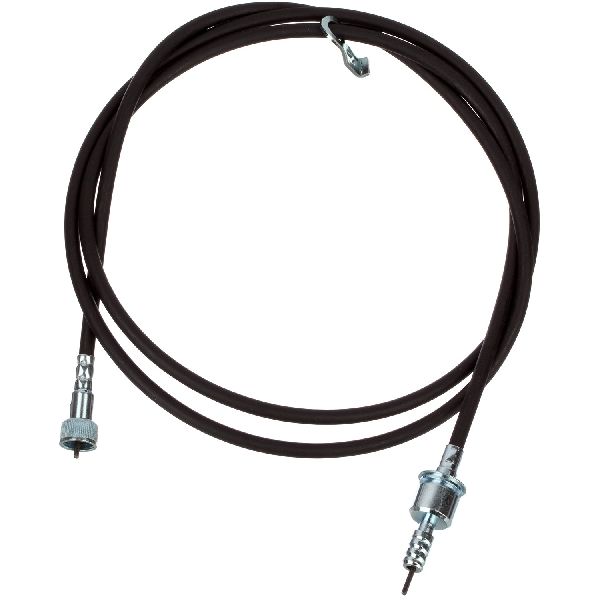

Tier 1: Standard Replacement (ATP, Pioneer Cable)
These brands offer direct-fit replacements designed to work just like the original part. They are affordable and are the most common choice for a straightforward repair. They are manufactured to OE specifications with a steel inner cable and a protective polymer housing. While many users report a perfect fit, some reviews across various car models mention that cables can occasionally be too long or too short, so verifying the required length for your car is a good idea.
Pro Tip: Even with a brand-new cable, it is highly recommended to pull the inner core out of the housing and apply a modern speedometer cable lubricant, like one with PTFE, before installation. This will ensure the smoothest operation and longest life, preventing the bouncing needle issue from returning.
Tier 2: Premium / Custom (Lokar)
Lokar offers high-end, "U-Cut-to-Fit" speedometer cables. These are not direct replacements but are designed for custom builds, hot rods, or owners who want a premium part. The kit comes with a long cable and housing that you must cut to the perfect length for your vehicle. This provides a custom fit but requires more work and the right tools. Lokar cables are known for high-quality materials, including billet aluminum fittings, and are significantly more expensive. This is a great option if you have a modified transmission or dash setup, but it's overkill for a standard restoration.
Speedometer Cable Replacement Cost
Replacing the speedometer cable is an affordable project. The main cost is the part itself, as labor is straightforward for a DIYer or relatively quick for a professional mechanic.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket (ATP, Pioneer) | $26.51 - $35.34 |
| New Aftermarket (Lokar) | $120 - $135 |
| Shop Labor | $90 - $180 |
Frequently Asked Questions
Is it hard to replace a Capri speedometer cable myself?
No, it's a job most DIY mechanics can handle. It involves unscrewing the cable from the transmission housing (under the car) and from the back of the instrument cluster (under the dash). The hardest part is often reaching the connection behind the dashboard. A common trick is to securely tape the new cable to the old one before pulling the old one out, which helps guide the new cable through the firewall.
My new cable is installed, but the needle still bounces. What's wrong?
First, ensure you lubricated the inner cable before installation. Second, check the cable's path from the transmission to the dash. Sharp bends or kinks can cause the inner cable to bind. If the path is smooth and the cable is lubed, the issue might be internal wear inside the speedometer head itself, which may require a specialist to rebuild.
Do I need a special tool to install a new cable?
For standard replacement cables from brands like ATP or Pioneer, you typically only need basic hand tools. For a cut-to-fit Lokar cable, you will need a reliable tool to make a clean cut on the inner and outer cables as per their instructions.
Are there any recalls for the speedometer cable on my Capri?
No. There are no recalls or Technical Service Bulletins (TSBs) from the NHTSA related to the speedometer cable for the 1967-1978 Mercury Capri. Any issues you experience are due to the age and wear of the original component.
Technical Specifications
Cable length varies by year and transmission. Common aftermarket lengths are around 82-83 inches. The cable connects to the transmission and the back of the speedometer via threaded nuts.
