Engine Oil Pressure Switch Guide for 1968-1972 Mercury Montego
Keep your classic Montego's engine safe by understanding its simple but vital oil pressure switch.
- A faulty oil pressure switch often causes a flickering or constantly lit oil warning light, even with a full oil tank.
- Always check your oil level first; if it's normal, the switch is the likely culprit.
- For Montego engines like the 351C, the switch is at the top-rear of the block; for 302/351W, it's typically near the oil filter.
- Replacement is simple and inexpensive, making it a wise preventative repair to ensure you're alerted to real oil pressure problems.
Is your Montego's oil light acting strange?
The oil pressure switch is a small, inexpensive part that plays a big role in protecting your engine. When it fails, it can cause a lot of worry. The good news is that for a classic car like the 1968-1972 Montego, it's usually an easy and cheap part to replace.
Symptoms of a Failing Oil Pressure Switch
A bad switch can give false readings, making you think you have a serious engine problem when you don't. Always check your oil level first if you see a warning. If the oil level is fine, the switch is the next logical part to inspect. Common symptoms include:
- Oil Light Stays On: If the oil light on your dash stays on even when the engine oil level is full, the sensor itself is likely the problem.
- Flickering Oil Light: A light that comes on and off randomly, especially at idle or different engine speeds, points to a faulty sensor.
- Gauge Reads Maxed Out: On models with a gauge instead of a light, a reading that immediately goes to high pressure, even before starting the engine, often indicates a shorted-out sending unit.
- Visible Oil Leak: The switch itself can develop leaks over time. You might see oil seeping from the sensor body or its electrical connector.
Choosing Your Aftermarket Part: Standard Ignition
For classic vehicles like the Montego, finding original OEM parts is nearly impossible. The aftermarket is your primary source. Standard Ignition is a well-known brand that has been making replacement parts for many decades. Their oil pressure switches are designed to be direct replacements for the original, using modern materials like high-temperature diaphragms for durability. 🎬 Watch a detailed breakdown of how Standard Ignition switches are built. Given the simplicity of this part on a vintage vehicle, a quality aftermarket switch from a reputable brand like Standard is a reliable and cost-effective choice.
Installation Tips for Montego Owners
Replacing the oil pressure switch is a straightforward job for a DIY mechanic. The location can vary depending on your engine (e.g., 302, 351C, 351W).
- On 302 and 351W engines, the switch is typically located on the side of the engine block, near the oil filter.

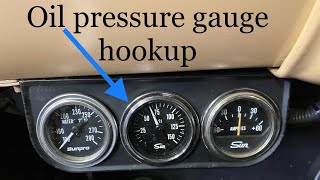

- On 351C engines, the switch is usually found at the top rear of the engine block, behind the intake manifold. 🎬 Learn how to hook up the oil pressure gauge on 351C engines.
You will likely need a special deep socket, sometimes called an oil pressure switch socket, to remove and install the unit without damaging it. 🎬 See how to replace an oil pressure switch using basic tools. It's also a good idea to use a small amount of thread sealant or Teflon tape on the new switch's threads to prevent leaks, if it doesn't come with sealant pre-applied.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket (Standard Ignition) | $13.50 - $35.36 |
| Shop Labor | $40 - $75 |
Frequently Asked Questions
Can I drive with a bad oil pressure switch?
It's not recommended. If the switch is faulty, it cannot warn you of a real low oil pressure event, which could lead to catastrophic engine failure. Because the part is inexpensive and easy to replace, it's best to fix it as soon as possible.
Will a bad oil pressure switch cause my car to run poorly?
No, a faulty oil pressure switch on a vintage car like the Montego will not affect engine performance. Its only job is to report oil pressure to the light or gauge on your dashboard.
Are there any recalls for the oil pressure switch on a 1968-1972 Montego?
No, searches of the National Highway Traffic Safety Administration (NHTSA) database did not show any recalls specifically for the engine oil pressure switch on this vehicle.
What's the difference between a switch and a sending unit?
A switch is the simplest form, designed to turn a warning light on or off at a preset pressure. A sending unit is a variable resistor that sends a signal to a gauge, showing a range of pressures. Your Montego could have either, depending on its original instrument cluster options, but most base models used a simple switch and warning light.
Helpful Videos
Technical Specifications
The part is a single-terminal switch designed for a warning light, not a variable gauge. It threads into the engine block. Location varies by engine type (302/351W vs. 351C).
