Chevrolet Suburban Universal Joint Guide: 1968-2014
Everything a Suburban owner needs to know about replacing worn or failing U-joints.
- Listen for clunking, squeaking, or vibrations, as these are the primary signs of a failing U-joint.
- For maximum durability, choose a high-quality non-greasable U-joint from a brand like Dana Spicer.
- It is strongly recommended to replace all U-joints on a driveshaft at the same time to prevent future failures.
- Do not ignore symptoms; a complete U-joint failure can leave you stranded and cause expensive damage.
Is Your Suburban Making a Clunking or Squeaking Noise?
A failing universal joint (U-joint) is a common issue on Chevrolet Suburbans, especially on older, high-mileage trucks. Because they are under constant load, these parts wear out over time. The most common signs of a bad U-joint are noises and vibrations coming from underneath the vehicle. You might hear a "clunk" when you shift into drive or reverse, or a cyclical squeaking or clicking noise that gets faster as you drive. 🎬 Listen to the specific clunking sounds of a failing U-joint. Another major symptom is a vibration felt throughout the vehicle, which is most noticeable at highway speeds. Ignoring these signs can be dangerous, as a complete failure will disconnect the driveshaft, leaving you stranded and potentially causing significant damage to other parts of your truck.
Warning: Complete U-Joint Failure is Dangerous
If a U-joint breaks completely while you are driving, the driveshaft can fall and dig into the pavement. This can cause you to lose control of the vehicle or cause major damage to your transmission, exhaust, and underbody. If you suspect a bad U-joint, it's important to get it inspected and replaced promptly.
Choosing the Right Aftermarket U-Joint
When replacing U-joints on your 1968-2014 Suburban, you'll find several aftermarket options. The original factory U-joints were often non-serviceable, meaning they were sealed and couldn't be greased. Many aftermarket replacements are greasable, which can extend their life if maintained properly.
Brand Quality Tiers
- Top Tier (OEM Quality or Better): Dana Spicer is widely considered the gold standard for U-joints, often exceeding original equipment quality. They are known for their strength and durability. Many professionals recommend their non-greasable versions for the longest life, as they are sealed from contaminants just like the original parts.
- Mid-Tier (Reliable Aftermarket): Moog is a well-known brand that offers reliable U-joints, including their "Super Strength" line. Some users prefer Moog because they often place the grease fitting (zerk) in the end cap, making them easier to service. However, some forum discussions suggest Moog's quality can be inconsistent in recent years.
- Standard/Economy Tier: Yukon Gear & Axle is known for performance off-road parts, but their standard U-joints are a solid replacement option for daily driving. They are a good balance of price and performance for most owners.
Pro Tip: Greasable vs. Non-Greasable
Choosing between greasable and non-greasable (sealed) U-joints is a matter of preference. Greasable joints can last a very long time if you are diligent about regular maintenance. However, the seals required to allow grease to be purged can also let contaminants in if neglected. Non-greasable joints, like the ones from Dana Spicer, are sealed for life and are a great "fit and forget" option, often preferred for their strength as the cross is solid without a channel for grease.
Known Issues, Recalls, and TSBs
For the 1968-2014 model years, there are no specific, widespread recalls or Technical Service Bulletins (TSBs) directly targeting universal joints. Most issues are related to normal wear and tear over time. However, GM has issued recalls for driveshaft-related components on much newer models (2021+), which involved improperly heat-treated parts, but this does not apply to the 1968-2014 range. Some older Suburbans used plastic injections to retain the original U-joints instead of clips, which must be melted or drilled out during replacement.
🎬 Watch how to remove these tricky plastic-injected factory U-joints.Estimated Replacement Costs
The cost to replace a U-joint depends on whether you do it yourself or use a repair shop. The parts themselves are not expensive.
| Item | Estimated Cost |
|---|---|
| Aftermarket U-Joint Part | $25 - $65 per joint |
| Shop Labor | $150 - $350 |
| Total Professional Replacement | $200 - $450 per joint |
Frequently Asked Questions (FAQ)
How many U-joints does my Suburban have?
It depends on your drivetrain. A 2WD Suburban typically has two U-joints on the rear driveshaft. A 4WD model will have these two, plus additional U-joints on the front driveshaft (often three, including a double-cardan joint near the transfer case) and at the front axle shafts for steering. It's best practice to replace U-joints in pairs or all at once on a single driveshaft.
Can I replace a U-joint myself?
Yes, this is a DIY-feasible job for someone with mechanical experience, but it requires specific tools. You will need to remove the driveshaft and use a ball joint press, a large bench vise, or a hammer and sockets to press the old joint out and the new one in. It can be difficult if the old joint is rusted in place. If you don't have these tools or experience, it's best to leave it to a professional.
🎬 See a step-by-step walkthrough for replacing Suburban driveshaft U-joints.Should I replace all the U-joints at once?
It is highly recommended. If one U-joint has failed due to age and mileage, the others are likely not far behind. Replacing them all at the same time saves you from having to do the same job again in the near future and ensures a smooth, vibration-free driveline.
What happens if I don't replace a bad U-joint?
Continuing to drive on a bad U-joint will lead to worsening vibrations that can damage other parts, like transmission seals and differential bearings. Eventually, the joint will fail completely, disconnecting the driveshaft. This will cause a total loss of power and can cause the driveshaft to damage other components under the vehicle, leading to a much more expensive repair.
Helpful Videos
Technical Specifications
Varies by year, model (1500/2500), and drivetrain (2WD/4WD). Key differences include greasable vs. non-greasable designs and the type of retaining clip (internal or external). Some early models used a plastic injection retainer from the factory.

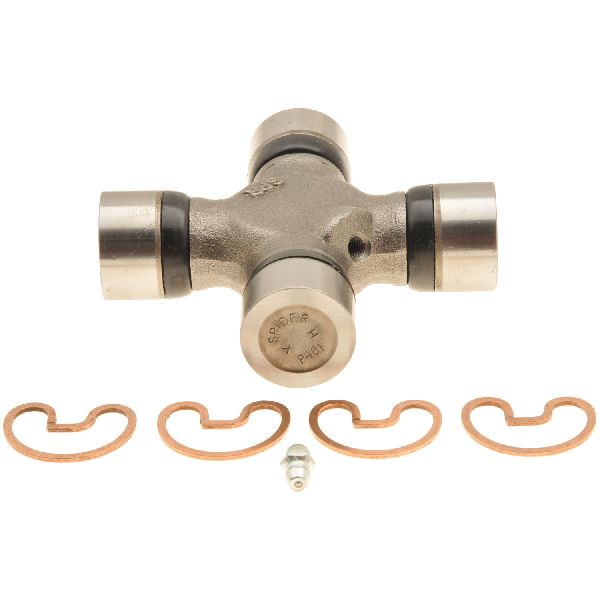

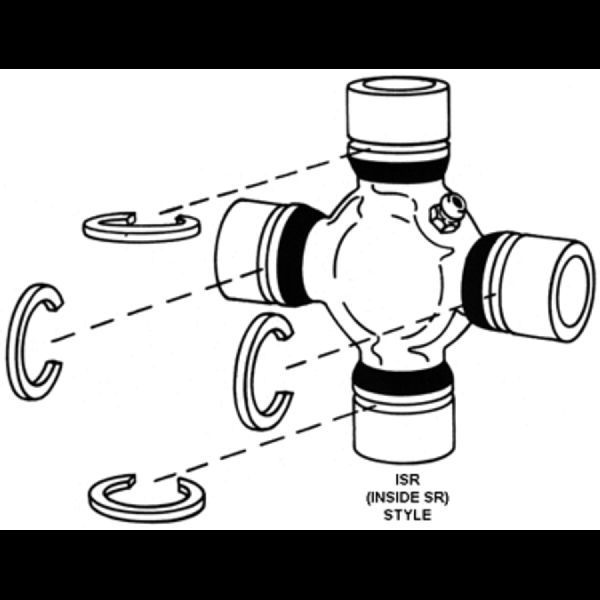

We Have This Part in Stock
