A Practical Guide to 1970-1983 GMC Jimmy Door Lock Kits
If your classic Jimmy's keys are lost or the locks are worn, this guide is for you.
- New aftermarket kits from brands like ACDelco and Standard Ignition are the most practical and reliable solution for this vehicle.
- Replacement kits come with new, matching keys; your old keys will no longer work for the doors.
- This is a straightforward DIY project for most owners, requiring only basic hand tools and about an hour per door.
- These kits replace the mechanical key cylinder only and will not solve issues with power lock systems.
Signs Your Door Locks Need Replacing
After decades of use, the original door locks on your GMC Jimmy have likely seen better days. The internal pins and tumblers wear down, leading to frustrating and potentially serious security issues. Here are the common symptoms that tell you it's time for a new door lock kit.
Common Failure Symptoms:
- Key is Hard to Insert or Turn: This is the most common sign of wear. The tumblers inside the cylinder no longer align properly with the key, causing binding and difficulty.
- Lock Feels Loose or Spins: If the cylinder itself moves or spins in the door when you turn the key, the retaining clip may be broken or loose, but it often points to a worn-out cylinder body.
- Key No Longer Works: The lock may fail to engage or disengage entirely. You might turn the key and nothing happens, leaving your vehicle unsecured or, worse, leaving you locked out.
- Visible Damage or Corrosion: Exposure to the elements for 40+ years can cause corrosion. Dirt and ice can also clog the mechanism, but if cleaning doesn't solve the problem, the internal parts are likely worn.
Security First
Driving with faulty door locks is a significant security risk. A lock that doesn't work properly makes your classic Jimmy an easy target for theft of the vehicle or its contents.
Choosing the Right Aftermarket Door Lock Kit
For a vehicle as old as the 1970-1983 Jimmy, finding new original equipment (OEM) parts from GM is nearly impossible. The good news is that the aftermarket offers high-quality, reliable solutions that are readily available and affordable. Your main choice will be between reputable aftermarket brands.
OEM vs. Aftermarket
- New OEM (Original Equipment Manufacturer): Generally discontinued and not available for this part and vehicle era.
- Used OEM: A risky option. Parts from a salvage yard are just as old and likely as worn as the ones you're replacing.
- New Aftermarket: This is the best and most practical choice. Aftermarket kits are designed to meet or exceed original specifications and offer a fresh start with new keys and unworn tumblers.
Brand Tiers: ACDelco vs. Standard Ignition (SMP)
Both ACDelco and Standard Motor Products (SMP) are top-tier choices for your Jimmy.
- ACDelco: As GM's own parts brand, ACDelco parts are often considered the closest you can get to original quality. They are engineered to fit and function just like the factory parts, providing peace of mind and a professional-grade repair.
- Standard Ignition (SMP): A highly respected name in the aftermarket industry, SMP is known for producing durable and reliable components. Their door lock kits are built with quality materials like brass tumblers and die-cast zinc cores to ensure long life and smooth operation.
You can't go wrong with either brand. The choice often comes down to price and availability.
Pro Tip: Check for a Complete Kit
Many kits include both door lock cylinders, gaskets, retaining clips, and two matching keys. Some more comprehensive kits may also include a matching lock for the tailgate or even the ignition, allowing you to use one key for everything. Always check the product description to see what's included.
Typical Costs for a New Door Lock Kit
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Kit (ACDelco, Standard) | $28.19 - $59.85 |
| New OEM Kit | Discontinued |
| Used OEM Kit (Salvage) | $15 - $30 |
| Shop Labor for Installation | $100 - $200 |
Frequently Asked Questions
Do I have to replace both door locks?
It is highly recommended. Door lock kits are sold as a matched pair so that one key works for both doors. Replacing only one will leave you with two different keys for your doors.
Will my original key work with the new locks?
No. A new door lock kit comes with a new set of keys that are cut specifically for the new lock cylinders. You will no longer be able to use your old key for the doors.
Is this a difficult part to install myself?
No, this is a very DIY-friendly job for most owners with basic tools. The process involves removing the interior door panel, releasing a retaining clip, swapping the cylinder, and reassembling. The trickiest part is often manipulating the small retaining clip inside the door.
Does this kit fix problems with my power locks?
No. This kit only replaces the mechanical key cylinder. Problems with power locks on these Jimmys are usually caused by faulty switches, wiring, or the electric lock actuators themselves.
What tools will I need for the job?
You will typically need a Phillips screwdriver, a door panel removal tool (or a putty knife), and possibly pliers to help with the lock cylinder retaining clip. A window crank removal tool is also necessary for manual window cranks.
Technical Specifications

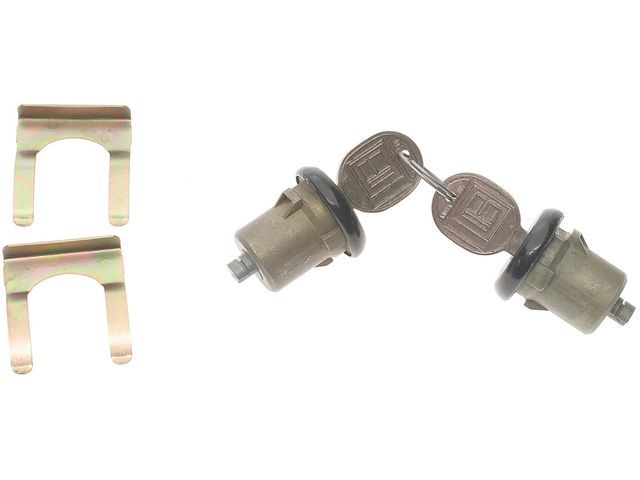

Kit typically includes two door lock cylinders, two matching keys, gaskets, and retaining clips. Available in chrome or black finishes to match original styling.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
