A Mechanic's Guide to the 1972-1977 Buick LeSabre Engine Intake Manifold Gasket Set
Leaking coolant or running rough? Your intake manifold gasket might be the problem—here’s how to choose the right replacement.
- Verify your engine (Buick 350/455) before ordering; gaskets are not interchangeable with other GM engines.
- Symptoms include overheating, external coolant leaks, rough idle, and critically, milky engine oil.
- Modern aftermarket gaskets from brands like Cometic, Edelbrock, and Victor Reinz are superior to 1970s originals.
- For a reliable seal, use RTV sealant on the front and rear 'china walls' instead of the provided cork/rubber seals.
Is Your LeSabre's Intake Gasket Failing?
For the big Buick V8s in 1972-1977 LeSabres, the intake manifold gasket is a common failure point due to age. The original materials break down after decades of heat cycles. When this gasket fails, it can cause several problems, some more serious than others.
Key Failure Symptoms
- Coolant Leaks: This is the most common sign. You might see coolant dripping from the top front or rear of the engine. You may also smell a sweet antifreeze scent after driving. 🎬 Watch: How to diagnose and find the source of coolant leaks.
- Engine Overheating: A coolant leak, even a small one, will eventually cause the engine to run hotter than normal, especially under load.
- Milky Oil: If the gasket fails internally, coolant can mix with your engine oil. This creates a milky, brown sludge that you can see on the oil dipstick or under the oil filler cap. This is a serious condition that can destroy your engine bearings.
- Rough Idle or Misfires: A vacuum leak from a bad gasket lets unmetered air into the engine, upsetting the air-fuel ratio. This can cause a shaky idle, hesitation, or even backfiring.
- Oil Leaks: The seals at the front and rear of the intake manifold (the "china walls") can fail, causing oil to leak down the front or back of the engine block.
Check Your Engine First!
The 1972-1977 LeSabre could be equipped with several different engines, including the Buick 350 and Buick 455 V8s. Gaskets for a Buick 350 are NOT interchangeable with a Chevrolet 350. Always verify your specific engine before ordering parts to avoid costly mistakes.
Choosing the Right Aftermarket Gasket
For a vehicle of this age, new OEM gaskets are generally not available. The good news is that modern aftermarket gaskets often use materials that are far superior to the original 1970s technology. The key is to choose the right type for your engine's setup.
Gasket Types: Valley Pan vs. Two-Piece
Buick V8s traditionally use a one-piece valley pan gasket. This is a metal shield that covers the entire engine valley, sealing the intake ports while also blocking hot oil from splashing on the intake manifold's underside. Some aftermarket kits use a two-piece design with separate gaskets for each cylinder head. While both can work, many builders prefer the valley pan style for a more original and effective installation.
Brand Tiers & Quality
- Premium (Best Quality): Cometic Gasket
Cometic is highly regarded for using modern, high-performance materials. They often use multi-layer steel (MLS) or high-quality fiber composites that resist breakdown from modern coolants and fuels. While they are a top choice, you must carefully check their catalog to find the exact part number for your specific Buick engine, as some popular listings are for other GM V8s. - Performance & Reliability: Edelbrock, Victor Gaskets (Victor Reinz)
Edelbrock is a staple in the performance aftermarket and offers gasket sets like their #7246 for the big block Buicks. These are typically two-piece composite gaskets that work well, especially when paired with an Edelbrock intake. Victor Gaskets (Victor Reinz) is a trusted OEM supplier and makes quality replacement gaskets designed to handle modern coolants better than original parts. - Standard Replacement: Fel-Pro
Fel-Pro is a widely available and trusted brand. For these engines, they offer both valley pan style gaskets (like MS96005) and two-piece sets. Their reinforced and "Problem Solver" lines are generally considered reliable. Avoid basic, unreinforced paper or composite gaskets if possible, as they are more prone to failure.
Pro Tip: Ditch the Cork
Most gasket kits come with cork or rubber end seals for the front and rear "china walls" of the block. Many experienced mechanics throw these away and instead apply a thick bead of high-quality RTV silicone sealant. This method often provides a more reliable, leak-free seal.

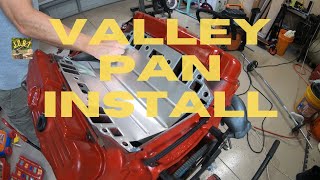

🎬 See this walkthrough for installing valley pans and RTV end seals.Estimated Costs for Replacement
The gasket set itself is affordable, but the labor to install it is where the real cost lies. The cast iron intake manifold is heavy, and many components must be removed for access.
| Part or Service | Estimated Cost |
|---|---|
| New Aftermarket Gasket Set | $47 - $70 |
| Shop Labor | $400 - $900 |
| Total Professional Replacement | $450 - $970 |
Costs are estimates and will vary based on local labor rates and the specific parts chosen.
Frequently Asked Questions
Can I do this replacement myself?
If you have experience with classic engines, a good set of tools, and a free weekend, this is a very achievable DIY job. You will need to drain the coolant, remove the carburetor and distributor (marking its position is critical!), and be prepared to lift a heavy intake manifold. Following a service manual for the correct torque sequence is essential for a good seal.
🎬 Watch a mechanic perform a gasket overhaul on a Buick 350.Do I need any special sealants?
Yes. You will need a high-quality RTV silicone sealant for the front and rear "china wall" seals and to put a small dab at the corners where the gaskets meet the cylinder heads. Some mechanics also use a thin layer of sealant around the coolant ports for extra security, but follow the gasket manufacturer's instructions.
Should I replace anything else while I'm in there?
This is a great time to inspect and replace other parts. Consider replacing the thermostat, radiator hoses, heater hoses, and the distributor cap and rotor if they are old. It's also a good opportunity to clean the intake manifold and check for any cracks.
What's the difference between a Buick 350 and a Chevy 350 gasket?
They are completely different engines with different designs. The port shapes, bolt patterns, and cooling passages are not the same. A gasket for a Chevy 350 will not fit a Buick 350, and vice-versa. This is one of the most common ordering mistakes.
Helpful Videos
Technical Specifications
Fitment is specific to the Buick 350 and Buick 455 V8 engines. Gasket sets may be a one-piece 'valley pan' style or a two-piece design. Material composition varies from composite to multi-layer steel.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
