Your Complete Guide to the 1972-1977 Mazda 808 A/C Compressor
Get your classic Mazda's air conditioning running cold again by choosing the right replacement compressor.
- For a 1972-1977 Mazda 808, a new aftermarket compressor is the most practical and reliable replacement option.
- You must replace the receiver/drier and flush the entire A/C system when installing a new compressor to prevent immediate failure and voiding the warranty.
- The A/C system will need to be professionally converted from the original R-12 refrigerant to modern R-134a.
- Symptoms of failure include no cold air, loud noises when the A/C is on, and the compressor clutch not engaging.
Is Your Mazda 808's A/C Compressor Failing?
On a classic car like the 1972-1977 Mazda 808, A/C components have worked hard for decades. The compressor is often the first major part to fail. Watch for these common symptoms that tell you it's time for a replacement.
Common Failure Symptoms
- No Cold Air: The most obvious sign. If the system is charged with refrigerant but the air from the vents is warm or only slightly cool, the compressor may not be pressurizing the system correctly.
- Strange Noises: Grinding, squealing, or rattling sounds from the engine bay when you turn on the A/C point to internal compressor failure, such as bad bearings or a seizing shaft.
- A/C Clutch Not Engaging: The compressor's clutch is a pulley that engages and disengages the unit. You should hear a 'click' when you turn on the A/C, and the front plate of the pulley should start spinning. If it doesn't engage, or cycles on and off too frequently, the compressor or its clutch may be bad.
- Visible Leaks: While refrigerant leaks can happen anywhere, oil residue on the compressor body can indicate a leak from the shaft seals or casing.
Choosing the Right Aftermarket Compressor
For a vehicle from the 1970s, finding a New Old Stock (NOS) OEM compressor is nearly impossible and would be extremely expensive. The practical and reliable choice is a new aftermarket compressor. These units are built using modern manufacturing techniques and are often designed to be more durable than the originals.
Pro Tip: Aftermarket compressors are your best bet. They offer a combination of modern reliability and affordability, making them the standard choice for restoring A/C on classic vehicles.
Available Aftermarket Brands
When shopping for your Mazda 808, you will likely encounter a couple of common aftermarket brands:

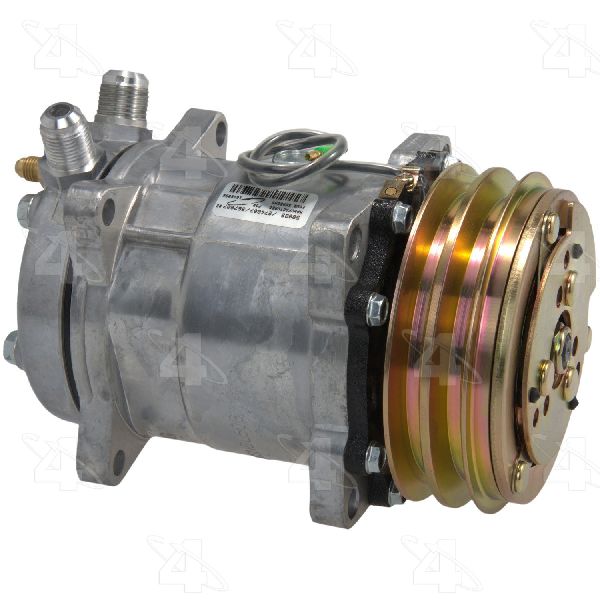

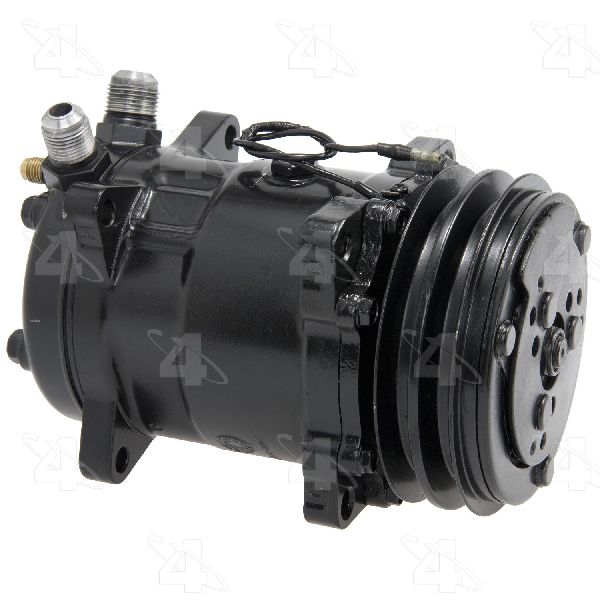

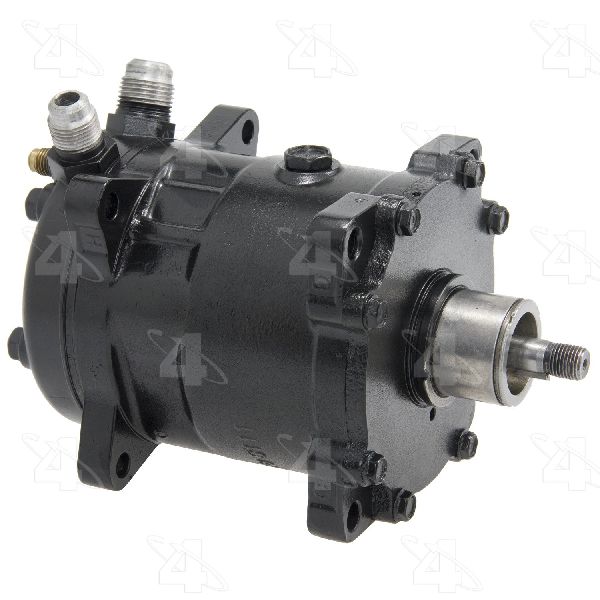

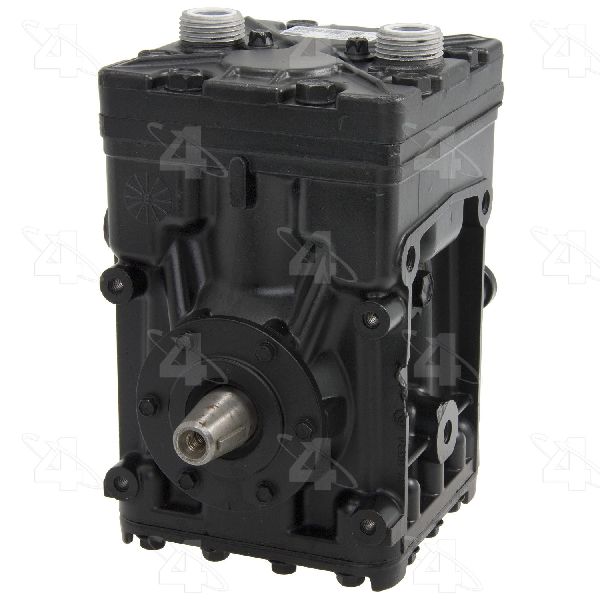

- Four Seasons: As one of the largest aftermarket climate control parts manufacturers, Four Seasons is a widely available and affordable option. Reviews are often positive, with many users reporting good performance and cooling, especially for the price. While some negative reviews exist regarding longevity, they are a solid choice for getting a classic A/C system running again.
- Global Parts Distributors (GPD): GPD is another major name in the aftermarket A/C world. They offer a wide range of components. While there is less specific feedback available compared to Four Seasons, they are a recognized brand in the industry. One user on a forum mentioned a clutch failure after a year, but this represents a very small sample size.
Estimated Replacement Costs
Replacing the A/C compressor is a significant repair. Here is a general breakdown of the expected costs. Note that labor costs can vary widely based on shop rates in your area.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Compressor | $130 - $400 |
| Shop Labor (including system evacuation & recharge) | $400 - $900 |
| Total Estimated Cost | $530 - $1,300 |
Important: This job involves handling refrigerant, which is regulated and requires special equipment to recover and recharge. It is highly recommended to have this service performed by a qualified mechanic.
Frequently Asked Questions for Mazda 808 A/C Repair
Do I have to convert from R-12 to R-134a refrigerant?
Yes, almost certainly. The original R-12 refrigerant is no longer produced and is illegal to vent into the atmosphere. All modern A/C service is done with R-134a or newer refrigerants. A proper conversion involves flushing the old mineral oil, installing new service ports, and using a compatible oil (like Ester oil). Most new aftermarket compressors are designed for use with R-134a.
Should I replace other parts at the same time?
Absolutely. To ensure the longevity of your new compressor and to validate its warranty, you MUST replace the receiver/drier (or accumulator). It is also highly recommended to replace the expansion valve and have the system professionally flushed to remove any debris from the old failed compressor. Failure to do so can cause your new compressor to fail immediately.
What is an A/C compressor clutch?
The clutch is the front part of the compressor that is attached to the pulley. An electromagnet pulls the clutch plate against the spinning pulley to engage the compressor. When you turn the A/C off, the magnet releases, and the pulley freewheels without turning the compressor's internal parts. Sometimes the clutch can fail while the compressor is still good, but they are often replaced as a single unit.
Is there a recall or TSB for the Mazda 808 A/C system?
No. Due to the age of the vehicle, there are no active recalls or technical service bulletins (TSBs) from Mazda or the NHTSA related to the A/C compressor for the 1972-1977 Mazda 808. Any issues you encounter will be due to the age and wear of the original components.
Technical Specifications
This is a new aftermarket A/C compressor. Due to the vehicle's age, original A/C systems may have been dealer-installed with various components. Always verify the compressor model visually and check mounting points against your original unit before ordering.
