1974-1983 Jeep Cherokee (SJ) Headlight Dimmer Switch Guide
Having trouble with your high or low beams? Your floor-mounted dimmer switch is a likely culprit.
- The dimmer switch on a 74-83 Cherokee is a simple, floor-mounted button that is easy to replace.
- Symptoms like flickering lights or being stuck on one beam often point to this switch failing.
- Always check your headlight ground wires for corrosion or breaks before replacing parts.
- Standard Ignition is a reliable aftermarket brand for this replacement part.
Symptoms of a Failing Headlight Dimmer Switch
A bad dimmer switch on your classic Cherokee can cause several frustrating and dangerous lighting problems. Since this switch controls which headlight beams get power, its failure can directly impact your ability to see and be seen at night.
- Problems Switching Beams: The most common symptom is the inability to switch between high and low beams when you press the switch. You might press the button and nothing happens, or it might take several tries to get the lights to change.
- Headlights Stuck on One Setting: Your headlights may get stuck on either low or high beams, and pressing the switch does nothing. If they are stuck on high, you can blind other drivers; if stuck on low, your visibility on dark roads is reduced.
- Headlights Don't Turn On at All: In severe cases, a completely failed switch can prevent the headlights from turning on whatsoever, even if the main headlight knob on the dash is working. This is a critical safety failure.
- Flickering or Intermittent Headlights: Worn internal contacts can cause the headlights to flicker or cut out when you hit a bump or press the switch. This can also be a sign of a bad ground connection, which should be checked first.
Check Your Grounds First
Before replacing the switch, always check your headlight ground wires. On these Jeeps, a common ground point is on the radiator support. A corroded or broken ground wire can cause the exact same symptoms as a bad switch and is a much simpler fix.
Choosing an Aftermarket Dimmer Switch
For a vehicle as old as the 1974-1983 Cherokee, finding original equipment (OEM) parts is nearly impossible. The aftermarket is your primary source for a new headlight dimmer switch. Fortunately, this is a simple, common part that was used on many vehicles from this era.
Brand Tiers & Quality
Standard Motor Products (Standard Ignition): This is a well-regarded aftermarket brand that has been around for a long time. They often manufacture parts that meet or exceed original specifications and are a trusted choice for professional mechanics and DIYers. For a simple electrical switch like this, Standard is considered a reliable, quality option that should provide long-lasting performance. Some Standard parts may have a 'T' at the end of the part number, which can indicate a different grade, but for a common switch like this, their standard offering is a solid choice.
Pro Tip: When you replace the switch, it's a good idea to also inspect the wiring connector. After decades of use, the plastic can become brittle and the terminals can corrode. Replacing the connector at the same time is cheap insurance against future electrical problems.
Estimated Replacement Costs
Replacing the dimmer switch on an SJ Cherokee is a straightforward job. The part itself is inexpensive, and labor is minimal.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket (Standard Ignition, etc.) | $25 - $37 |
| Shop Labor | $50 - $100 |
| Total Estimated Cost | $75 - $137 |
Frequently Asked Questions (FAQ)
Is it hard to replace the dimmer switch myself?
No, this is a very DIY-friendly job. The switch is typically mounted to the floor with two screws. You simply unplug the old switch, unscrew it, screw the new one in its place, and plug the connector back in. The entire process usually takes less than 30 minutes.

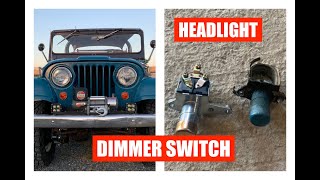

🎬 Watch this step-by-step guide to replacing your classic Jeep dimmer switch.Are there any recalls for the headlight dimmer switch on my Cherokee?
There are no specific recalls found for the floor-mounted headlight dimmer switch on the 1974-1983 Jeep Cherokee. Any recalls for newer model Cherokees relate to more modern, complex lighting systems and do not apply to the SJ generation.
Could my main headlight switch on the dash be the problem?
Yes, it's possible. If NONE of your lights work (parking lights, dash lights, headlights), the main switch on the dashboard is a likely suspect. However, if your parking lights work and the issue is only with the headlights or switching between high and low beams, the floor-mounted dimmer switch is the more probable cause.
Why do my new LED headlights flicker or not switch beams correctly?
While the dimmer switch could be at fault, flickering with LED conversions is often related to wiring. The original wiring on these Jeeps sends all power through the switches, which can cause voltage drop. Many owners install a relay harness that powers the headlights directly from the battery, using the original switches only to activate the relays. This provides more stable power to the lights and takes the load off your vintage switches.
Helpful Videos
Technical Specifications
Position: Floor Mounted Terminal Quantity: 3 Terminal Type: Blade
