A Guide to the Engine Valve Cover Gasket Set for the 1975-1993 Ford E-150 Econoline
Stop oil leaks and burning smells by choosing the right valve cover gasket set for your classic Ford van.
- A burning oil smell is the most common symptom of a failing valve cover gasket.
- Do not over-tighten the valve cover bolts; this is a primary cause of leaks, even with a new gasket.
- Modern rubber or silicone gaskets from brands like Fel-Pro are generally superior to original-style cork gaskets for durability and sealing.
- On V8 models, the passenger-side replacement is more difficult as it may require removing the upper intake manifold.
Is Your E-150 Valve Cover Gasket Failing?
A leaking valve cover gasket is one of the most common oil leaks on older vehicles like the 1975-1993 Ford E-150. The engines in these vans, such as the 4.9L Inline-6, 5.0L V8, and 5.8L V8, have simple but effective designs, but their gaskets wear out over time. Heat and age cause the original gasket material to become hard and brittle, leading to cracks and leaks. Here are the tell-tale signs that your gasket needs to be replaced:
🎬 Watch: How to tell if your valve cover gasket is leaking- Burning Oil Smell: This is the most frequent symptom. Oil drips from the leaking gasket onto the hot exhaust manifold, where it burns off, creating a distinct and unpleasant smell that can enter the cabin.
- Visible Oil and Grime: You will see oil weeping from the seam where the valve cover meets the cylinder head. This leaking oil attracts dirt and dust, creating a thick, greasy buildup on the side of your engine.
- Low Engine Oil: A steady leak will cause your engine oil level to drop over time. You might find yourself needing to top off the oil between changes, or you may see the oil pressure light flicker.
- Rough Engine Performance: On some V8 models, oil can leak into the spark plug wells. This can foul the spark plugs and ignition wires, leading to engine misfires, a rough idle, and a check engine light.
A Common Mistake: Over-tightening Bolts
The most common cause of a leaking valve cover gasket—even a brand new one—is over-tightening the mounting bolts. The stock valve covers on these Ford engines are made of stamped steel and can easily bend or warp. This creates an uneven surface that no gasket can seal properly. The bolts only need to be snug, typically around 3 to 5 ft-lbs of torque, which is just a little more than hand-tight.
Choosing the Right Aftermarket Gasket
For a vehicle from this era, modern aftermarket gaskets are often a significant upgrade over the original factory parts. The original gaskets were typically made of cork, which can dry out and crack. Aftermarket brands offer superior materials that provide a longer-lasting, more reliable seal. Here’s a breakdown of your options:
| Tier | Brands | Materials & Features | Best For |
|---|---|---|---|
| Premium | Fel-Pro, Edelbrock | Molded rubber or silicone with a rigid steel core. Often includes compression limiters (special washers or grommets) to prevent over-tightening. Designed to seal imperfect surfaces. | Owners seeking the best possible seal and durability, especially if the valve covers are slightly warped. Ideal for a fix-it-and-forget-it repair. |
| Standard | Victor Reinz, Mr. Gasket | High-quality cork-rubber blends or molded rubber. These brands are known for making reliable gaskets that meet or exceed original equipment quality. | A reliable, high-quality replacement for a daily driver or a van in good condition. Offers a great balance of performance and price. |
| Economy | Apex, Store Brands | Basic cork or cork-rubber composite gaskets. They will seal the engine but may not have the longevity or advanced features of premium options. | Budget-conscious repairs where the primary goal is to simply stop a leak. May require more careful installation to prevent leaks. |
Cork vs. Rubber: What's the Difference?
While some mechanics still have a preference for cork gaskets, modern rubber and silicone gaskets are generally superior for these applications. They are more forgiving of surface imperfections, resist heat and oil better, and are often reusable if you need to remove the valve cover again for maintenance. For the 1975-1993 E-150, a quality rubber or silicone gasket is the recommended choice.
Frequently Asked Questions (FAQ)
Do I need to use sealant with the new gasket?
Most modern rubber gaskets are designed to be installed dry. However, it is standard practice to apply a small dab of RTV silicone sealant at any sharp corners or seams, such as where the cylinder head meets the timing cover or intake manifold. Some mechanics use an adhesive to lightly tack the gasket to the valve cover (not the engine block) to hold it in place during installation.
Is this a difficult job to do myself?

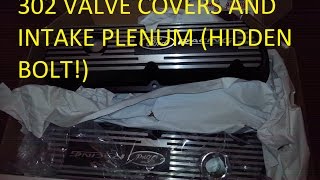

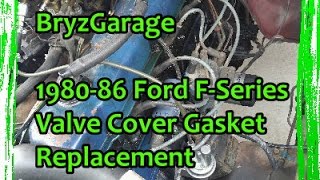

For the 4.9L inline-6 engine, this is a relatively straightforward DIY job. 🎬 See this 4.9L inline-6 valve cover gasket replacement walkthrough For the 5.0L and 5.8L V8 engines, the job is more complex because the upper intake manifold often needs to be removed to access the passenger-side valve cover. 🎬 Watch: V8 upper intake removal and valve cover replacement guide This requires more time and tools. Regardless of the engine, the key is to be patient, ensure the surfaces are perfectly clean, and not to over-tighten the bolts.
Are there any recalls or TSBs for this part?
There are no specific recalls or Technical Service Bulletins (TSBs) from the NHTSA related to valve cover gaskets for the 1975-1993 Ford E-150 Econoline. Any issues are typically due to normal wear and tear over the vehicle's long life.
Should I replace anything else at the same time?
While the valve cover is off is a good time to inspect the PCV (Positive Crankcase Ventilation) valve and its grommet, as these can also be sources of oil leaks or vacuum issues. If your gasket set includes new bolt grommets, you should always use them.
Helpful Videos
Technical Specifications
OEM Part Numbers: E9TZ-6584-B F1ZZ-6584-B
Gasket material varies by brand and includes cork, cork-rubber composite, and molded rubber/silicone, sometimes with a steel core and torque-limiting grommets.
