1975-1993 Ford Mustang Brake Light Switch Replacement and Troubleshooting
Keep your classic Mustang safe and legal by fixing common brake light switch issues.
- A bad brake light switch is a critical safety issue that should be repaired immediately.
- Symptoms include brake lights not working, staying on, or being unable to shift out of park.
- This is a very easy and inexpensive DIY repair that most owners can do in under 30 minutes.
- Quality aftermarket brands like Standard Ignition are a reliable and cost-effective choice for this part.
Understanding Brake Light Switch Failure in Your Mustang
Because it's used every time you drive, the brake light switch on your 1975-1993 Mustang is a common wear item. Over decades of use, the internal plastic and spring components can become brittle and fail. This can lead to dangerous situations on the road. Fortunately, diagnosing and replacing this part is a straightforward job for any Mustang owner.
Symptoms of a Bad Brake Light Switch
If you notice any of the following issues, your brake light switch is the most likely culprit. Always check 🎬 Watch this video to identify common brake light switch symptoms. your fuses and bulbs first, but if they are fine, the switch is the next part to inspect.
- Brake Lights Don't Work: The most common symptom is a total failure of the brake lights to illuminate when you press the pedal.
- Brake Lights Stay On: The switch can fail in the "on" position, causing the brake lights to remain lit even when your foot is off the pedal. This will drain your battery. This can also be caused by a broken or missing plastic bushing on the brake pedal arm.
- Can't Shift Out of Park: For automatic transmission models, a bad switch won't send the necessary signal to the shift interlock, trapping your car in "Park".
- Cruise Control Doesn't Work: On models equipped with cruise control, a faulty brake light switch can prevent the system from engaging or cause it to disengage unexpectedly.
Choosing the Right Aftermarket Switch
For a simple, mechanical part like the brake light switch on a Fox Body or Mustang II, there is little difference in quality between an OEM part and a quality aftermarket replacement. Brands like Standard Ignition and Rostra Powertrain offer reliable, direct-fit replacements that meet or exceed original equipment specifications. Given the low cost and high reliability of these aftermarket options, they represent an excellent value for this repair.
Brake Light Switch Replacement Cost (1975-1993 Ford Mustang)
| Item | Estimated Cost |
|---|---|
| New Aftermarket Switch (Standard, Rostra) | $16.58 - $26.40 |
| New OEM Switch | $17.00 - $36.00 |
| Shop Labor | $50 - $100 |
Pro Tip: Before you replace the switch, check the small plastic bushings on the brake pedal assembly. If these crumble or fall off, the switch plunger won't be depressed, causing the lights to stay on. This is a very common issue and a much cheaper fix.
Frequently Asked Questions (FAQ)
Is it hard to replace a Mustang brake light switch?

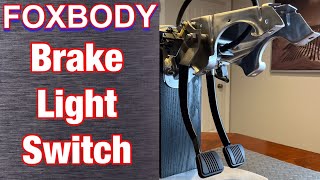

No, this is a very easy DIY job. The most difficult part is the awkward location under the dashboard. The process involves disconnecting the electrical connector, removing a hairpin retainer clip, and swapping the switch. It can typically 🎬 Follow this step-by-step guide to replace your Foxbody's switch. be done in under 30 minutes with basic hand tools.
Where is the brake light switch located?
You will find the brake light switch mounted to a bracket on the brake pedal assembly, located up under the dashboard. It is positioned so that the brake pedal arm makes contact with the switch's plunger.
Are all 1975-1993 Mustang brake light switches the same?
For the most part, yes. The 1979-1993 Fox Body Mustangs generally use the same switch. However, some earlier models (pre-1979) may have different switches for manual versus power brakes. It is always best to confirm the part fits your specific year and options before ordering.
Were there any recalls for this part?
No, there were no specific recalls issued by the NHTSA for the brake light switch on the 1975-1993 Ford Mustang. A Technical Service Bulletin (TSB) exists for the 1993 model year related to the brake shift interlock, but not a widespread component recall. Recalls for Mustang brake light issues generally pertain to much newer models and different components.
Helpful Videos
Technical Specifications
OEM Part Numbers: E9ZZ-13480-A E7DZ-13480-A D1ZZ-13480-A C9ZZ-13480-B
A mechanical, spring-loaded switch mounted to the brake pedal assembly. It features a simple two-wire electrical connector and is held in place by a hairpin-style clip.
