1976-1981 Lincoln Continental Brake Light Switch Replacement Guide
Solve brake light and cruise control problems on your classic Lincoln with the right replacement switch.
- A bad brake light switch is a critical safety issue; replace it immediately.
- Symptoms include brake lights not working, staying on, or cruise control failure.
- Verify if your car needs a 2-terminal or 4-terminal switch before buying; this depends on whether you have cruise control.
- Standard Ignition is a reliable aftermarket brand for this part.
Is Your Lincoln's Brake Light Switch Failing?
A brake light switch is a part that wears out from constant use. On a classic vehicle like the 1976-1981 Lincoln Continental, failure is common due to age. The symptoms are usually straightforward and should be addressed immediately for safety.
Key Failure Symptoms:
🎬 Watch: Understanding Ford brake light switch operation and common problems.- Brake Lights Don't Work: The most dangerous symptom is when your brake lights fail to illuminate when you press the brake pedal.
- Brake Lights Stay On: The switch can fail in the 'on' position, leaving the brake lights constantly lit. This can confuse other drivers and will drain your car's battery when parked.
- Cruise Control Issues: If your Continental has cruise control, a bad switch may prevent the system from engaging or, more dangerously, prevent it from disengaging when you press the brake pedal.
A Note on a Historical Recall
In May 1980, a recall was issued for some 1980 Lincoln Continental models because oil contamination could cause the brake light switch to fail. This could lead to the brake lights not working and the cruise control not disengaging with the brake pedal. While this recall is decades old, it highlights a known potential point of failure for the original switches.
Choosing the Right Aftermarket Switch
For a vehicle of this vintage, finding a New Old Stock (NOS) OEM Ford part can be difficult and expensive. Aftermarket parts are a reliable and cost-effective solution. Standard Ignition is a well-known brand that has been making quality automotive electrical parts for decades. Their switches are made with quality materials like copper conductors and are fully tested for performance.
Crucially, you must identify which switch your specific car needs. There are two common versions for this Lincoln generation:
- 2-Terminal Switch: For models without cruise control.
- 4-Terminal Switch: For models equipped with cruise control. The extra terminals handle the cruise control deactivation circuit.
Pro Tip: Before ordering, look at the existing switch on your brake pedal assembly. Count the number of electrical terminals to ensure you purchase the correct replacement part.
Brake Light Switch Replacement Cost
Replacing the brake light switch is one of the more affordable repairs you can perform. The primary cost is the part itself, as labor is minimal.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket (Standard Ignition) | $26.14 - $31.22 |
| Shop Labor | $50 - $100 |
Frequently Asked Questions (FAQ)
Where is the brake light switch located?
The brake light switch is mounted on a bracket attached to the brake pedal support structure, located in the driver's side footwell, up under the dashboard. Its plunger makes contact with the brake pedal arm.
Is this a difficult part to replace myself?

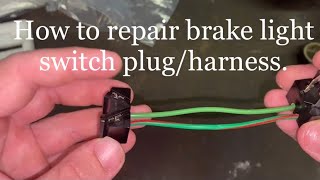

No, this is a very feasible DIY job for most owners. It typically involves unplugging the electrical connector 🎬 Watch: How to repair or replace the switch wiring harness. and unscrewing the switch from its bracket. The most difficult part is often just accessing it comfortably under the dash.
Do I need to adjust the new brake light switch?
Yes, proper adjustment is important. The switch should be installed so that the brake lights activate with minimal pedal travel, but do not stay on when the pedal is fully released. Improper adjustment can cause a delay in your brake lights turning on.
🎬 See this guide on how to adjust your stoplight switch.Could a blown fuse cause the same problem?
Yes. Before replacing the switch, always check the fuse for the brake light circuit first. A simple blown fuse can cause the lights to fail.
Helpful Videos
Technical Specifications
Available in 2-terminal (non-cruise control) and 4-terminal (with cruise control) configurations. Typically a screw-in type switch activated by the brake pedal arm.
