Engine Oil Pan Replacement Guide for the 1977-1981 Oldsmobile Custom Cruiser
Keep your classic wagon's engine safe by addressing oil leaks at their source.
- Confirm the leak source first; valve cover or rear main seal leaks can mimic an oil pan leak.
- A new aftermarket pan from a brand like Dorman, Spectra, or ATP is a reliable and cost-effective choice.
- Replacing the oil pan gasket is mandatory; use a quality one-piece gasket for the best seal.
- Be prepared for the possibility of needing to slightly lift the engine for clearance to remove the old pan.
Is Your Oldsmobile Custom Cruiser's Oil Pan Failing?
The oil pan itself is a simple part, but it's critical for your engine's health. On a classic wagon like the 1977-1981 Custom Cruiser, decades of use can lead to problems. The most common issues are not with the pan failing on its own, but from external factors. Road debris can hit the pan, causing dents or cracks. More frequently, the steel pan rusts over time, especially in areas with road salt. The drain plug threads can also become stripped from years of oil changes, causing a persistent drip.
First, Confirm the Leak Source
Before you buy a new oil pan, it's very important to make sure it's the true source of the leak. On these Oldsmobile V8 engines, oil leaks from the valve cover gaskets or the rear main seal are common. Gravity will cause this oil to run down the engine block and drip from the bottom, making it look like an oil pan leak. Clean the engine thoroughly with a degreaser, then run it for a short time to pinpoint the exact origin of the oil.

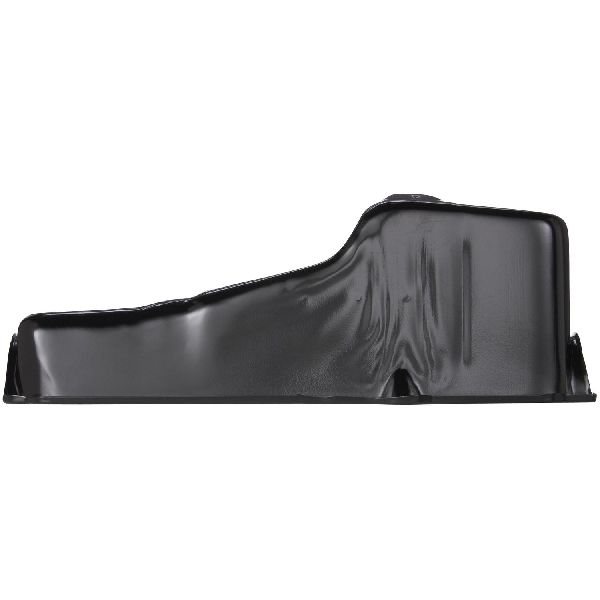

Choosing the Right Aftermarket Oil Pan
For a vehicle of this age, finding a new original equipment (OEM) oil pan is not a realistic option. Your choices are a used pan from a salvage yard or a new aftermarket pan. A new aftermarket pan is almost always the better choice. It will be free of rust and sludge, and many come with modern anti-corrosion coatings that are superior to the original paint.
Aftermarket Brand Quality
For a standard part like a stamped steel oil pan, most aftermarket brands will provide a reliable replacement. The key to a successful job is proper installation, not necessarily a specific brand. However, here is a general breakdown of the available brands:
- Standard Replacement (Dorman, Spectra Premium, ATP): These brands are the workhorses of the aftermarket. They produce parts that are designed to meet or exceed original specifications. Dorman is a well-known name with generally good fitment. Spectra Premium is often praised for its durable, anti-corrosive coatings. ATP also offers quality replacements, with some users noting their pans are made from heavy-gauge steel. You can be confident installing a pan from any of these brands.
- Performance/Specialty (Mr Gasket, Proform, Trans-dapt): These brands often offer chrome-plated or high-capacity oil pans for performance applications. While they will fit your Custom Cruiser's engine, they are usually unnecessary for a stock vehicle and may have different clearance or pickup tube requirements. Stick to these only if you have a modified engine or specific aesthetic goals.
Don't Forget the Gasket!
A new oil pan requires a new gasket. This is the most critical part for preventing leaks. For these Oldsmobile engines, a one-piece rubber gasket is often easier to install and provides a better seal than the original multi-piece cork gaskets. Always clean both the engine block and the new oil pan's mounting surfaces meticulously before installation.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Oil Pan | $65 - $284 |
| Shop Labor for Installation | $250 - $450 |
| Oil Pan Gasket Set | $20 - $50 |
| Oil & Filter Change (Required) | $40 - $80 |
Frequently Asked Questions (FAQ)
Do I have to lift the engine to replace the oil pan?
Possibly. On some GM B-body cars, the front crossmember can get in the way of removing the oil pan. You may need to unbolt the motor mounts and carefully lift the engine an inch or two with a hoist to get enough clearance to drop the pan. This is a common step for this type of job on this platform.
My new aftermarket pan has a different drain plug than the original. Is that okay?
Yes, this is common. Many aftermarket companies consolidate parts and may use a modern metric-sized drain plug even on a pan for a vintage American car. Just be aware of the new size so you use the correct wrench for future oil changes. The new pan should come with the correct plug installed.
Can I fix a crack in my old oil pan instead of replacing it?
While it is possible to weld a steel oil pan or use epoxy for a temporary fix, it is not recommended. A proper repair is difficult with the pan on the car, and a failed repair will lead to a major oil leak and potential engine seizure. Given the affordable price of a new aftermarket pan, replacement is the safest and most reliable solution.
Are there any recalls for the oil pan on my Custom Cruiser?
No, there are no specific recalls or technical service bulletins (TSBs) from Oldsmobile or the NHTSA regarding the engine oil pan for the 1977-1981 Custom Cruiser. Any issues you encounter are due to the age and wear of the vehicle.
Technical Specifications
The 1977-1981 Oldsmobile Custom Cruiser was available with several V8 engines (307, 350, 403, and a 350 diesel). While many pans are similar, you must verify the specific pan for your engine type and year. Most are stamped steel with a capacity of 4-5 quarts (pan only).
