Ford Mustang Ignition Control Module Guide (1979-1984)
Having trouble with your Fox Body Mustang stalling when it gets hot? Your ignition module might be the problem.
- The most common symptom of failure is the engine dying when hot and restarting only after it cools down.
- Heat is the primary cause of failure for these Dura-Spark modules.
- Motorcraft is widely considered the most reliable brand, but aftermarket options are a viable budget choice.
- Replacement is very easy and can be done in minutes with a single tool, making it a great DIY job.
Diagnosing a Failing Ignition Module
The ignition control module on these carbureted Mustangs is known for failing due to heat. Over time, the electronic components inside break down. The most common sign of failure is when the engine dies after it has warmed up and then refuses to start until it has cooled down completely. This can leave you stranded. Other symptoms include the engine running rough, misfiring, hesitating during acceleration, or 🎬 See how to troubleshoot common Duraspark II ignition problems not starting at all.
Heat is the Enemy
The number one killer of these Dura-Spark modules is heat. The original modules are mounted on the driver's side inner fender, but they still get hot. When a module overheats, the potting material inside can melt, and the internal electronics fail, shutting down the ignition. It will often work again once it cools, but this is a sure sign that the module is on its way out.
Choosing the Right Aftermarket Module
When your original module fails, you have a choice between OEM Motorcraft parts and aftermarket brands. For this specific part, many Mustang owners and Ford mechanics have a strong preference.
Brand Quality: Motorcraft vs. Standard Ignition
Motorcraft: Generally considered the highest quality and most reliable option. Forum discussions frequently recommend sticking with Motorcraft for ignition components to ensure longevity and avoid the frustration of a premature failure. While they may cost more, the consensus is that they are worth the price for peace of mind.
Standard Ignition (and other aftermarket brands): Aftermarket modules from brands like Standard Ignition are a more budget-friendly option. They are designed to meet original specifications and will get your Mustang running again. However, some owners report that aftermarket modules do not last as long as the original Motorcraft parts, sometimes failing within a year or two. If you are on a tight budget or don't drive the car daily, an aftermarket module is a perfectly acceptable choice.
Pro Tip: Keep a Spare
Because these modules can fail without warning, many experienced owners of older Fords carry a spare ignition module and the necessary tool (a 5.5mm or 7/32" socket) in their vehicle. This is a cheap and easy way to ensure you won't be left stranded by a common failure.
Cost of a New Aftermarket Ignition Control Module
The cost for a new aftermarket ignition control module for a 1979-1984 Ford Mustang is very reasonable. Below is a general price breakdown.
| Item | Average Cost |
|---|---|
| New Aftermarket Module (Standard, etc.) | $79.66 - $98.51 |
| New OEM (Motorcraft) | $60 - $100+ |
| Shop Labor for Installation | $60 - $120 |
Frequently Asked Questions (FAQ)
Where is the ignition module located on a 1979-1984 Mustang?
The ignition control module, often called the Dura-Spark box, is typically mounted on the driver's side inner fender apron in the engine bay. It is a small box with two wiring connectors.
Is this the same as a TFI module?
No. The 1979-1983 Mustangs and most 1984 models used the Dura-Spark II system with a 🎬 Watch: A complete guide to the Duraspark II ignition system fender-mounted module. The TFI (Thick Film Ignition) module, which is mounted on the distributor, was introduced on some Mustangs in 1984 and became common from 1986-1995. Be sure to identify which system your car has before ordering parts.
Are there any recalls for the ignition module?
No, there are no specific recalls or Technical Service Bulletins (TSBs) from the NHTSA for the ignition control module on 1979-1984 Ford Mustangs. There was a major recall for the ignition *switch* on later 1988-1993 models, but this is a different part and does not apply to this year range.
Can I replace the ignition module myself?
Yes, this is a very easy repair for a DIY mechanic. It is held in place by a few small bolts and has two simple plug-in connectors. The only tool typically needed is a 5.5mm (or 7/32") socket or wrench. The entire job can usually be done in under 30 minutes.

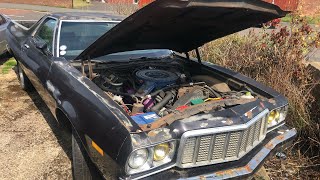

🎬 Watch: Step-by-step walkthrough for replacing your Ford ignition moduleHelpful Videos
Technical Specifications
OEM Part Numbers: D9VZ-12A199-A 1U2Z-12A199-AA
This is the Dura-Spark II ignition control module, typically identified by a blue plastic grommet where the wires enter the module. It uses a two-plug connector design.
