Engine Oil Pan Guide for 1979-1985 GMC G1500 Vans
Address common oil pan problems like leaks and damage to protect your G-series van's engine for the long haul.
- Oil pan failure on a G1500 is typically due to rust, impact damage, or stripped drain plugs.
- Aftermarket pans from brands like Dorman, ATP, and Pioneer are the primary replacement option and can offer good quality.
- Replacement is a difficult job that may require lifting the engine to clear the crossmember, increasing labor costs.
- Always use a new, high-quality gasket and inspect the new pan for flatness before installation to prevent leaks.
Is Your G1500's Oil Pan Failing?
For a van from this era, the most common oil pan problems are straightforward: rust, impact damage, and stripped drain plugs. After decades of service, the original steel pan can rust from the inside out or from road salt on the outside. Curbs, road debris, and improper jacking can cause dents or cracks. A dented pan can restrict oil flow to the pickup tube, starving the engine of oil. Finally, years of oil changes can lead to stripped or over-tightened drain plug threads, causing persistent leaks.
Key Symptoms to Watch For:
- Visible Oil Leaks: Puddles of oil under the front of your van are the most obvious sign. Check if the pan itself is wet with oil.
- Low Oil Level Warning Light: If your van is equipped with one, this light indicates a significant loss of oil.
- Visible Damage: Look under your van. Dents, heavy rust, or cracks in the oil pan are clear indicators that a replacement is needed.
- Stripped Drain Plug: If the drain plug won't tighten or spins freely, the threads in the pan are likely stripped, requiring pan replacement.
OEM vs. Aftermarket Quality
For a 1979-1985 GMC G1500, finding a New Old Stock (NOS) OEM oil pan is nearly impossible and would be very expensive. The good news is that aftermarket manufacturers have been making these for decades. Brands like Dorman, Spectra, ATP, and Pioneer offer direct-fit, OE-style replacements that are readily available and affordable. In many cases, modern aftermarket pans may feature better coatings or slightly thicker steel than the originals, offering improved corrosion resistance.
Choosing the Right Aftermarket Oil Pan
With several brands available, choosing can be confusing. They generally fall into two categories: standard replacement and appearance/performance.
Standard OE-Style Replacements:
- Dorman, ATP, Spectra, Pioneer Cable: These brands are the workhorses of the aftermarket. They focus on creating parts that fit and function like the original. Reviews suggest that quality can be consistent, with many users having good experiences. Some users note that ATP and Pioneer pans can be made of thicker, powder-coated steel for better durability. Always check that the pan includes a new drain plug.
Appearance & Performance Upgrades:

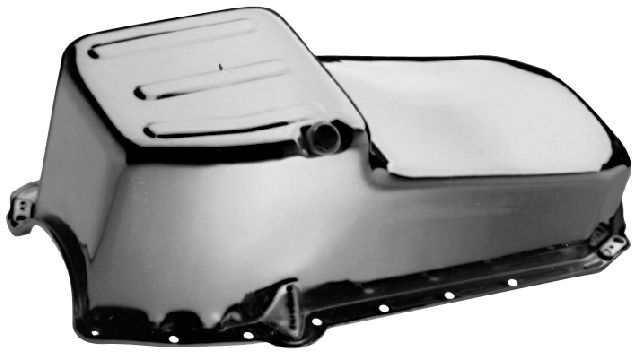

- Mr. Gasket, Proform: These brands often offer chrome-plated or extra-capacity oil pans for those looking to dress up their engine bay or add performance. While the look can be appealing, be aware that chrome pans have a reputation for being more prone to leaks if the mating surfaces aren't perfectly prepared. Mr. Gasket is also a well-known provider of high-quality gaskets, which are essential for a good seal.
What Will It Cost?
The cost to replace the oil pan on your G1500 will vary based on the parts you choose and whether you do the work yourself. The job can be labor-intensive.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Oil Pan | $104.94 - $131.49 |
| Oil Pan Gasket Set | $20 - $40 |
| Engine Oil & Filter | $30 - $50 |
| Total Parts Cost | $154.94 - $221.49 |
| Estimated Shop Labor | $300 - $500+ |
Note: Labor costs can be high because on some G-series vans, the engine may need to be lifted slightly to provide clearance to remove the pan from the crossmember.
Frequently Asked Questions
Do I need to replace the gasket when I replace the oil pan?
Yes, absolutely. Never reuse an old oil pan gasket. A new gasket is critical for a leak-free seal. Modern one-piece rubber gaskets are highly recommended.
Can I replace the oil pan myself?
This is a challenging job for a DIY mechanic. While it can be done, it often requires lifting the engine to clear the front crossmember. 🎬 Learn how to swap your oil pan without lifting the engine. It requires a good set of tools, jack stands, and mechanical experience. If you are not comfortable with this, it is best left to a professional.
Are there any recalls on the 1979-1985 GMC G1500 oil pan?
No, searches of the National Highway Traffic Safety Administration (NHTSA) database show no recalls or specific investigations related to the engine oil pan for this vehicle range.
What are TSBs and are there any for this oil pan?
A Technical Service Bulletin (TSB) is a notice from the manufacturer to dealers about a common problem and a recommended fix. Given the age of the vehicle, any TSBs from that era are difficult to find and generally have been superseded by decades of real-world service experience. No specific, relevant TSBs for the oil pan on this vehicle were found.
Helpful Videos
Technical Specifications
The key specifications for this part are engine-specific. The 1979-1985 GMC G1500 was available with several engines (e.g., 4.1L I6, 5.0L V8, 5.7L V8). You must select an oil pan that matches your van's specific engine to ensure correct fitment, oil capacity, and dipstick location.
