A/C Clutch Cycle Switch Guide for 1979-1989 GMC C3500 Trucks
Keep your classic GMC's air conditioning running strong by understanding this critical, easy-to-replace part.
- A faulty A/C clutch cycle switch is a common cause for A/C problems in 1979-1989 GMC C3500s, including a non-working compressor or rapid cycling.
- This is a very easy and inexpensive DIY repair; the system does not need to be evacuated as the switch sits on a Schrader valve.
- A simple test is to jump the electrical connector with a paper clip; if the compressor kicks on, the switch is likely bad or the system is low on refrigerant.
- For this part, affordable aftermarket brands like Four Seasons or Global Parts are a practical and effective choice.
Is a bad A/C clutch cycle switch keeping your cab hot?
If the air conditioning in your Square Body GMC C3500 isn't working right, the clutch cycle switch is a common and inexpensive part to check. A failure in this switch can cause your A/C to stop blowing cold, cycle on and off too quickly, or not turn on at all. Understanding the symptoms and how to choose the right replacement can get your A/C blowing cold again without a costly trip to a mechanic.
A Note on Vehicle Age
For trucks from the 1979-1989 model years, original OEM parts are generally discontinued. Aftermarket parts are the most common and practical solution. Brands like Four Seasons and Global Parts Distributors (gpd) are primary suppliers for these components. Quality can be a concern with any aftermarket part, but for a simple switch like this, most brands offer a functional replacement that gets the job done.
Symptoms of a Failing A/C Clutch Cycle Switch
When this switch fails, it can create several distinct problems with your A/C system. Here’s what to look for:
- A/C Compressor Won't Turn On: If the switch fails in the 'open' position, it will not send power to the compressor clutch. The system will act as if it's empty, even if it has a full charge of refrigerant. You can often test this by carefully using a jumper wire on the electrical connector 🎬 Watch this easy test to see if your switch is bad. to see if the compressor clutch engages.
- A/C Compressor Cycles Too Quickly: Known as "short cycling," this happens when the compressor clicks on and off every few seconds. This can be a sign of a low refrigerant charge, but it can also be caused by a faulty switch giving incorrect pressure readings.
- A/C Blows Cold, Then Warm: If the switch fails to turn the compressor *off*, the evaporator core can freeze up. This blocks airflow and stops the cooling process. After you turn the A/C off for a while and the ice melts, it might start working again temporarily.
- No Cooling at All: A failed switch can prevent the compressor from engaging, meaning the refrigerant never circulates to cool the cabin.
Choosing Your Aftermarket A/C Switch
For a simple part like the clutch cycle switch on a C3500, you don't need to overspend. The key is getting a part that fits and functions correctly.
- Value Brands (Four Seasons, Global Parts): These are the most common brands available. For a simple switch, they are generally considered a reliable and cost-effective choice. While some online forums have mixed reviews about more complex components from these brands, a pressure switch is a relatively low-risk part. Given the price point, they offer good value.
- OEM/Dealer Parts: New OEM (Original Equipment Manufacturer) parts for this switch are likely no longer available from GMC dealers due to the vehicle's age. Finding a New Old Stock (NOS) part is possible but would be rare and expensive.
| Item | Cost Range |
|---|---|
| Aftermarket A/C Clutch Cycle Switch | $16.38 - $39.28 |
| Estimated Shop Labor | $50 - $100 |
Pro Tip: An Easy DIY Job
Replacing this switch is one of the easiest A/C repairs you can do. On most GM trucks of this era, the switch is threaded onto a Schrader valve, similar to a tire's air valve. This means you can unscrew the old switch and install the new one without losing refrigerant or needing to evacuate the A/C system. Just unplug the electrical connector, use a wrench to unscrew the old switch, and quickly screw the new one on.
🎬 See how to replace the cycling switch on your GM truck.Frequently Asked Questions
Do I need to empty the refrigerant to change this switch?
No. In most cases, the switch is mounted on a Schrader valve that seals the system when the switch is removed. You may hear a tiny hiss of escaping gas, but you do not need to have the system professionally evacuated and recharged for this specific repair.
Where is the A/C clutch cycle switch located on my C3500?
It is almost always located on the A/C accumulator. The accumulator is a large aluminum can mounted on the passenger side of the firewall 🎬 Follow this video to locate and swap your pressure switch. in the engine bay. The switch is a small sensor with a two-wire electrical connector threaded into the accumulator.
My A/C compressor is always on. Could this switch be the cause?
It's possible, but less common. A switch that is stuck in the 'closed' position would cause the compressor to run constantly, which can lead to evaporator freeze-up. This is often diagnosed when the A/C works for a few minutes and then stops blowing cold air. It could also be caused by someone bypassing the switch with a paper clip or jumper wire as a faulty diagnostic step.
Are there any recalls for the A/C system on my 1979-1989 GMC C3500?
No specific recalls or Technical Service Bulletins (TSBs) were found for the A/C clutch cycle switch on this vehicle range. Most issues are related to age and normal wear and tear of the A/C components.
Helpful Videos
Technical Specifications

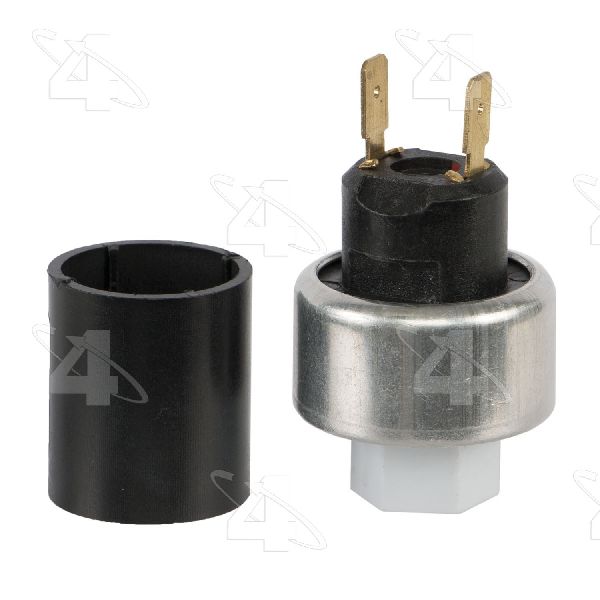

Typically a 2-pin, normally open, low-pressure cut-off switch. Screws onto a Schrader valve service port on the A/C accumulator.
