GMC G1500 Starter Motor Guide: 1979-1990 Replacement Options
If you're hearing a click but your G1500 won't turn over, your starter motor is the likely culprit.
- Heat soak is a common issue for G1500s; a high-torque mini-starter and/or a heat shield is the best fix.
- Always check that your battery and its cable connections are clean and tight before replacing the starter.
- Aftermarket starters may require shims for proper alignment; check gear engagement before finalizing installation.
- For a stock van, a standard replacement from a brand like MPA is sufficient; for modified engines or to solve heat issues, upgrade to Proform or Powermaster.
Is Your G1500 Starter Failing?
A failing starter on a GMC G-series van usually gives a few warning signs. The most common is hearing a single, sharp "click" when you turn the key, but the engine doesn't crank. You might also notice the engine turning over much slower than usual, as if the battery is weak. Sometimes, it's an intermittent problem; the van starts fine one day and refuses the next. In more severe cases, you could hear a grinding noise, which indicates the starter gear is not meshing correctly with the flywheel.
Known Issue: Starter Heat Soak
A very common problem on these G-vans, especially with V8 engines, is "heat soak." This happens when the starter gets very hot from the nearby exhaust manifold. The heat increases electrical resistance inside the starter, preventing it from working. You'll notice this most often after a hot drive – you shut the engine off, and it refuses to restart until it has cooled down for a while.
Choosing the Right Aftermarket Starter
For a vehicle like the '79-'90 G1500, new OEM starters are generally not available. The aftermarket offers a wide range of new and remanufactured options that often improve upon the original design. Your choice depends on your van's condition and your budget.
Good: Standard Replacement Starters (MPA)

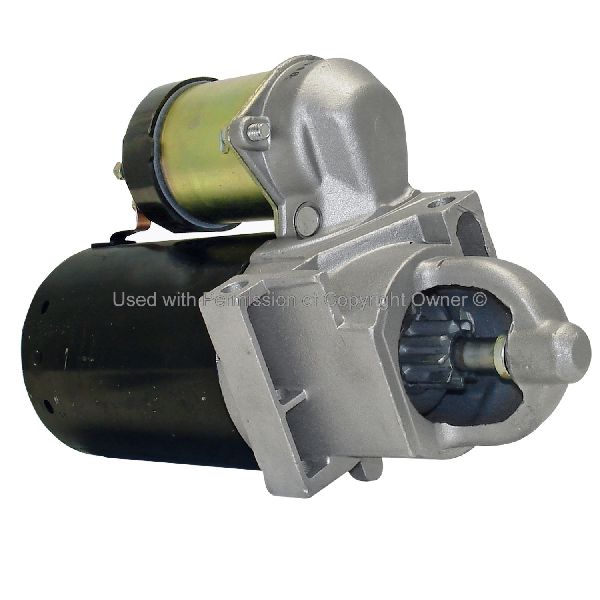

If your G1500 is mostly stock and you just need a reliable, affordable replacement, a standard new or remanufactured starter is a great choice. Brands like MPA (Motorcar Parts of America), often sold under the "Quality-Built" name, produce starters designed to meet or exceed original factory specifications. These are cost-effective solutions that restore original performance and are widely available.
Better: High-Torque Gear-Reduction Starters (Proform)
If you experience heat soak or have added headers, a high-torque starter is a smart upgrade. Proform offers 100% new high-torque mini-starters that provide more cranking power with less electricity draw. Their smaller size provides more clearance from hot exhaust pipes, which directly combats heat soak. While some users report needing to use shims for a perfect fit, they are a popular choice for solving common G-van starting issues.
Best: Premium High-Performance Starters (Powermaster)
For vans with modified, high-compression engines or for owners who want the most powerful and reliable solution to heat soak, Powermaster is a top-tier brand. They are known for their powerful motors and durable construction, delivering fast, reliable starts even under extreme heat. While they are the most expensive option, Powermaster starters are considered by many to be a permanent fix for stubborn starting problems.
Pro Tip: Shims and Heat Shields
When installing any new starter, especially an aftermarket one, check the clearance between the starter gear and the flywheel. Many aftermarket starters come with shims to get this spacing right. Also, if your van suffers from heat soak, consider adding a starter heat shield or wrap for extra protection, even with a high-torque starter.
What Will a New Starter Cost?
The cost can vary significantly based on the brand and whether you do the work yourself. Here is a general breakdown of expected costs:
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Starter | $39 - $321 |
| Remanufactured Starter (e.g., AC Delco) | $70 - $180 |
| Shop Labor | $80 - $117 |
| Total Professional Replacement | $244 - $512 |
Frequently Asked Questions
Can I replace the G1500 starter myself?
Yes, for a DIYer with a decent set of tools, this is a manageable job. Access can be tight on a van, but the process is straightforward: disconnect the battery, safely raise the vehicle, remove the electrical connections from the old starter, unbolt it (usually two bolts), and install the new one. Always disconnect the battery's negative terminal first to prevent short circuits.
How do I know it's the starter and not the battery?
If your interior lights and headlights are bright but the engine won't crank, the starter is a likely suspect. If the lights dim heavily or you hear a rapid clicking sound when you turn the key, your battery is likely weak or dead. A simple test is to try jump-starting the van. If it starts right up with a jump, your battery is the problem; if it still just clicks or cranks slowly, the starter is the issue.
What is a high-torque or gear-reduction starter?
Unlike the large, direct-drive starters that came from the factory, a gear-reduction starter uses a smaller, faster motor connected to a set of gears. This multiplies the motor's torque, allowing it to turn the engine over with more force while using less power from the battery. They are an excellent upgrade for older vehicles, especially those with heat-related starting issues.
Do I really need a starter heat shield?
If your van suffers from heat soak (won't start when hot), a heat shield is a highly recommended and inexpensive part that can solve the problem or extend the life of your new starter. Many owners of GM trucks and vans from this era install them as a preventative measure.
Technical Specifications
OEM Part Numbers: 10496873 1988714
The GMC G1500 was available with V6 and V8 engines, which typically used starters with a 9-tooth pinion gear. Aftermarket options often feature gear reduction ratios between 3.75:1 and 4.4:1. It is crucial to match the starter to your engine's flywheel (153-tooth or 168-tooth for V8s). Most aftermarket starters for this application are designed to fit both.
