Oldsmobile Custom Cruiser Universal Joint Replacement Guide (1981-1986)
Don't let a clunking or vibrating driveshaft leave your classic wagon stranded.
- A clunking noise when shifting or a vibration at speed are the key signs of a failing U-joint; do not ignore them.
- Always replace both U-joints at the same time to save on labor and ensure a balanced driveshaft.
- For maximum durability, choose a premium non-greaseable brand like Dana Spicer; for a quality, budget-friendly repair, GMB is a solid choice.
- Verify the exact size and clip style on your car before ordering parts, as variations exist for this model year range.
Symptoms of a Failing Universal Joint
A worn-out U-joint on your Custom Cruiser will give you clear warning signs. Ignoring them is risky, as a complete failure can cause the driveshaft to disconnect from the car, leading to a loss of control and expensive damage to the underbody. Listen and feel for these common symptoms:
- Clunking Noise: A loud "clunk" or "ping" when you shift from Park into Drive or Reverse is the most classic sign. This sound is the driveshaft taking up the excessive play in the worn joint.
- Vibrations: You may feel a vibration throughout the car that gets worse with speed. A worn U-joint can throw the driveshaft out of balance, causing a high-frequency vibration you can feel in the floor and seats.
- Squeaking Noise: A rhythmic squeaking or chirping that matches your vehicle's speed often points to a U-joint that has lost its grease and is running dry.
Choosing the Right Aftermarket U-Joint
Original equipment (OEM) U-joints for a vehicle of this age are virtually nonexistent. Fortunately, the aftermarket offers excellent, and often superior, replacement options. Your Custom Cruiser has two U-joints, and it is highly recommended to replace them as a pair. This saves on labor and ensures a properly balanced driveshaft.
Brand Tiers
Premium / Heavy-Duty: Dana Spicer Chassis
Dana Spicer is widely considered the gold standard for U-joints and was the original supplier for many American vehicles. Their parts are known for exceptional strength, quality control, and durability. Many mechanics and enthusiasts prefer Spicer's non-greaseable (solid) U-joints. While it seems counterintuitive, non-greaseable joints have a solid-body design that makes them stronger and more durable, much like the original factory parts that lasted for decades.
Quality Standard: GMB
GMB is a well-respected aftermarket manufacturer that produces reliable and affordable parts. Their U-joints are engineered to meet or exceed OEM specifications and are a trusted choice for daily drivers. GMB joints often feature a greaseable design with a zerk fitting, allowing for periodic maintenance to flush out contaminants and extend their life.
Pro Tip: Greaseable vs. Non-Greaseable
Non-greaseable (solid) joints are typically stronger out of the box because the cross is not hollowed out for grease passages. They are a 'fit-and-forget' solution, similar to the original factory parts. Greaseable joints can last a very long time if maintained properly, but the seals required to allow purging can also let contaminants in if neglected. For most owners looking for maximum durability with no maintenance, a high-quality non-greaseable joint like a Spicer is often the best choice.
Known Issues, Recalls, or TSBs
There are no specific recalls or Technical Service Bulletins (TSBs) from the NHTSA related to universal joints for the 1981-1986 Oldsmobile Custom Cruiser. Any failures today are a result of normal wear and tear on a 40+ year-old component.
Common Ordering Mistake
GM used different U-joint sizes and retaining clip styles (inside vs. outside clips) during this era, sometimes even on the same model year. Before ordering, it is critical to verify the exact size and style on your vehicle. The original factory joints were often held in with injected plastic that must be melted or chiseled out; replacements will use snap rings.
Estimated Replacement Costs
The cost can vary based on your location and shop labor rates. Since both U-joints should be replaced at the same time, the estimate reflects the total job.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Parts (Pair) | $20.60 - $237.75 |
| Shop Labor | $200 - $450 |
| Total Estimated Cost | $220 - $688 |
Frequently Asked Questions (FAQ)
How many U-joints does my 1981-1986 Custom Cruiser have?
Your vehicle's rear driveshaft has two universal joints: one at the transmission end and one at the rear differential end.
Should I replace both U-joints at the same time?
Yes, absolutely. The driveshaft must be removed to replace either joint, so the labor is nearly identical. Replacing both at once saves you from doing the same job twice and ensures the driveshaft remains balanced.
Is replacing a U-joint a DIY job?
It can be, but it requires specific tools. You will need a way to safely support the vehicle, remove the driveshaft, and press the old joints out. This is typically done with a bench vise and large sockets or a dedicated U-joint press. If the parts are heavily rusted, it can be a very difficult job without a torch and press.
What happens if a U-joint fails completely?
If a U-joint breaks while driving, the driveshaft will detach from the transmission or axle. This will cause an immediate loss of power. The free-spinning driveshaft can then slam against the underside of your car, potentially destroying the exhaust, transmission case, and floor pan, leading to an extremely dangerous situation and costly repairs.
Technical Specifications

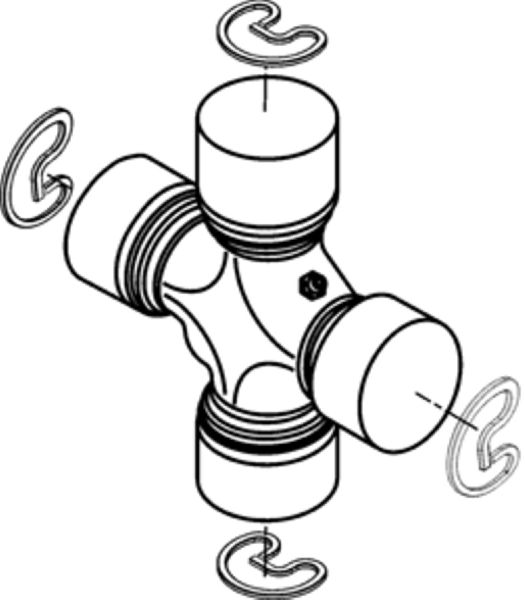

The 1981-1986 Oldsmobile Custom Cruiser uses a rear-wheel-drive configuration with a driveshaft requiring two universal joints. Part sizes and clip styles (internal vs. external) can vary, so physical confirmation or a detailed catalog check is necessary before purchase.
