Cadillac Eldorado 4.1L Throttle Body Fuel Injector Guide (1982-1987)
Keep your classic Eldorado running smoothly by understanding its unique fuel injection system.
- Your Eldorado has a Throttle Body Injection (TBI) system with two injectors, which are easy to access and replace.
- Always replace both fuel injectors as a matched pair to ensure balanced performance and a smooth idle.
- The HT4100 engine has known reliability issues, but the TBI system is one of its more dependable components.
- A leaking fuel injector is a serious fire hazard; address any strong fuel smells immediately.
Symptoms of a Failing Fuel Injector
When fuel injectors on your Eldorado start to fail, the signs are usually noticeable. The injectors can become clogged with debris over time, or the electronic components can wear out. Because your car has two injectors working together, a problem with one can affect the entire engine's performance.
- Rough Idle: The engine may shake or run unevenly when you're stopped.
- Engine Hesitation or Stalling: You might notice a delay in acceleration, or the engine could cut out unexpectedly.
- Poor Fuel Economy: If you're filling up the tank more often, a leaking or inefficient injector could be the cause.
- Hard Starting: A faulty injector can make it difficult to start the engine, whether it's hot or cold.
- Fuel Smell: A strong smell of gasoline can indicate that an injector is leaking fuel, which is a serious fire hazard.
- Backfiring: An incorrect fuel mixture can sometimes cause the engine to backfire through the throttle body.
A Note on the HT4100 Engine
The 4.1L HT4100 V8 in your Eldorado has a reputation for reliability issues, including head gasket and intake gasket failures. Sometimes, symptoms of these other engine problems can seem like a fuel system issue. While the TBI fuel injection system is generally one of the more dependable parts of the HT4100, it's important to properly diagnose the problem before replacing parts.
🎬 See how to use Cadillac's on-board diagnostics for troubleshooting.Choosing the Right Aftermarket Injector
For a vehicle of this age, new OEM parts from Cadillac are likely unavailable or extremely expensive. The aftermarket provides reliable and affordable options. Your Eldorado uses two injectors, and it is highly recommended to replace them as a matched pair to ensure balanced fuel delivery and smooth engine operation.
🎬 Watch: Detailed walkthrough of a complete TBI system rebuild.Brand Quality Tiers
- Standard Ignition: This is a well-known and generally respected aftermarket brand that produces new components. They are often considered a higher-quality replacement part designed to meet or exceed original specifications. While any mass-produced part can have defects, Standard Ignition is a solid choice for owners looking for reliability.

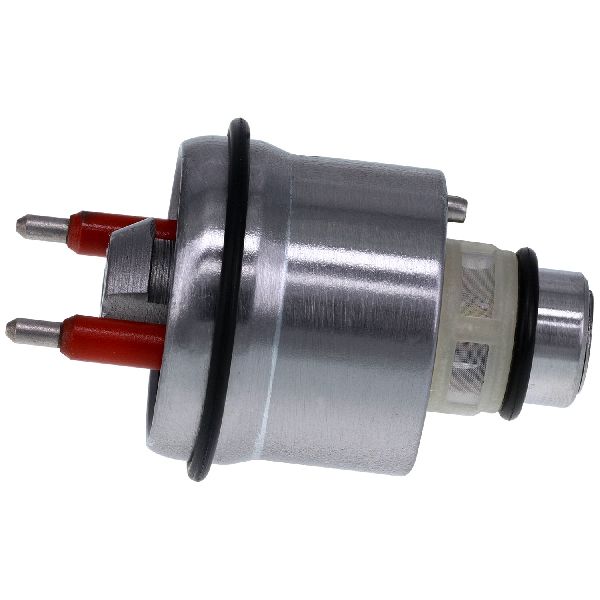

- GBR Fuel Injection: This brand offers remanufactured injectors, which means original injector cores have been cleaned, tested, and rebuilt with new seals. This is a budget-friendly option, but some owners in forums have reported issues with remanufactured injectors failing or being faulty out of the box. A faulty injector that sticks open can leak large amounts of fuel into the engine, potentially causing serious damage.
Pro Tip: When replacing your fuel injectors, it's also a good idea to replace your fuel filter. A clogged filter can restrict fuel flow and can be the source of performance issues itself.
Cost of Replacing Fuel Injectors
| Part Type | Estimated Cost (Per Injector) |
|---|---|
| New Aftermarket (e.g., Standard Ignition) | $120 - $200 |
| Remanufactured Aftermarket (e.g., GBR) | $55 - $90 (plus potential core charge) |
| Shop Labor | $120 - $250 |
Frequently Asked Questions
Is it difficult to replace the fuel injectors on my Eldorado?
No, this is a relatively easy job for a DIY mechanic. The TBI unit is located on top of the engine where a carburetor would be. The two injectors are right on top and held in by a few screws, making them much more accessible than on modern engines. Basic hand tools are all that's required.
🎬 Watch: A quick guide to servicing your TBI fuel injectors.Should I replace one or both injectors?
You should always replace both injectors at the same time. They are sold individually, but installing a matched pair ensures they deliver the same amount of fuel, which is critical for a smooth-running engine. Mismatched flow rates can cause a persistent rough idle and performance issues.
What is a TBI system?
TBI stands for Throttle Body Injection. It was an early form of fuel injection that replaced the carburetor. Instead of having a separate injector for each cylinder (multi-port injection), a TBI system uses one or two injectors to spray fuel into the top of the intake manifold, much like a carburetor.
Are there any recalls for the fuel injectors on my Eldorado?
There are no specific NHTSA recalls for the factory fuel injectors on the 1982-1987 Cadillac Eldorado. There was a recall for certain aftermarket fuel filters that could leak, but this did not involve the injectors themselves.
Helpful Videos
Technical Specifications
OEM Part Numbers: 17111276 17111277 5235132 5235198 5235204 17079500
System Type: Throttle Body Injection (TBI), Quantity per engine: 2
