Restoring Fan Control: A Guide to the 1982-1990 GMC S15 HVAC Blower Switch
If your GMC S15's fan speeds are acting up, this guide will help you diagnose the problem and choose the right replacement switch.
- If the fan only works on high, the blower motor resistor is the most likely problem, not the switch.
- An aging blower motor drawing too much power is a primary cause of repeat resistor and switch failures.
- For this model, aftermarket brands like Four Seasons and Global Parts are standard, affordable choices.
- No recalls have been issued for this part; failure is due to age and wear.
Is Your GMC S15 Blower Control Switch Failing?
On a straightforward truck like the 1982-1990 GMC S15, HVAC problems are usually easy to track down. While the blower control switch can fail, the symptoms are often identical to the failure of a different, more common part: the blower motor resistor. Understanding both parts is key to fixing your fan speed issues correctly the first time.
Check the Blower Motor Resistor First!
The most common reason for a fan to only work on the highest speed is a failed blower motor resistor, not the switch. This happens because the high setting is wired to bypass the resistor, while the lower speeds depend on it. Before replacing your control switch, it's wise to inspect the resistor. On the S15, it's located on the passenger side of the engine bay, mounted to the black plastic HVAC case on the firewall.
Common Symptoms of Failure
- Fan Only Works on High: This is the classic symptom of a bad blower motor resistor, but can also indicate a failed switch.
- Some Fan Speeds Don't Work: You might lose one or more of the lower speeds while others still function.
- No Fan Operation at All: If the fan doesn't work on any setting, the switch could be completely dead. However, you should also check the fuse, the blower motor itself, and the system's ground wire.
- Burning Plastic Smell: An electrical short inside the switch can cause it to overheat, producing a distinct burning smell from your dash or vents.
Choosing the Right Aftermarket Switch
For a vehicle of this age, finding a new OEM (Original Equipment Manufacturer) switch from GM is highly unlikely. The market consists of aftermarket brands that produce functional replacements.
Brand Tiers for Your S15:
- Standard Aftermarket (Four Seasons, Global Parts): For a simple electrical part like this switch, brands like Four Seasons and Global Parts offer affordable and readily available options. While some forums have mixed opinions on Four Seasons for more complex components, their switches are considered a standard repair-grade choice for a vehicle like the S15. Quality between these brands for a basic switch is generally comparable.
Consider Replacing the Blower Motor
Often, the root cause of a failed resistor or switch is an old, worn-out blower motor. As the motor ages, it draws more electrical current, which overheats and burns out the resistor and can damage the switch. If your truck has high mileage or the fan is noisy, replacing the blower motor along with the switch or resistor can prevent you from having to do the job again.
Estimated Replacement Costs
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Switch | $17.80 - $33.13 |
| Shop Labor | $60 - $120 |
| Total (DIY) | $17.80 - $33.13 |
| Total (Installed at Shop) | $77.80 - $153.13 |
Frequently Asked Questions (FAQ)
Why does my fan only work on the 'High' setting?
This is almost always caused by a failed blower motor resistor. The lower fan speeds (1, 2, 3) rely on the resistor to reduce electrical current. The 'High' setting sends full power directly to the fan, bypassing the resistor entirely. When the resistor burns out, only the high setting continues to work.
How do I know if it's the switch or the resistor?
If only the high setting works, the resistor is the most likely culprit. If fan operation is intermittent across all speeds, or if you smell burning plastic from the dash control area, the switch itself could be faulty. A bad ground wire can also cause intermittent issues. Given its low cost and high failure rate, inspecting or replacing the resistor first is the recommended diagnostic step.
Are there any recalls for the blower switch on my S15?
No. There are no active recalls or Technical Service Bulletins (TSBs) from the NHTSA or GMC for the HVAC blower control switch or blower motor resistor for the 1982-1990 GMC S15.
How difficult is it to replace the blower control switch?
Replacing the switch is a very easy DIY job. It typically involves carefully prying off the dash trim around the climate controls, removing a few screws that hold the control unit in place, and then unscrewing the switch from the back of the unit. It requires basic hand tools and can usually be done in under an hour.

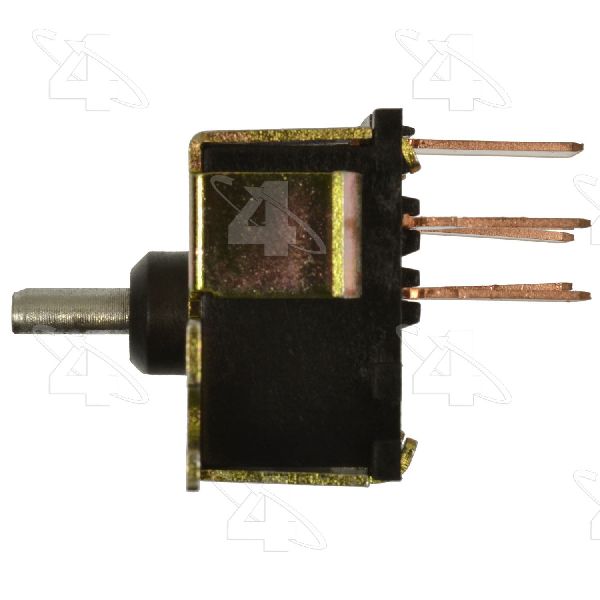

Technical Specifications
OEM Part Numbers: 16068778 16068777
4-position switch, 4-pin connector
