Chevrolet S10 Engine Oil Pressure Switch: A Complete Guide (1982-1994)
Is your S10's oil pressure gauge acting strange? This guide will help you understand the problem and find the right replacement part.
- A gauge reading zero is the most common symptom, but you must verify the actual oil pressure with a mechanical gauge before assuming the engine is damaged.
- The location of the switch varies by engine; the 4.3L V6 is much harder to access than the 2.8L V6, affecting replacement difficulty and cost.
- A special oil pressure switch socket is usually required for removal and installation.
- Quality aftermarket brands like Standard Ignition are a reliable and cost-effective alternative to OEM parts for this component.
Is Your S10 Oil Pressure Gauge Lying?
If you own a 1982-1994 Chevrolet S10, you know it's a tough truck. But parts wear out, and the oil pressure switch is a common one. The most common problem is a faulty reading. The gauge might drop to zero, max out, or jump around wildly. This can be scary, making you think your engine is about to fail. However, the sensor itself is often the real problem, not the engine's oil pressure.
First, Verify the Pressure
Before you panic or buy parts, it's critical to check the actual oil pressure with a mechanical gauge. A mechanic can do this, or you can do it yourself if you have the tool. 🎬 Watch: EricTheCarGuy shows you how to check oil pressure. This test will tell you if you have a real, dangerous low-pressure problem or just a bad sensor. If the mechanical gauge shows good pressure while your dashboard gauge reads zero, you've confirmed the switch is the problem.
Symptoms of a Failing Oil Pressure Switch
Watch for these signs on your 1982-1994 S10:
- Gauge Reads Zero or Max: The most common symptom is the gauge on your dash showing no pressure or being pegged at maximum, even when the engine sounds fine.
- Flickering Oil Light or Gauge: The oil pressure light may flicker, or the gauge needle may bounce around, especially at idle.

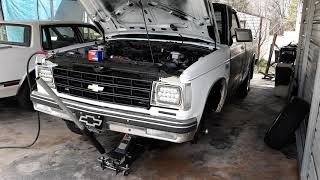

- Oil Leaking from the Sensor: The switch itself can develop leaks. You might see oil on the sensor or dripping from that area of the engine. Oil found inside the electrical connector is a sure sign the switch has failed internally. 🎬 See how to replace a leaking switch on an '85 S10.
Choosing the Right Aftermarket Switch
For a vehicle like the 1982-1994 S10, original OEM parts can be hard to find or expensive. High-quality aftermarket parts offer a reliable and affordable solution. The brands available offer different levels of quality and price.
Standard Ignition (Standard Motor Products): Often considered a top-tier aftermarket brand. They have a long history and manufacture many of their own parts, emphasizing quality control. For many professional mechanics and experienced DIYers, this is a trusted choice for sensors and electronics.
Rostra Powertrain: Rostra is a well-known manufacturer of automotive electronics, including sensors and transmission components. They are known for producing parts that meet or exceed original equipment specifications, making them a solid, reliable option.
Global Parts: This brand typically falls into the standard or economy category. While more budget-friendly, they are often a distributor of parts from various sources. This can be a good choice if cost is your main priority, but may not have the same reputation for long-term durability as premium brands.
Check Your Engine

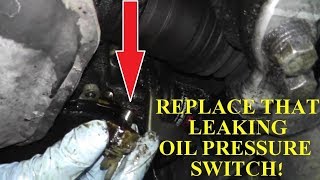

The location and type of switch can vary depending on your engine (2.2L, 2.5L, 2.8L V6, or 4.3L V6). The switch on the 4.3L V6 is known for being difficult to access, as it is located behind the distributor. The 2.8L V6 switch is generally easier to reach. 🎬 Watch this walkthrough for replacing the switch on a 2.8L V6. Always confirm the part fits your specific year and engine before buying.
Cost of a New Oil Pressure Switch (1982-1994 S10)
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket | $7.85 - $65.23 |
| New OEM (GM/ACDelco) | $45.00 - $140.00 |
| Shop Labor | $75 - $250 |
Note: Prices are estimates and can vary based on location, brand, and the specific engine in your S10. Labor costs can be higher for the 4.3L V6 due to the difficult location.
Frequently Asked Questions
Where is the oil pressure switch on my S10?
The location depends on your engine. On the 2.8L V6, it's typically on the driver's side of the engine block, near the oil filter. On the 4.3L V6, it is notoriously located at the back of the engine, next to the distributor, which can make it very difficult to reach.
Can I drive my S10 with a bad oil pressure switch?
It is not recommended. If the switch is faulty and giving a false low reading, you might be fine. However, if the switch has failed and there is a REAL oil pressure problem, you won't be warned, and you could destroy your engine. The safest option is to verify the pressure and replace the switch as soon as possible.
Do I need a special tool to replace the switch?
Yes, in most cases you will need a special deep socket designed for oil pressure sending units. The sensor's shape and plastic housing prevent a standard socket or wrench from fitting properly. These sockets are available at most auto parts stores.
My gauge reads zero but the engine sounds fine. What should I do?
This is a classic symptom of a failed switch. The engine sounds normal because it likely has good oil pressure. The first step is to confirm the actual pressure with a mechanical gauge. If the pressure is good, you just need to replace the sending unit, not perform major engine work.
Helpful Videos
Technical Specifications
OEM Part Numbers: 19244935 14073454 10201491 12553175
Varies by engine and year. Can be a 1-terminal or 3-terminal switch. Thread size and connector shape must match the original part. Some switches are for a warning light only, while others are variable resistors for a gauge.
