1983-1989 Ford Ranger A/C Clutch Cycle Switch Replacement Guide
If your Ranger's A/C isn't blowing cold or the compressor is acting up, the clutch cycle switch is a likely culprit and an easy fix.
- A bad A/C clutch cycle switch is a common cause for A/C failure in 1983-1989 Rangers.
- Symptoms include no cold air, a silent compressor, or a compressor that clicks on and off rapidly.
- Replacement is extremely easy and does not require discharging the A/C system due to a Schrader valve under the switch.
- Quality aftermarket brands like Four Seasons offer a reliable, cost-effective alternative to OEM Motorcraft parts.
Is Your Ranger's A/C Acting Up? It Could Be the Clutch Cycle Switch.

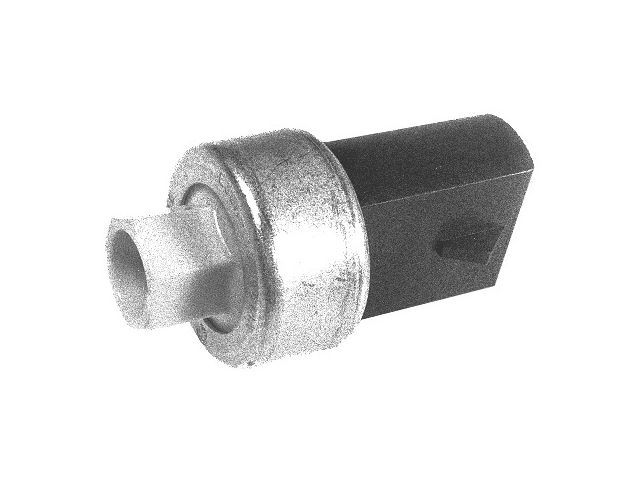

If the air conditioning in your 1983-1989 Ford Ranger isn't what it used to be, a small, inexpensive sensor called the A/C clutch cycle switch could be the problem. This part is a common failure point in many A/C systems, but the good news is that it's usually easy to diagnose and replace.
Symptoms of a Failing A/C Clutch Cycle Switch
When this switch goes bad, it can cause a few distinct problems. You might notice one or more of the following issues 🎬 Watch this guide on identifying common bad AC pressure switch symptoms. with your truck's A/C:
- A/C Blows Warm or Not Cold Enough: The most common symptom is a lack of cooling. If the switch fails, it may not allow the compressor to turn on, so the refrigerant never circulates to cool the air.
- Compressor Won't Turn On: The switch is designed to prevent the compressor from running if refrigerant pressure is too low. If the switch is broken, it might incorrectly read the pressure as low and never send the signal for the clutch to engage.
- Compressor Cycles On and Off Rapidly: You might hear a frequent clicking sound from the engine bay as the A/C clutch engages and disengages too quickly. This can happen if the switch is faulty or if the system is low on refrigerant.
- A/C Works at High RPM, but Not at Idle: Some owners report that their A/C cools while driving but blows warm at a stoplight. This can sometimes be related to the cycling switch's performance at different engine speeds and system pressures.
Pro Tip: Quick Diagnosis
You can perform a simple test to see if the switch is the problem. Locate the switch on the A/C accumulator (a metal can on the low-pressure A/C line). Unplug its two-wire connector and use a small jumper wire or paperclip to connect the two terminals in the harness plug. With the engine running and A/C on, the compressor clutch should immediately engage. If it does, you've likely found your problem: a bad clutch cycle switch. Do not leave the jumper in place for more than a few seconds, as this bypasses the system's safety features.
🎬 See a step-by-step demonstration of how to test the cycling switch.Choosing the Right Aftermarket Switch
For a vehicle like the 1983-1989 Ranger, you have several good options without needing to pay a premium for a dealer part. Here's a breakdown of the available brands:
- Motorcraft: This is Ford's official parts brand and the original equipment (OEM) supplier. It guarantees a perfect fit and function, just like the part your truck was built with. While it's the most expensive option, it's the benchmark for quality.
- Four Seasons (Standard Motor Products): Four Seasons is a major, well-respected aftermarket manufacturer of climate control parts. They are often considered a high-quality alternative to OEM, providing reliable performance at a lower cost. Some forum users have even found that Four Seasons parts are identical to Motorcraft parts, just in a different box.
- Global Parts Distributors (GPD): GPD is another aftermarket brand that often falls into the economy or value category. While they provide a cost-effective solution, some user reviews suggest their long-term durability can be a gamble compared to Motorcraft or Four Seasons.
| Part Type | Estimated Price Range |
|---|---|
| New Aftermarket (Four Seasons, GPD, etc.) | $14.90 - $48.77 |
| New OEM (Motorcraft) | $30.00 - $60.00 |
Important: Check for a Schrader Valve!
Most Ford A/C systems from this era, including the Ranger, have a Schrader valve (like the valve on your tires) on the port where the cycling switch screws on. This is a huge advantage because it allows you to unscrew the old switch and install a new one without losing refrigerant or needing to evacuate the system. When you remove the old switch, a tiny puff of refrigerant may escape, but the valve will seal the system.
Frequently Asked Questions (FAQ)
Can I replace the A/C clutch cycle switch myself?
Yes, this is a very DIY-friendly job. It typically requires only a basic wrench to unscrew the old switch. You disconnect the electrical plug, unscrew the switch, screw the new one on, and reconnect the plug. The entire process can take less than 15 minutes.
🎬 Watch how quickly you can swap out a Ford pressure switch.Do I need to drain the refrigerant (Freon) to change the switch?
No, in most cases you do not. The switch is mounted on a Schrader valve that seals the system when the switch is removed. You can replace it without needing any special A/C service equipment.
Where is the A/C clutch cycle switch located on my Ranger?
Look for the A/C accumulator. This is a metal canister, usually black or silver, that is part of the A/C lines near the firewall on the passenger side of the engine bay. The clutch cycling switch is a small sensor with a two-wire electrical connector screwed into the top of it.
What's the difference between a cycling switch and a high-pressure switch?
The cycling switch is on the low-pressure side of the system and controls the normal on/off operation of the compressor to regulate temperature. A high-pressure cutout switch, which is a separate sensor, is a safety device on the high-pressure side that shuts off the compressor if pressure gets dangerously high, preventing damage.
Are there any recalls or TSBs for this part?
Searches of the National Highway Traffic Safety Administration (NHTSA) database and for Technical Service Bulletins (TSBs) did not show any specific recalls or widespread issues for the A/C clutch cycle switch on the 1983-1989 Ford Ranger. A general TSB from 1989 exists, advising technicians to properly diagnose low refrigerant levels before replacing the switch unnecessarily.
Helpful Videos
Technical Specifications
OEM Part Numbers: E2AZ12A648A E2HT14806A F3AZ19E561A YH552
Connector: 2-Terminal Male. Location: A/C Accumulator (Low-Pressure Side).
